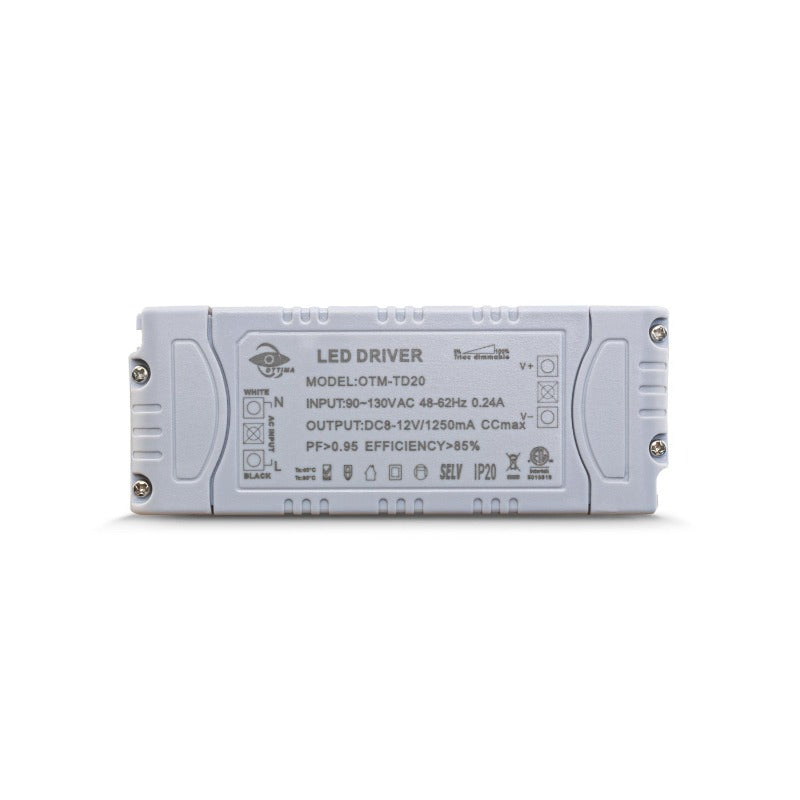

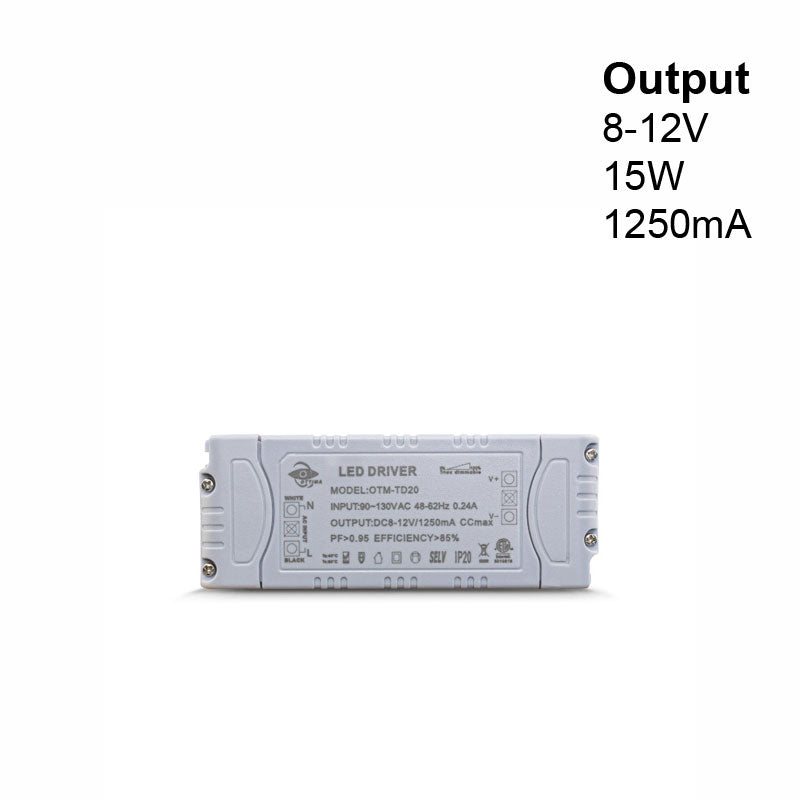

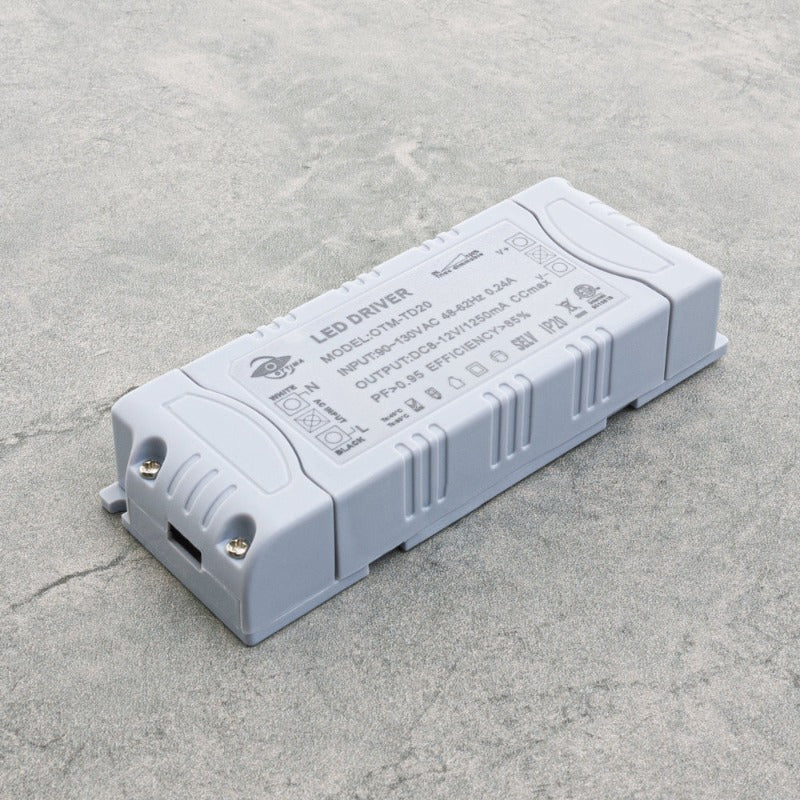

OTTIMA OTM-TD20 Constant Current LED Driver, 1250mA 8-12V 15W

OTTIMA OTM-TD20 Constant Current LED Driver, 1250mA 8-12V 15W

SKU:666561424893

$49.00 CAD
$49.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

 Product Description

Product Constant Current LED Driver
Model OTM-TD20
Input Voltage 90-130V AC
Input Current 0.24A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 1250mA
Output Power 15W
Output Voltage 8-12V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)

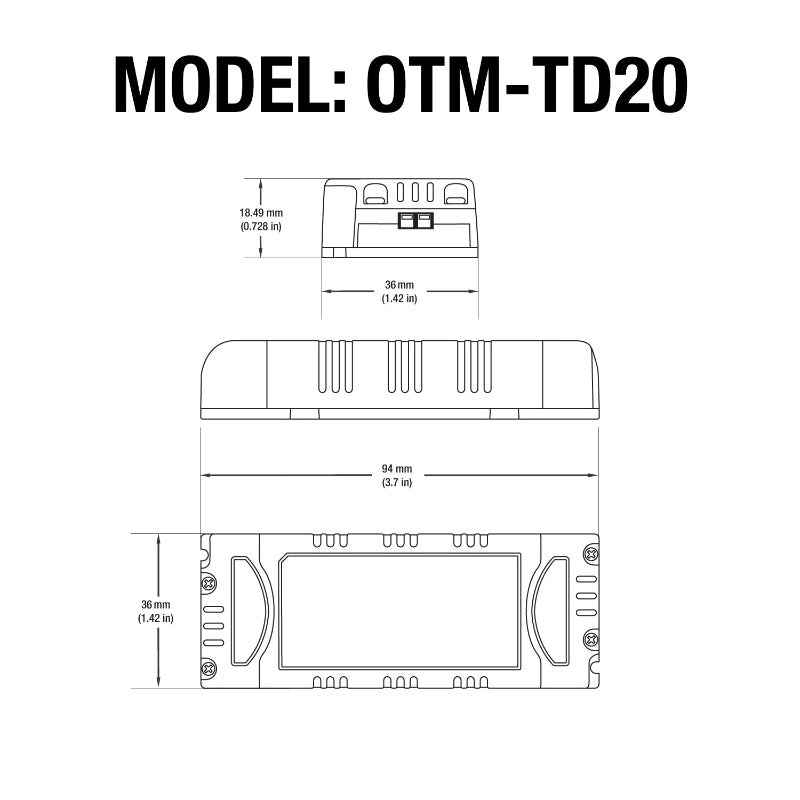

Dimensions 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification Class II
Certification



The OTTIMA OTM-TD20 is a Constant Current LED Driver designed to power LED lights with a regulated output current of 1250mA and output power of 15W. It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz. The driver has a high power factor of PF>0.95 and efficiency of over 85%. It is also dimmable using Triac dimming technology.

The output voltage range of the OTM-TD20 driver is 8-12V DC. The ambient temperature rating is 40°C and the case temperature rating is 90°C. The driver is designed for indoor use only and has an IP20 rating. The dimensions of the driver are 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) and it has a Class II certification.

Features:

  • The OTTIMA OTM-TD20 is a Constant Current LED Driver designed to power LED lights with a regulated output current of 1250mA and output power of 15W.
  • The driver has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz.
  • The driver has a high power factor of PF>0.95 and efficiency of over 85%.
  • The driver is dimmable using Triac dimming technology.
  • The output voltage range of the OTM-TD20 driver is 8-12V DC.
  • The ambient temperature rating of the driver is 40°C and the case temperature rating is 90°C.
  • The driver is designed for indoor use only and has an IP20 rating.
View full details
