OTTIMA OTM-TD9 Constant Current LED Driver, 190mA 24-48V 9W
OTTIMA OTM-TD9 Constant Current LED Driver, 190mA 24-48V 9W
SKU: SKU:666561424855
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
 Product DescriptionÂ
Product | Constant Current LED Driver |
Model | OTM-TD9 |
Input Voltage | 90-130V AC |
Input Current | 0.1A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 190mA |
Output max Power | 9W |
Output Max Voltage | 24-48V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

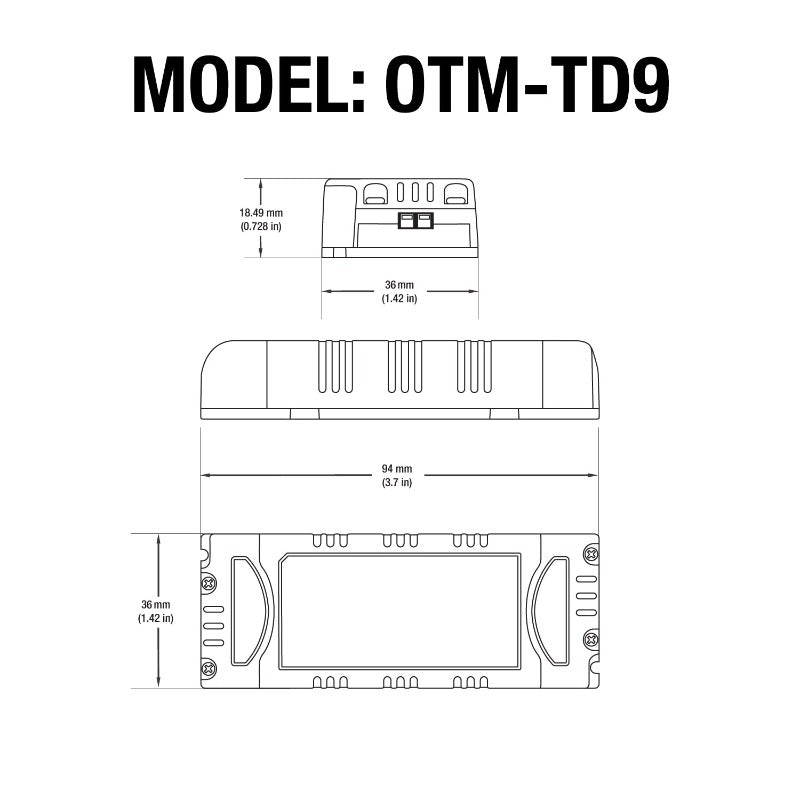

Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
Class Certification | Class II |
Certification |
Â
|
Â

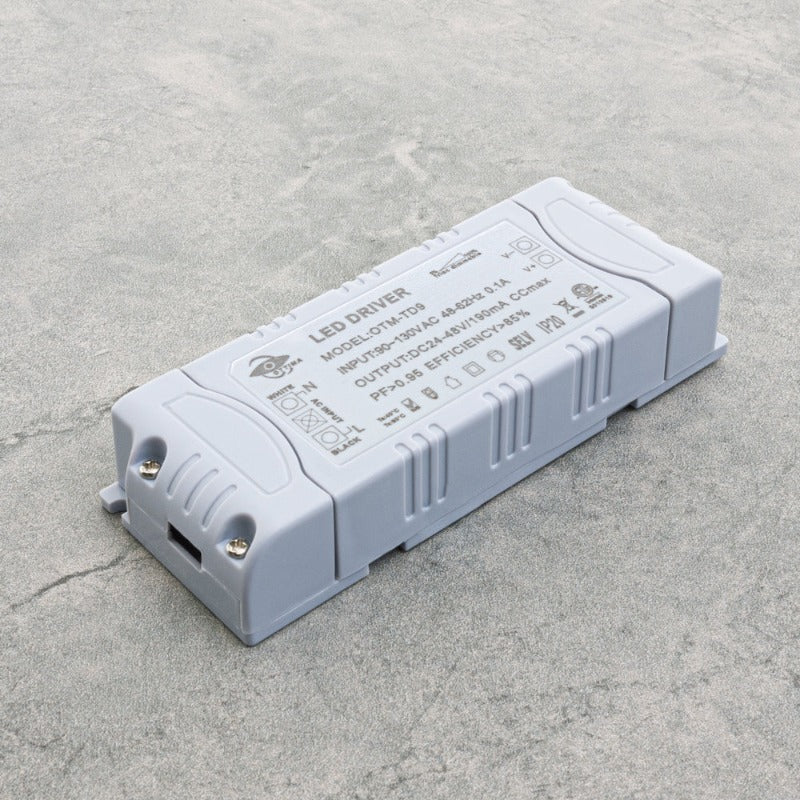

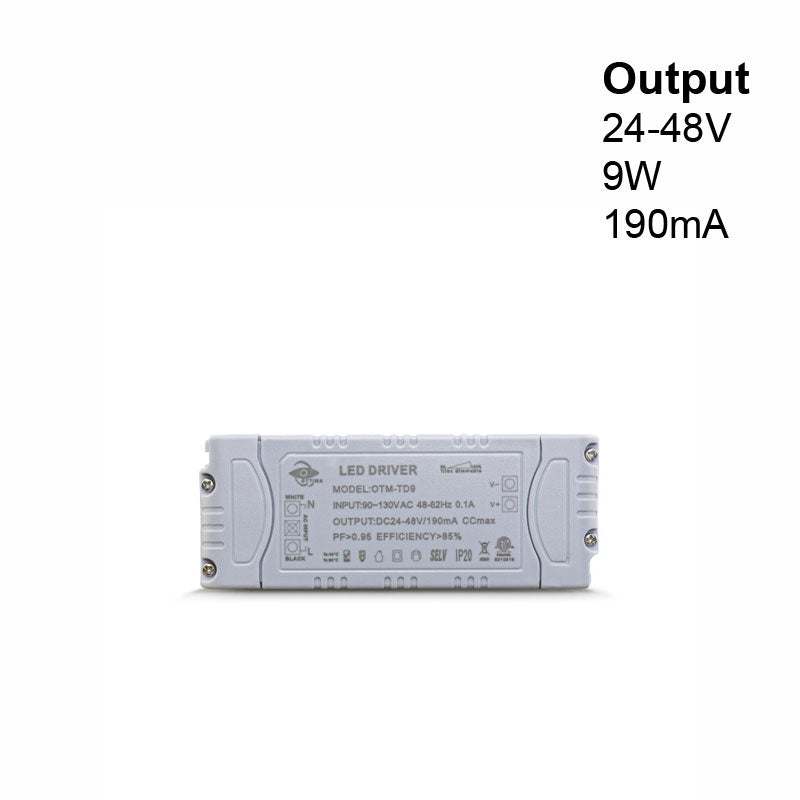

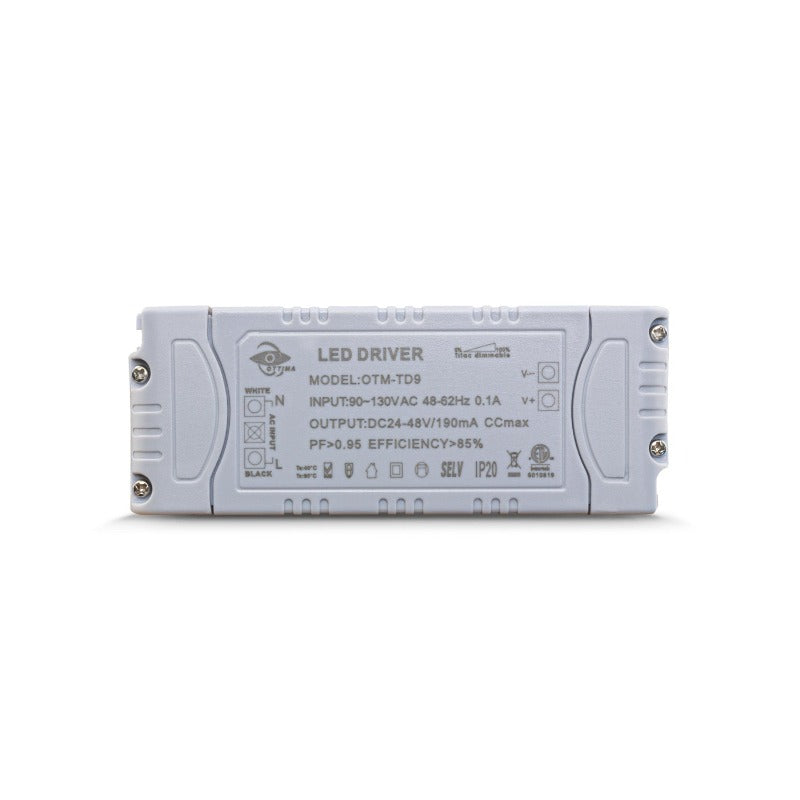

The OTTIMA OTM-TD9 Constant Current LED Driver is an electronic device that supplies a regulated constant current to LED lights. The model number of this driver is OTM-TD9. It has an input voltage range of 90-130V AC with an input current of 0.1A and a frequency range of 48-62Hz. It has a high power factor (PF) of greater than 0.95, which means it is highly efficient in converting the input power to output power. The efficiency of this LED driver is greater than 85%.
The output regulated current of this LED driver is 190mA, and its maximum output power is 9W. The maximum voltage range of the output is 24-48V DC. It is dimmable with Triac Dimming, which allows for control of the brightness of the LED lights. The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
Features:
- The OTTIMA OTM-TD9 Constant Current LED Driver is an electronic device that regulates the current to LED lights
- Model number: OTM-TD9, input voltage range: 90-130V AC, input current: 0.1A, frequency range: 48-62Hz
- High power factor (PF) > 0.95, efficiency > 85%
- Output regulated current: 190mA, maximum output power: 9W, maximum voltage range: 24-48V DC
- Dimmable with Triac Dimming
- Ambient temperature (Ta): 40°C, case temperature (Tc): 90°C
- IP20 rated for indoor use only
- Compact size: 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
- Class II certified for double insulation, no grounding wire required
- Reliable and efficient for powering LED lights in indoor settings.
