OTTIMA OTM-TD9 Constant Current LED Driver, 220mA 21-42V 9W

OTTIMA OTM-TD9 Constant Current LED Driver, 220mA 21-42V 9W

SKU: SKU:666561424848

Regular price $37.80 CAD
Regular price Sale price $37.80 CAD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

 Product Description

Product Constant Current LED Driver
Model OTM-TD9
Input Voltage 90-130V AC
Input Current 0.1 A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 220mA
Output max Power 9W
Output Max Voltage 21-42V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)

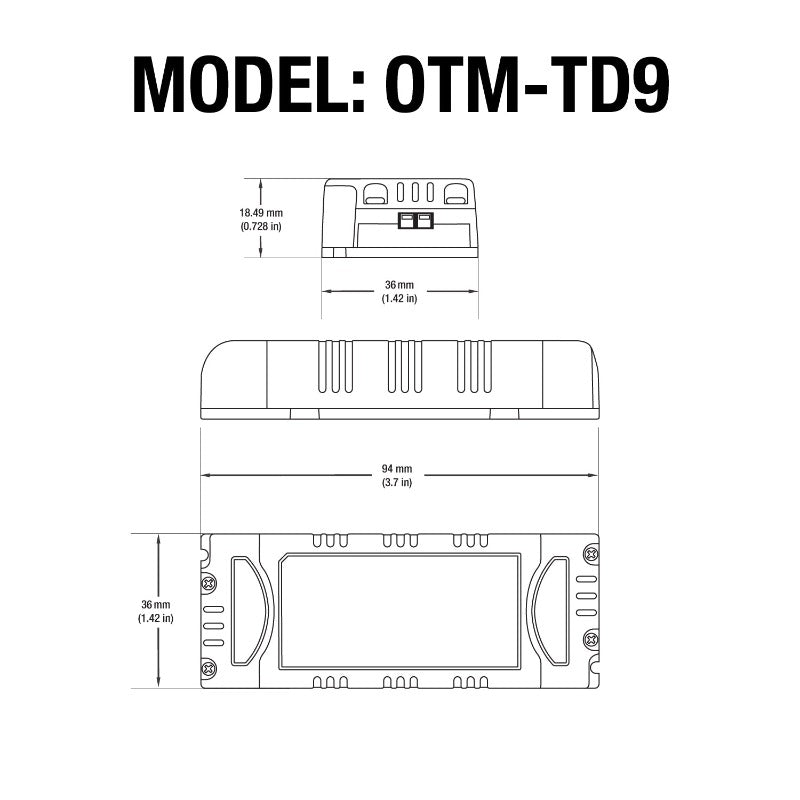

Dimensions 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification Class II
Certification




The Ottima OTM-TD9 is a constant current LED driver that provides a regulated current output of 220mA with a maximum output power of 9W. It has an input voltage range of 90-130V AC with an input current of 0.1A and an input frequency of 48-62Hz. The driver has a high power factor of PF>0.95 and an efficiency of >85%, ensuring energy efficiency and stable performance.

The OTM-TD9 is suitable for use with LEDs that require an output voltage range of 21-42V DC. It is also dimmable, allowing for easy control of LED light levels using Triac dimming. The driver has an ambient temperature range of up to 40°C and a case temperature of up to 90°C.

Features:

  • The Ottima OTM-TD9 is a constant current LED driver
  • It provides a regulated current output of 220mA with a maximum output power of 9W
  • Input voltage range: 90-130V AC, input current: 0.1A, input frequency: 48-62Hz
  • High power factor of PF>0.95 and an efficiency of >85%
  • Suitable for use with LEDs that require an output voltage range of 21-42V DC
  • Dimmable with Triac dimming
  • Ambient temperature range of up to 40°C and a case temperature of up to 90°C
  • IP20 rated for indoor use only
  • Compact dimensions of 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
  • Class II certified for double insulation between primary and secondary circuits, ensuring safety
  • Suitable for use in indoor lighting, commercial lighting, and architectural lighting applications.
