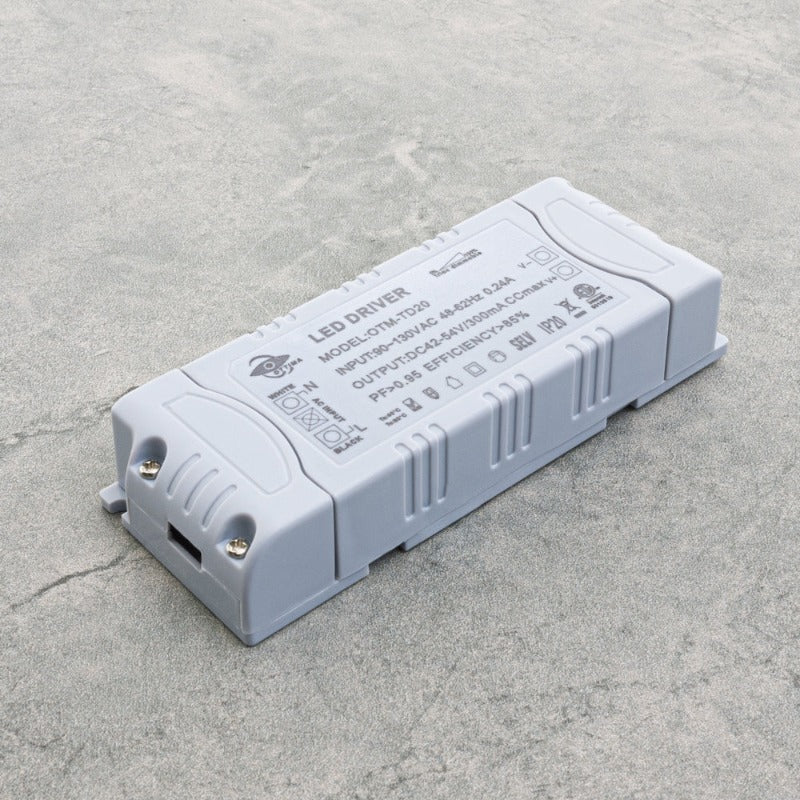

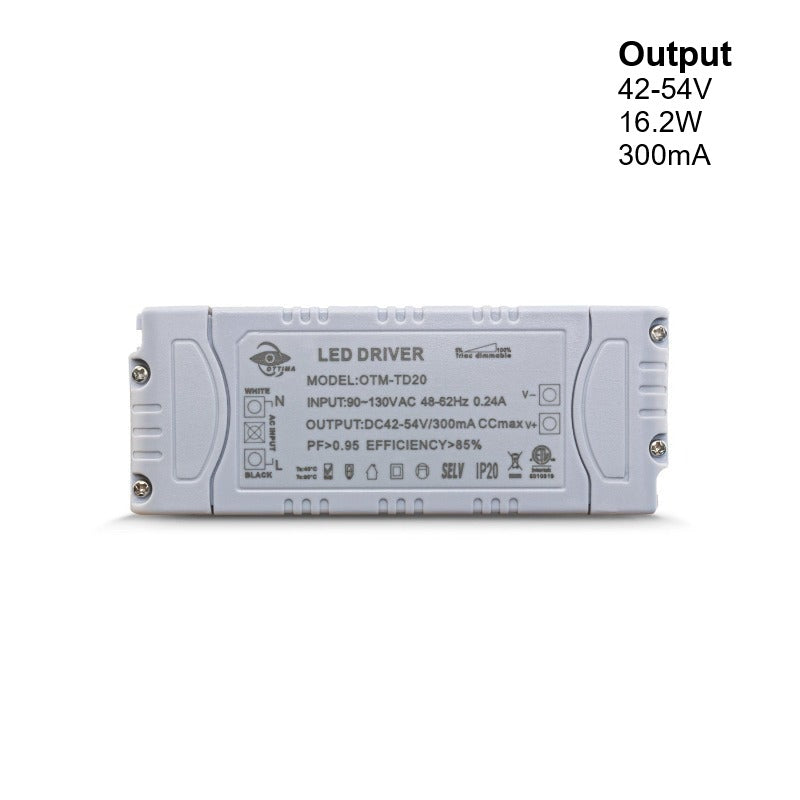

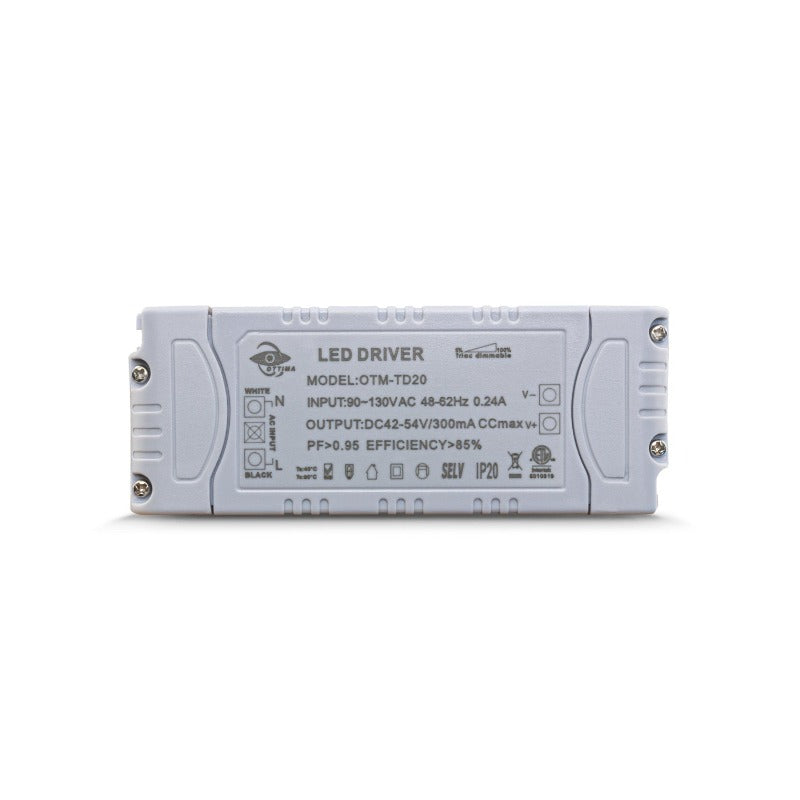

OTTIMA OTM-TD20 Constant Current LED Driver, 300mA 42-54V 16.2W

OTTIMA OTM-TD20 Constant Current LED Driver, 300mA 42-54V 16.2W

Ask Question!

SKU:666561425029

$41.75 CAD
$41.75 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Product Constant Current LED Driver
Model OTM-TD20
Input Voltage 90-130V AC
Input Current 0.24A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 300mA
Output Power 16.2W
Output Voltage 42-54V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)
Weight 0.08 kg

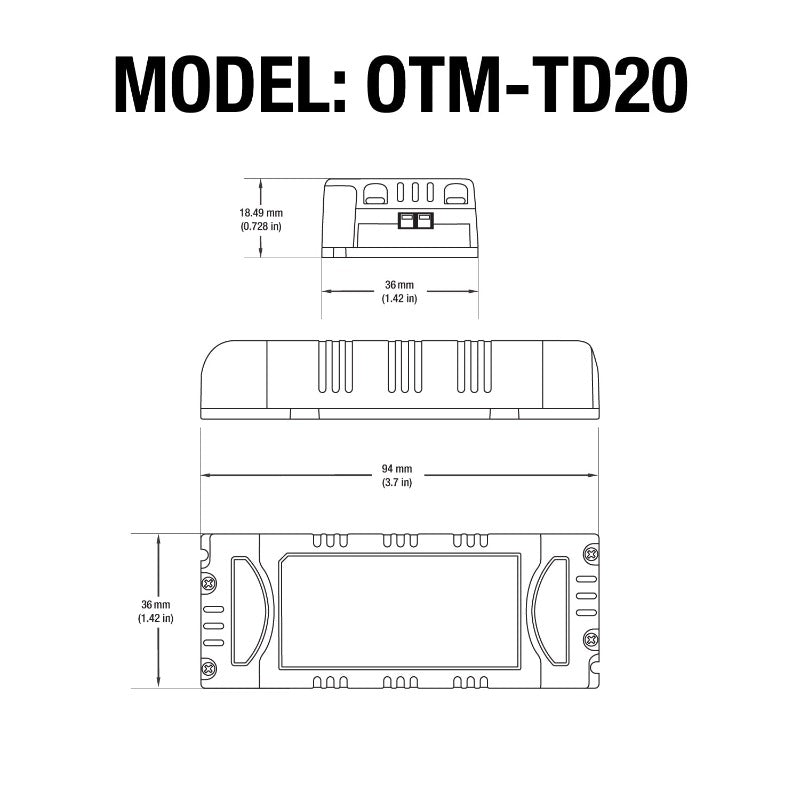

Dimensions 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification Class II
Certification




Features:

  • The OTTIMA OTM-TD20 is a Constant Current LED Driver designed for powering LED lighting systems with a regulated current of 300mA.
  • It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz, making it compatible with standard electrical systems.
  • The driver has a high power factor (PF>0.95) and efficiency rating (>85%), indicating high efficiency in converting electrical power into LED light output.
  • The maximum output power is 16.2W, and the output voltage range is 42-54V DC.
  • It is compatible with Triac dimming, allowing for adjustable brightness control.
  • The driver is designed for indoor use only, with an IP20 rating for protection against solid objects greater than 12.5mm in diameter.
