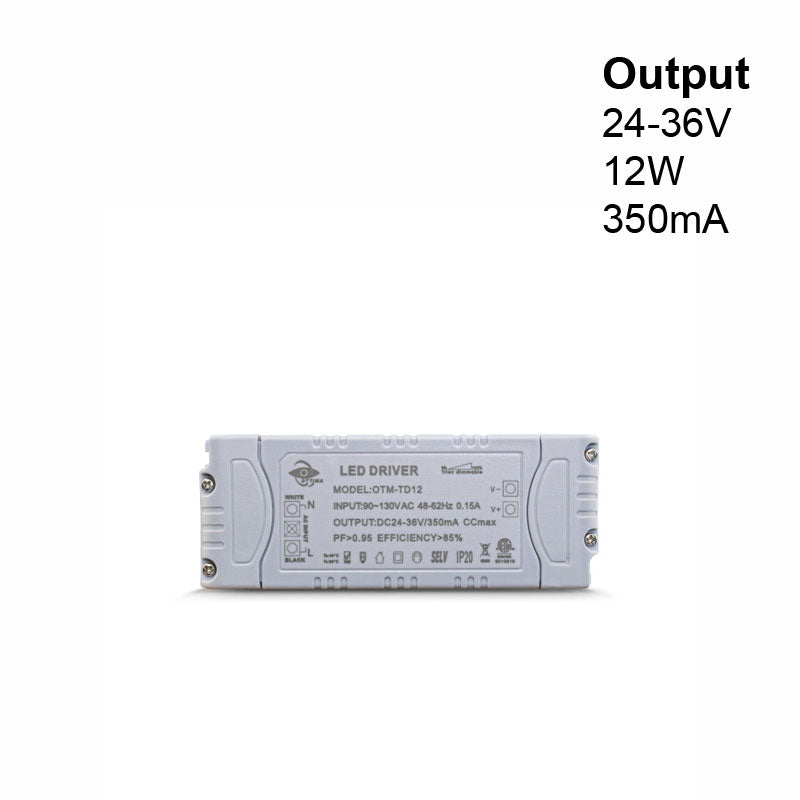

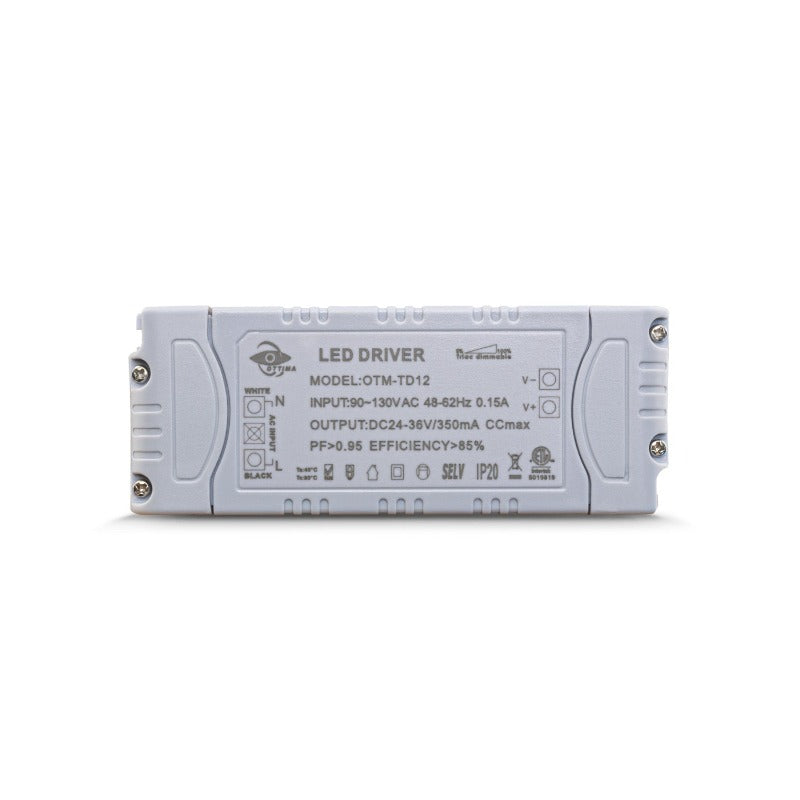

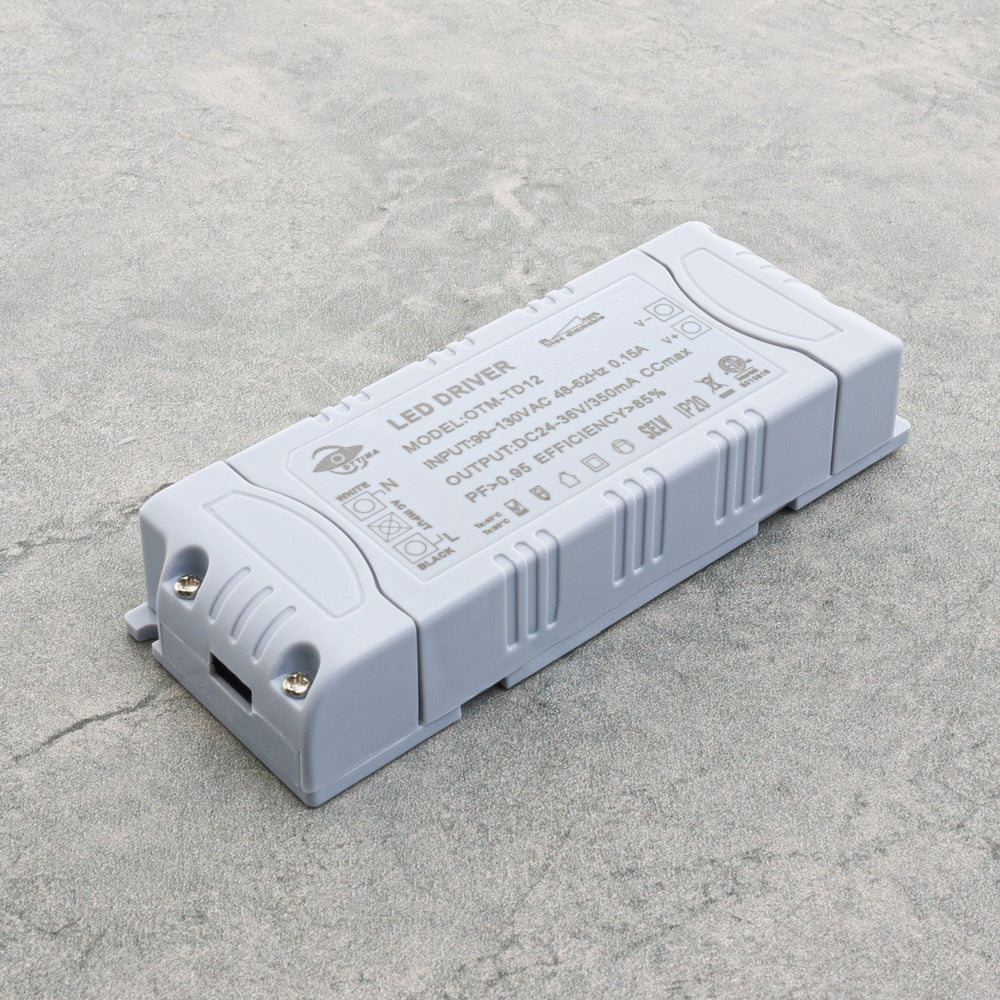

OTTIMA OTM-TD12 Constant Current LED Driver, 350mA 24-36V 12W

OTTIMA OTM-TD12 Constant Current LED Driver, 350mA 24-36V 12W

SKU:666561424886

$43.40 CAD
$43.40 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Constant Current LED Driver
Model OTM-TD12
Input Voltage 90-130V AC
Input Current 0.15A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 350mA
Output Power 12W
Output Voltage 24-36V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)

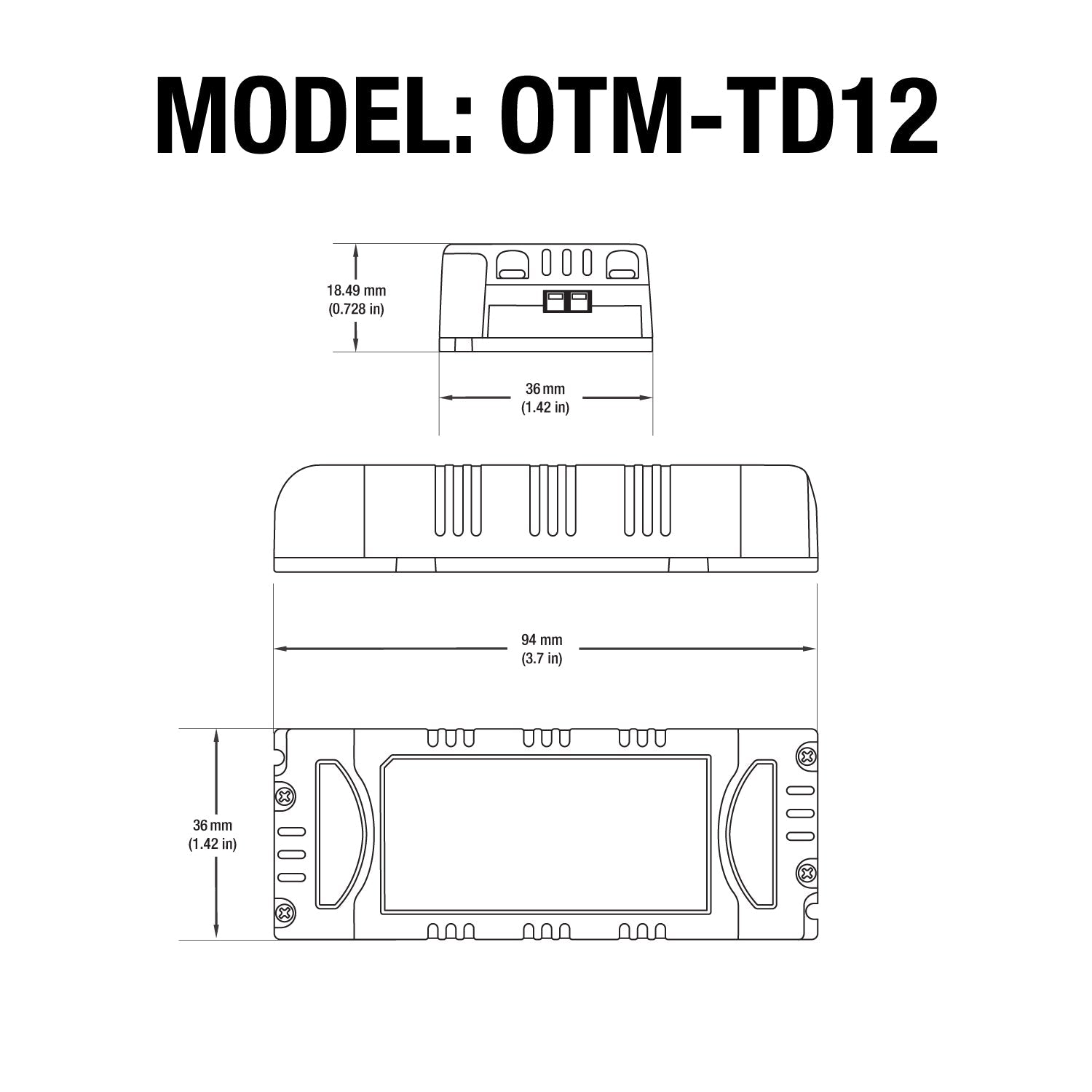

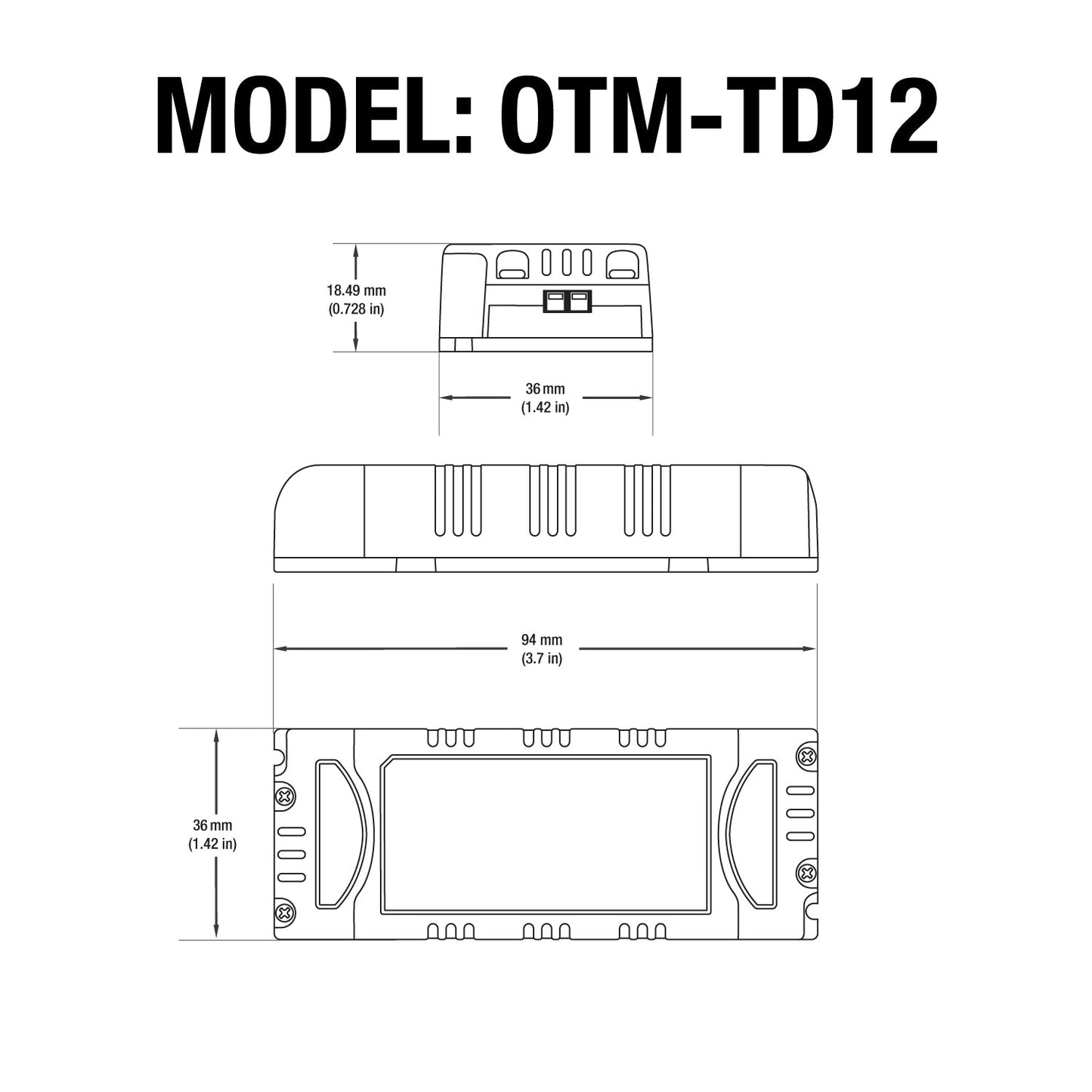

Dimensions 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification Class II
Certification




The OTTIMA OTM-TD12 Constant Current LED Driver is an electronic device that supplies a regulated constant current to LED lights. The model number of this driver is OTM-TD12. It has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz. It has a high power factor (PF) of greater than 0.95, which means it is highly efficient in converting the input power to output power. The efficiency of this LED driver is greater than 85%.

The output regulated current of this LED driver is 350mA, and its output power is 12W. The output voltage range is 24-36V DC. It is dimmable with Triac Dimming, which allows for control of the brightness of the LED lights. The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.

Features:

  • The OTTIMA OTM-TD12 Constant Current LED Driver supplies a regulated constant current to LED lights.
  • The model number of the LED driver is OTM-TD12.
  • The LED driver has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz.
  • The LED driver has a high power factor (PF) of greater than 0.95 and an efficiency greater than 85%.
  • The LED driver has an output regulated current of 350mA and an output power of 12W with an output voltage range of 24-36V DC.
  • The LED driver is dimmable with Triac Dimming, allowing for control of the brightness of the LED lights.
  • The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
  • The LED driver is rated IP20 and is suitable for indoor use only.
  • The LED driver has double insulation and does not require a grounding wire.
