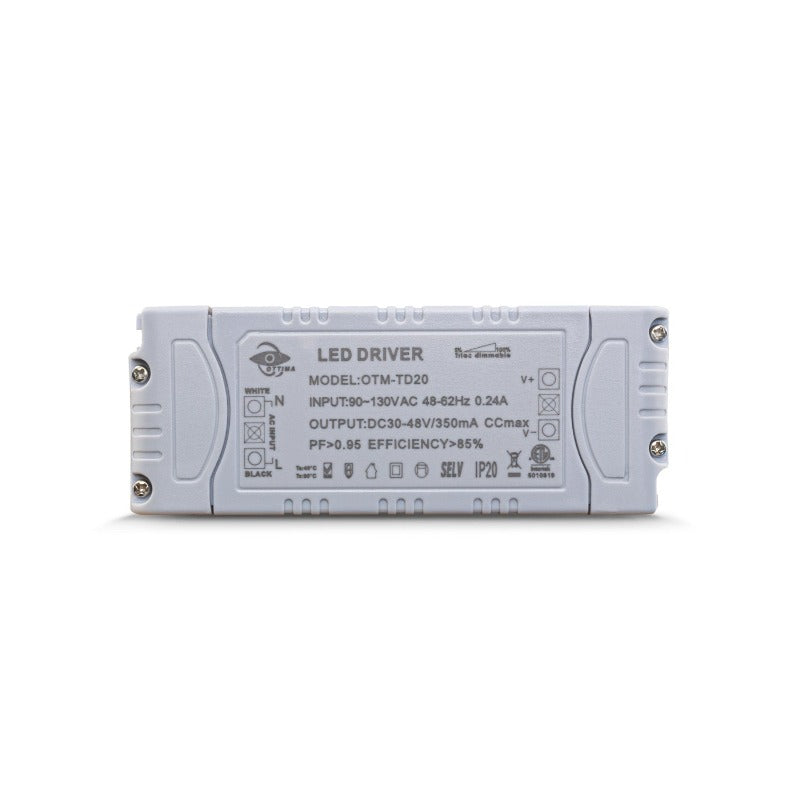

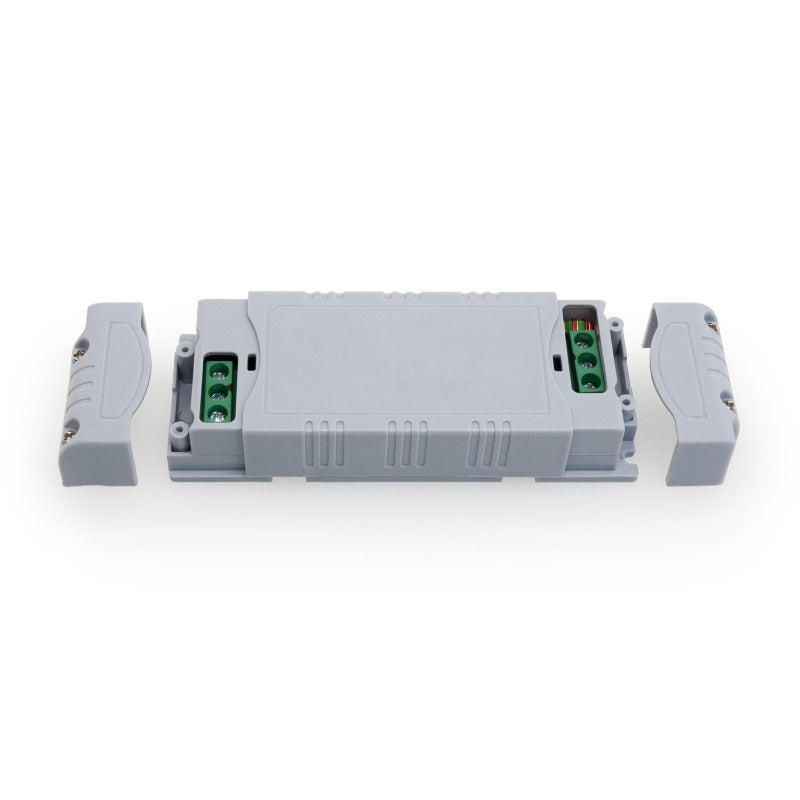

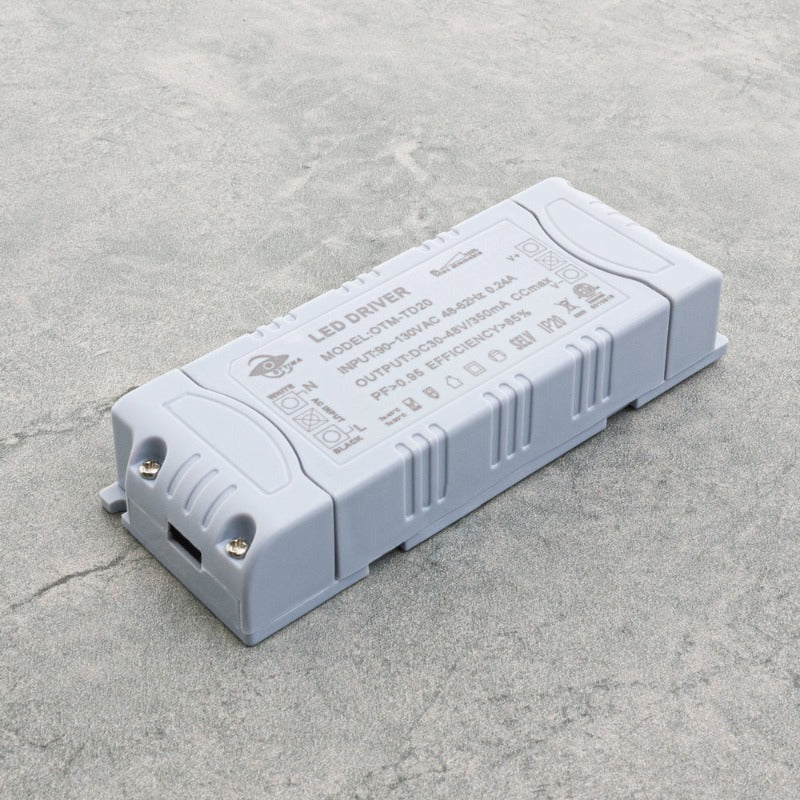

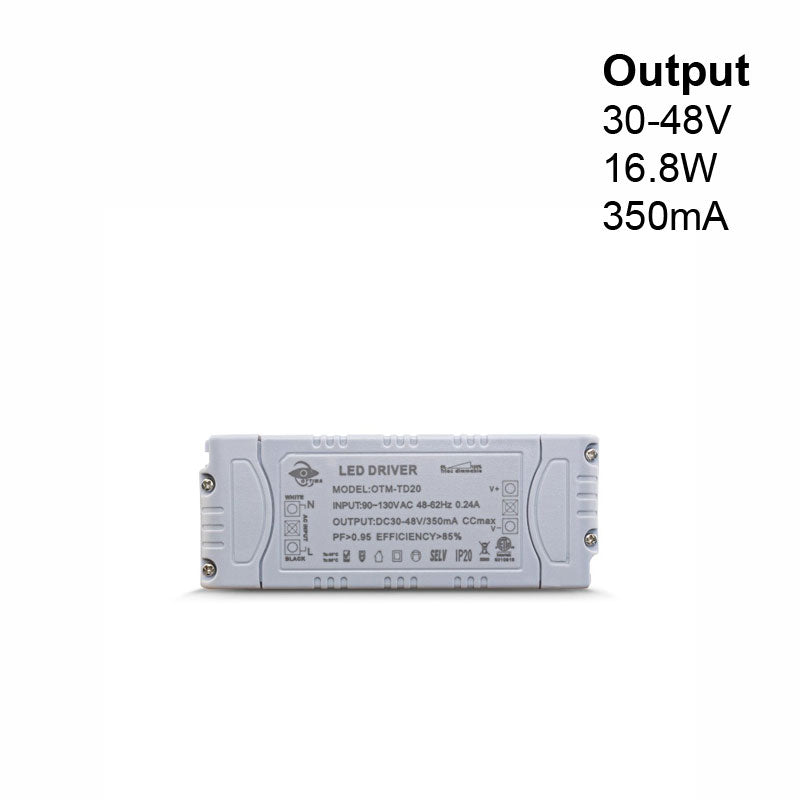

OTTIMA OTM-TD20 Constant Current LED Driver, 350mA 30-48V 16.8W
OTTIMA OTM-TD20 Constant Current LED Driver, 350mA 30-48V 16.8W
SKU: SKU:666561424930
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
Important Note:Â
We will ship your order using a different courier during the Canada Post strike
 How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Product DescriptionÂ
Product | Constant Current LED Driver |
Model | OTM-TD20 |
Input Voltage | 90-130V AC |
Input Current | 0.24A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 350mA |
Output Power | 16.8W |
Output Voltage | 30-48V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

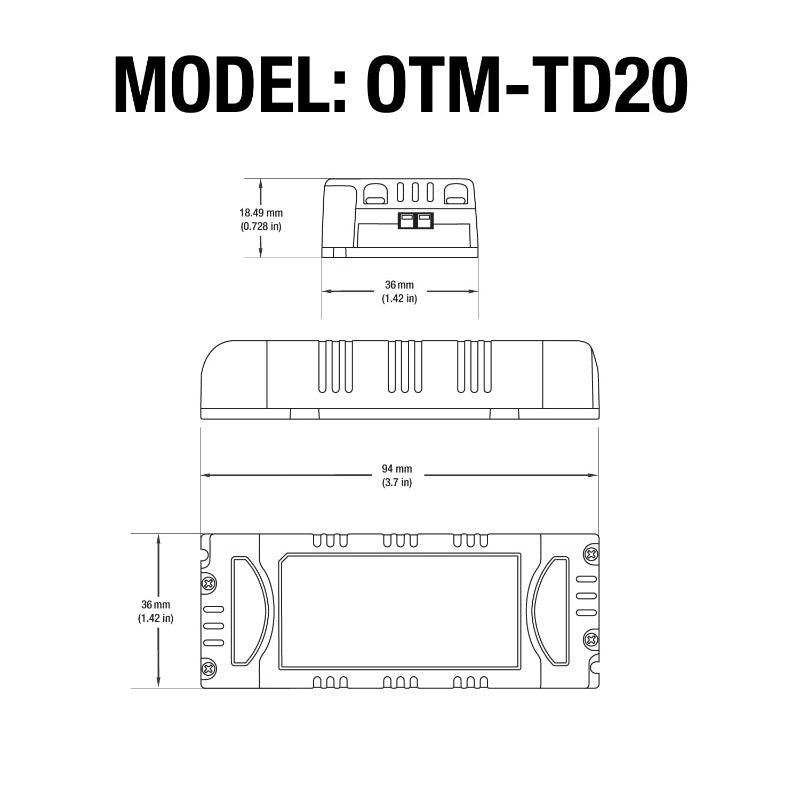

Dimensions | 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in) |
Class Certification | Class II |
Certification |
|
Â
The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating. It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz. The power factor is greater than 0.95 and efficiency is greater than 85%.
The driver is capable of providing a regulated output current of 350mA and maximum power of 16.8W. The output voltage range is 30-48V DC. It is dimmable with Triac Dimming, which allows the user to adjust the light intensity.
Features:
- The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating.
- It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz.
- The power factor is greater than 0.95 and efficiency is greater than 85%.
- The driver can provide a regulated output current of 350mA and maximum power of 16.8W.
- The output voltage range is 30-48V DC, and it is dimmable with Triac Dimming, which allows the user to adjust the light intensity.
- The driver has a maximum ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
- Its dimensions are 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in).
- It is classified as Class II, which means it has two layers of insulation protection.
- The OTM-TD20 is a compact and efficient LED driver that can provide constant current output to power LED lights while offering dimming capabilities.
