Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD9 |
| Input Voltage | 90-130V AC |
| Input Current | 0.1A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 375mA |
| Output max Power | 9W |
| Output Max Voltage | 13-24V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| Weight | 0.08 kg |
| IP Rating | IP20 (Indoor use only) |

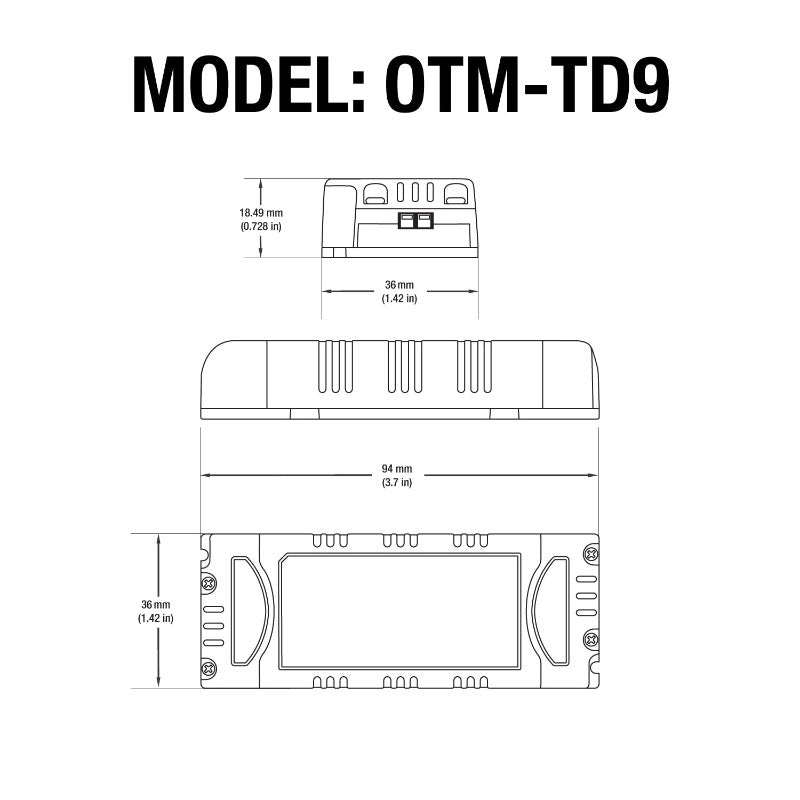

| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
Features:
- The Ottima OTM-TD9 is a constant current LED driver that provides a regulated current output of 375mA with a maximum output power of 9W.
- It has an input voltage range of 90-130V AC with an input current of 0.1A and an input frequency of 48-62Hz.
- The driver has a high power factor of PF>0.95 and an efficiency of >85%, which ensures energy efficiency and stable performance.
- The OTM-TD9 is suitable for use with LEDs that require an output voltage range of 13-24V DC.
- It is also dimmable, allowing for easy control of LED light levels using Triac dimming.
- The driver has an ambient temperature range of up to 40°C and a case temperature of up to 90°C.
- The OTM-TD9 has an IP20 rating, making it suitable for indoor use only.
- The driver is compact, with dimensions of 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in), and it is easy to install in a variety of lighting applications.
- This LED driver is Class II certified, ensuring a high level of safety in use.
- The OTM-TD9 is suitable for use in a wide range of LED lighting applications, including indoor lighting, commercial lighting, and architectural lighting.
