Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD12 |
| Input Voltage | 90-130V AC |
| Input Current | 0.15A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 700mA |
| Output Power | 12W |
| Output Voltage | 12-18V DC |
| Dimmable | Yes (Triac Dimming) |
| Weight | 0.08 kg |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |

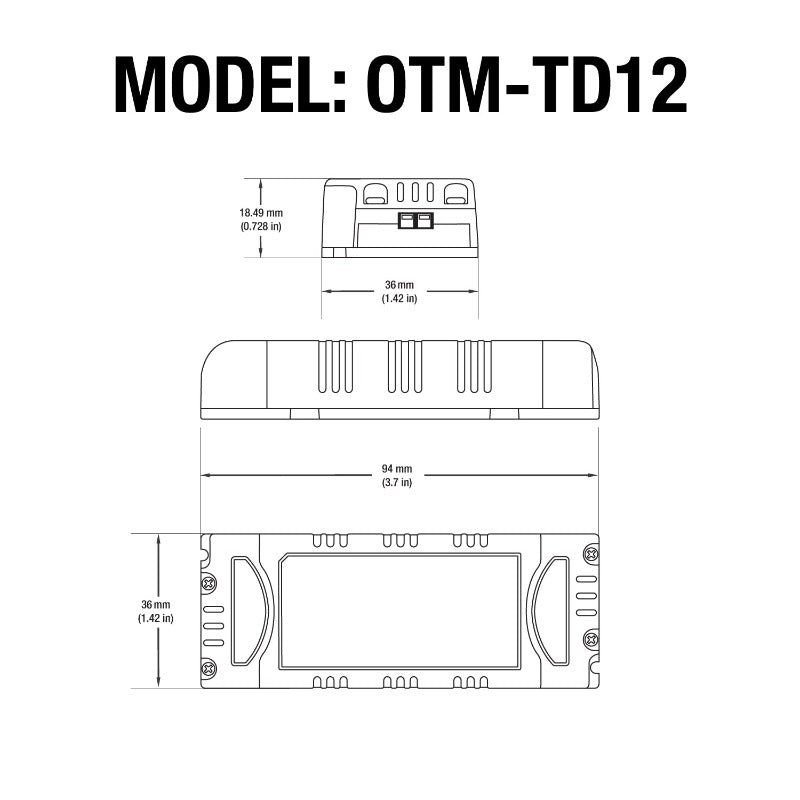

| Dimensions | 94 x 36 x18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
Features:

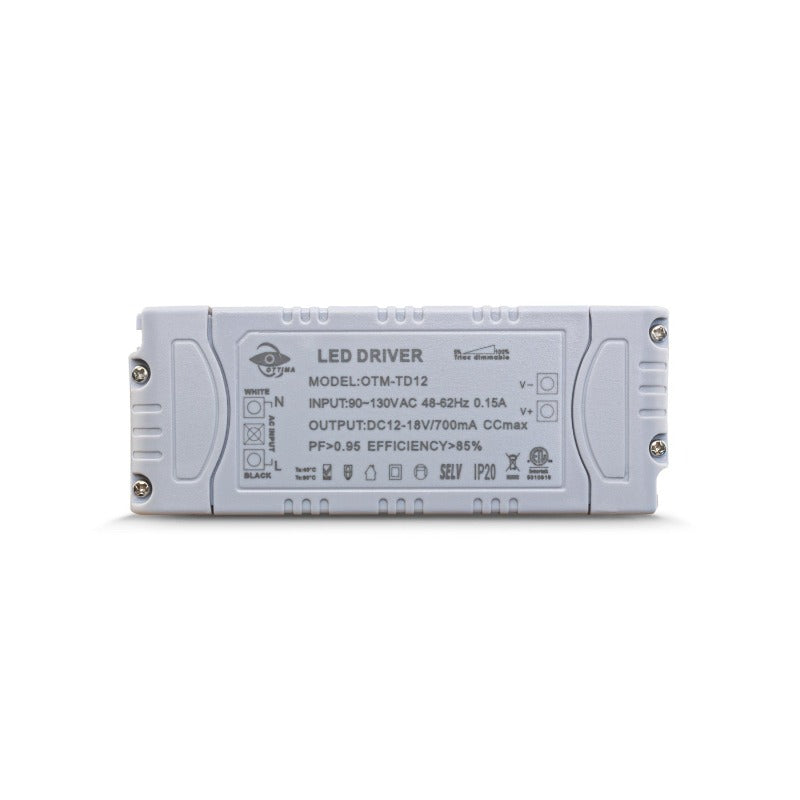

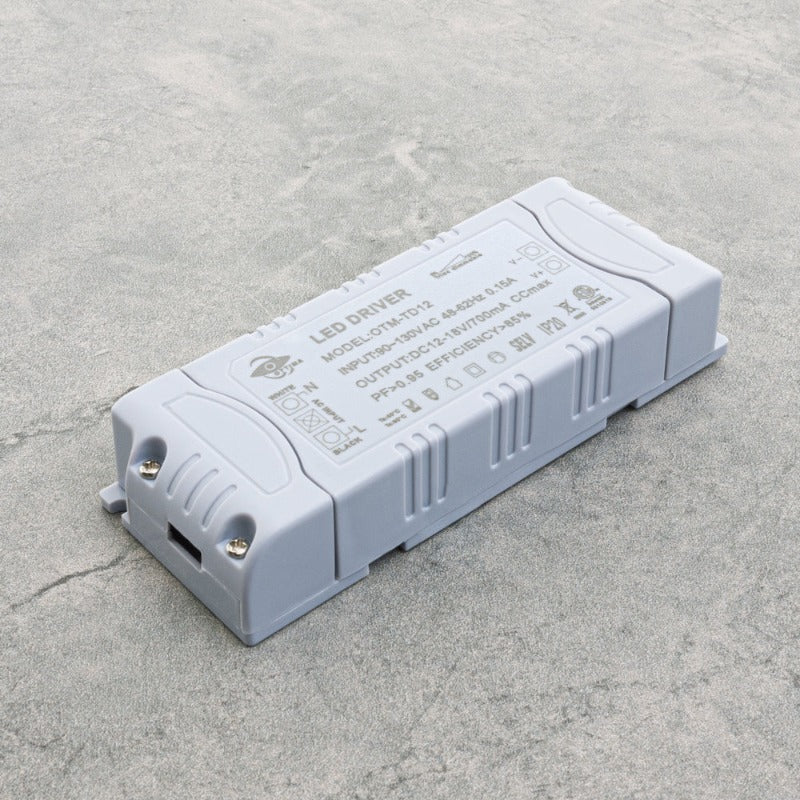

- The OTTIMA OTM-TD12 Constant Current LED Driver supplies a regulated constant current to LED lights.
- The model number of the LED driver is OTM-TD12.
- The LED driver has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz.
- The LED driver has a high power factor (PF) of greater than 0.95 and an efficiency greater than 85%.

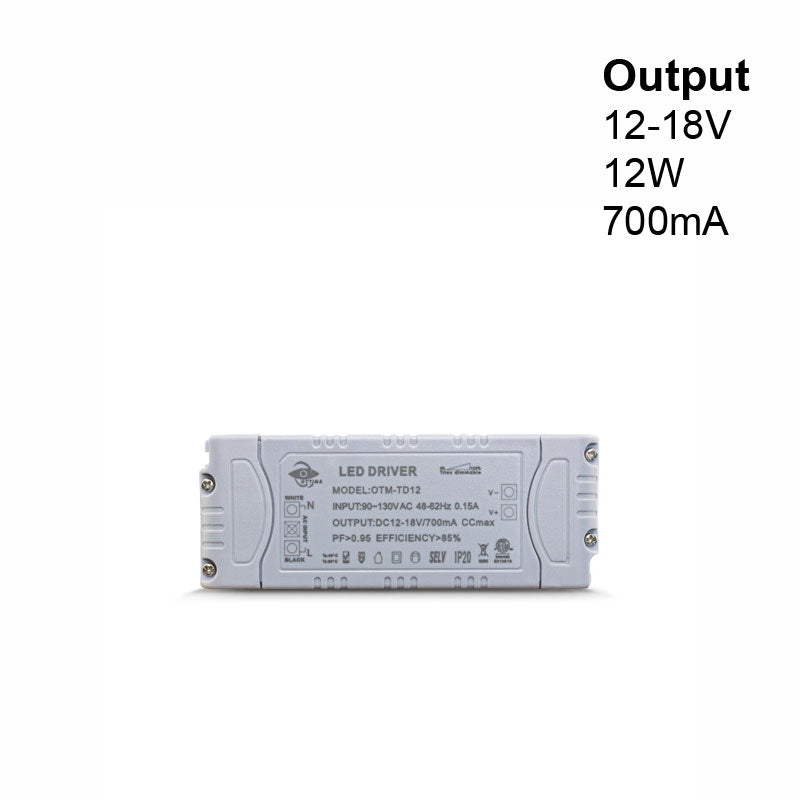

- The LED driver has an output regulated current of 700mA and an output power of 12W with an output voltage range of 12-18V DC.
- The LED driver is dimmable with Triac Dimming, allowing for control of the brightness of the LED lights.
- The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
- The LED driver is rated IP20 and is suitable for indoor use only.
- The LED driver has dimensions of 94x36x18.5 mm (3.7 x 1.42 x 0.72 in) and is certified as Class II.
- The LED driver has double insulation and does not require a grounding wire.
