OTTIMA OTM-TD20 Constant Current LED Driver 820mA 12-18V 14.7W

OTTIMA OTM-TD20 Constant Current LED Driver 820mA 12-18V 14.7W

SKU:666561424985

$49.00 CAD
$49.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Constant Current LED Driver
Model OTM-TD20
Input Voltage 90-130V AC
Input Current 0.24A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 820mA
Output Power 14.7W
Output Voltage 12-18V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)

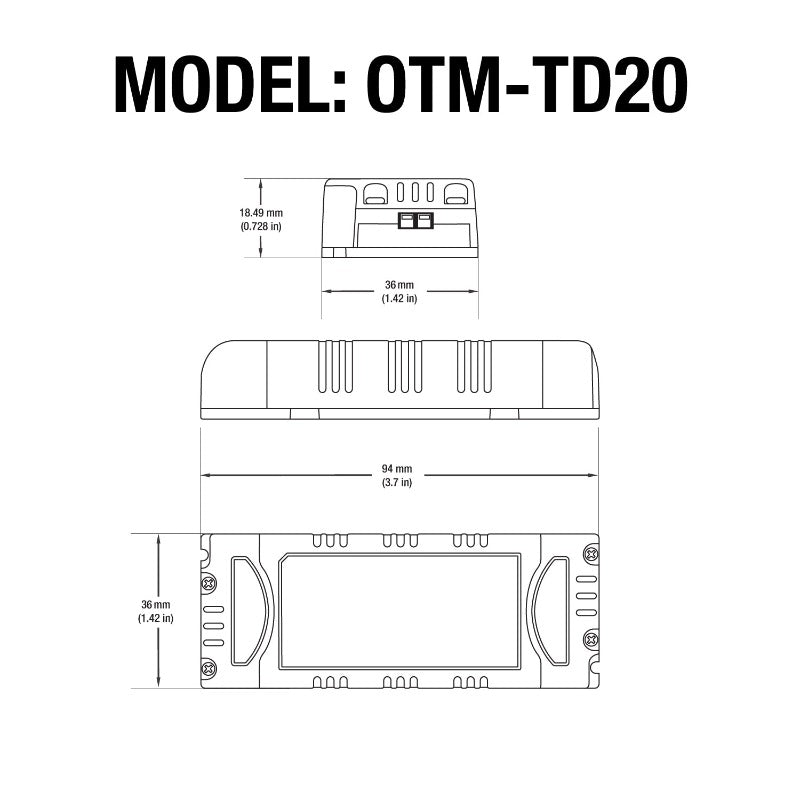

Dimensions 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification Class II
Certification

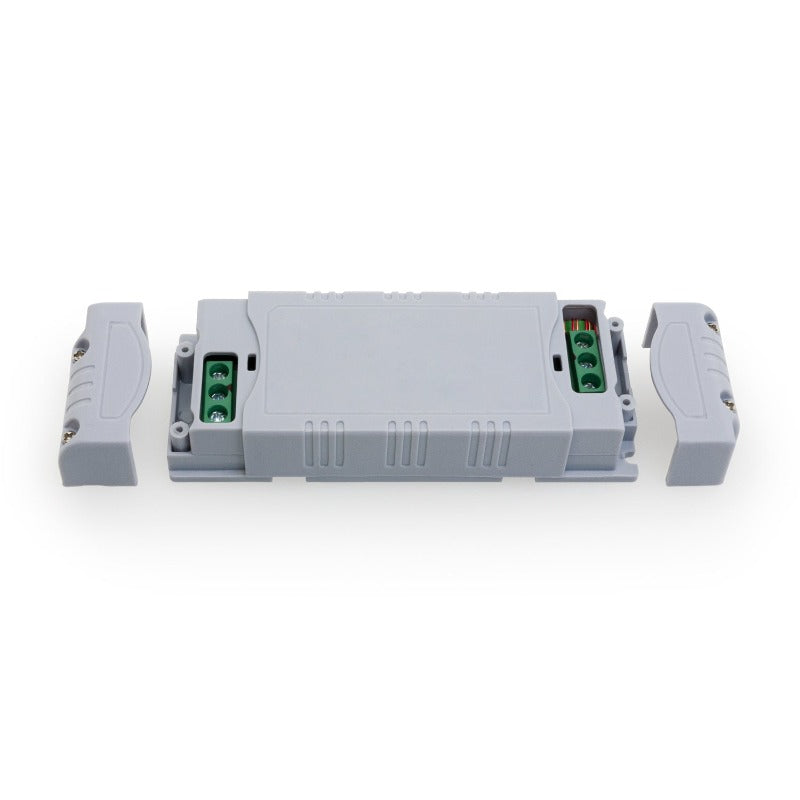

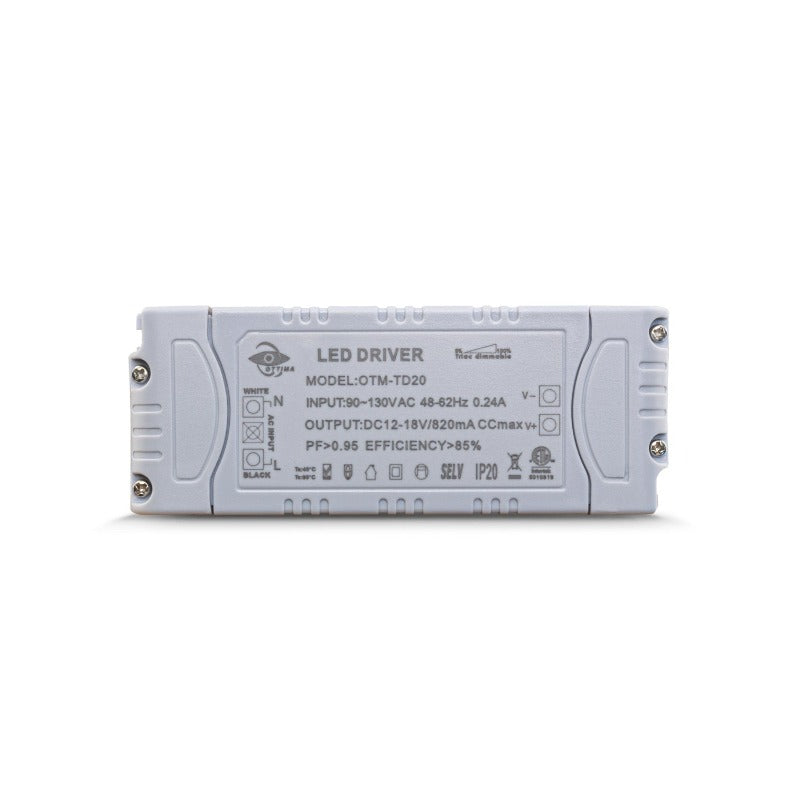

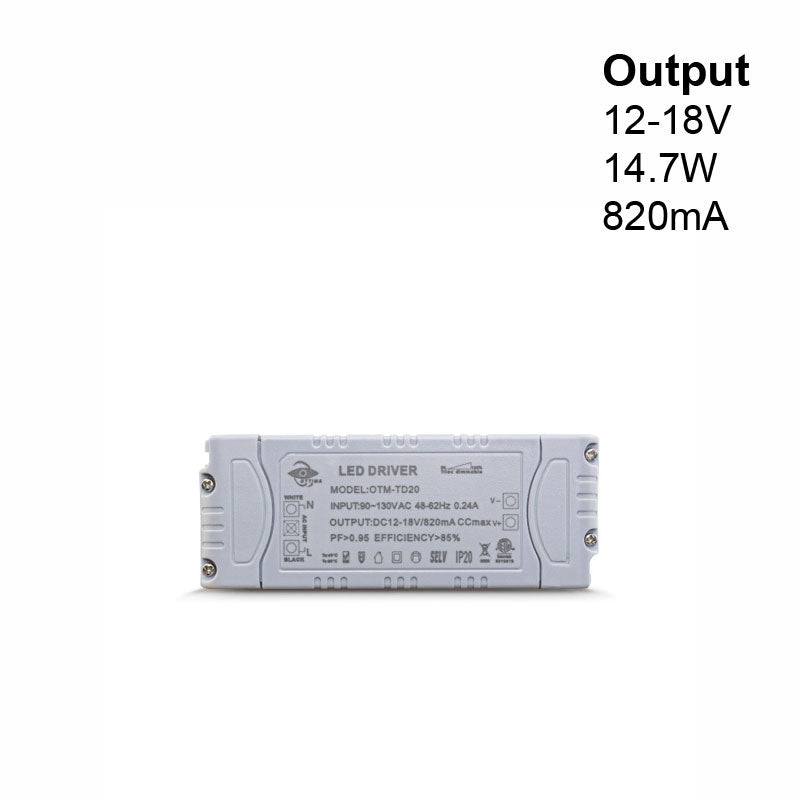

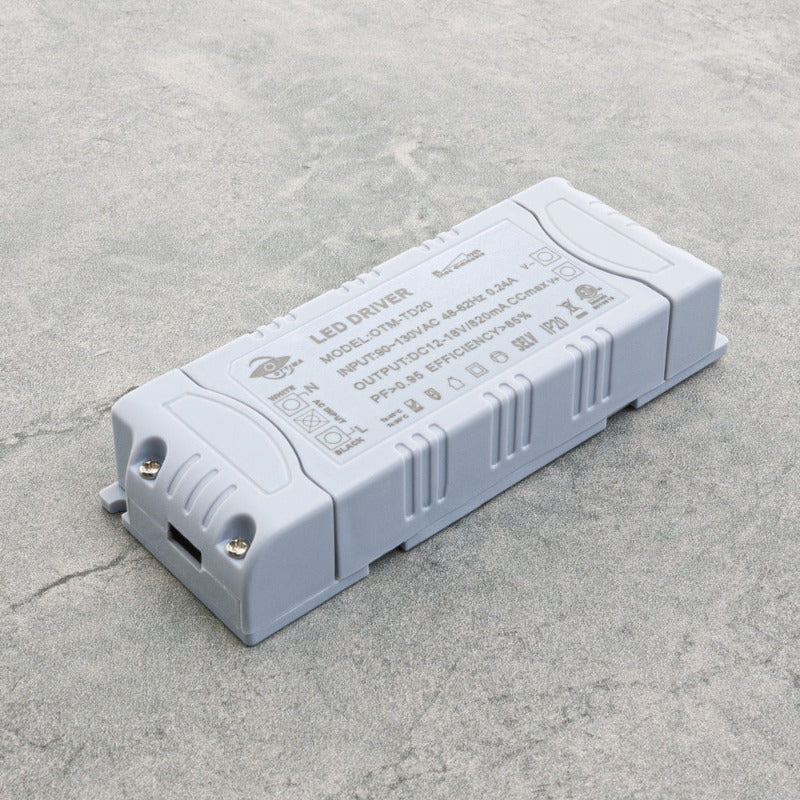

The OTTIMA OTM-TD20 is a constant current LED driver designed to power LED lights with a regulated output current of 820mA and a maximum output power of 14.7W. It has an input voltage range of 90-130V AC with an input current of 0.24A and input frequency of 48-62Hz, making it compatible with standard electrical systems.

This LED driver has a power factor greater than 0.95, indicating that it is highly efficient in converting electrical power into LED light output. It also has an efficiency rating of over 85%, meaning that it minimizes power loss during the conversion process.

The output voltage of the OTM-TD20 is between 12-18V DC, allowing it to power a wide range of LED lights within that voltage range. It is also dimmable using Triac Dimming, allowing for adjustable lighting intensity.

Features:

  • The OTTIMA OTM-TD20 is a constant current LED driver designed for regulated output current of 820mA and maximum output power of 14.7W to power LED lights.
  • It has an input voltage range of 90-130V AC with an input current of 0.24A and input frequency of 48-62Hz.
  • The driver has a high power factor of greater than 0.95 and an efficiency rating of over 85%.
  • Its output voltage range is 12-18V DC, making it suitable for powering a wide range of LED lights.
  • The driver is dimmable using Triac Dimming, allowing for adjustable lighting intensity.
  • It is designed for indoor use only and has an IP20 rating for protection against solid objects greater than 12.5mm in diameter.
  • The driver can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C.
