Product Description

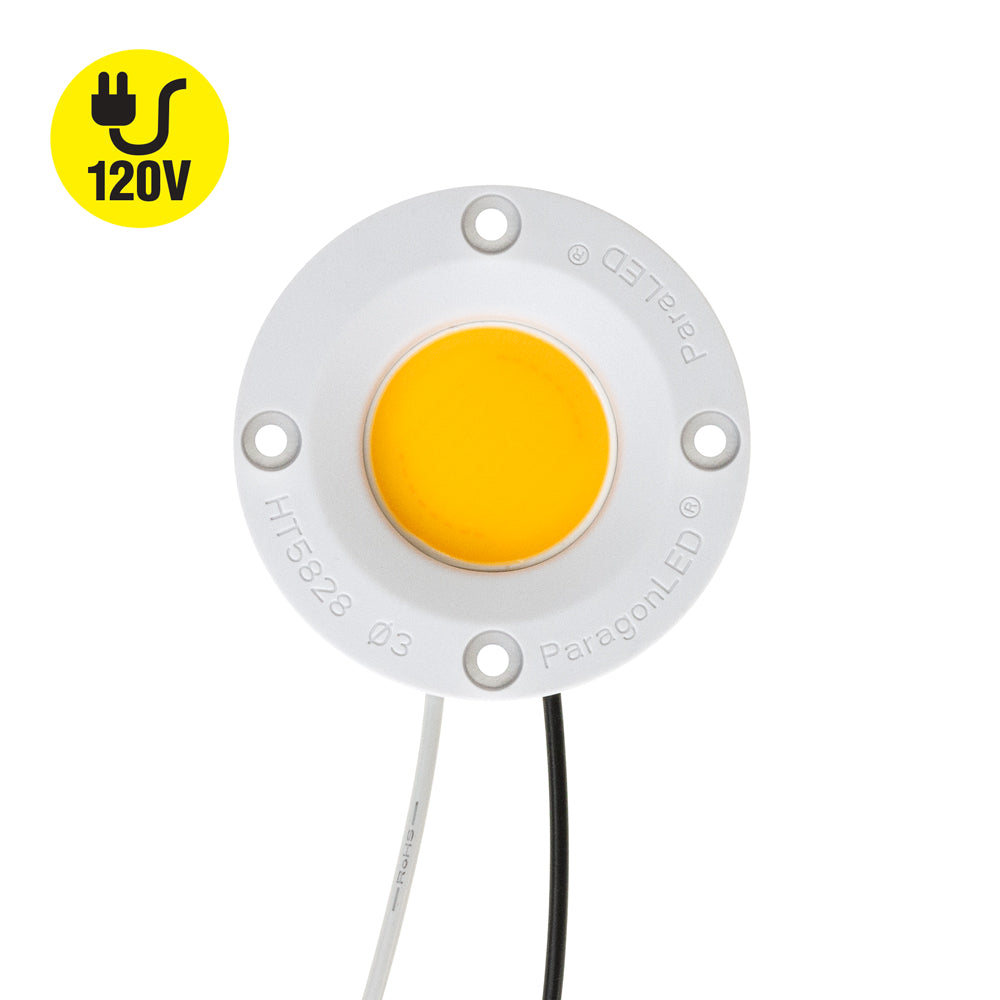

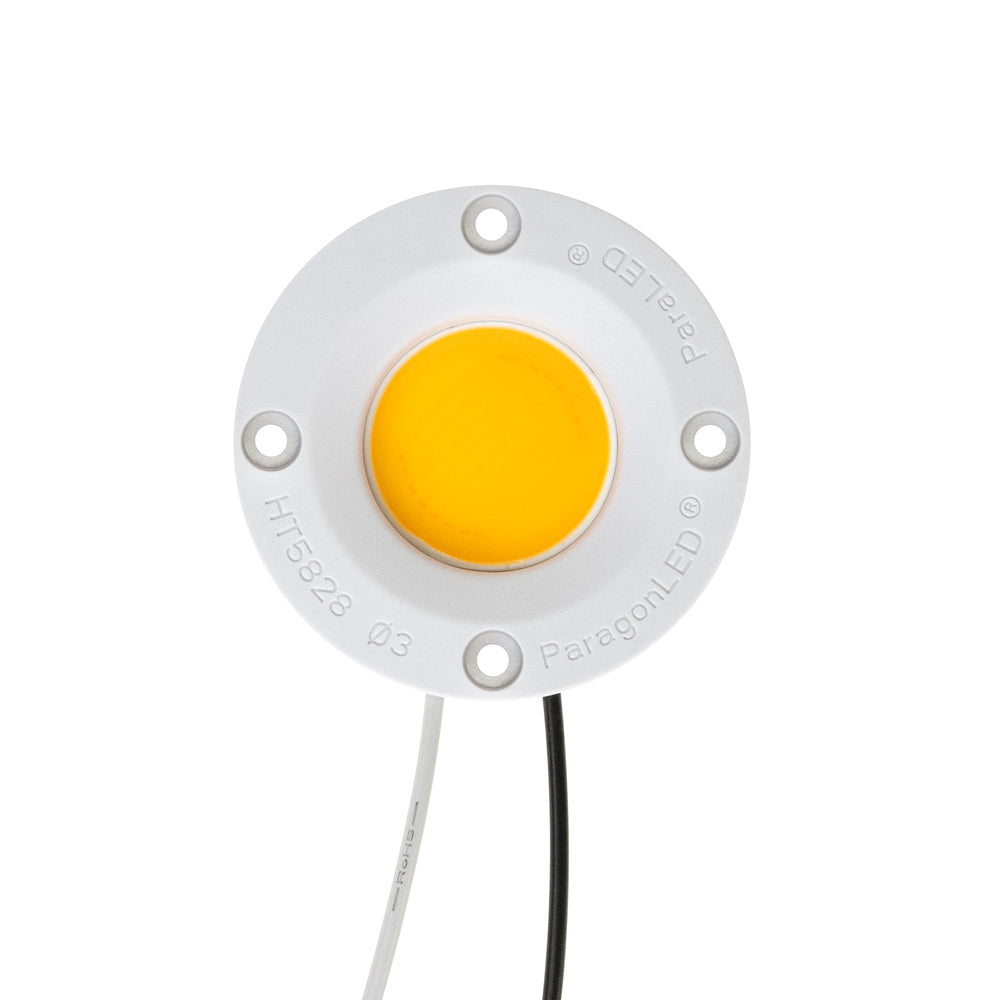

| Product | Paragon LED Module |

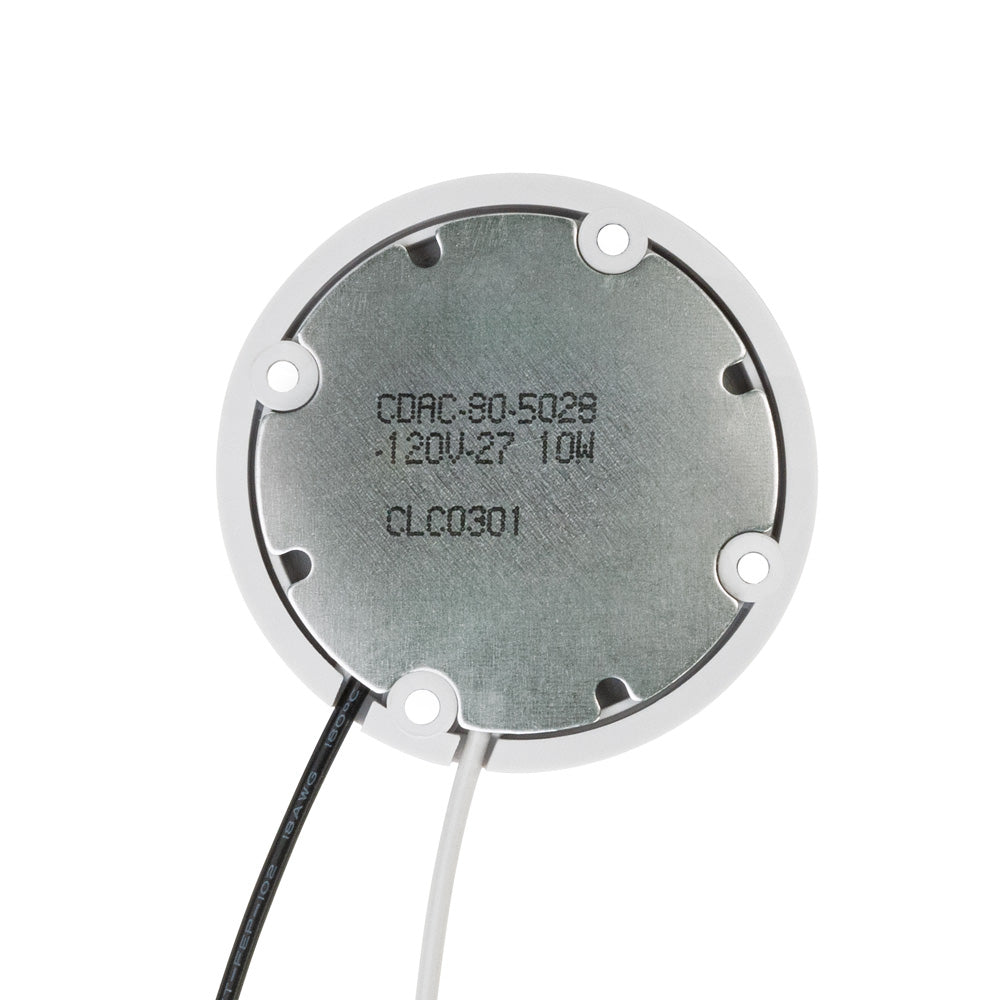

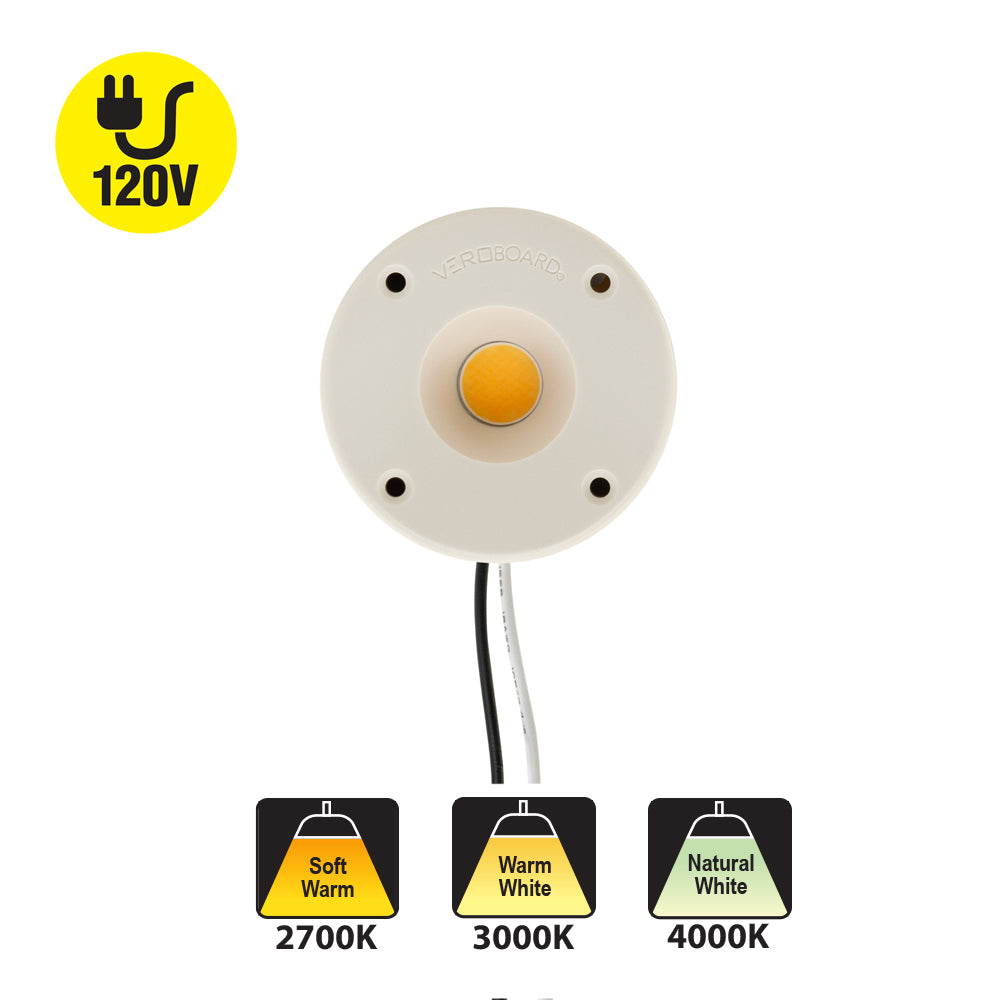

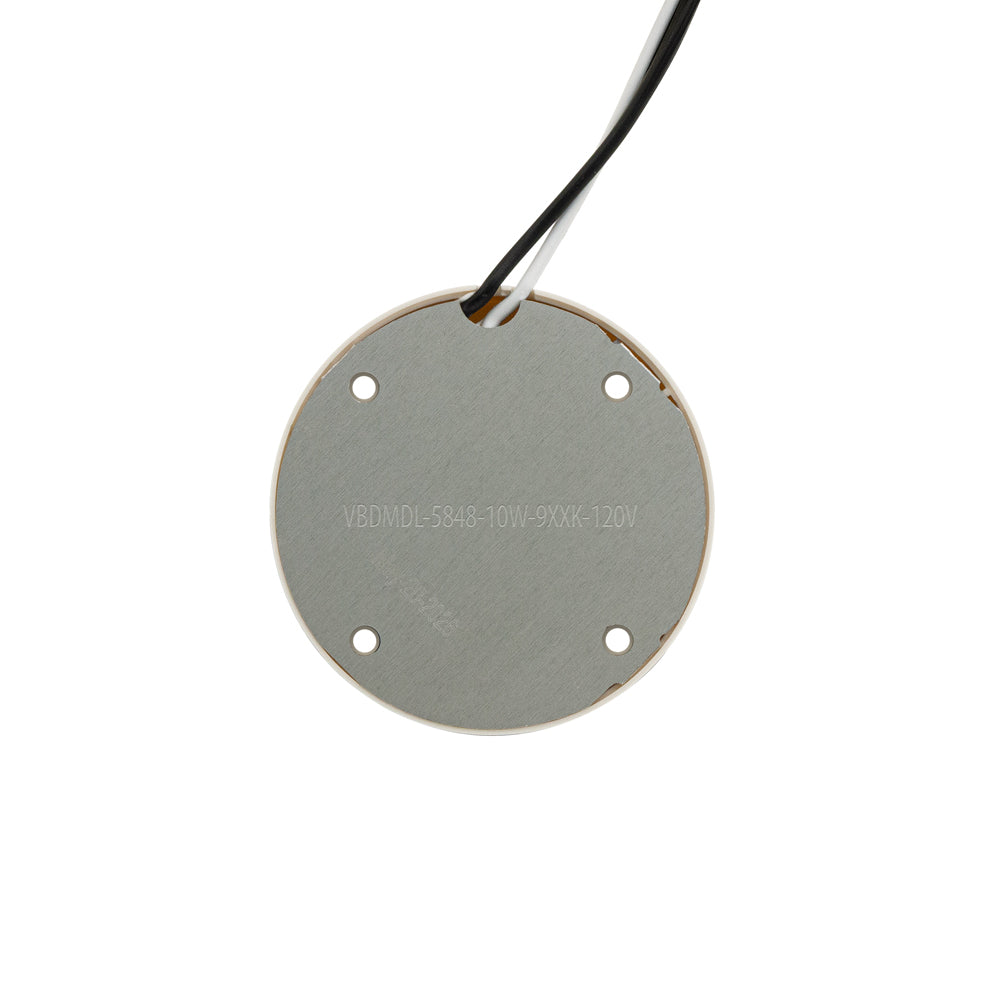

| Model No | CDAC-80-5028-120-27 (Paragon) VBDMDL-5848-10W-9XXK-120V (Veroboard) |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |

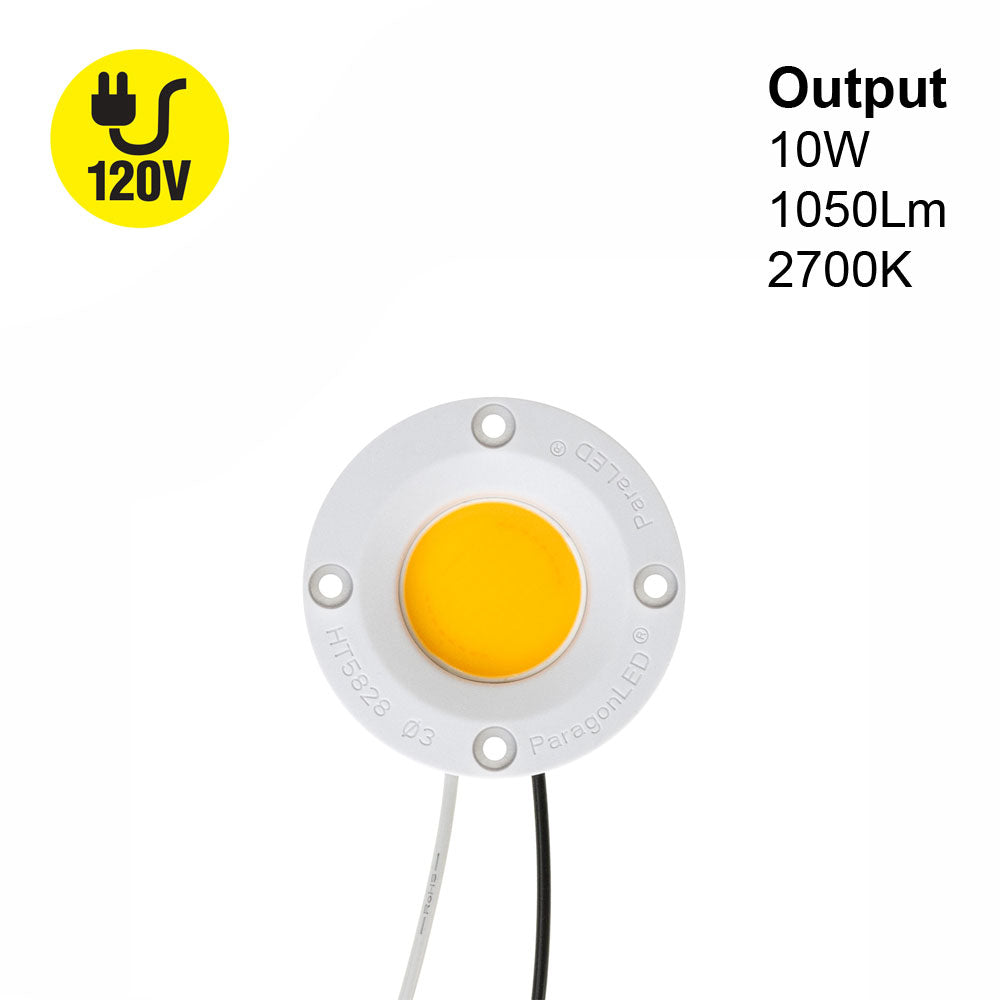

| Wattage | 10W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 1050 Lumens |
| Color Temperature |
(Paragon) (Veroboard) |
| Dimmable | Yes |
| Rendering Index |
CRI>80 (Paragon) CRI>90 (Veroboard) |
| IP Rating | IP20 (Indoor rated) |

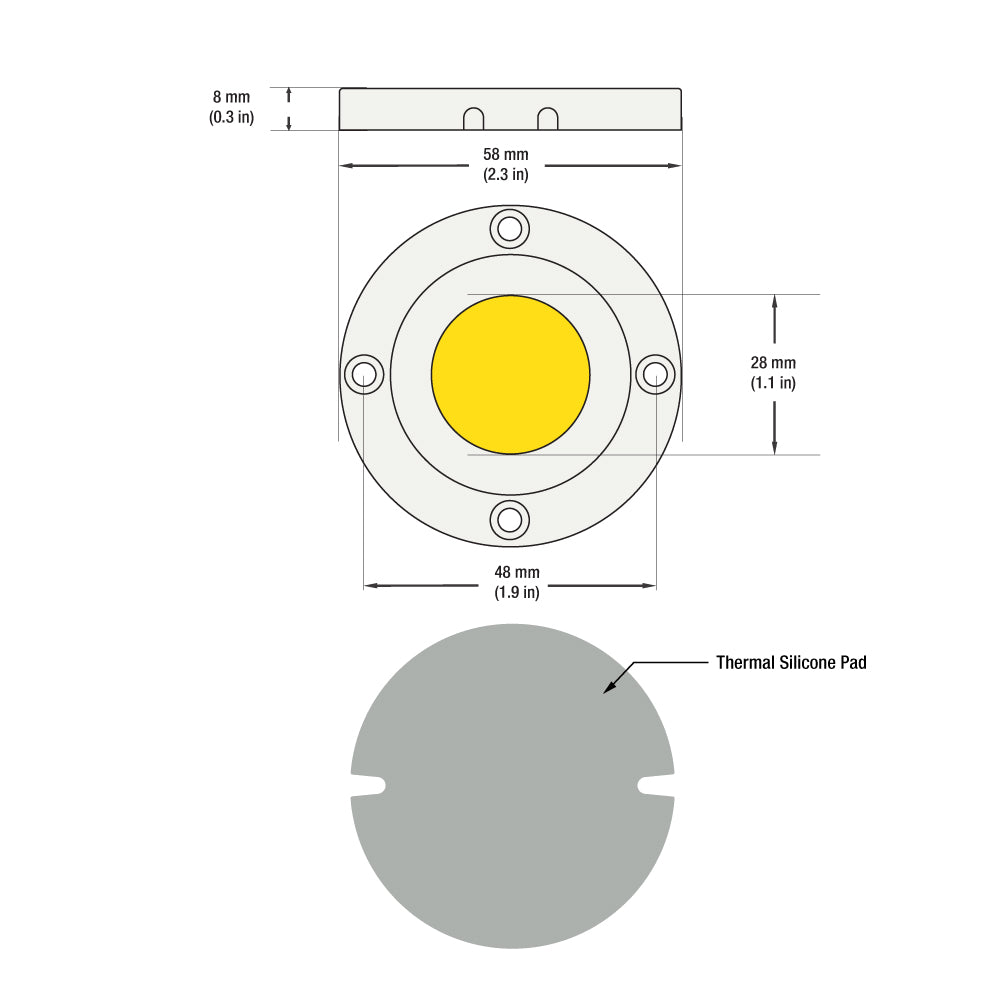

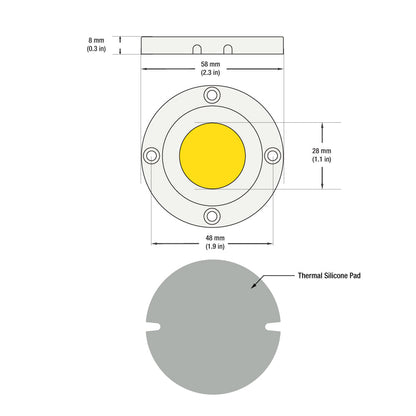

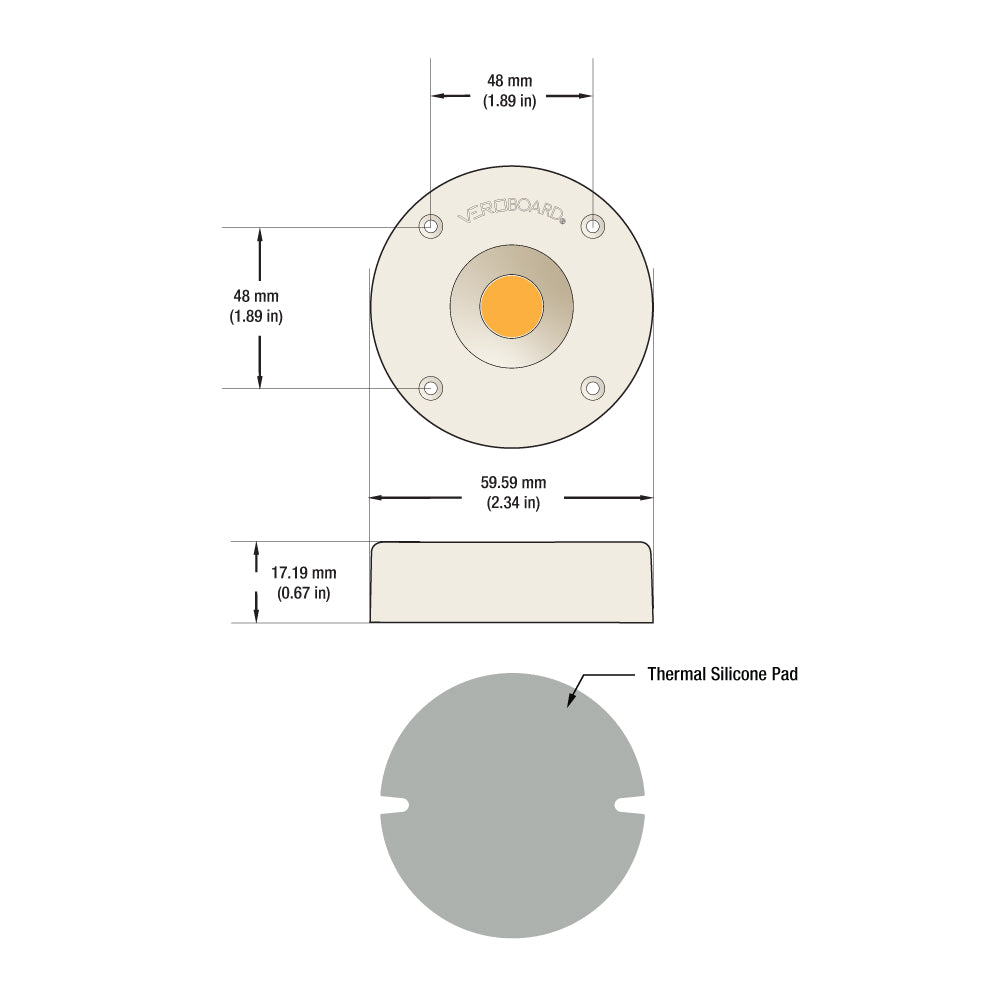

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| COB Module Outer Diameter | ∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |

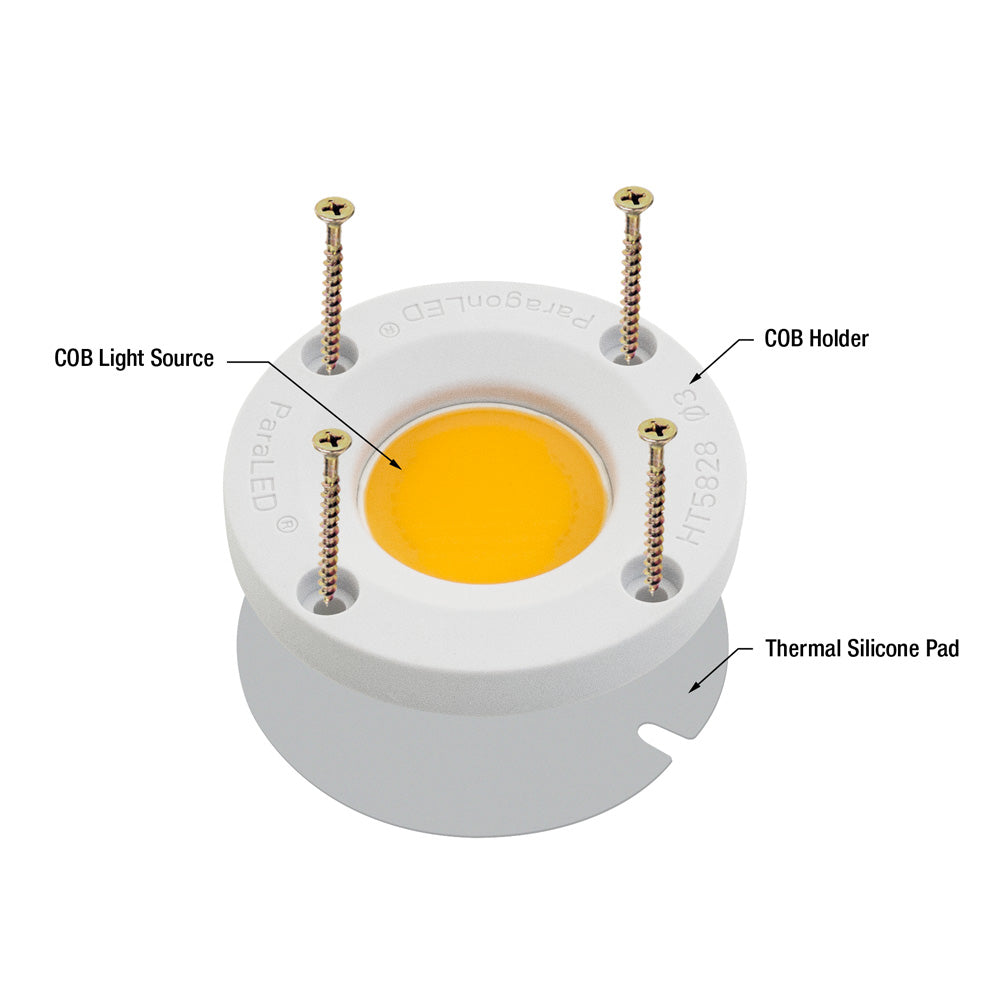

| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.04 kg |
| Certifications (Paragon) |  |
| Certifications (Veroboard) |

|
Features:

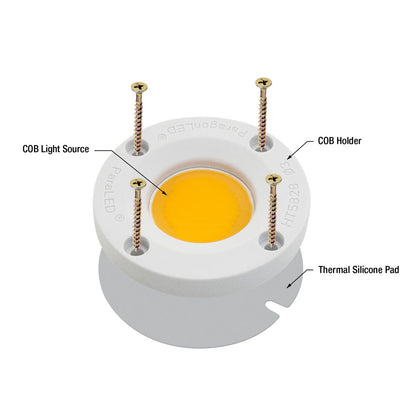

- It comes with an HT5828 COB holder model that allows the module to be secured and electrically connected to a heat sink
- It has a high color rendering index (CRI) of over 80, ensuring accurate color representation
- The product is dimmable, making it suitable for use in various lighting applications
- It has an IP20 rating, which means it is rated for indoor use only, and operates within a temperature range of -40 to +105℃
- The product comes with a polycarbonate diffuser that can be easily attached or detached, reducing glare and refracting light in a wider beam

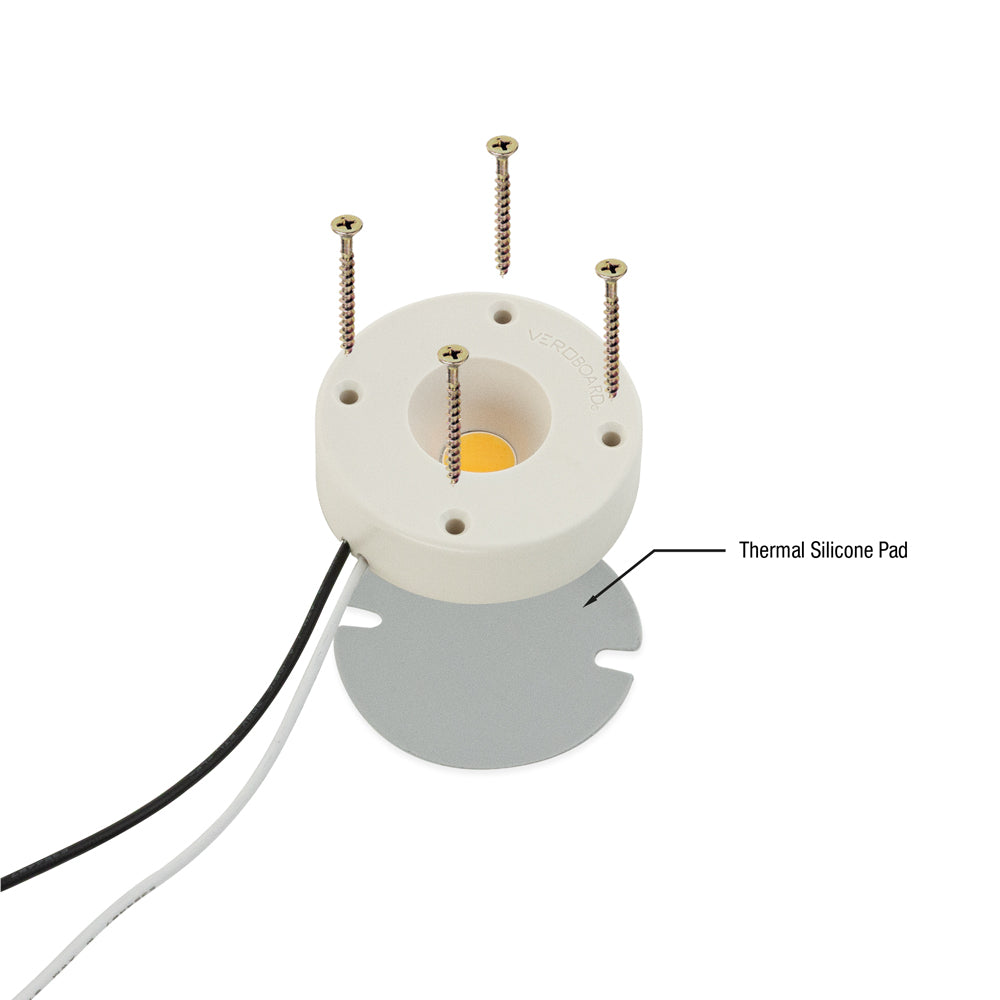

- It requires an aluminum heat sink and silicone grease thermal pad (included) for better heat dissipation, increasing the product's lifespan
- The product is certified by UL and suitable for use in damp locations
- When designing lamps, it is important to ground light fixtures to ensure safety
- COB LEDs are generally used in almost every type of luminaire due to their high performance and efficiency.
