Product Description

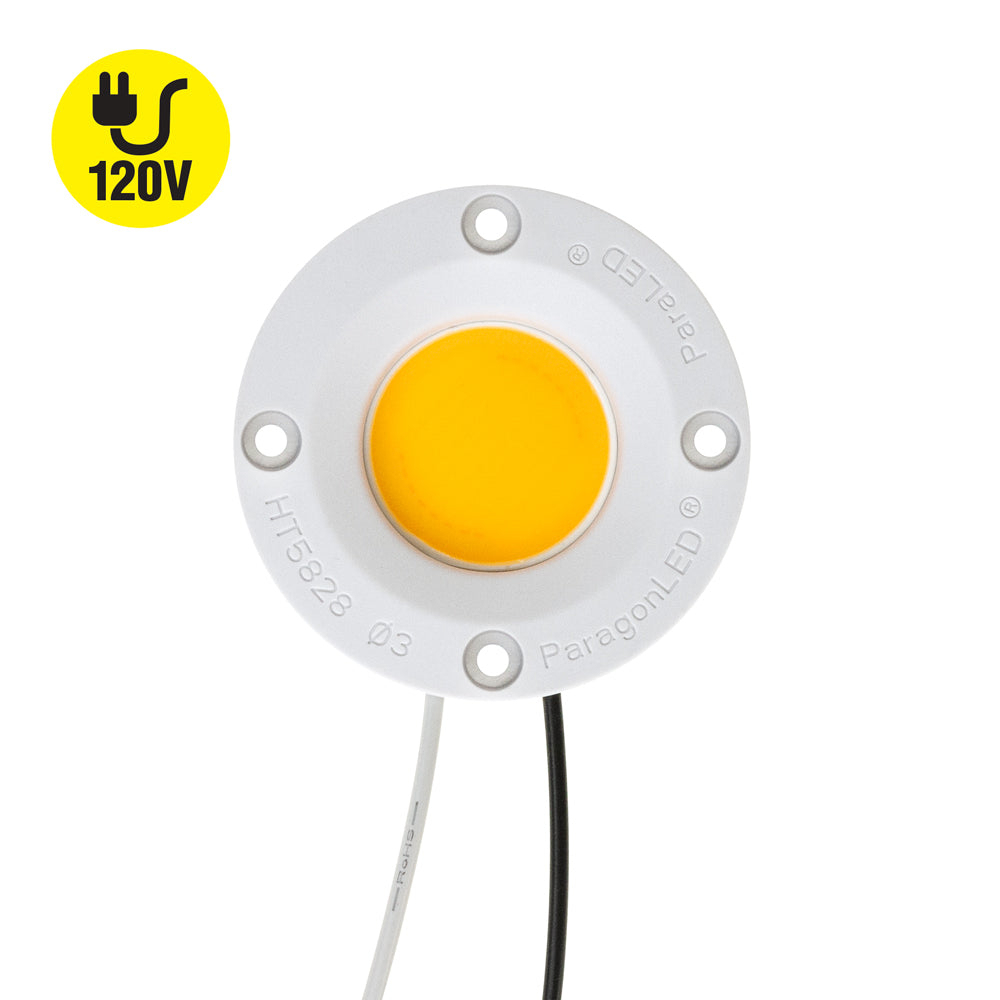

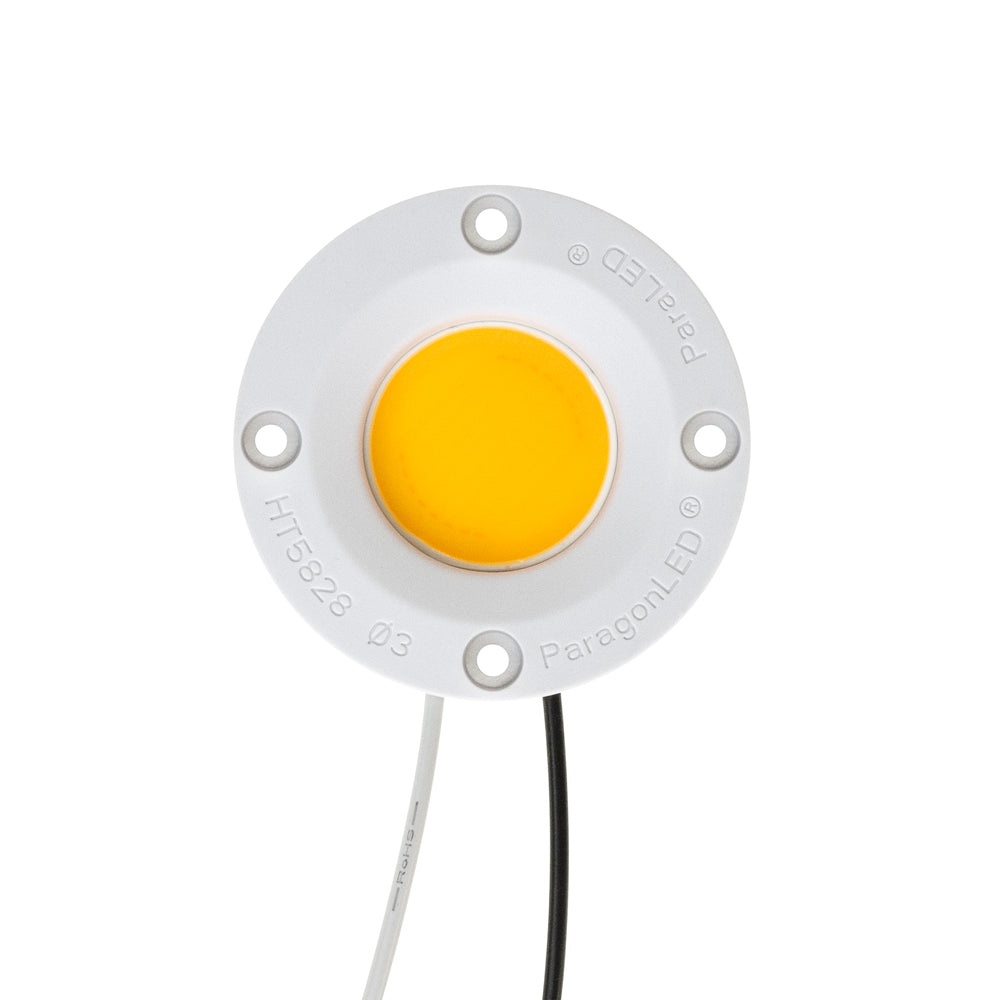

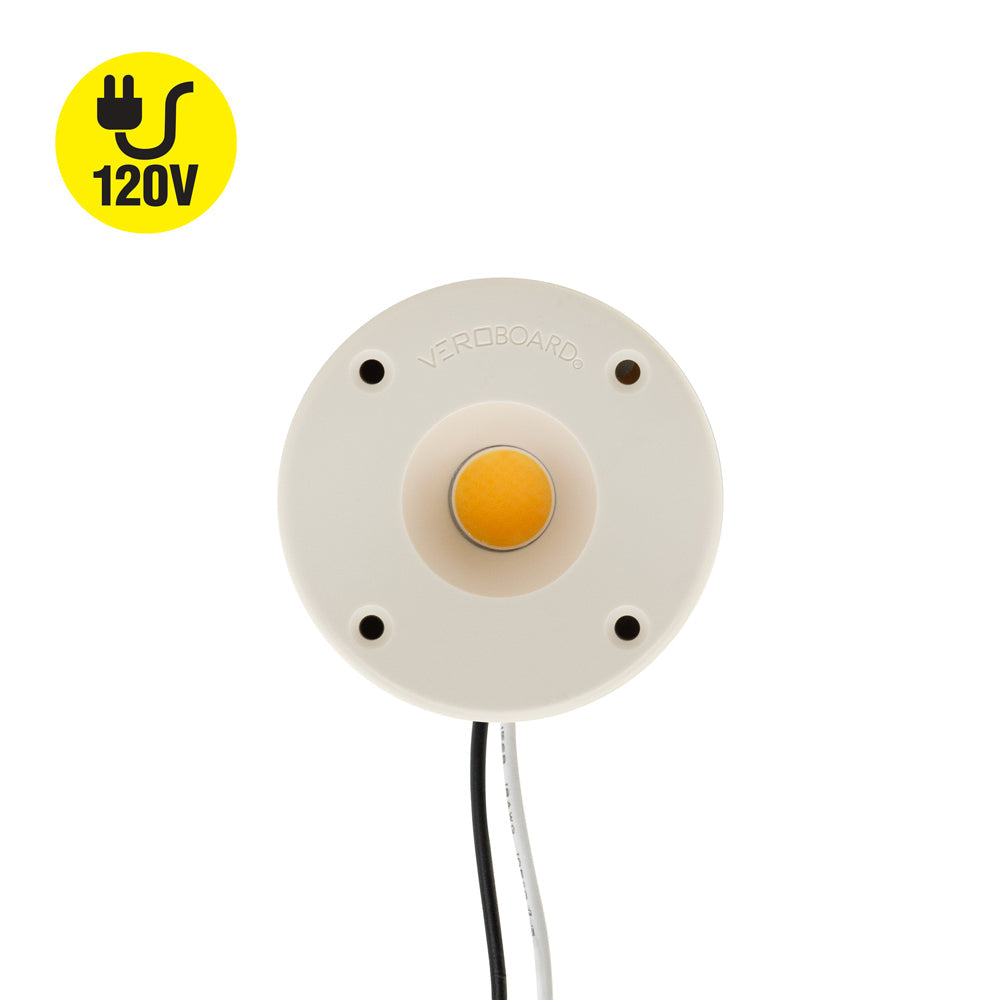

| Product | Paragon LED Module |

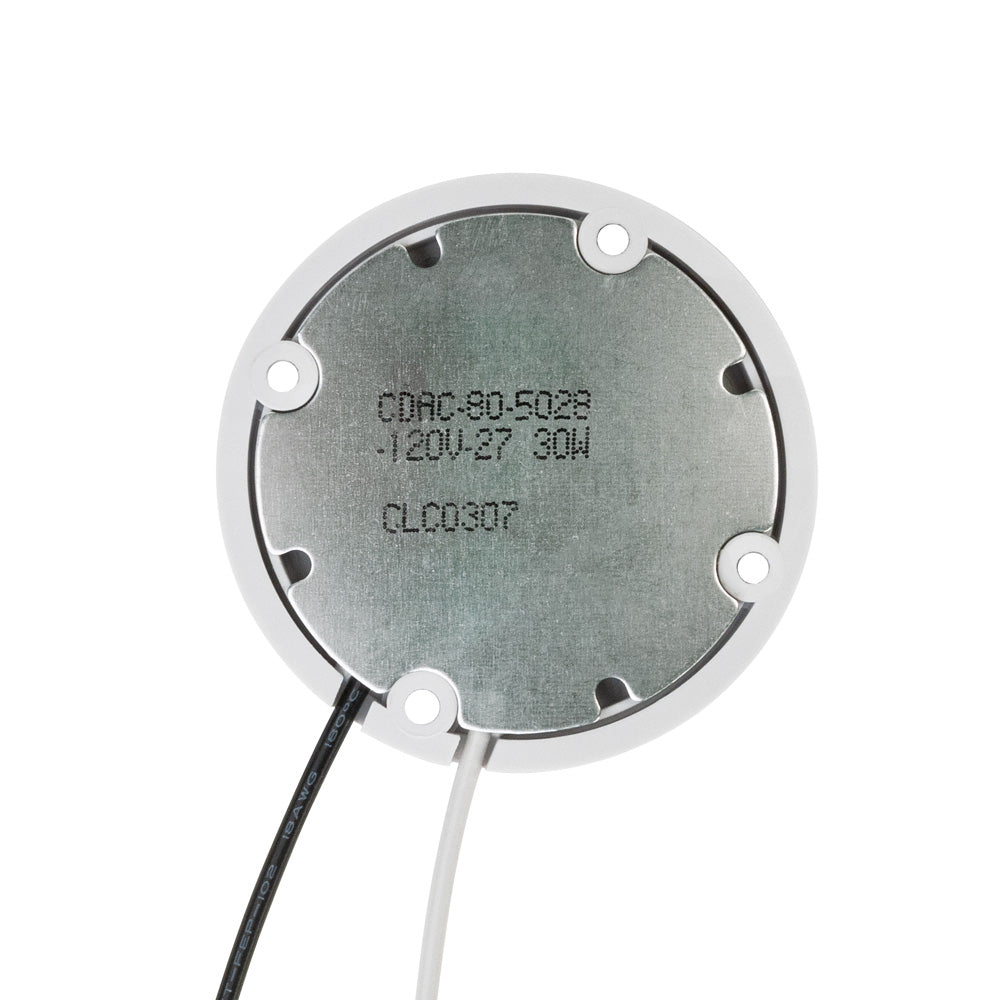

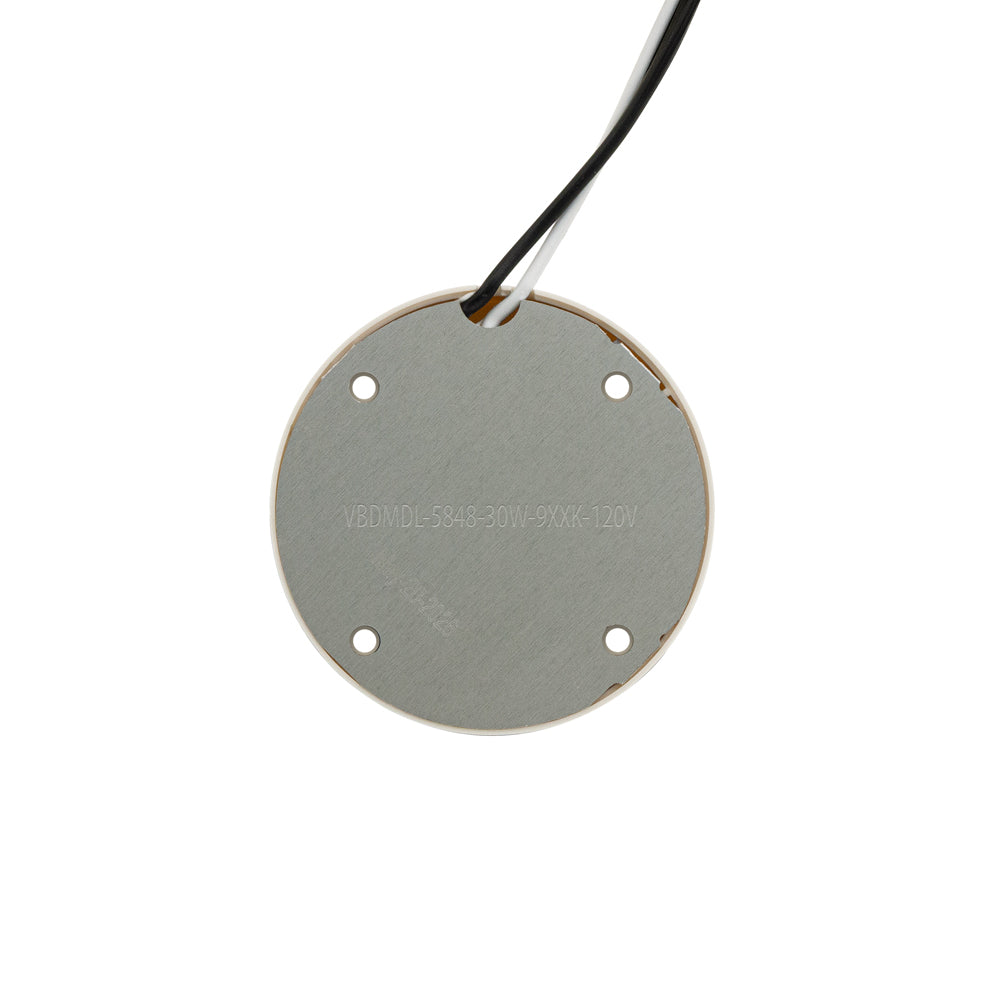

| Model No | CDAC-80-5028-120V-27 (Paragon) VBDMDL-5848-30W-9XXK-120V (Veroboard) |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 30W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |

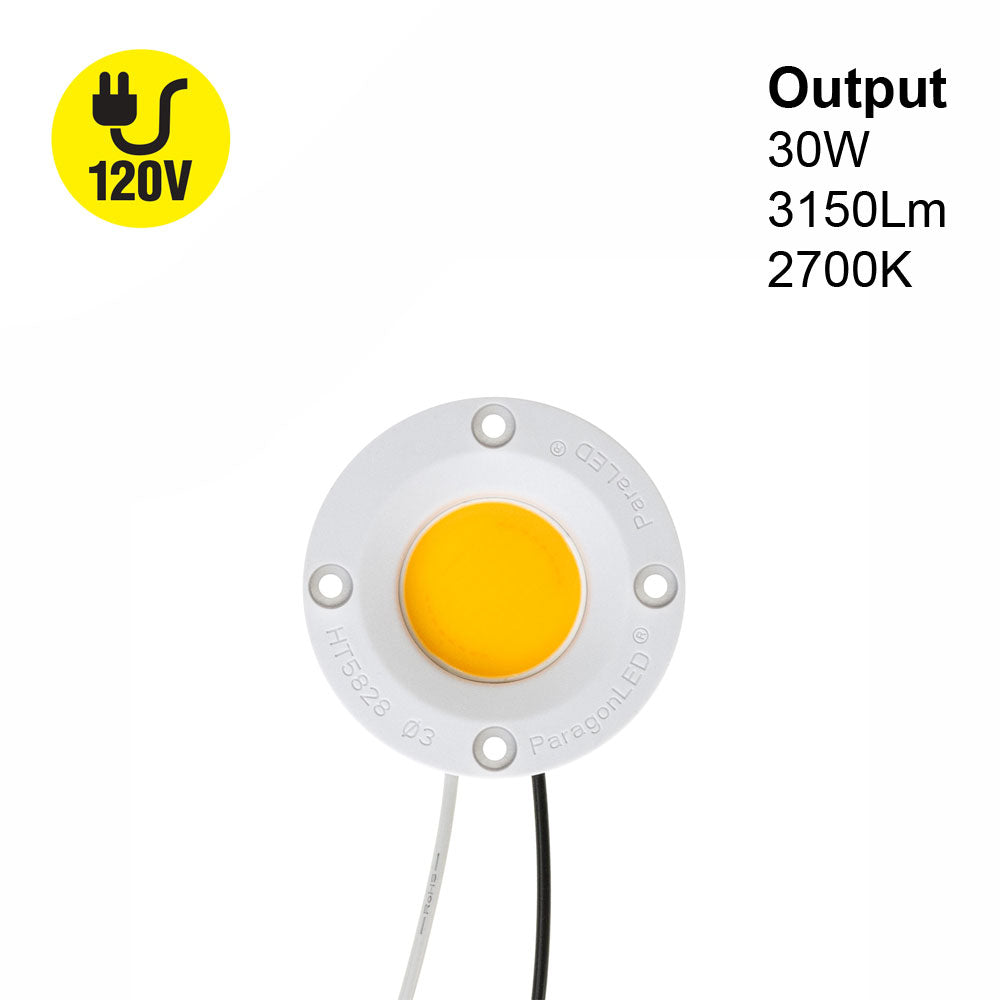

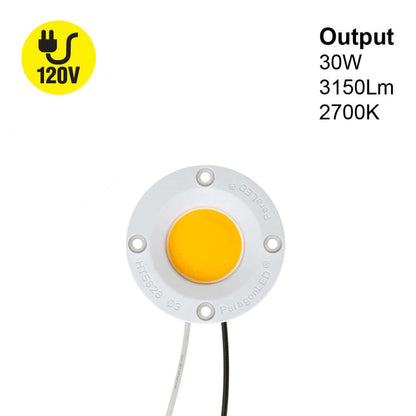

| Luminous Intensity | 3150 Lumens |

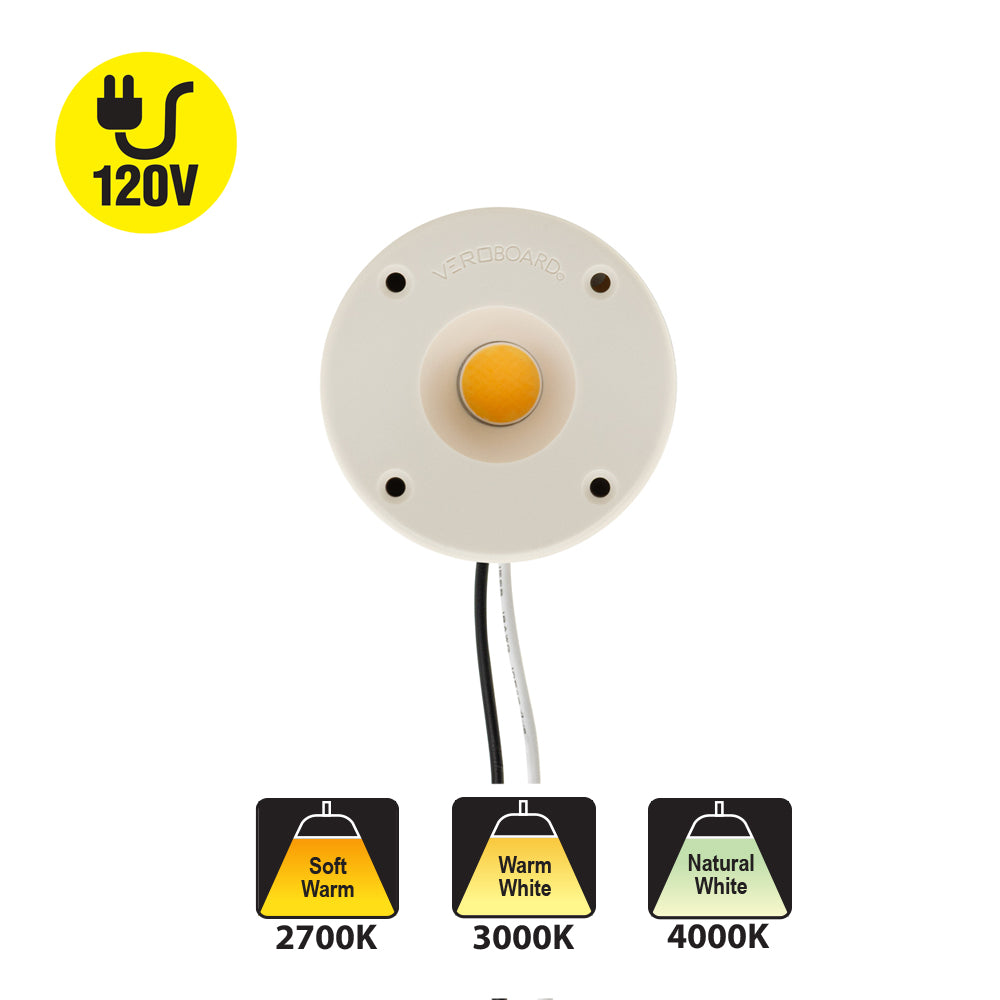

| Color Temperature |
(Paragon) (Veroboard) |
| Dimmable | Yes |
| Rendering Index | CRI>80 (Paragon) CRI>90 (Veroboard) |
| IP Rating | IP20 (Indoor rated) |

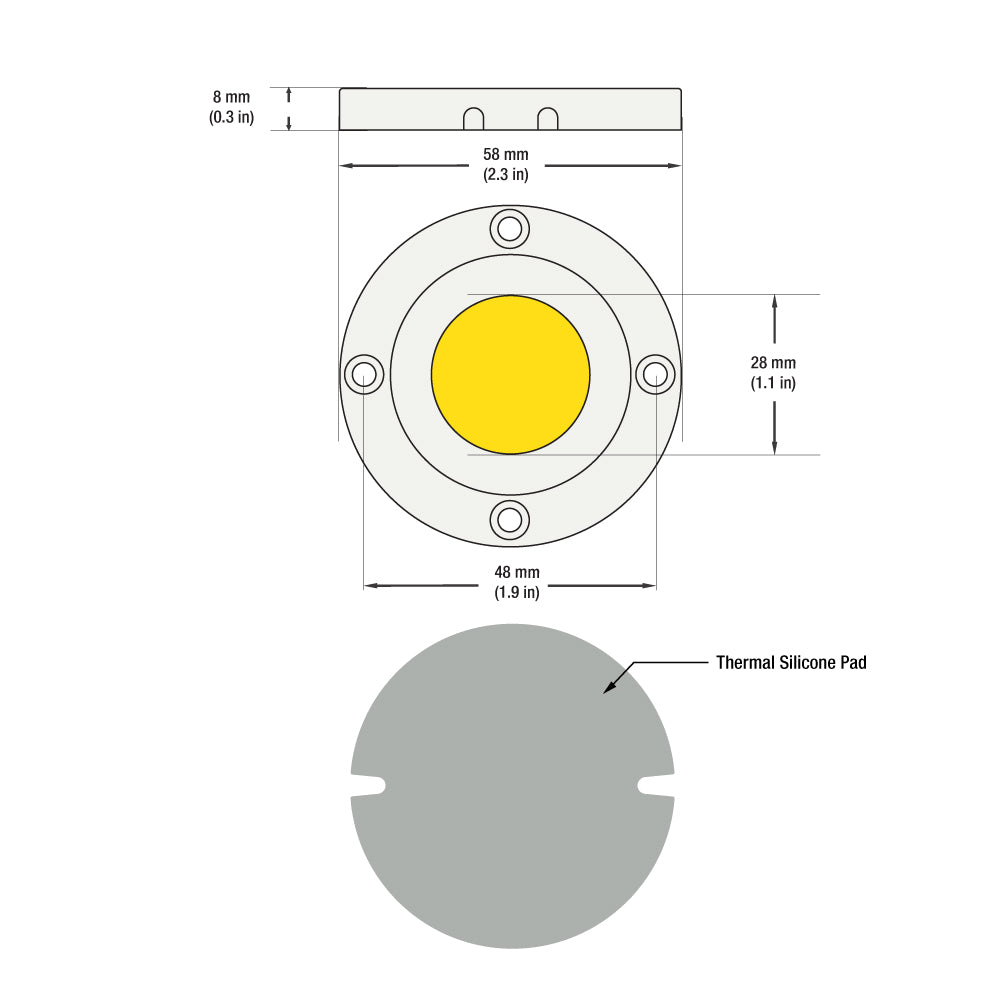

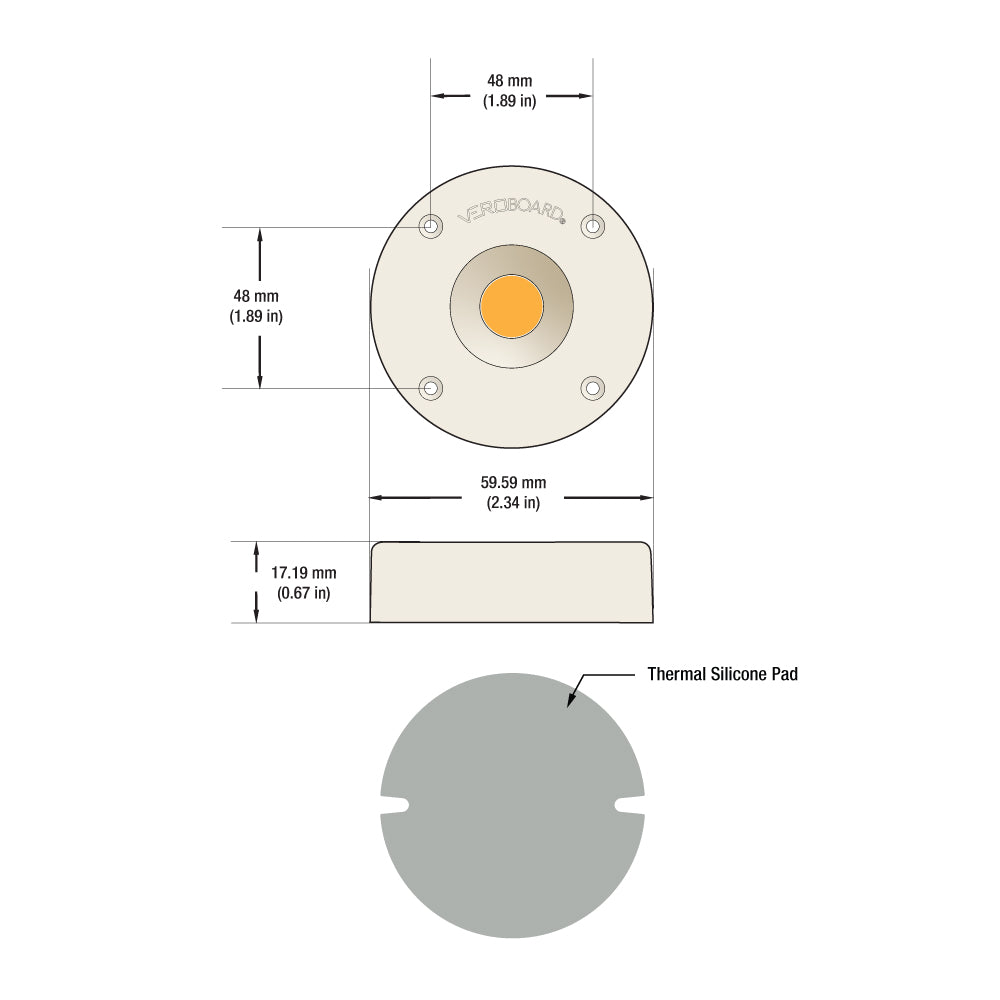

| COB Holder Dimensions |
(Paragon) (Veroboard) |

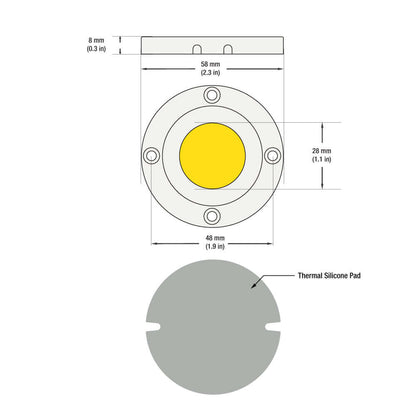

| COB Module Outer Diameter | ∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.04 kg |
| Certifications (Paragon) |  |
| Certifications (Veroboard) |

|
Features:
- High-quality LED module suitable for indoor use
- Contains 80 COB LED chips with a wattage of 30W and voltage rating of 120V AC
- Power factor greater than 0.85 and luminous intensity of 3150 lumens
- Dimmable, allowing for adjustable brightness

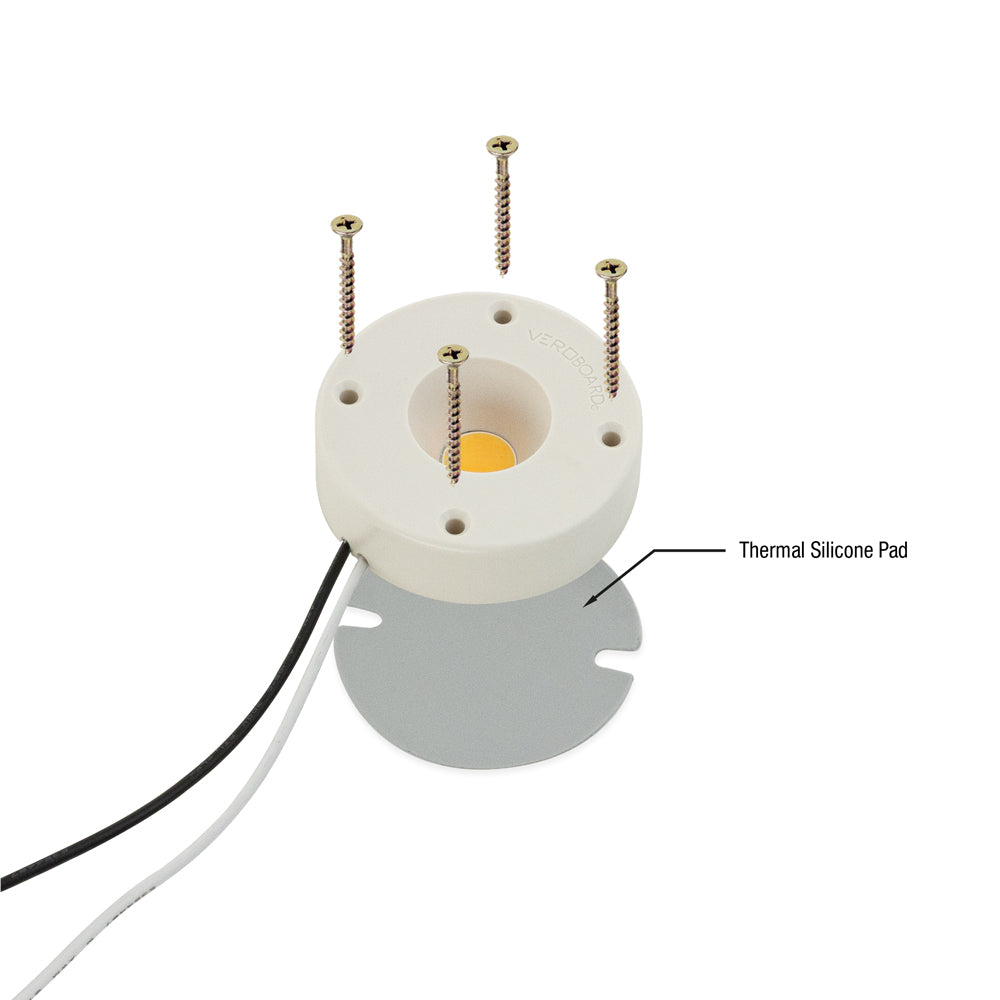

- Comes with COB LED Holder model HT5828 and thermal pad for better heat dissipation
- Includes polycarbonate diffuser to protect the module and reduce glare
- IP20 rating, suitable for indoor use only
- Operating temperature range of -40 ~ +105℃ and storage temperature range of -40 ~ +105℃
- Certified by UL, ensuring high-quality standards
- Requires aluminum heat sink to prevent overheating and serious luminous decay

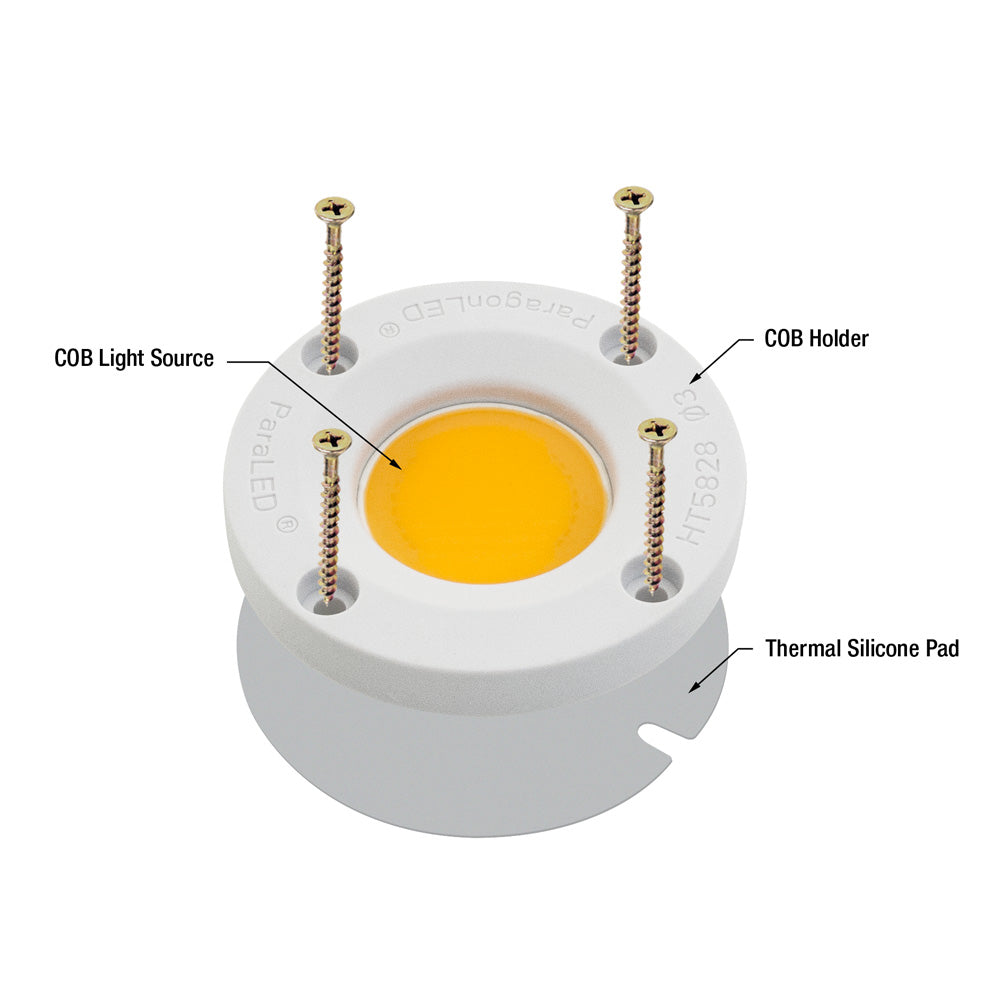

- COB holder allows for mechanical securing, electrical connection, and pressing to a heat sink
