Product Description

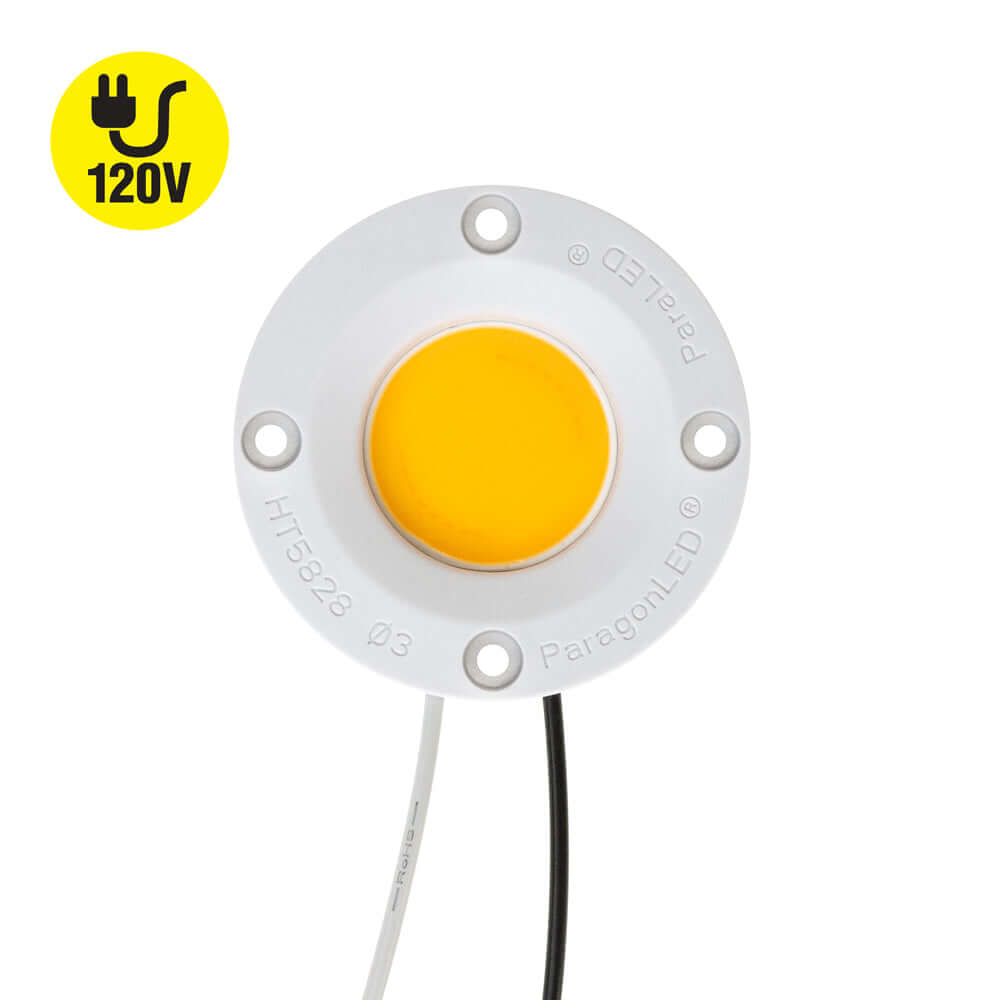

| Product | Paragon LED Module |
| Model No | CDAC-80-5028-120V-30 (Paragon) VBDMDL-5848-20W-9XXK-120V (Veroboard) |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 20W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 2100 lumens |

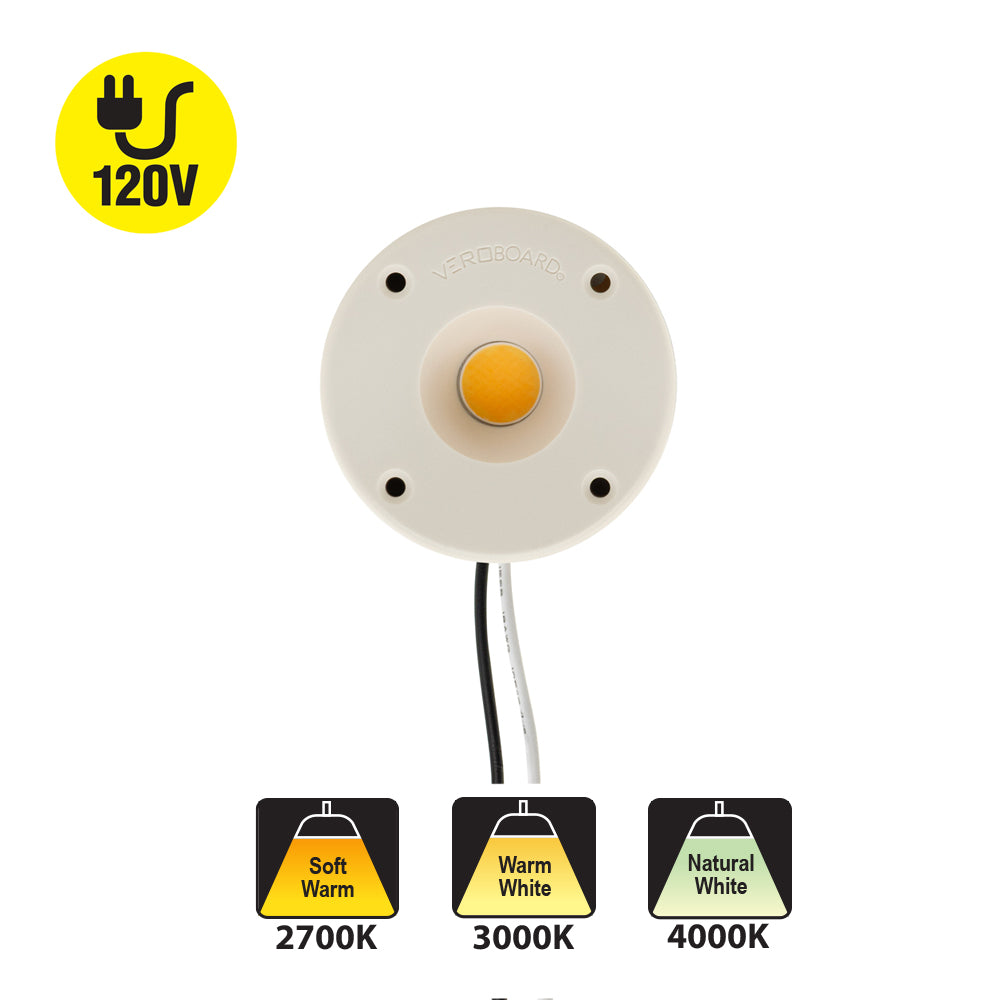

| Color Temperature |
(Paragon) (Veroboard) |
| Dimmable | Yes |
| Rendering Index | CRI>80 (Paragon) CRI>90 (Veroboard) |
| IP Rating | IP20 (Indoor rated) |

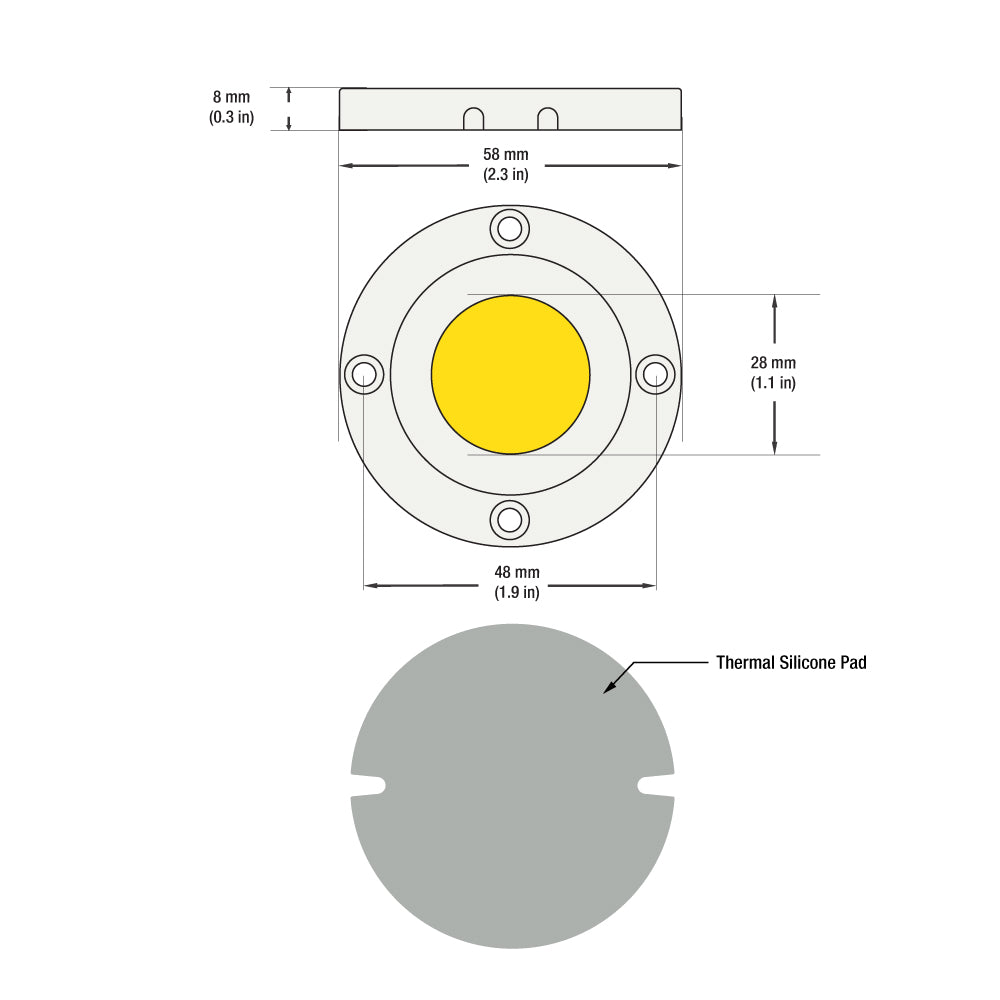

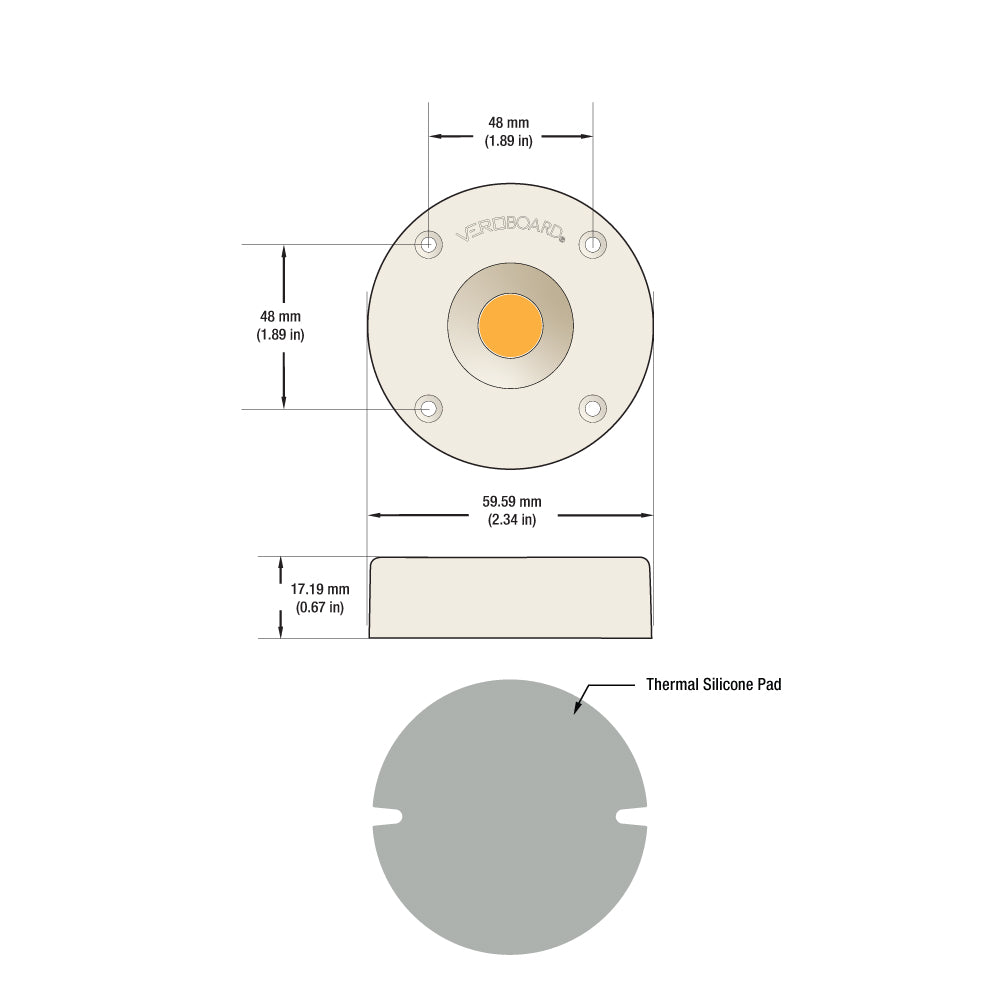

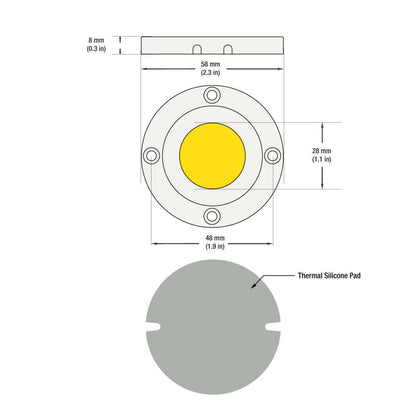

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| COB Module Outer Diameter | ∅28mm (1.1 in) (Paragon) ∅10mm (0.39in) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |

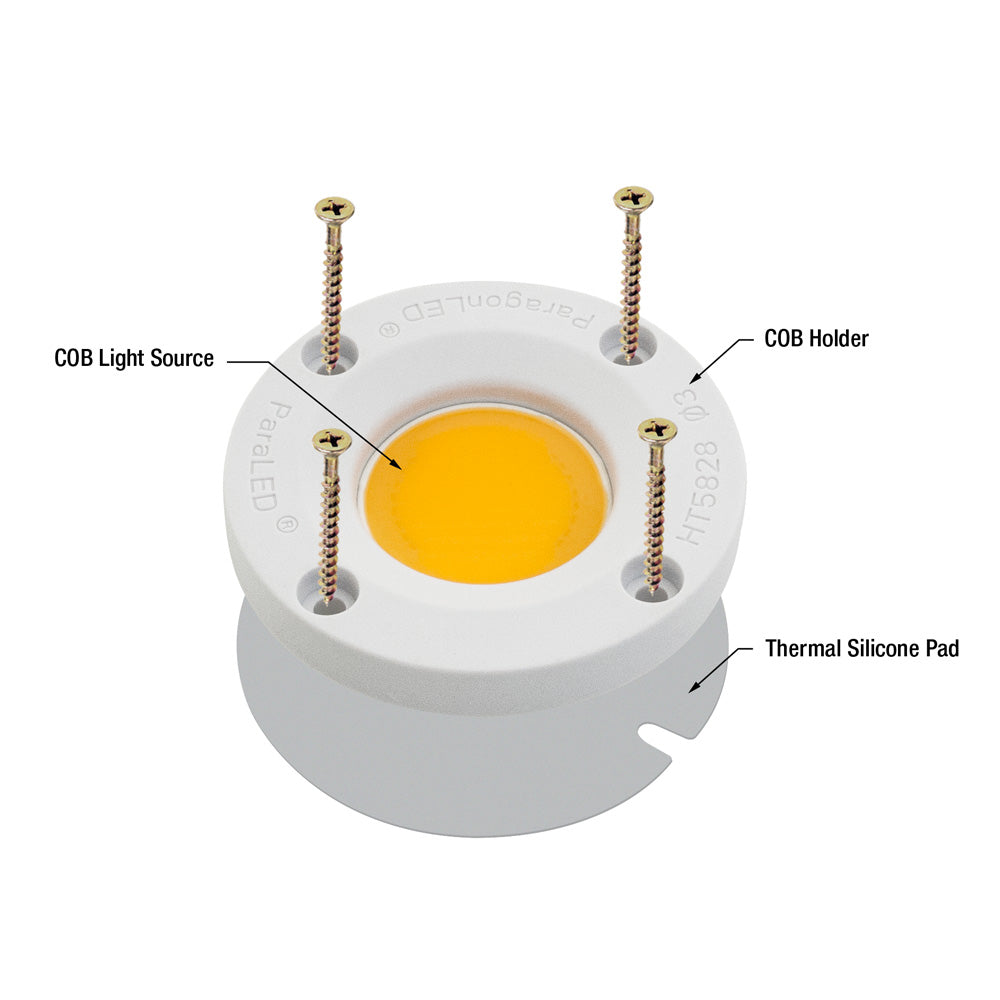

| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.04 kg |
| Certifications (Paragon) |  |
| Certifications (Veroboard) |

|
Features:
- The module has 80 LED chips and a wattage of 20W, with a voltage rating of 120V AC and a power factor of PF>0.85
- The module is dimmable and has a color rendering index of CRI>80
- The COB module is suitable for indoor use only, with an IP rating of IP20
- It can operate in a wide temperature range of -40 ~ +105℃, and it is recommended to ground the light fixtures when designing lamps
- The module comes with a polycarbonate diffuser that can be attached or detached easily to reduce glare while refracting light in a wider beam

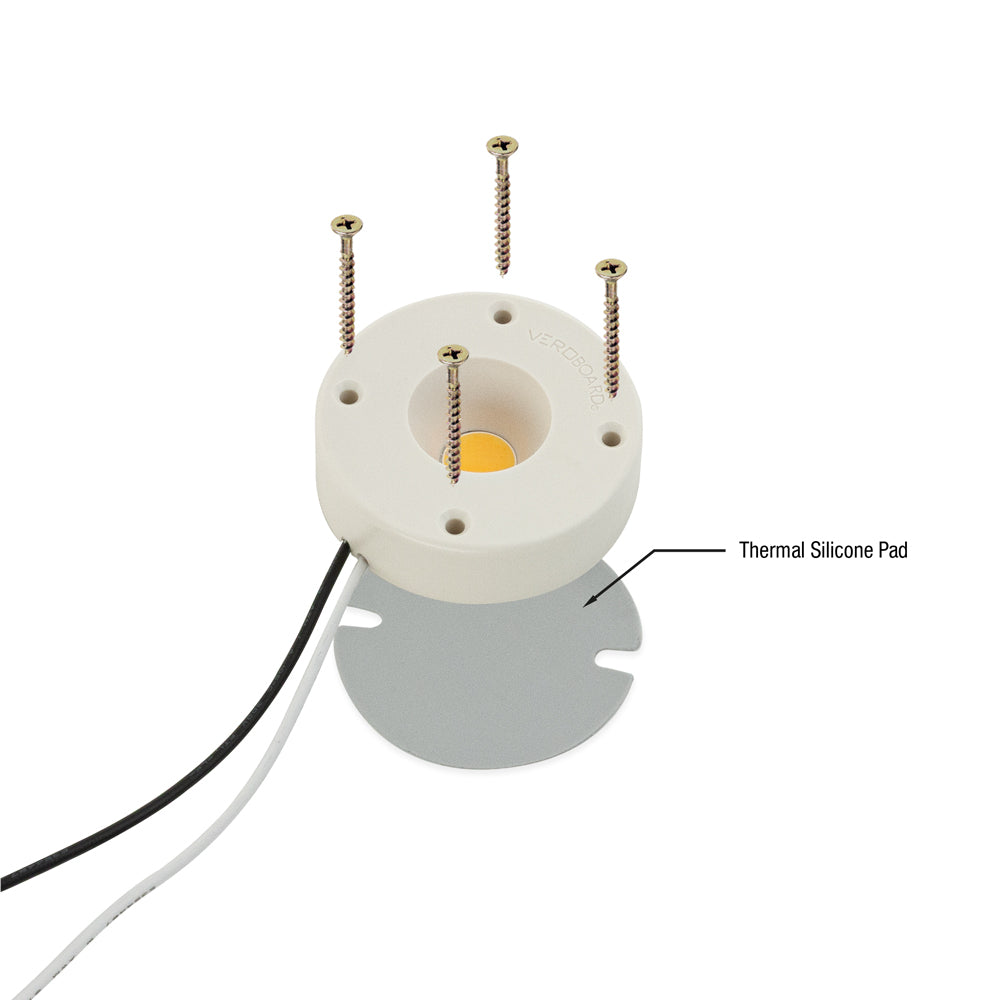

- The module requires an aluminum heat sink to prevent overheating, and a silicone grease thermal pad is provided to dissipate heat efficiently
- The product is UL certified and consumes low power, making it highly energy-efficient
- COB LEDs used in this module are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies
- COB LEDs are generally used in almost every kind of luminaire.
