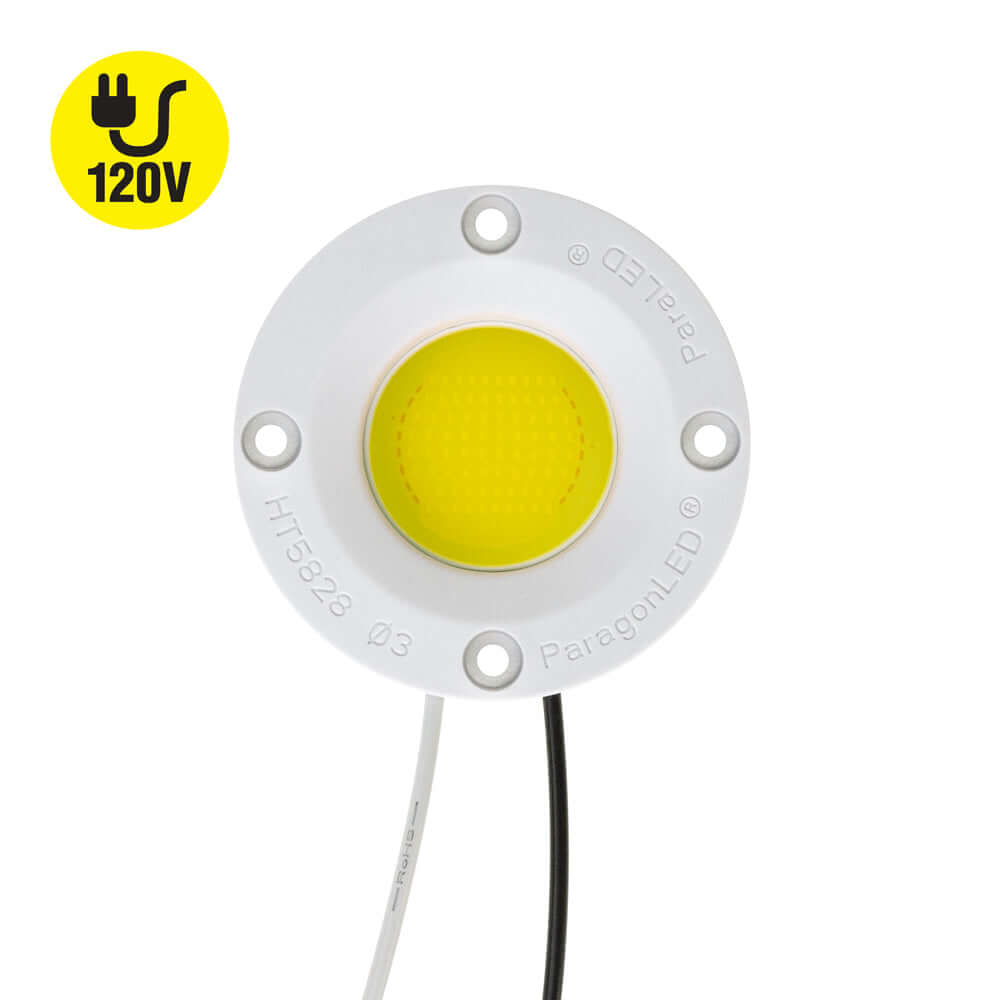

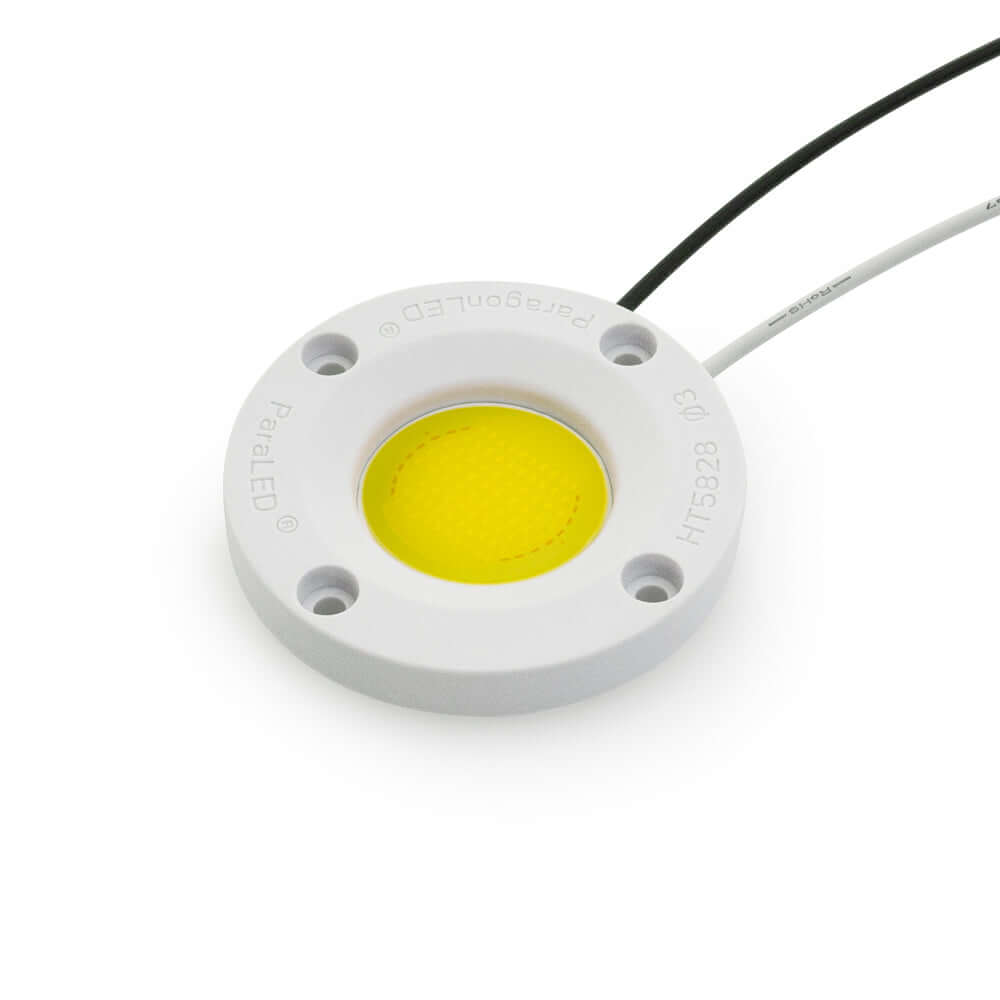

CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 20W 5000K(Daylight)

CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 20W 5000K(Daylight)

SKU:666561430597

$133.00 CAD
$133.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Paragon LED Module
Model No CDAC-080-05028-120-5000K
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 80
Wattage 20W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 2200 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

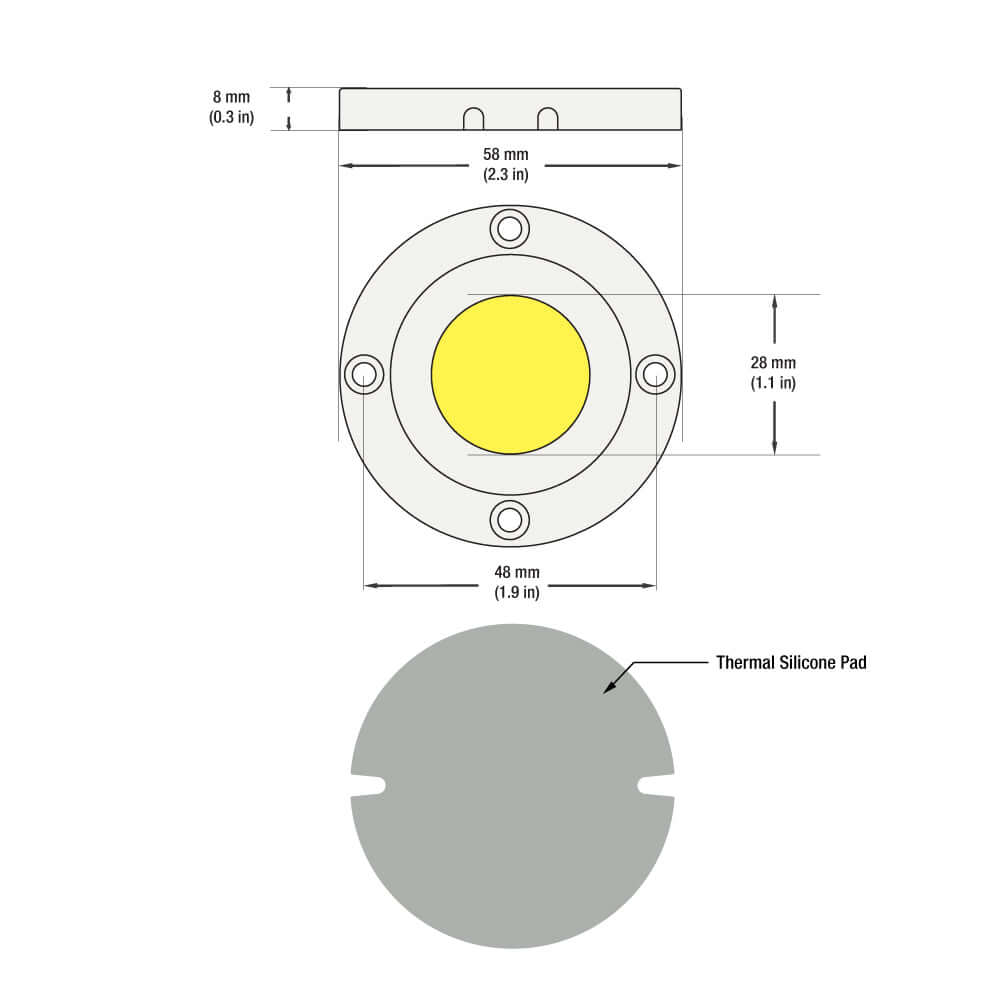

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

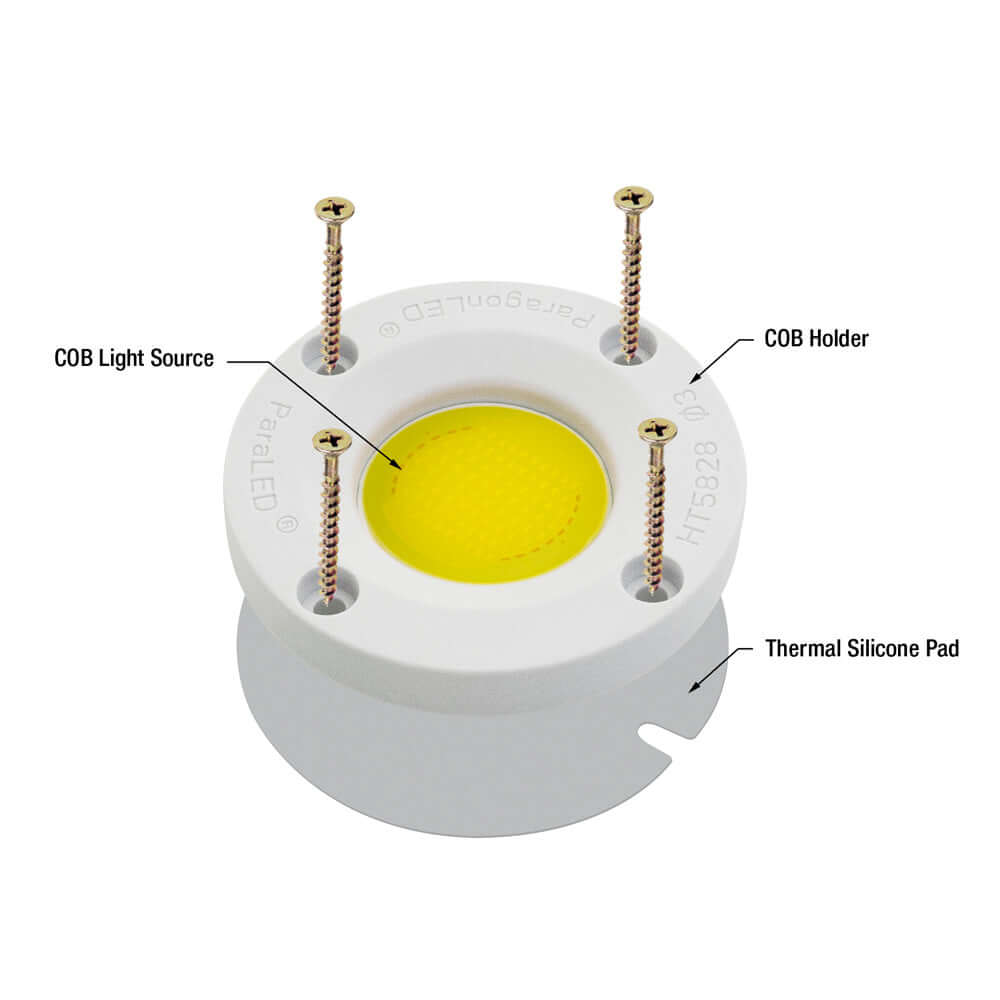

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications

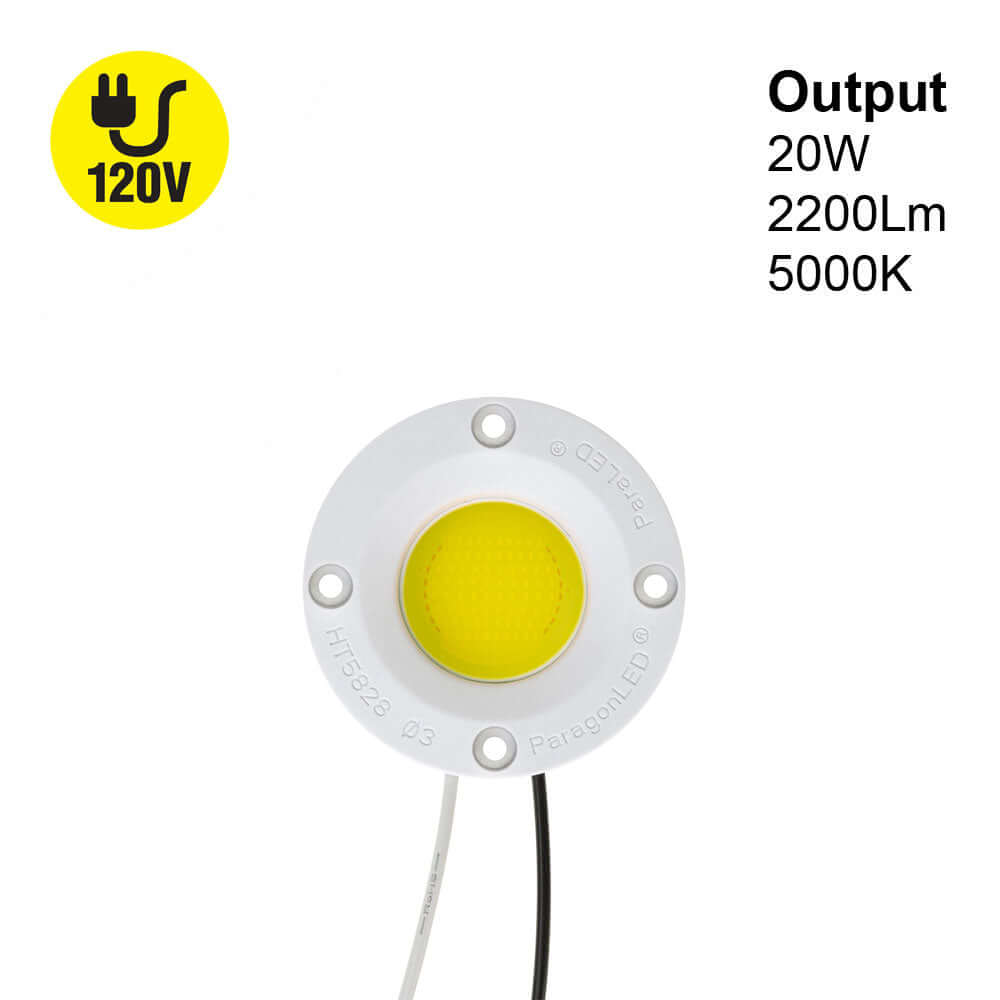

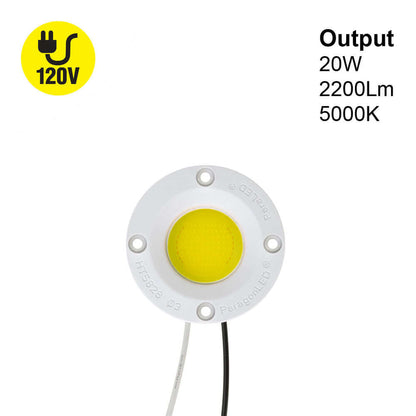

The Paragon LED Module with model number CDAC-080-05028-120-5000K is a COB (Chip-On-Board) LED module that comes with an HT5828 LED holder. It has 80 LED chips and a wattage of 20W, with a voltage rating of 120V AC and a power factor of PF>0.85. The module produces a luminous intensity of 2200 lumens and has a color temperature of 5000K, which emits a daylight-like white light. The module is dimmable and has a color rendering index of CRI>80.

The COB module is suitable for indoor use only, with an IP rating of IP20. It can operate in a wide temperature range of -40 ~ +105℃, and it is recommended to ground the light fixtures when designing lamps. The module comes with a polycarbonate diffuser that can be attached or detached easily. The diffuser helps to protect the module and also reduces glare while refracting light in a wider beam.

This product is UL certified and consumes low power, making it highly energy-efficient. The COB LEDs used in this module are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies. COB LEDs are generally used in almost every kind of luminaire.

Features:

  • COB LED module with model number CDAC-080-05028-120-5000K
  • Contains 80 LED chips and has a wattage of 20W
  • Voltage rating of 120V AC and a power factor of PF>0.85
  • Produces a luminous intensity of 2200 lumens and has a color temperature of 5000K (Daylight)
  • Dimmable and has a color rendering index of CRI>80
  • Suitable for indoor use only with an IP rating of IP20
  • Can operate in a wide temperature range of -40 ~ +105℃
  • Comes with a polycarbonate diffuser that can be easily attached or detached
  • Requires an aluminum heat sink to prevent overheating and increase lifespan
  • UL certified and consumes low power, making it energy-efficient
  • COB LEDs used are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies
