CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 3000K(Warm White)

CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 3000K(Warm White)

SKU:666561430641

$175.00 CAD
$175.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Paragon LED Module
Model No CDAC-136-5028-347-3000K
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 136
Wattage 10W
Voltage 347V AC
Power Factor PF>0.85
Luminous Intensity 1150 Lumens
Color Temperature 3000K (Warm White)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

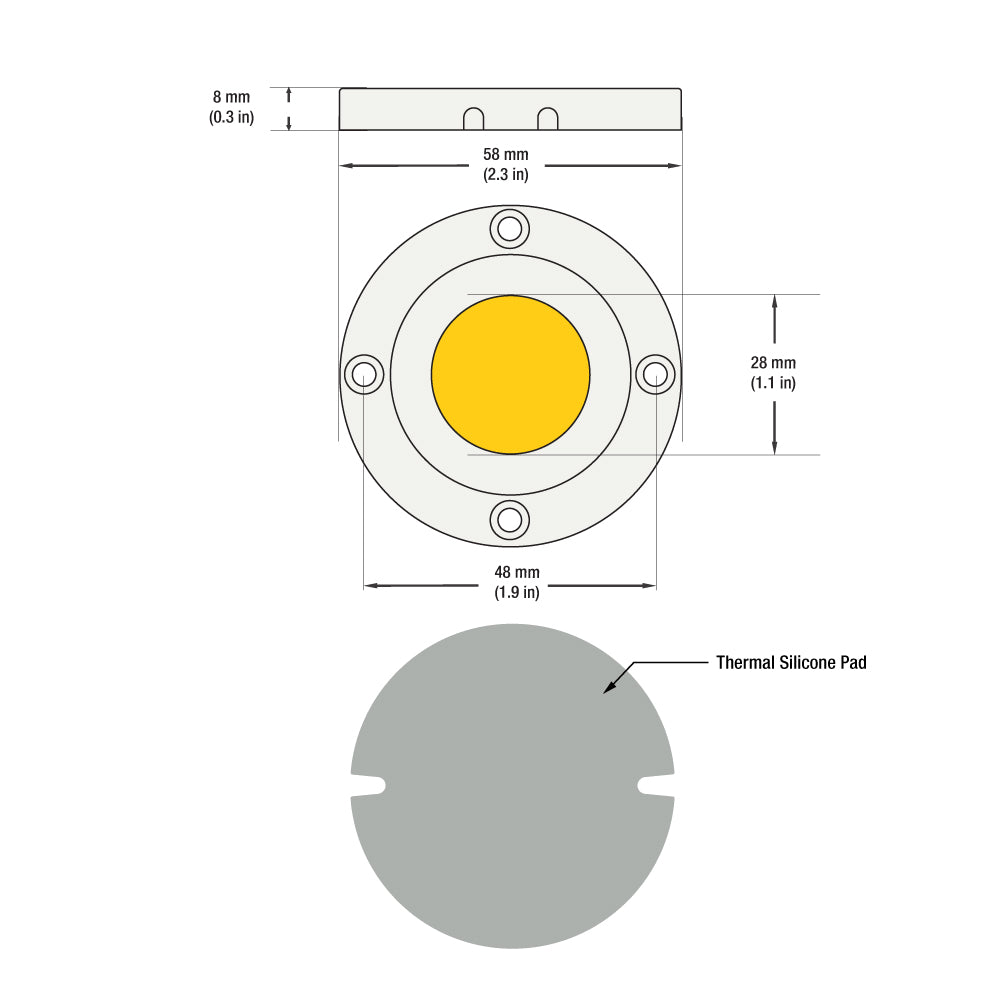

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

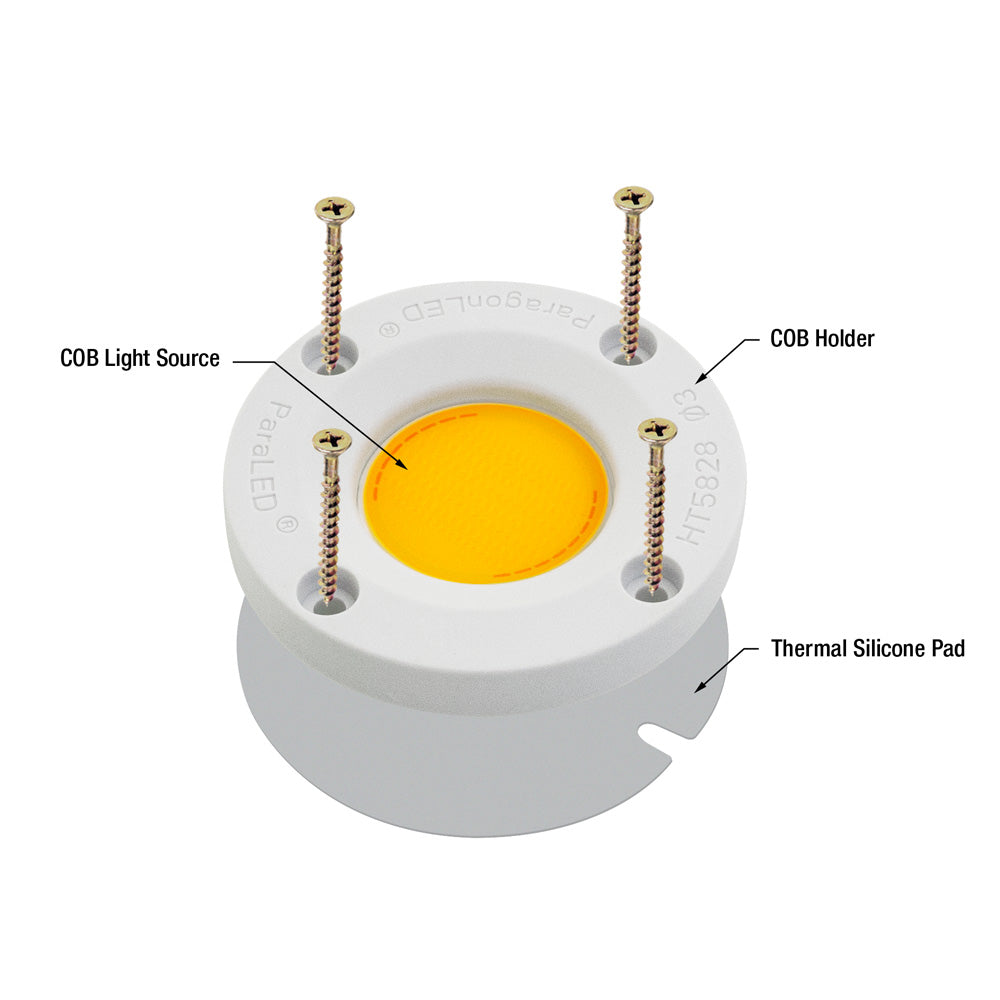

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CDAC-136-5028-347-3000K is a Paragon LED Module with a model number of CDAC-136-05028-347-3000K. The module uses a COB LED type and has 136 LED chips. It consumes 10W of power and operates on a voltage of 347V AC. The power factor of the module is greater than 0.85 and has a luminous intensity of 1150 Lumens. It has a color temperature of 3000K (Warm White) and a rendering index of greater than 80. The module is dimmable and has an IP20 rating, making it suitable for indoor use.

The CDAC-136-5028-347-3000K Paragon LED Module has low power consumption and high energy efficiency. It is suitable for damp locations and requires an aluminum heat sink to prevent overheating or luminous decay. COB LEDs have a brighter and higher quality beam output, while consuming less power compared to older LED technologies. It is essential to ground light fixtures while designing lamps, and the module comes with a polycarbonate diffuser that reduces glare and refracts light in a wider beam.

Features:

  • COB LED type with 136 LED chips, consuming 10W of power and operating on a voltage of 347V AC
  • Luminous intensity of 1150 Lumens with a color temperature of 3000K (Warm White) and a rendering index of >80
  • Dimmable and has an IP20 rating, making it suitable for indoor use
  • Operating temperature range of -40 ~ +105℃ with a thermal pad for heat dissipation
  • Comes with a polycarbonate diffuser that reduces glare and refracts light in a wider beam
  • Certified by UL for quality and safety
  • Suitable for damp locations and requires an aluminum heat sink to prevent overheating or luminous decay
