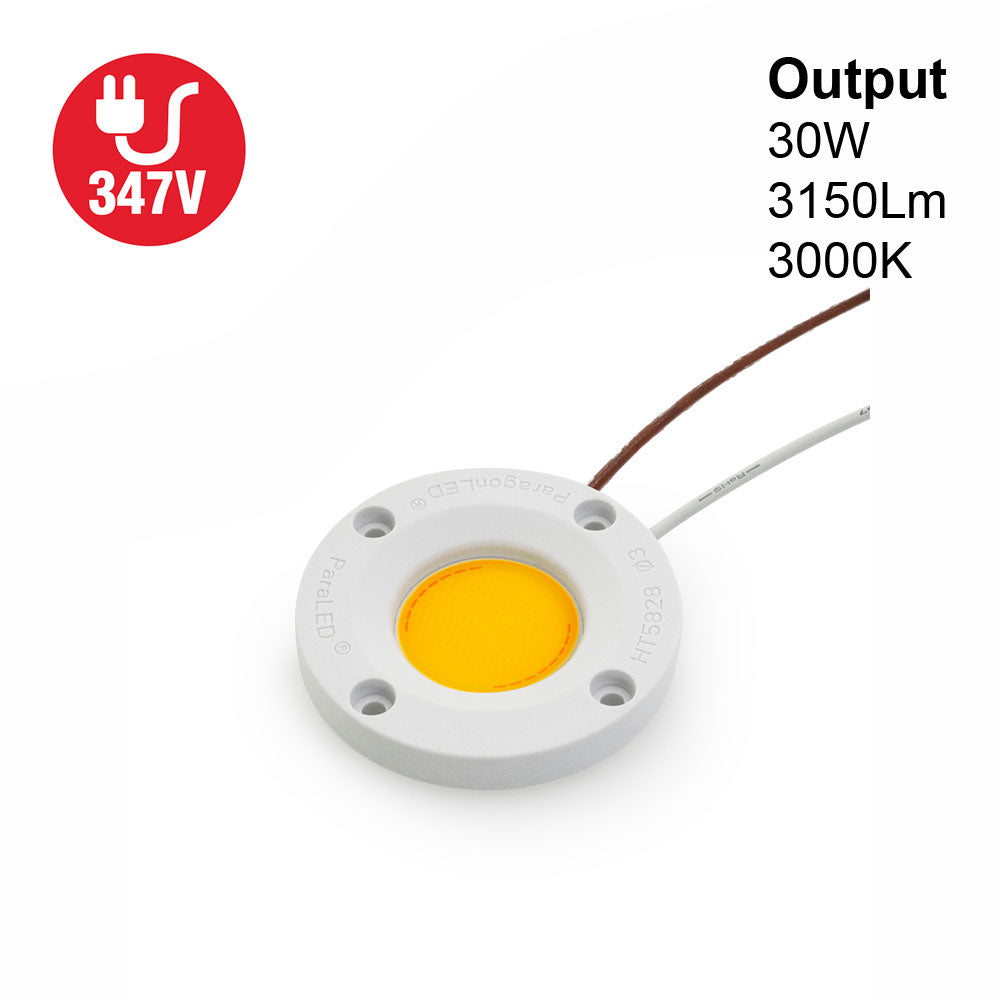

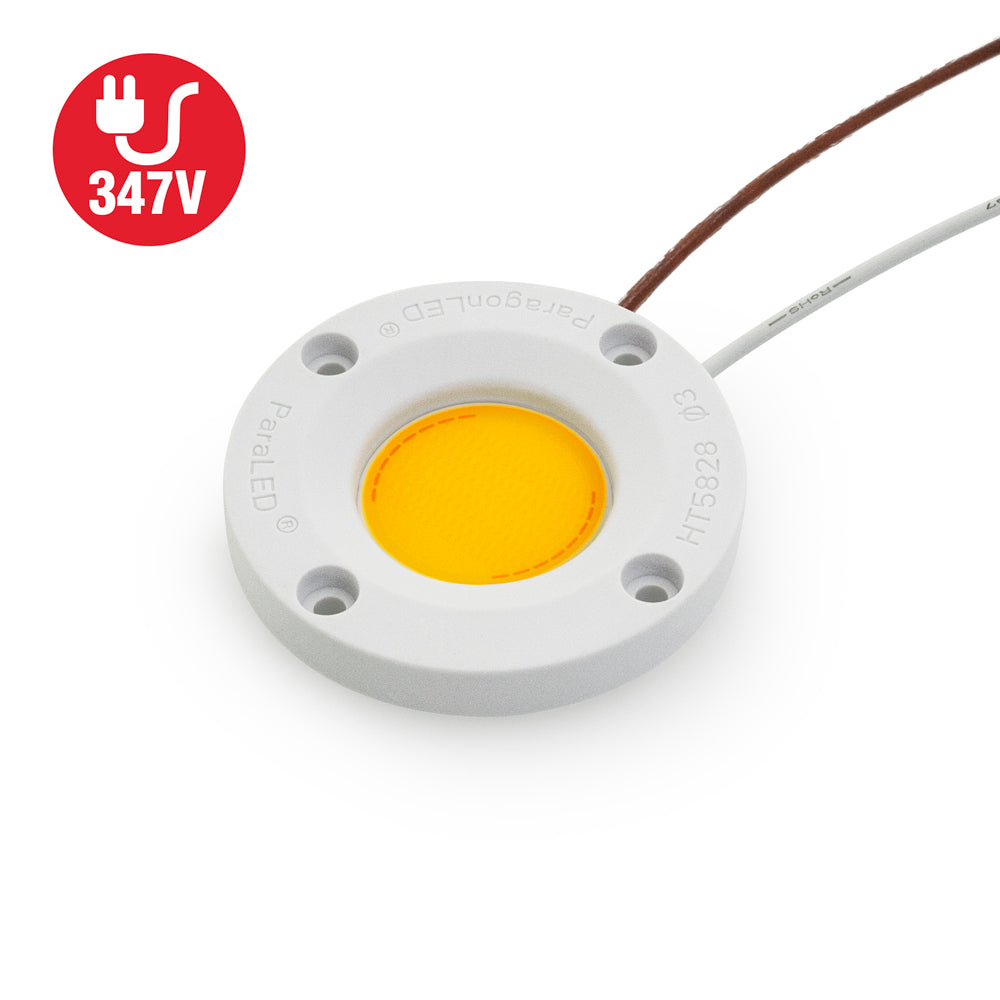

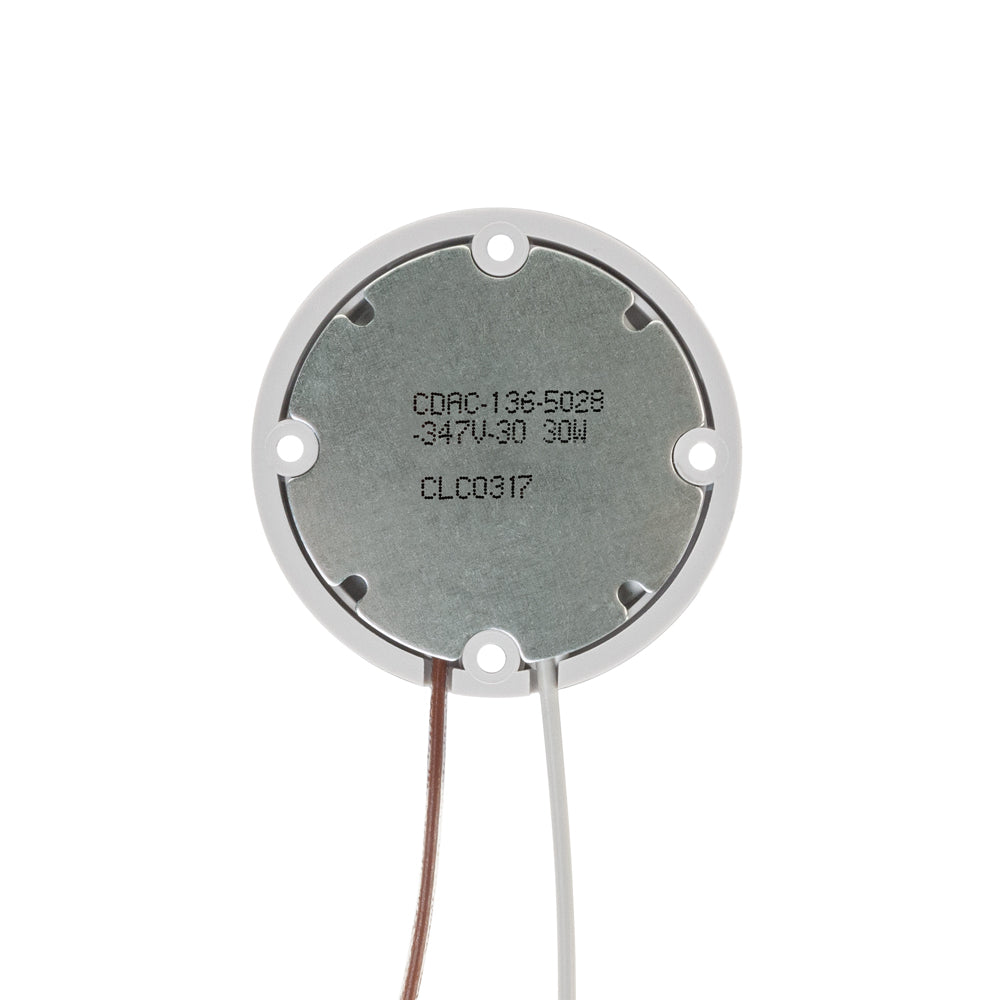

CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 30W 3000K(Warm White)
CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 30W 3000K(Warm White)
SKU: SKU:666561430702
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
Important Note:Â
We will ship your order using a different courier during the Canada Post strike
 How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Product Description
Product | Paragon LED Module |
Model No | CDAC-136-5028-347-3000K |
COB Holder Model No | HT5828 |
LED Type |
COB LED |
No LED chips | 136 |
Wattage | 30WÂ |
Voltage | 347V AC |
Power Factor | PF>0.85 |
Luminous Intensity | 3150 Lumens |
Color Temperature | 3000K (Warm White) |
Dimmable | Yes |
Rendering Index | CRI>80 |
IP Rating | IP20 (Indoor rated) |

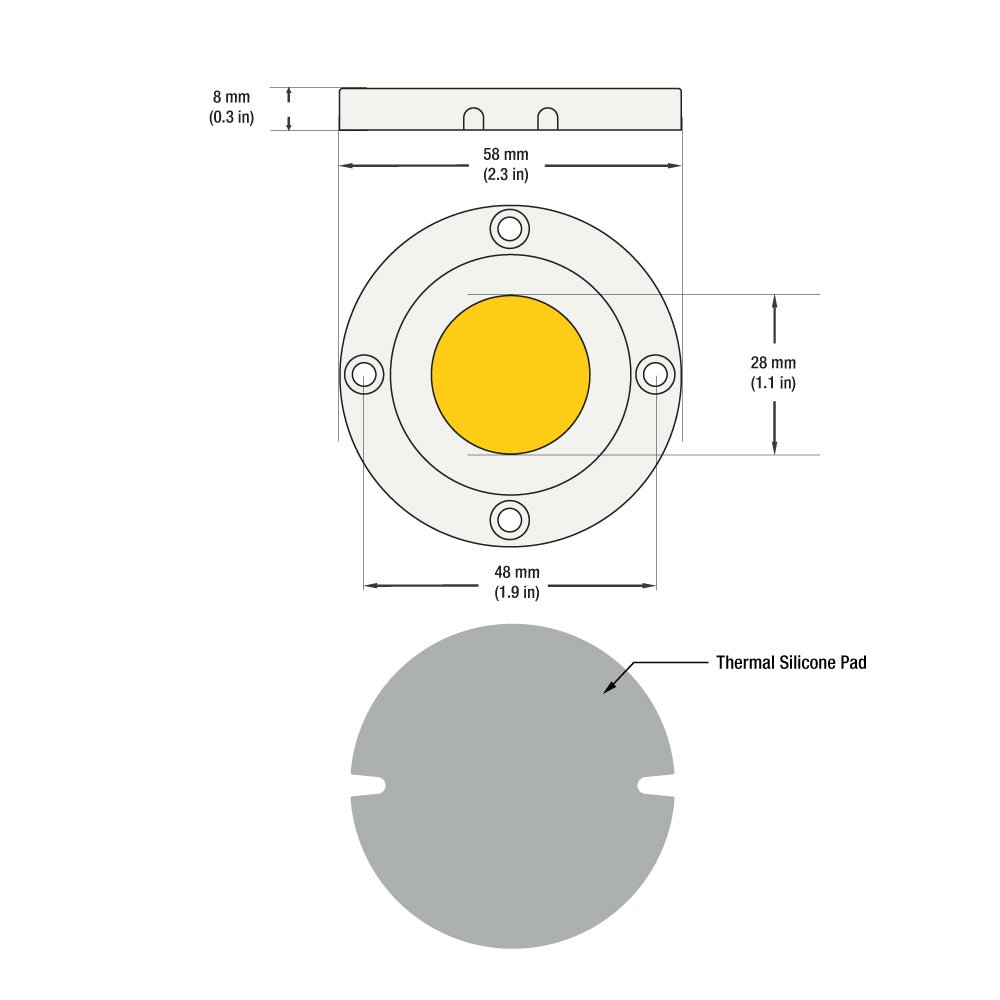

COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
COB Module Outer Diameter | ∅28mm (1.1 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |

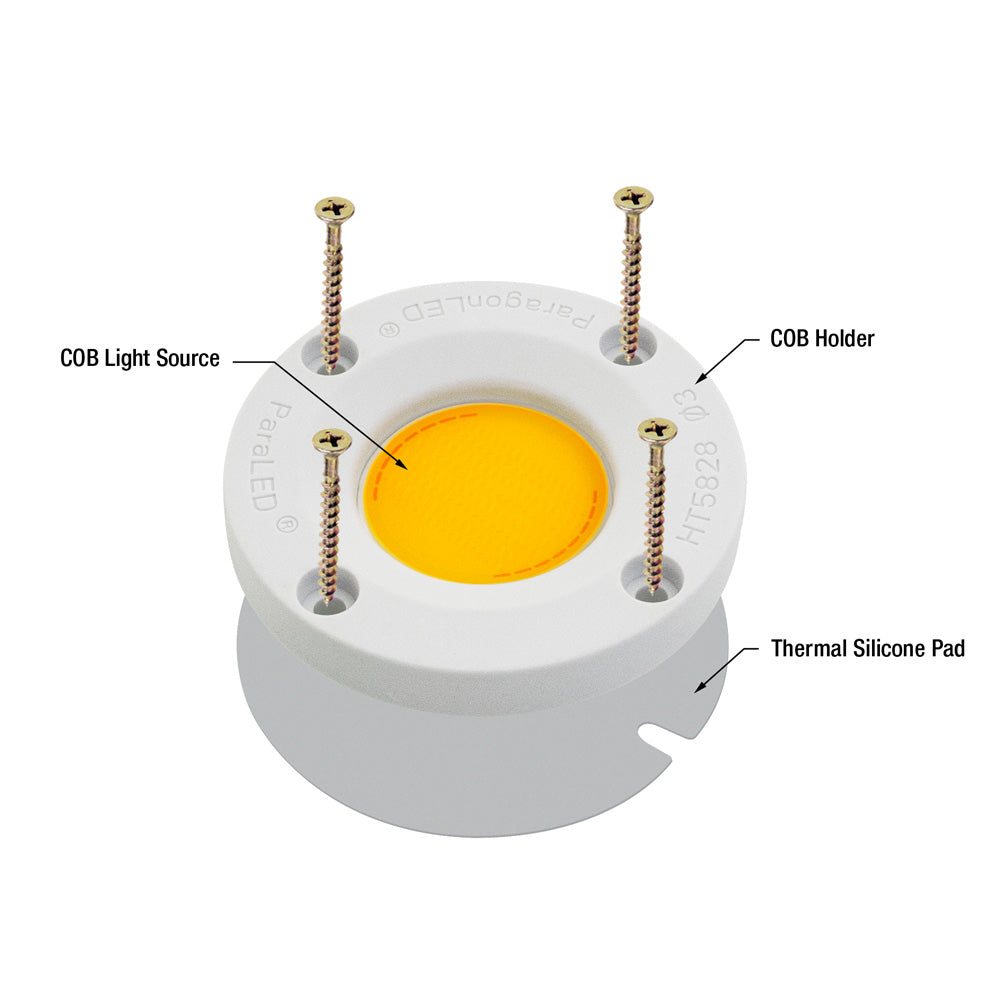

Included Content | COB Module, COB LED Holder, Thermal Pad |
Certifications |
The CDAC-136-5028-347-3000K Paragon LED Module is a high-quality lighting solution that features 136 pieces of COB LED chips and is designed for use with a HT5828 LED holder. This module is rated for 347V AC and has a power output of 30 watts, providing a luminous intensity of 3150 lumens with a warm white color temperature of 3000K.
The Paragon LED Module is designed to operate in temperatures ranging from -40 to +105℃ and comes with a silicone grease thermal pad that provides a heat sink to help dissipate heat, thereby increasing the life span of the module. It requires an aluminum heat sink to prevent overheating, which can cause luminous decay.
This LED module is generally used in a wide range of luminaire applications and comes with a polycarbonate diffuser that can easily be attached or detached. The diffuser not only protects the module but also helps to reduce glare and refract the light into a wider beam. The module is UL certified and should be grounded when designing light fixtures.
Features:
- The CDAC-136-5028-347-3000K Paragon LED Module features 136 COB LED chips and is designed for use with a HT5828 LED holder
- The module is rated for 347V AC and has a power output of 30 watts, providing a luminous intensity of 3150 lumens with a warm white color temperature of 3000K
- It has a high power factor (>0.85) and a high rendering index (CRI>80) and is dimmable, making it a versatile lighting solution
- The module is suitable for indoor use and has an IP20 rating
- The module is designed to operate in temperatures ranging from -40 to +105℃ and comes with a silicone grease thermal pad to help dissipate heat and increase the module's lifespan
- An aluminum heat sink is required to prevent overheating, which can cause luminous decay
- The module is commonly used in a wide range of luminaire applications and comes with a polycarbonate diffuser that can easily be attached or detached to reduce glare and refract light into a wider beam
- The module is UL certified and should be grounded when designing light fixtures.
