CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 5000K(Daylight)
CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 5000K(Daylight)
SKU: SKU:666561430658
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Product Description
Product | Paragon LED Module |
Model No | CDAC-136-5028-347-5000K |
COB Holder Model No | HT5828 |
LED Type |
COB LED |
No LED chips | 136 |
Wattage | 10WÂ |
Voltage | 347V AC |
Power Factor | PF>0.85 |
Luminous Intensity | 1200 Lumens |
Color Temperature | 5000K (Daylight) |
Dimmable | Yes |
Rendering Index | CRI>80 |
IP Rating | IP20 (Indoor rated) |

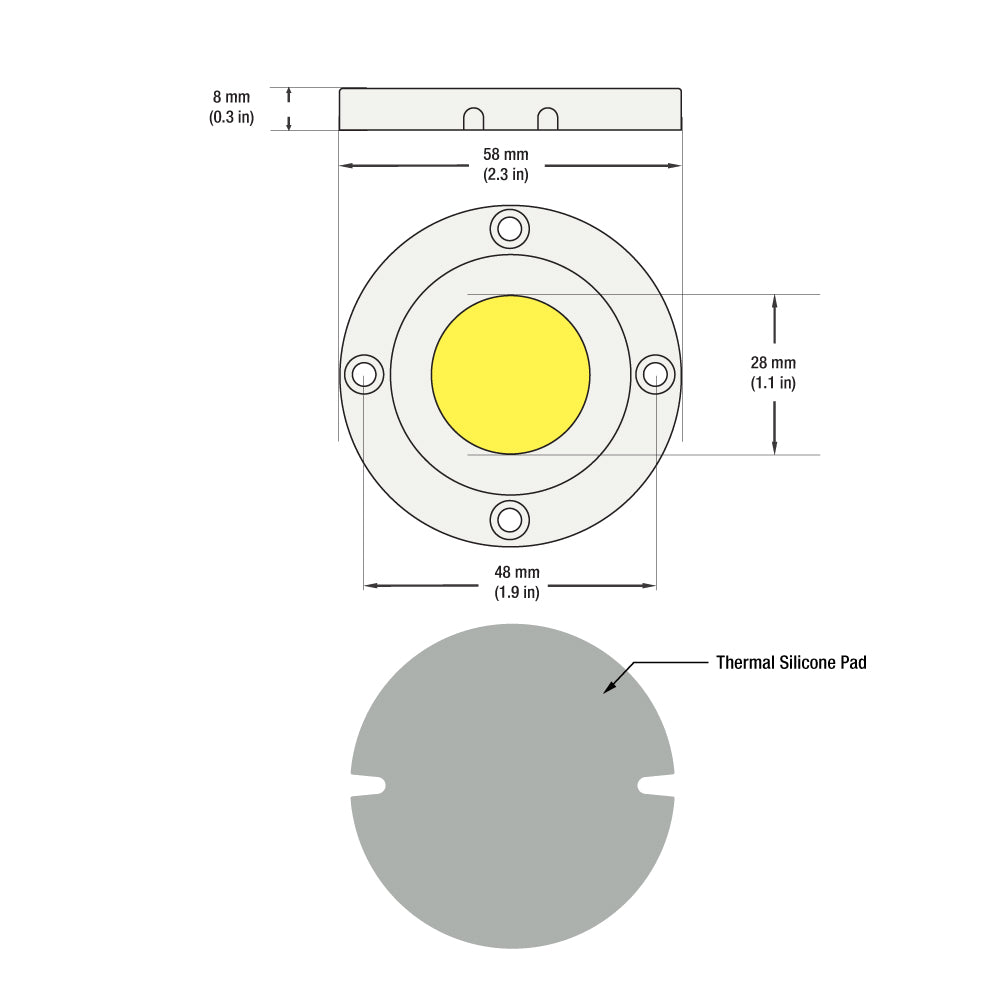

COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
COB Module Outer Diameter | ∅28mm (1.1 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |
Included Content | COB Module, COB LED Holder, Thermal Pad |
Certifications |

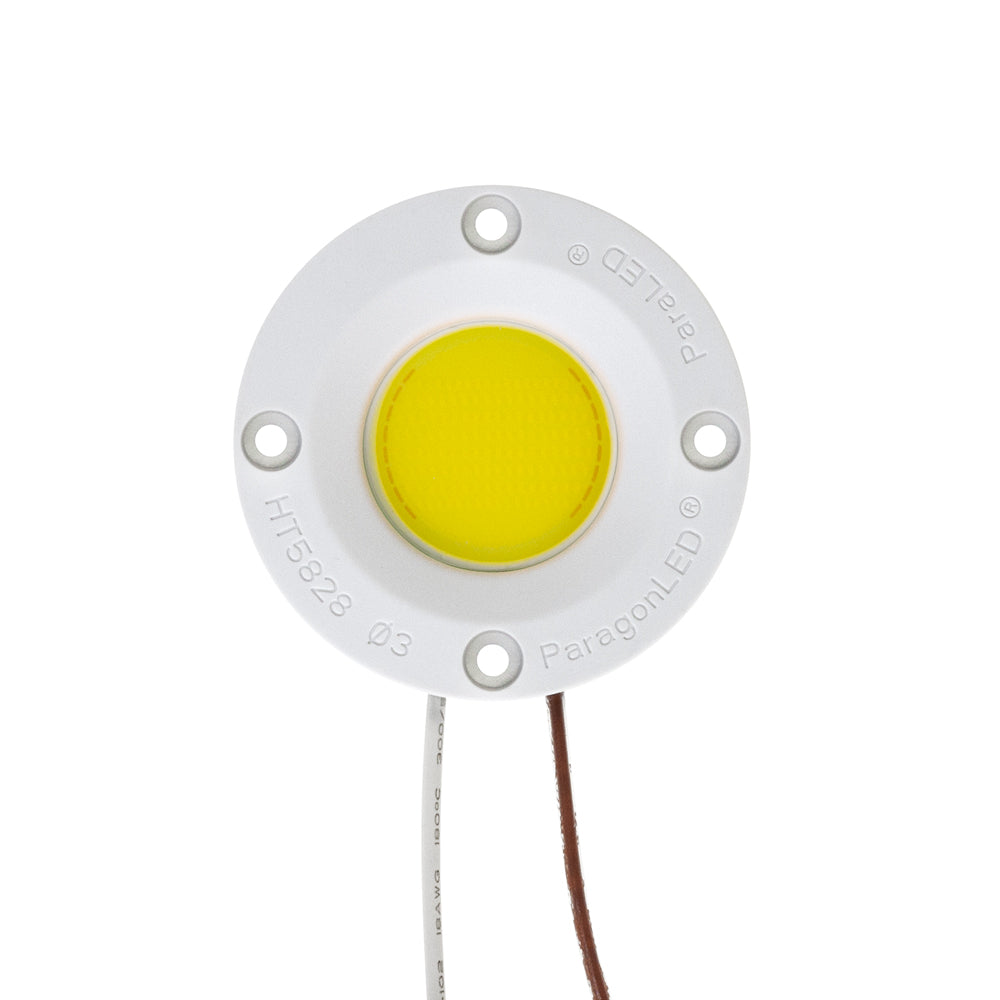

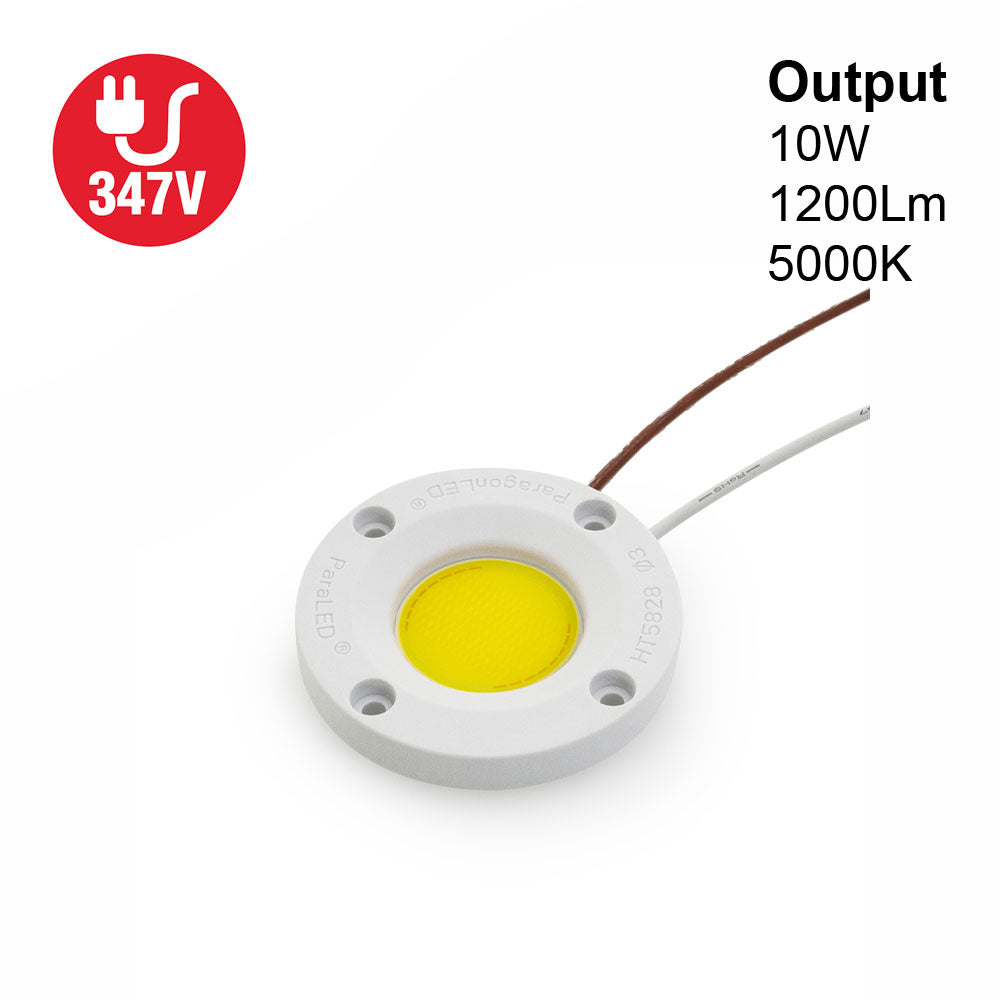

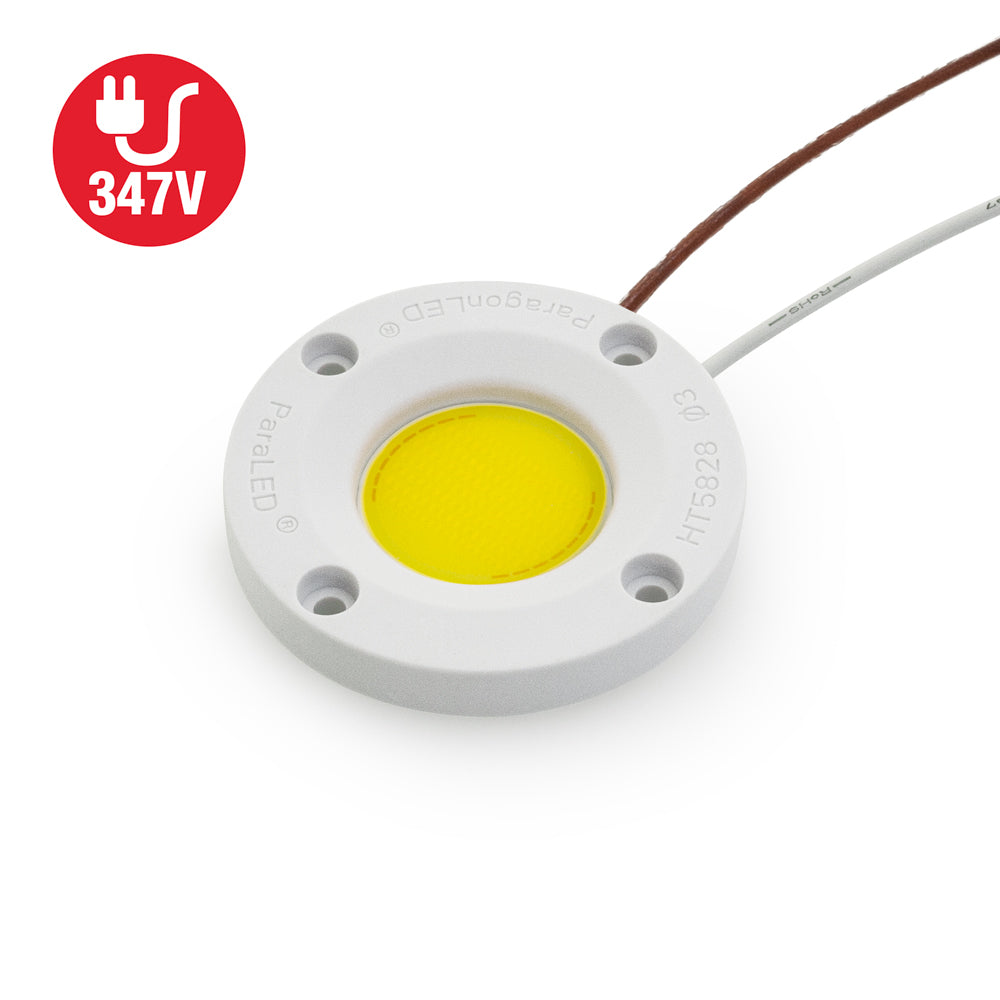

The CDAC-136-5028-347-5000K Paragon LED Module is a high-performance lighting solution designed for indoor use. It features a COB LED with 136 LED chips, a wattage of 10W, and a voltage of 347V AC. The module has a power factor greater than 0.85 and a luminous intensity of 1200 lumens, providing bright and efficient lighting.
The color temperature of the module is 5000K, which is considered daylight and provides a cool and crisp white light. The module is also dimmable, allowing for adjustable lighting levels to suit different needs.
This LED module is suitable for use in various luminaire types, and it is important to ground light fixtures while designing lamps. The module is certified by UL, ensuring its quality and safety standards. Overall, the CDAC-136-5028-347-5000K Paragon LED Module is an energy-efficient and high-quality lighting solution suitable for various indoor lighting applications.
Features:
- High-performance indoor lighting solution
- COB LED with 136 LED chips
- 10W wattage and 347V AC voltage
- Power factor greater than 0.85
- Luminous intensity of 1200 lumens
- Color temperature of 5000K (daylight)
- Dimmable for adjustable lighting levels
- High rendering index of over 80 for vibrant colors
- Rated IP20 for indoor use and can be used in damp locations
- Requires an aluminum heat sink to prevent overheating and ensure longevity

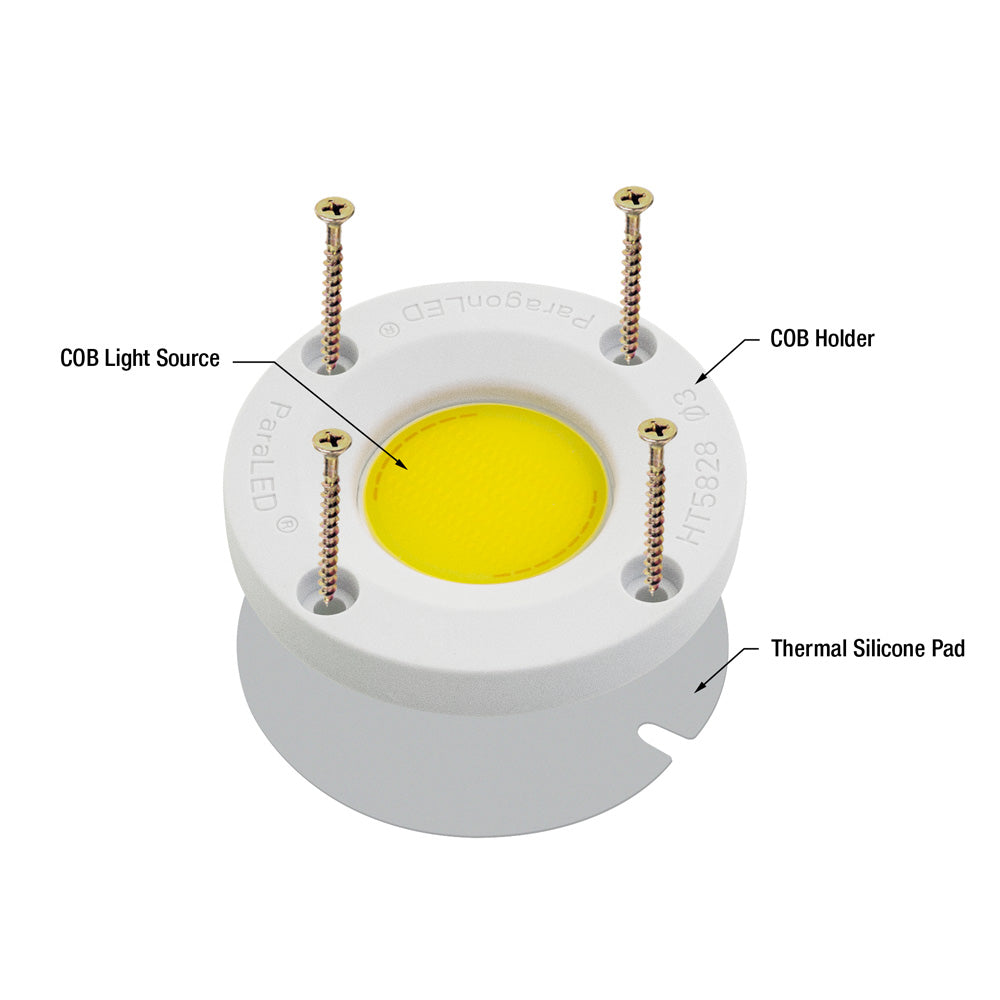

- COB holder model HT5828 for mechanical and electrical connection
- Package includes COB module, holder, and thermal pad
- Polycarbonate diffuser helps reduce glare and widen beam angle
- Suitable for use in various luminaire types
- Certified by UL for quality and safety standards
