CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 30W 5000K(Daylight)

CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 30W 5000K(Daylight)

SKU:666561430719

$203.00 CAD
$203.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

Product Paragon LED Module
Model No CDAC-136-5028-347-5000K
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 136
Wattage 30W
Voltage 347V AC
Power Factor PF>0.85
Luminous Intensity 3300 Lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

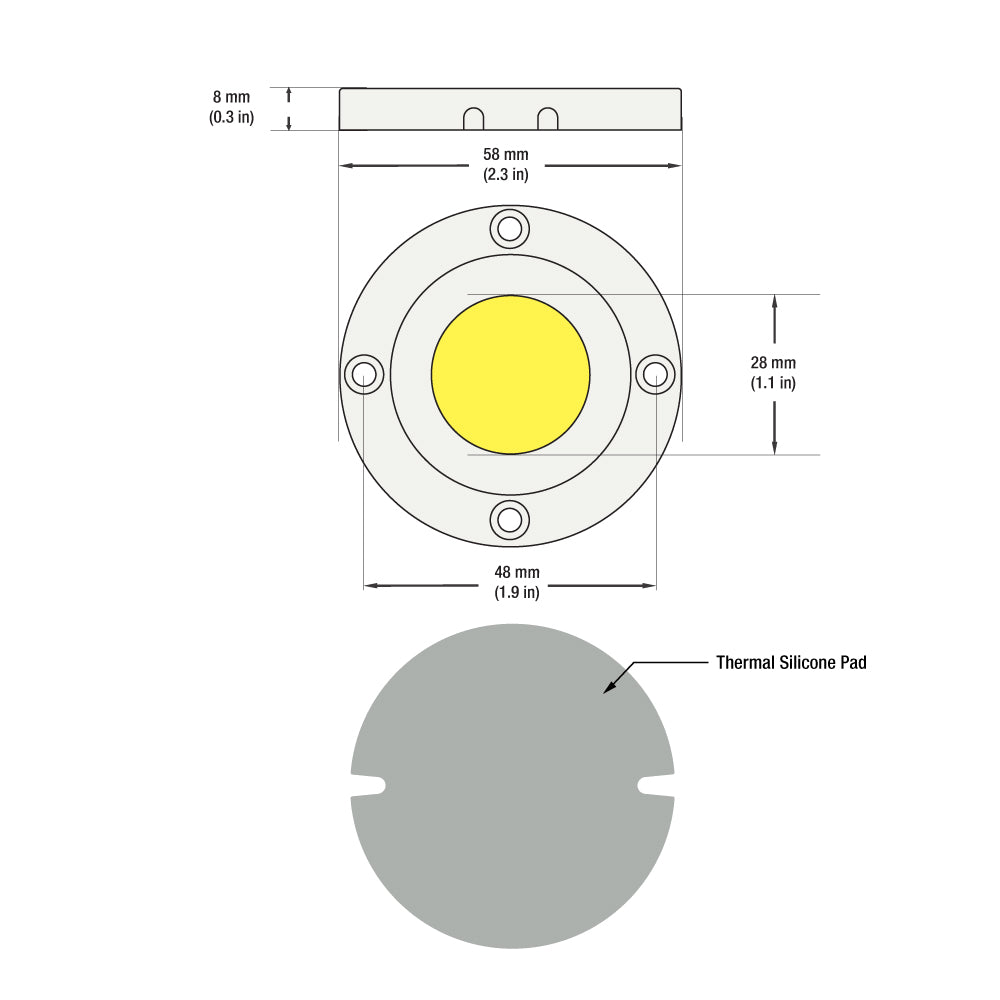

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

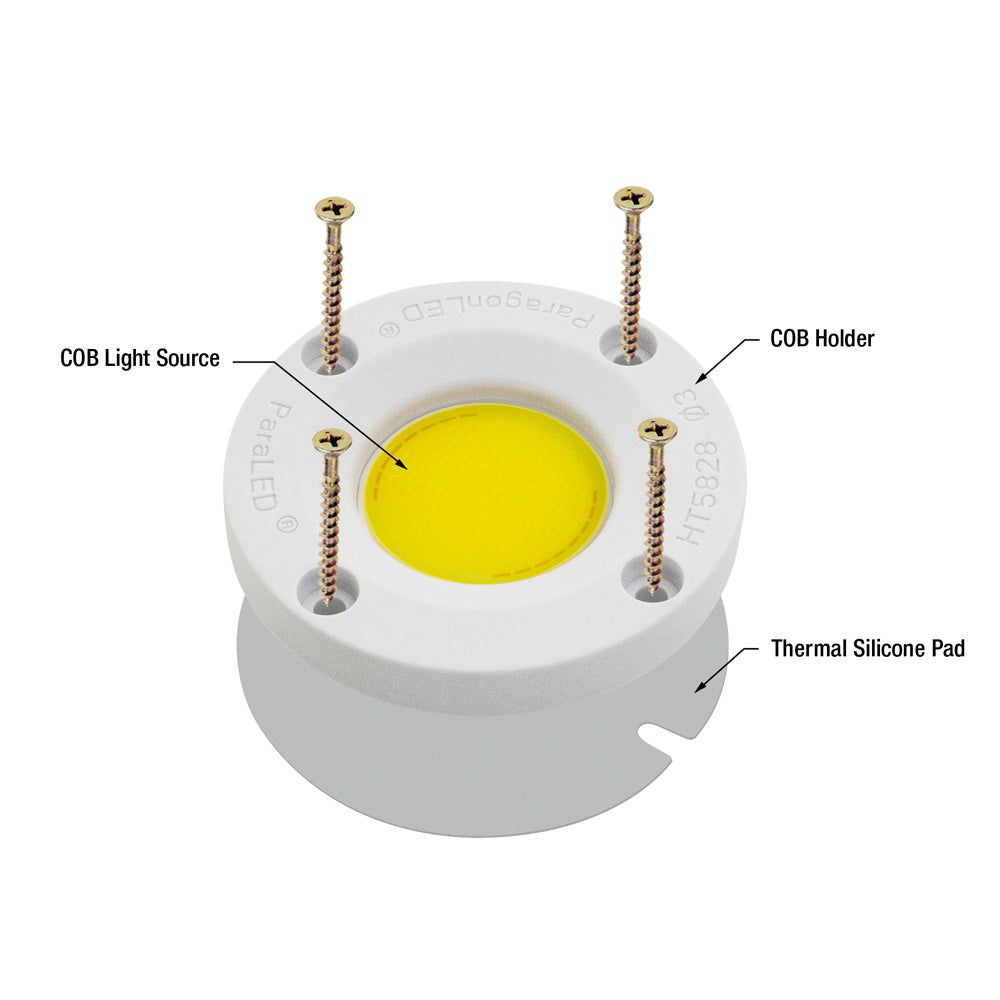

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CDAC-136-5028-347-5000K Paragon LED Module is a high-performance COB LED lighting solution designed for indoor use in a variety of settings, including homes, offices, and retail environments. The module includes 136 LED chips, each with a wattage of 30W, and operates at a voltage of 347V AC, providing a total luminous intensity of 3300 lumens.

The module is rated IP20, meaning it is suitable for indoor use in damp locations. To prevent overheating, the module requires an aluminum heat sink to be included in the luminaire design. Additionally, the module comes with a polycarbonate diffuser that can be easily attached or detached, helping to reduce glare and refract light in a wider beam.

The CDAC-136-5028-347-5000K Paragon LED Module is certified by UL, indicating that it meets high safety and performance standards. This COB LED lighting solution is ideal for a wide range of applications due to its low power consumption, high energy efficiency, and high-quality beam output compared to older LED technologies.

Features:

  • The CDAC-136-5028-347-5000K Paragon LED Module is a high-quality COB LED lighting solution suitable for indoor use in a variety of settings such as homes, offices, and retail environments.
  • The module has 136 LED chips, each with a wattage of 30W, and operates at a voltage of 347V AC, providing a total luminous intensity of 3300 lumens.
  • It features a COB holder model HT5828, which allows the module to be securely fastened and electrically connected to a heat sink, preventing overheating and ensuring a longer lifespan for the module.
  • The module is dimmable and has a color temperature of 5000K, which is considered to be in the daylight range, and has a high color rendering index (CRI) of over 80, ensuring that colors appear true to life.
  • It has an IP20 rating, making it suitable for indoor use in damp locations, and is certified by UL for high safety and performance standards.
