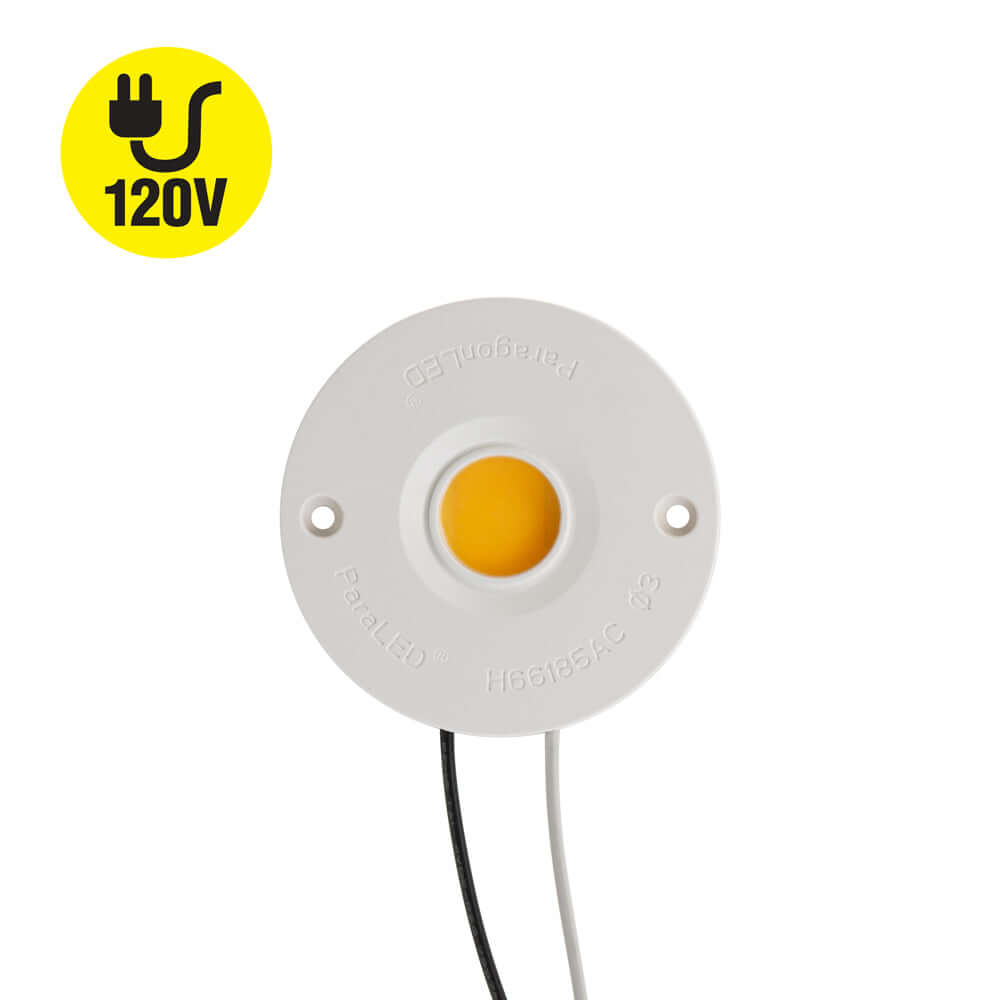

CDHT-042-36185-120-3000 G13 COB Paragon LED Module With H66185AC LED Holder,120V 18W 3000K(Soft White)
CDHT-042-36185-120-3000 G13 COB Paragon LED Module With H66185AC LED Holder,120V 18W 3000K(Soft White)
SKU: SKU:666561434281
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â

Product Description
| Product | Paragon LED Module |
| Model No | CDHT-042-36185-120-3000 |
| COB Holder Model No | H66185AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 18WÂ |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 1800 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

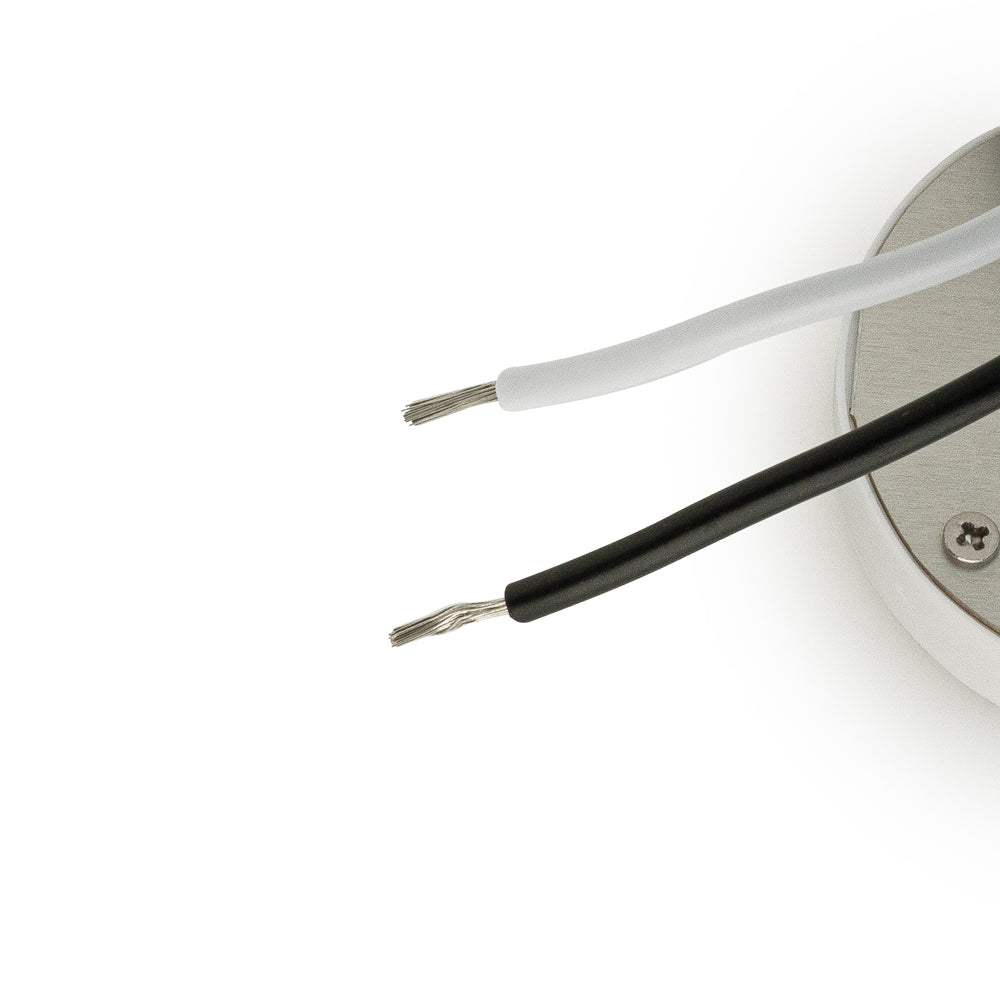

| Wire Size | 20mm (0.78in) 18 AWG |

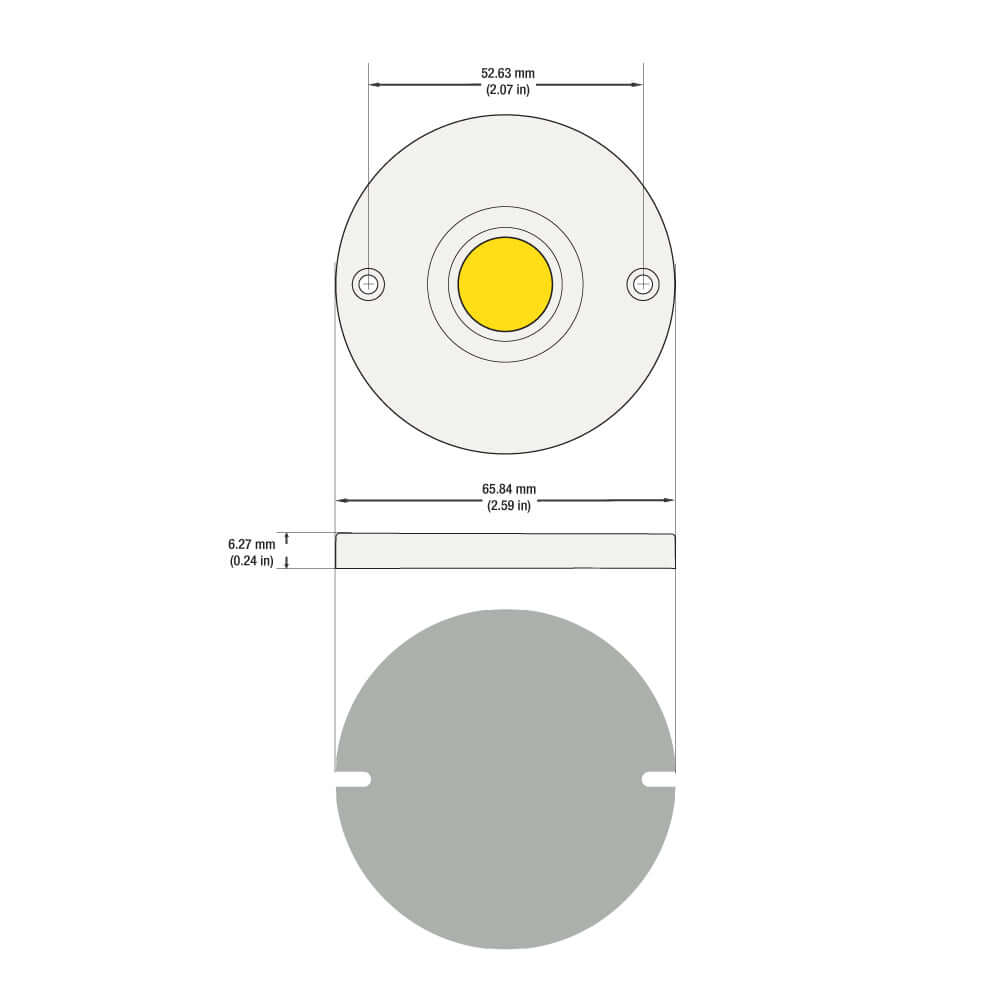

| COB Holder Dimensions | ∅ 65.84 x 6.2mm (2.59 x 0.24) |
| COB Module Outer Diameter | ∅ 20mm (0.8in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |

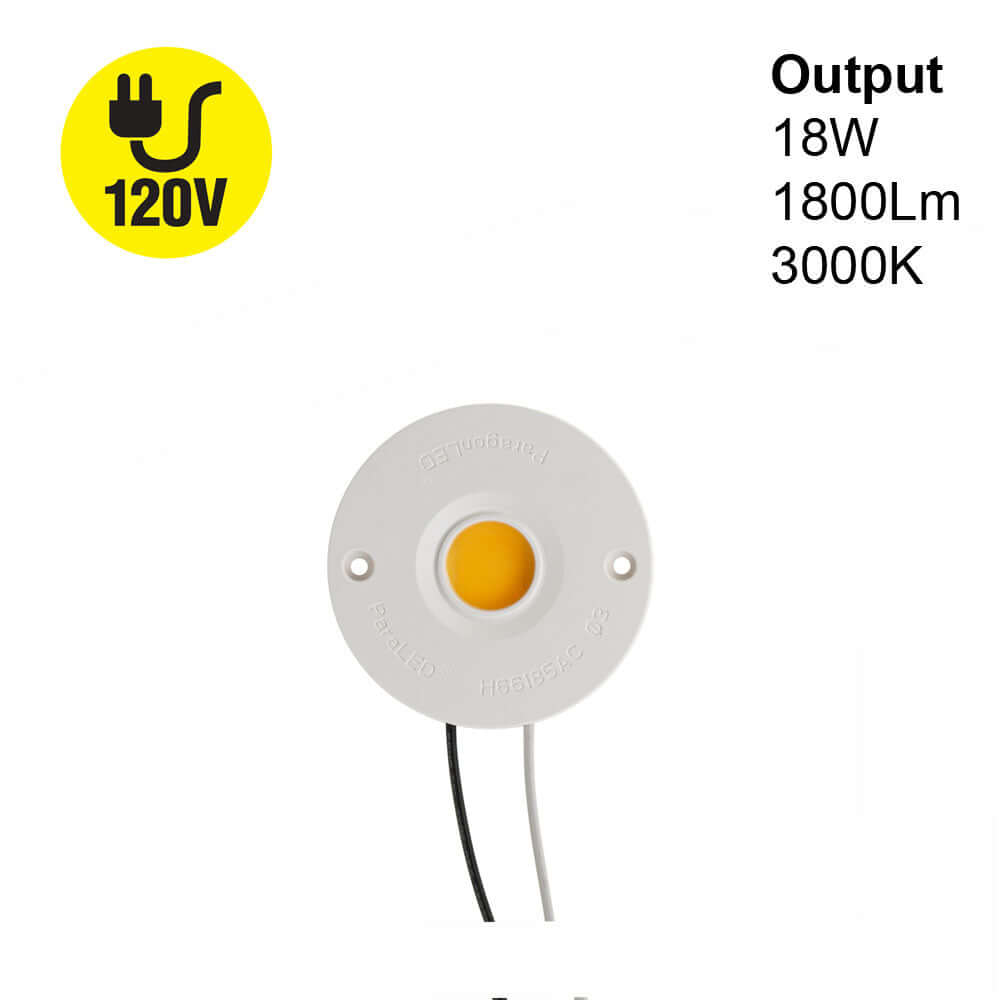

The Paragon LED Module is a COB LED module designed for indoor use with a model number of CDHT-042-36185-120-3000 G13. The module has 42 LED chips and a wattage of 18W, with a voltage of 120V AC and a power factor greater than 0.98. It has a luminous intensity of 1800 lumens and a color temperature of 3000K (Warm White), with a dimmable feature.
The package includes the COB Module, COB LED Holder, and Thermal Pad, and the product is certified by UL. To prevent overheating, an aluminum heat sink is required during installation to increase the life span of the module. The product comes with a polycarbonate diffuser that can easily be attached or detached, which helps in reducing the glare and refracting the light in a wider beam.

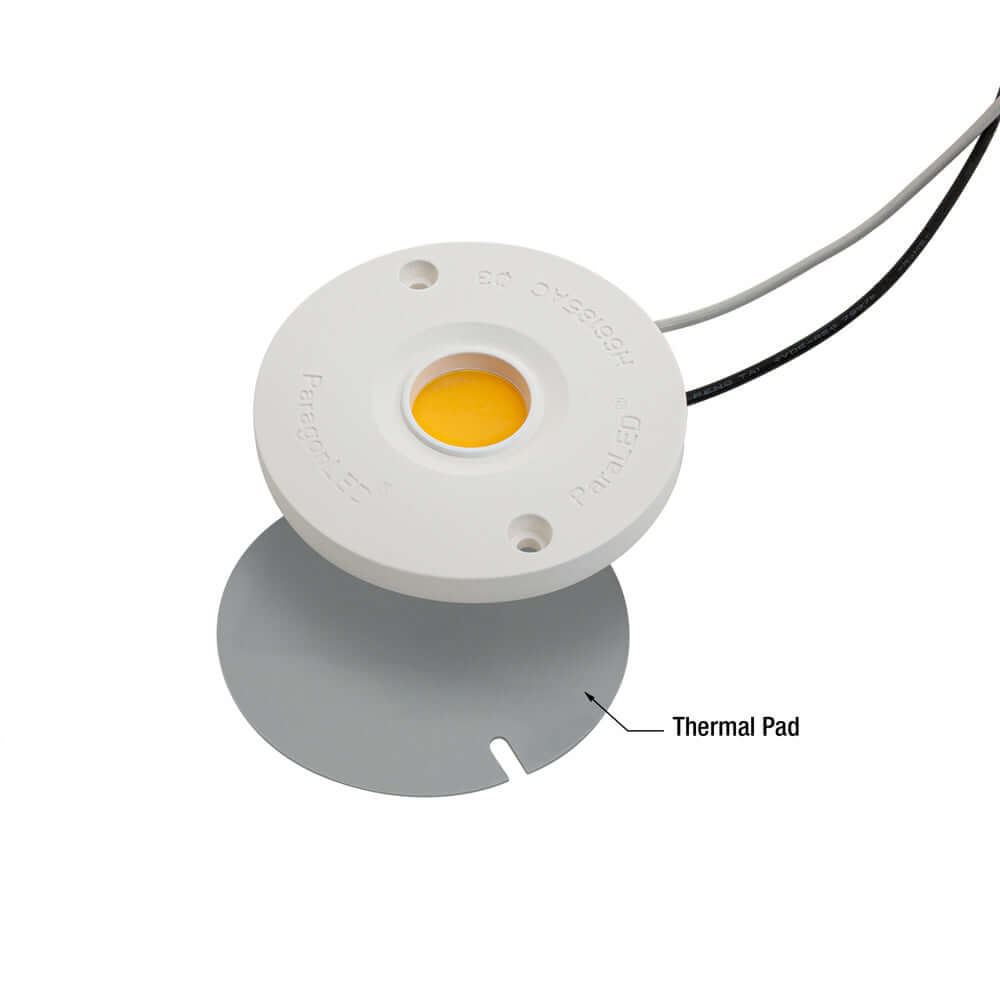

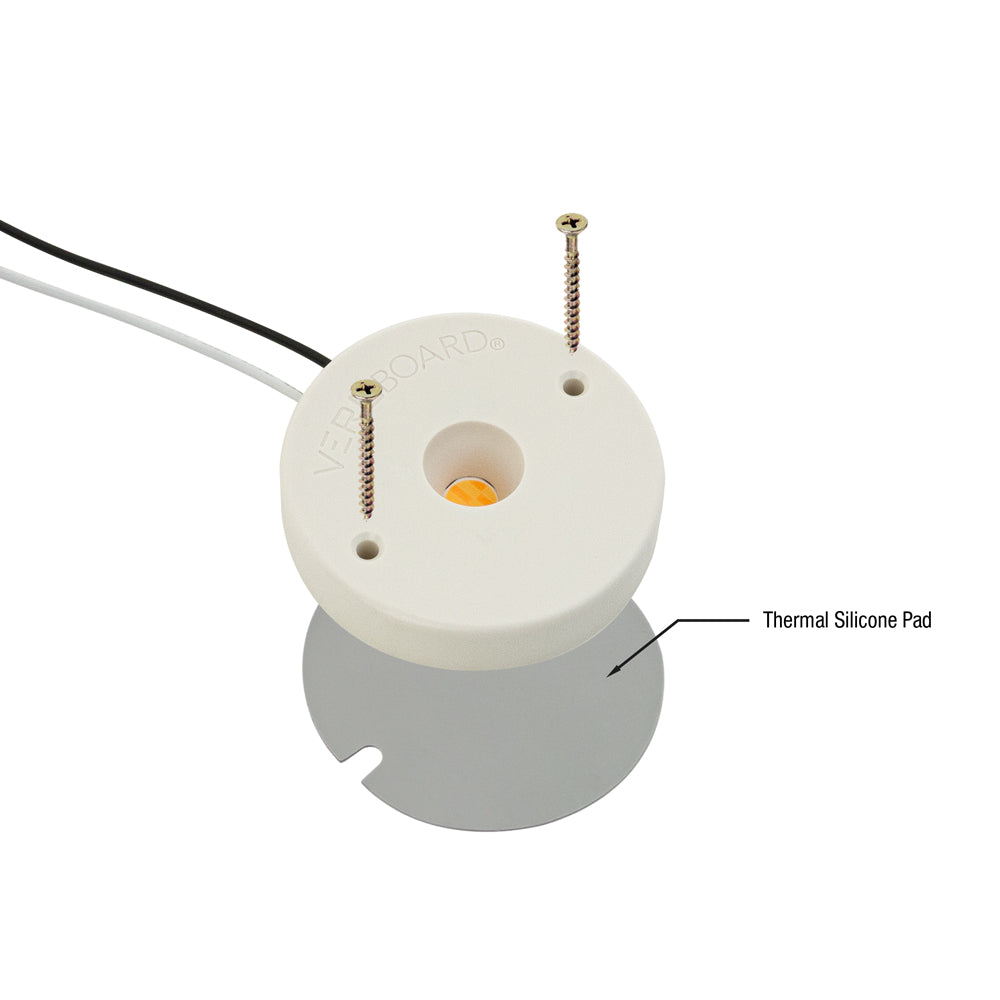

The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. A silicone grease thermal pad provides a heat sink and helps in better heat dissipation. This product is suitable for almost every kind of luminaire, but it is important to ground light fixtures while designing lamps.
Features:
- COB LED module designed for indoor use with 42 LED chips and a wattage of 18W
- Voltage of 120V AC and power factor greater than 0.98
- Luminous intensity of 1800 lumens and color temperature of 3000K (Warm White), with dimmable feature
- High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
- Operating temperature range of -40 to +105℃
- Dielectric breakdown voltage of thermal pad greater than 4KV
- Package includes COB Module, COB LED Holder, and Thermal Pad
- Certified by UL
- Aluminum heat sink required during installation to prevent overheating and increase lifespan
- Polycarbonate diffuser included for reducing glare and refracting light in wider beam
- COB holder allows for mechanical securing, electrical connection, and attachment to heat sink
- Silicone grease thermal pad provides heat sink and improves heat dissipation
- Suitable for various luminaires but important to ground light fixtures while designing lamps.
