Product Description
| Product | Paragon LED Module |
| Model No | CDHT-42-36185-120V-27 (Paragon) VBDMDL-6652-18W-9XXK-120V (Veroboard) |
| COB Holder Model No | H66185AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 18W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 1800 lumens |

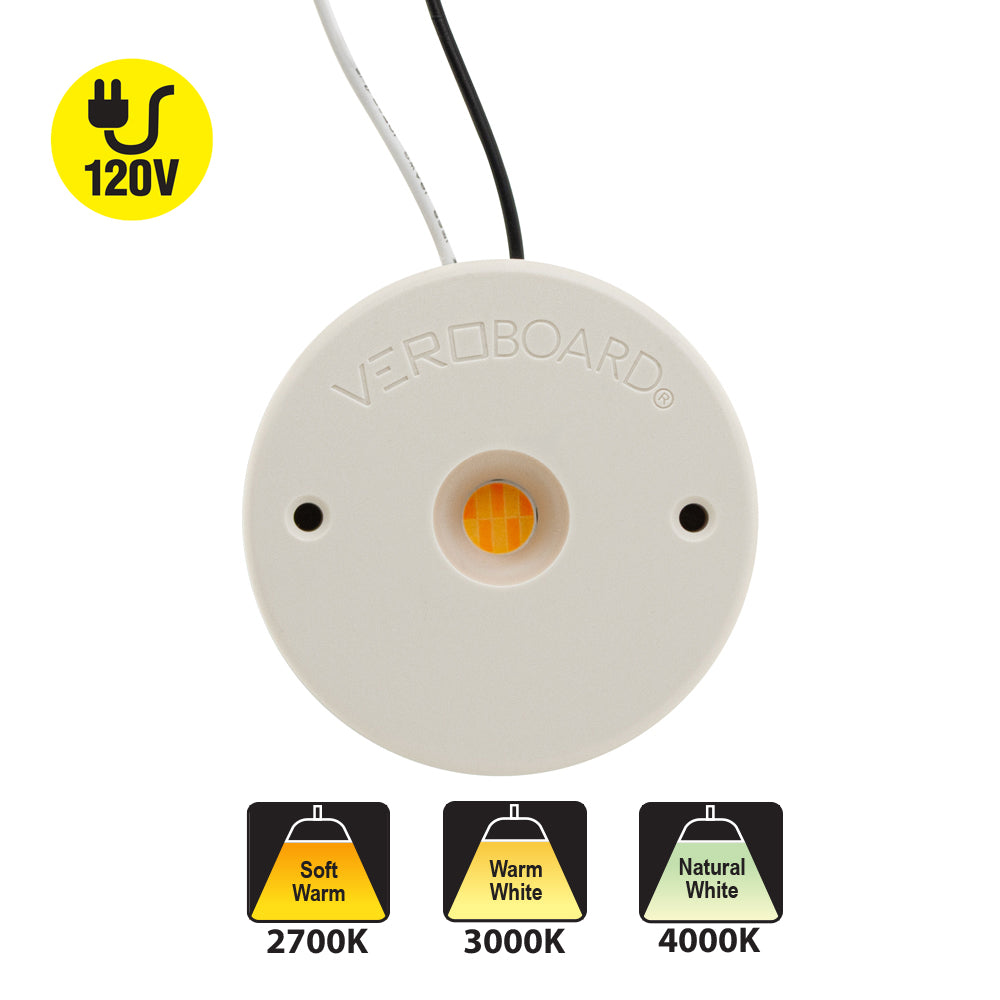

| Color Temperature | (Paragon) 2700K (Soft White) (Veroboard) 2700K (Soft White) 3000K (Warm White) 4000K (Natural White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 (Paragon) CRI>90 (Veroboard) |
| IP Rating | IP20 (Indoor rated) |
| Wire Size | 20mm (0.78in) 18 AWG |

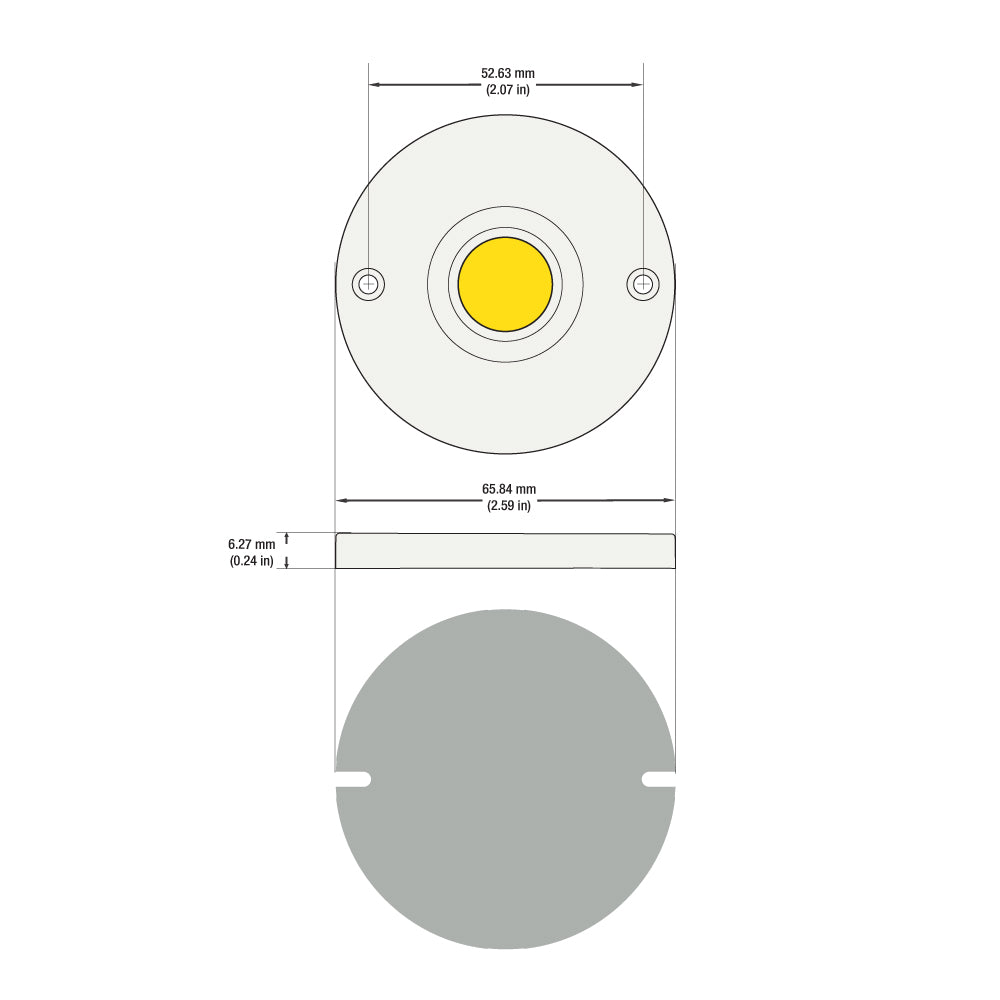

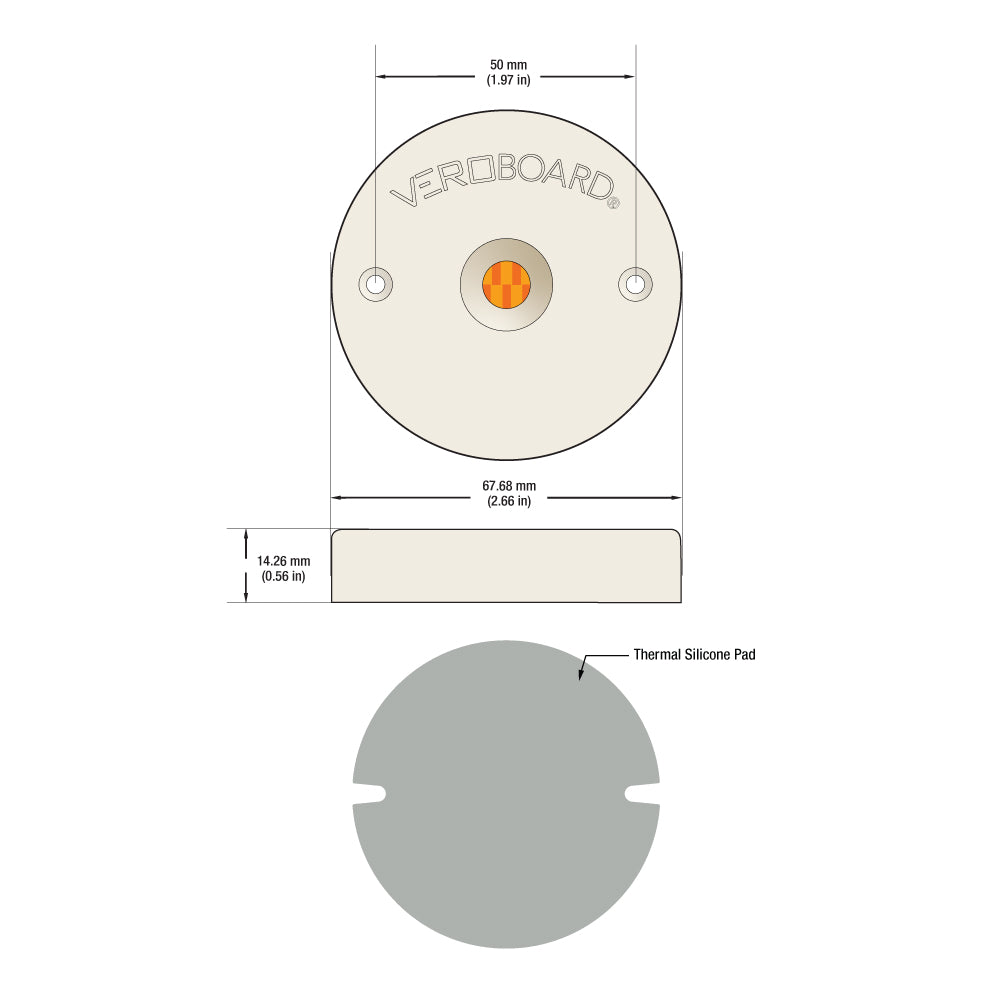

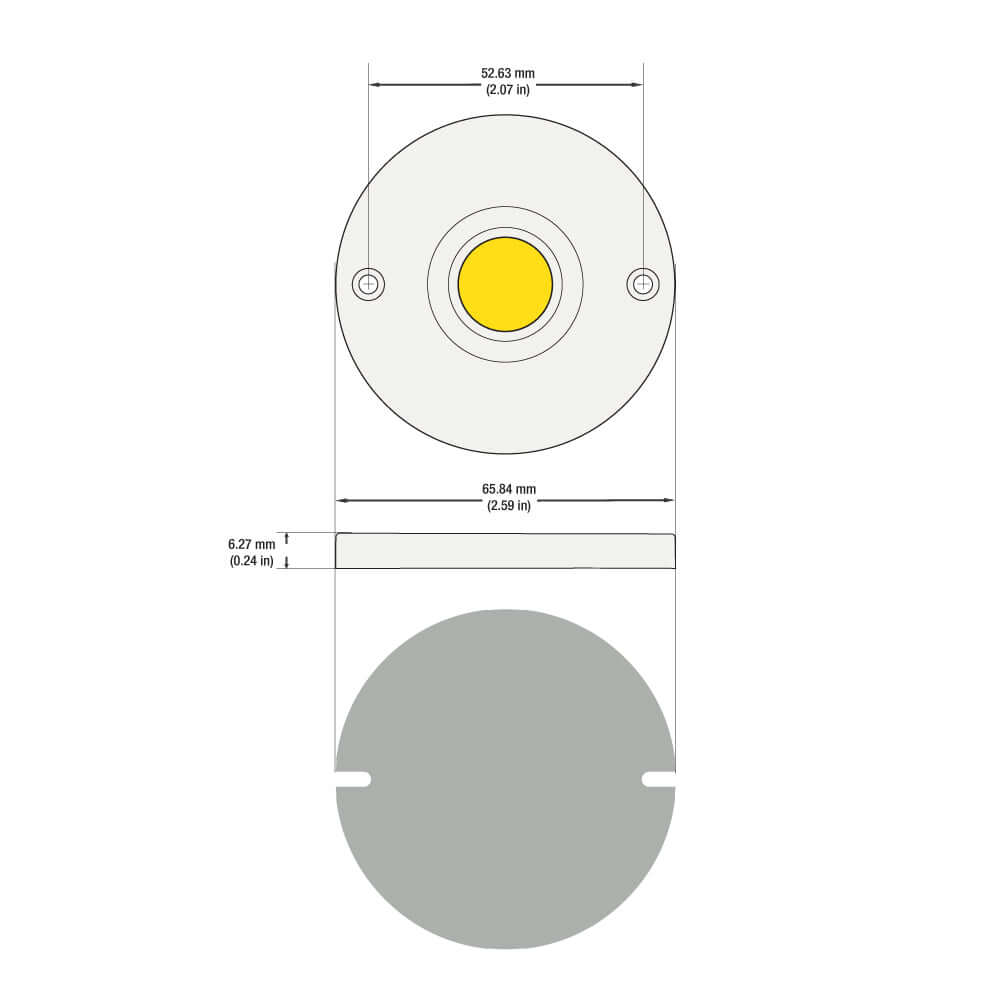

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| COB Module Outer Diameter | ∅ 20.5mm (0.8in) (Paragon) ∅ 10mm (0.39in) (Veroboard) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Weight | 0.03 kg |
| Certifications (Paragon) |  |
| Certifications (Veroboard) |

|
Features:
- CDHT-42-36185-120V-27 COB Paragon LED Module 120V 18W designed for indoor use with 42 LED chips
- Voltage of 120V AC and power factor greater than 0.98
- High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
- Operating temperature range of -40 to +105℃
- Dielectric breakdown voltage of thermal pad greater than 4KV
- Package includes COB Module, COB LED Holder, and Thermal Pad
- Certified by UL
- Aluminum heat sink required during installation to prevent overheating and increase lifespan
- COB holder allows for mechanical securing, electrical connection, and attachment to heat sink

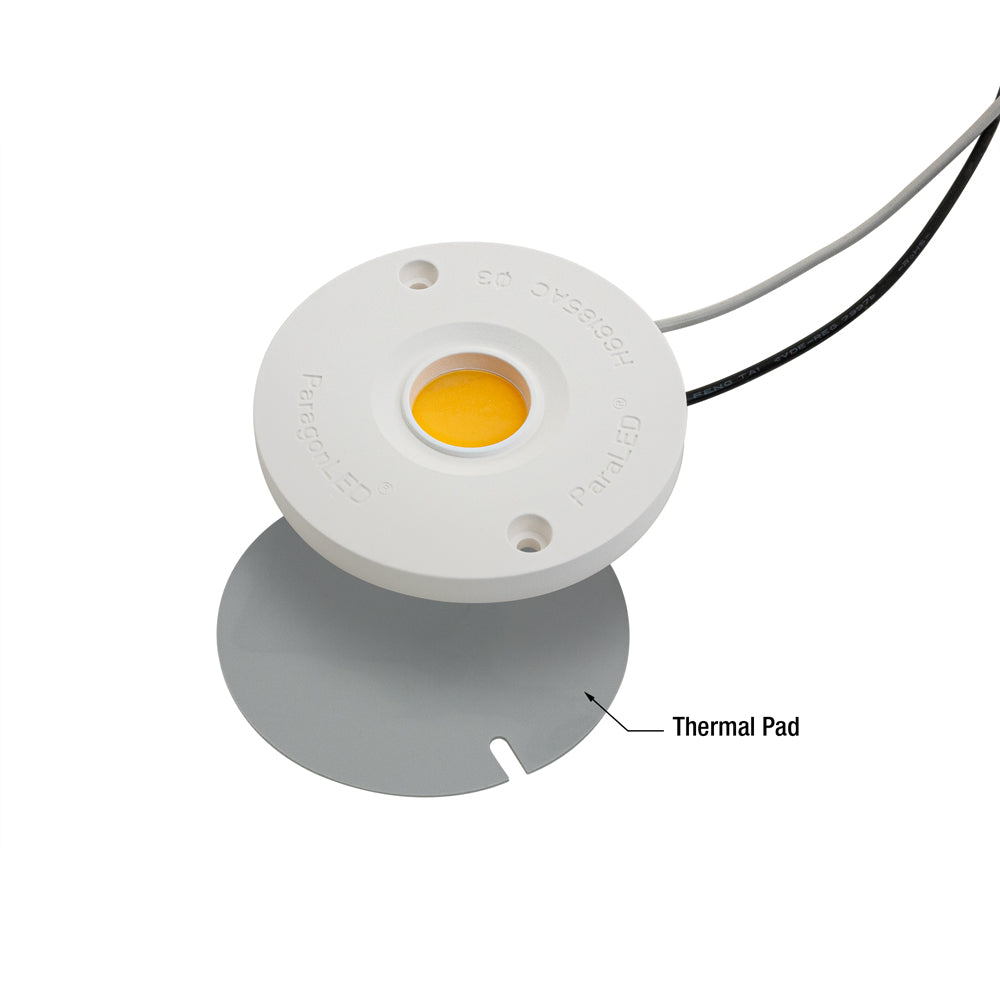

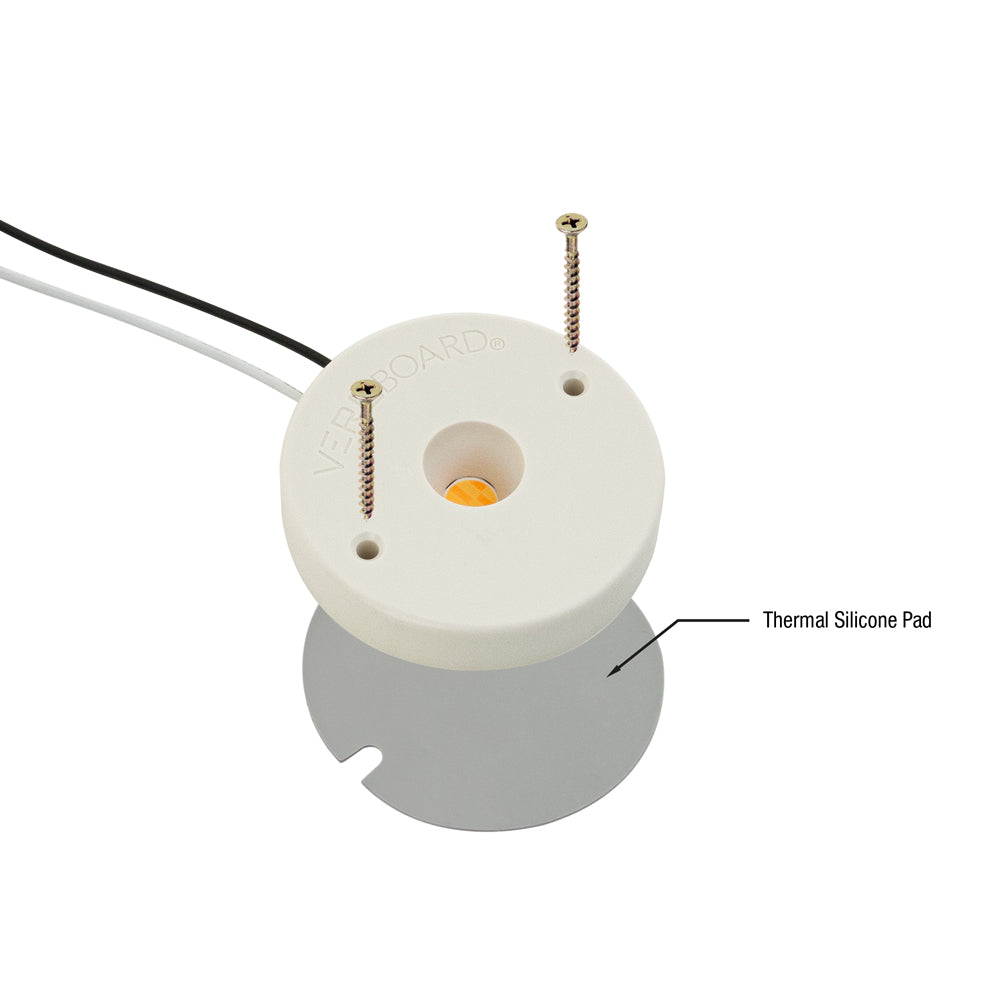

- Silicone grease thermal pad provides heat sink and improves heat dissipation
- Suitable for various luminaires but important to ground light fixtures while designing lamps.
