Product DescriptionÂ
Product | Constant Current LED Driver |
Model | OTM-TD203500-1110-38 |
Input Voltage | 90-130V AC |
Input Current | 0.9A |
Input Frequency | 50-60Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |

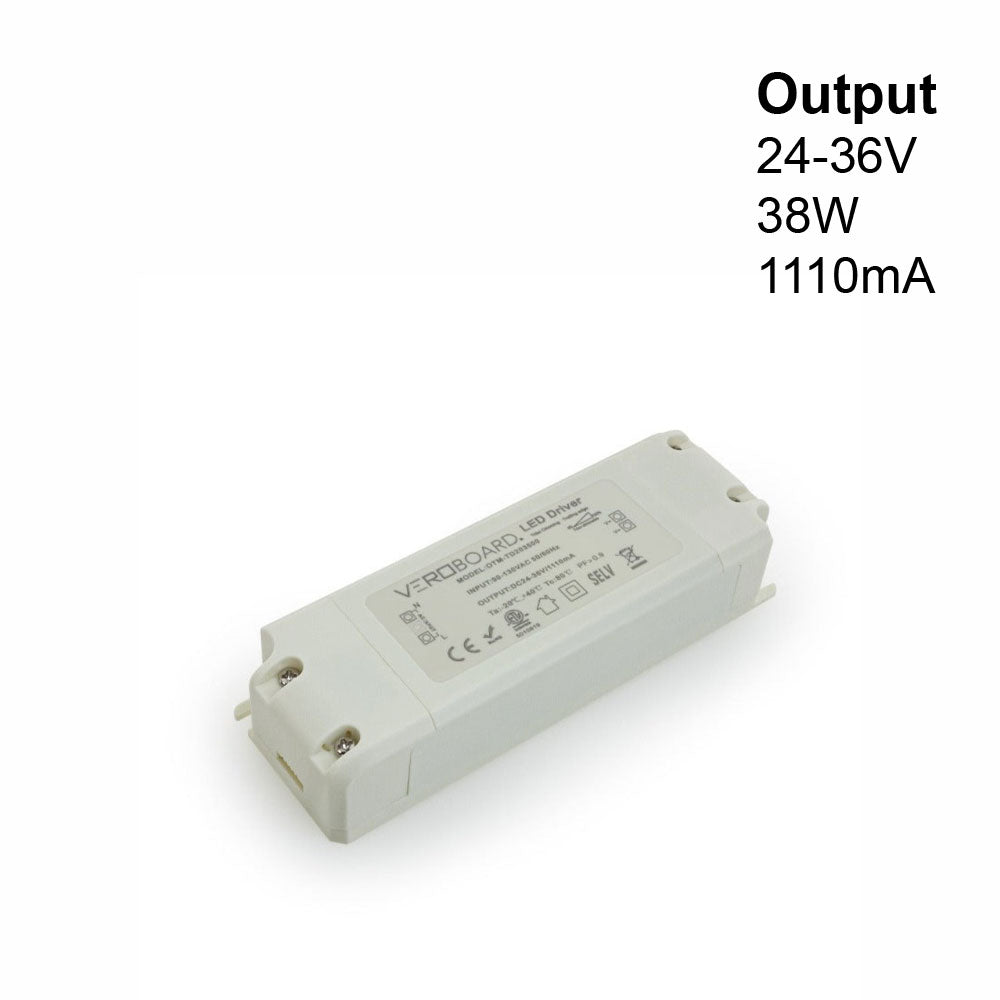

Output Regulated Current | 1110mA |
Output Power | 38W |
Output Voltage | 24-36V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

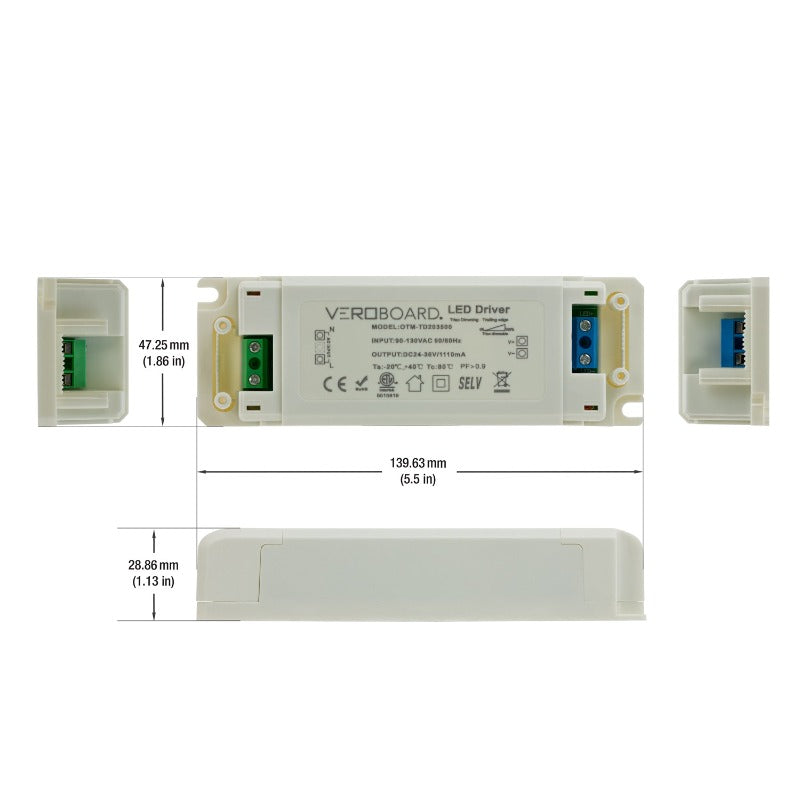

Dimensions | 139mm x 47mm x 28mm (5.5in x 1.8in x 1.1in) |
Class Certification | Class 2 |
Certification |
Â
|
Â

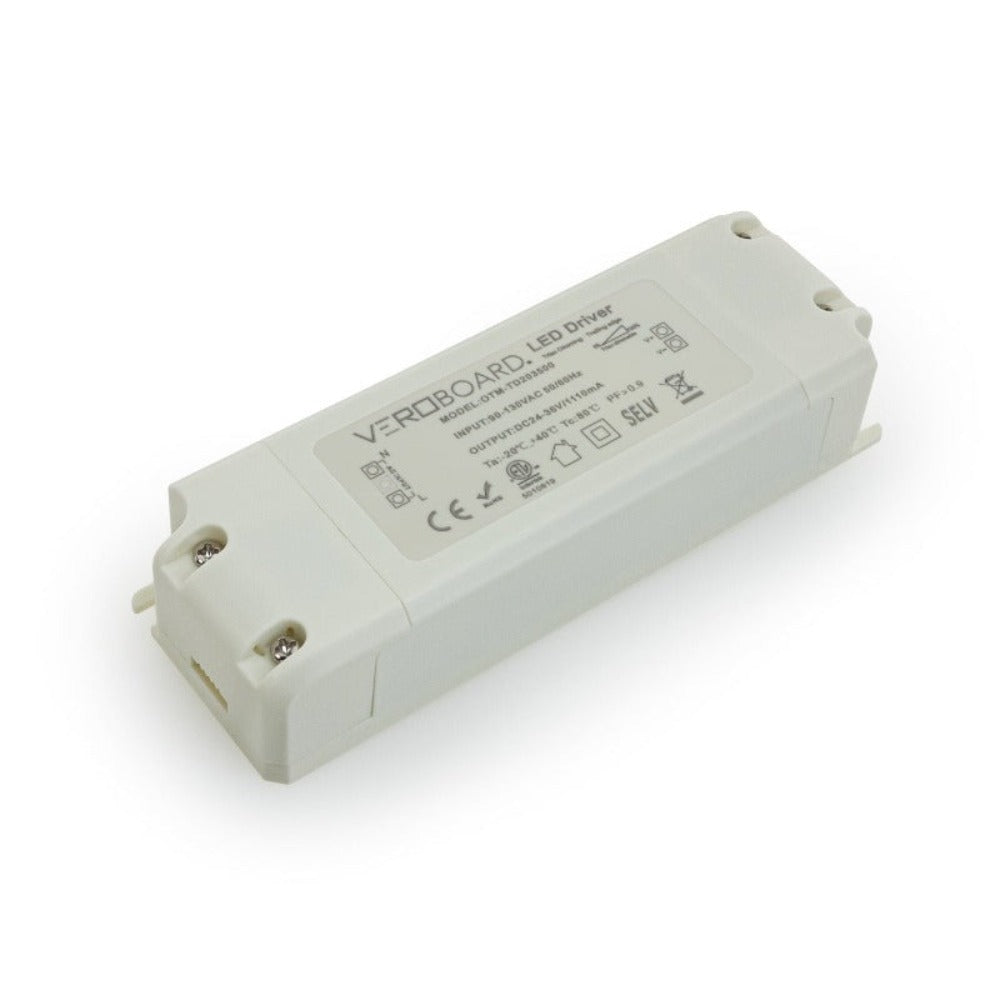

The OTM-TD203500-1110-38 is a constant current LED driver designed to power LED lighting fixtures. It has an input voltage range of 90-130V AC and a power factor greater than 0.95, ensuring efficient power delivery. The input current is 0.9A, and the input frequency range is 50-60Hz.
The LED driver has an output regulated current of 1110mA and a maximum output power of 38W. The output voltage range is 24-36V DC, making it suitable for a wide range of LED lighting applications. It is also dimmable using Triac Dimming, providing flexibility in controlling the lighting output.
The LED driver has a high efficiency of over 85%, ensuring minimal energy wastage during operation. The ambient temperature (Ta) range is 40°C, while the case temperature (Tc) can reach up to 90°C. It has an IP20 rating, making it suitable for indoor use only.
Features:
- The OTM-TD203500-1110-38 is a constant current LED driver designed to power LED lighting fixtures.
- Input voltage range: 90-130V AC with a power factor greater than 0.95, ensuring efficient power delivery.
- Input current: 0.9A, and the input frequency range is 50-60Hz.
- Output regulated current: 1110mA with a maximum output power of 38W.
- Output voltage range: 24-36V DC, making it suitable for a wide range of LED lighting applications.
- Dimmable using Triac Dimming, providing flexibility in controlling the lighting output.
- High efficiency of over 85%, ensuring minimal energy wastage during operation.
- Ambient temperature (Ta) range: 40°C, while the case temperature (Tc) can reach up to 90°C.
- IP20 rating, making it suitable for indoor use only.
