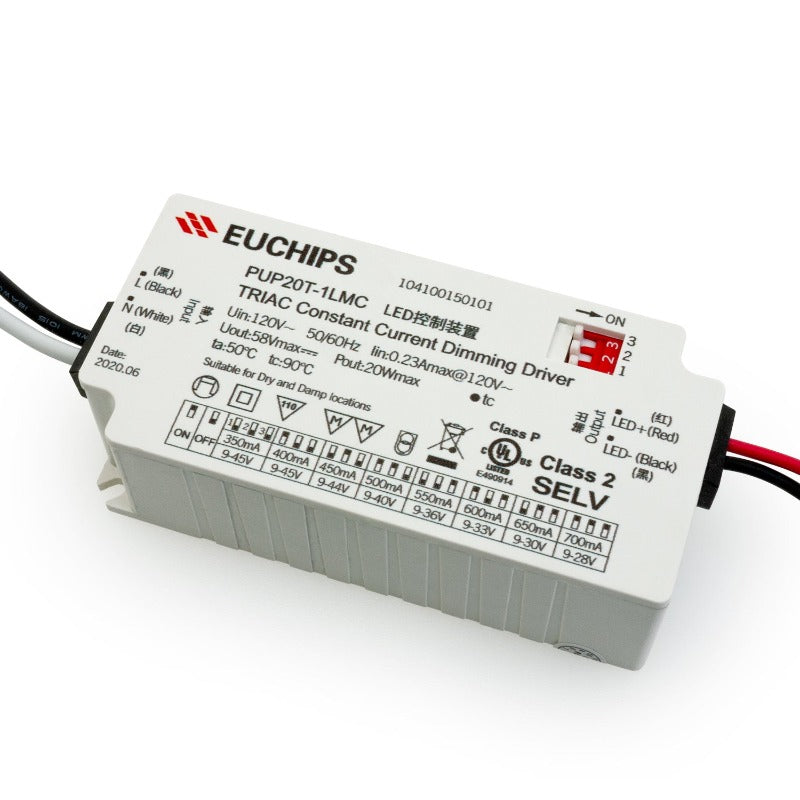

Selectable Constant Current 20W LED Driver Triac Dim PUP20T-1LMC-700 , 120VAC 350 to 700mA

Name: Selectable Constant Current 20W LED Driver Triac Dim PUP20T-1LMC-700 , 120VAC 350 to 700mA
Brand: EUCHIPS
SKU: 666561424787
Price: 92.85 CAD
Availability: InStock

Ask Question!

SKU: SKU:666561424787

$92.85 CAD

Sale Sold out

Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—

Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Quantity to add

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

10% off on purchases over $300

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Product	Constant Current LED Driver with Selectable Current
Model	PUP20T-1LMC-700
Input Voltage	120VAC
Input Current	0.23Amax@120VAC

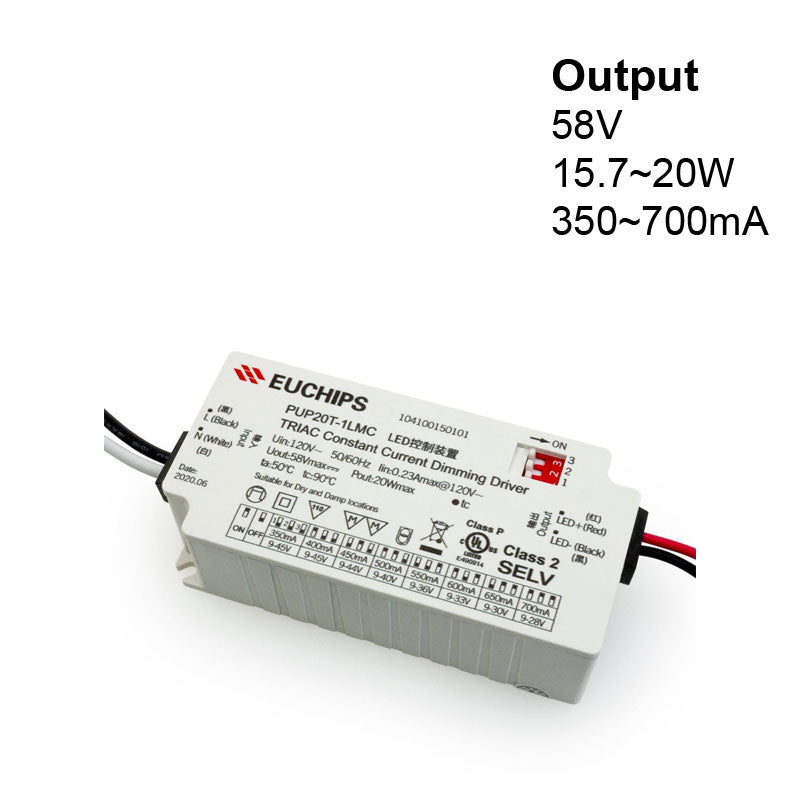

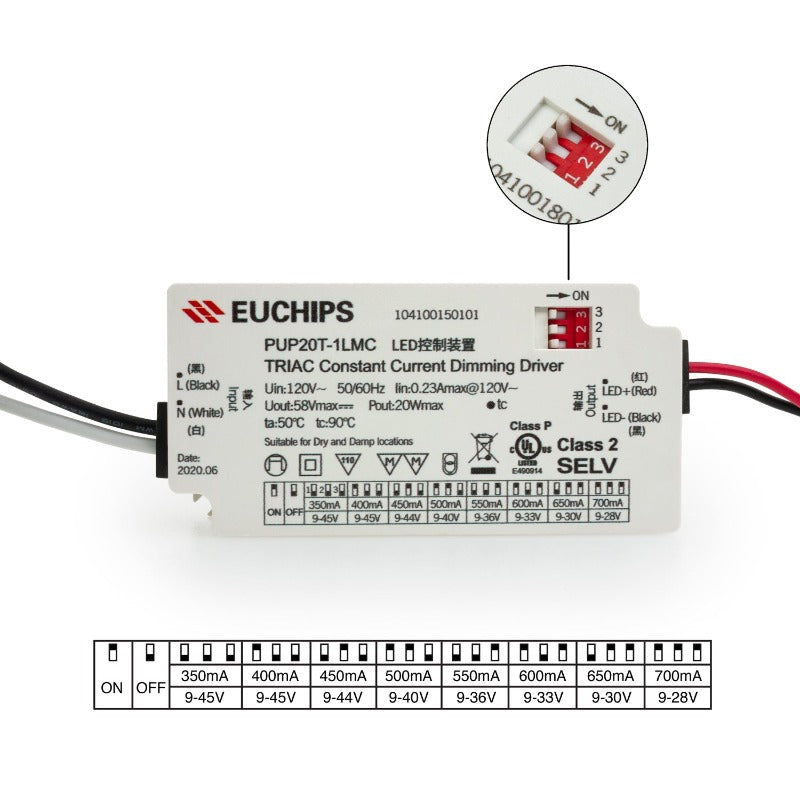

Output Current/Voltage/Power	350mA/9-45V/15.75W 400mA/9-45V/18W 450mA/9-44V/19.8W 500mA/9-40V/20W 550mA/9-36V/19.8W 600mA/9-33V/19.8W 650mA/9-30.7V/20W 700mA/9-28.5V/20W
No-load Output Voltage	58V Max
Input Frequency	50/60Hz
Dimming Type	Triac
Dimming Range	3%-100%
IP Rating	IP20 (Dry and Damp Locations)
Efficiency	>81%@120VAC, Full load
Working Temperature	-20℃~50℃
Lifetime	50,000h @ Tc:85℃
Weight	0.2 kg

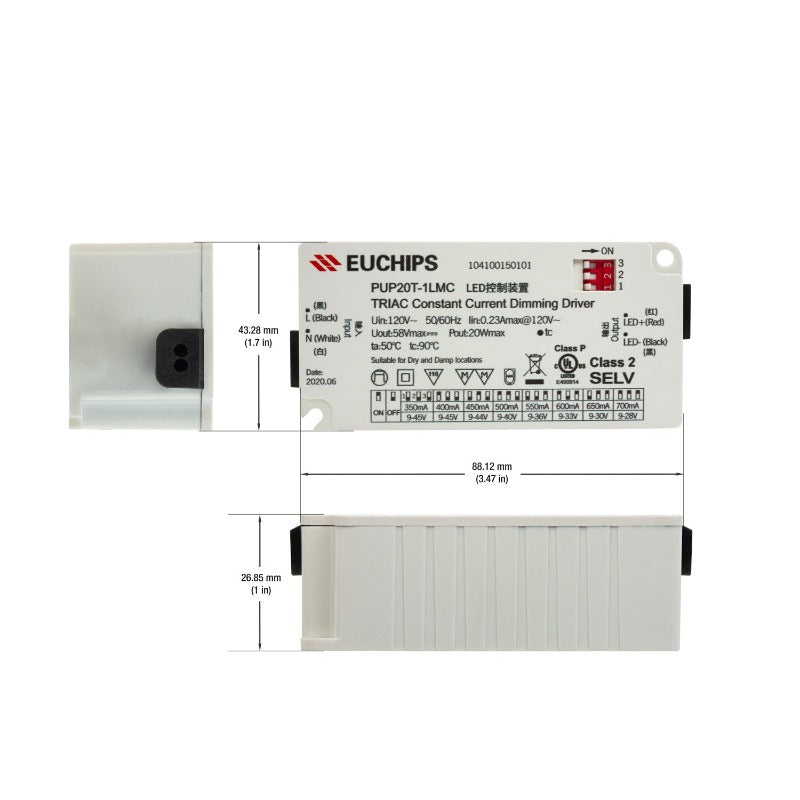

Dimensions	88 x 43 x 26.5mm (3.4 x 1.6 x 1in)
Certifications

Features:

The PUP20T-1LMC-700 is a selectable constant current LED driver
Operates on an input voltage of 120VAC
Input current of 0.3A maximum
Provides a constant current output ranging from 350 to 700mA
Output voltage range of 9-45VDC
Maximum power output of 20W
Designed with Triac dimming technology
Smooth dimming from 3% to 100%
Rated for use in dry and damp locations with an IP20 rating
Efficiency greater than 81% at full load
Maximum no-load output voltage of 58V
Operates on a frequency of 50/60Hz
Working temperature range of -20℃ to 50℃
Lifetime of up to 50,000 hours when operated at a maximum case temperature of 85℃
Dimensions: 88 x 43 x 26.5mm (3.4 x 1.6 x 1in)
