Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD202800-720-28 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 720mA |
| Output Power | 28W |
| Output Voltage | 36-42V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |
| Weight | 0.15 kg |

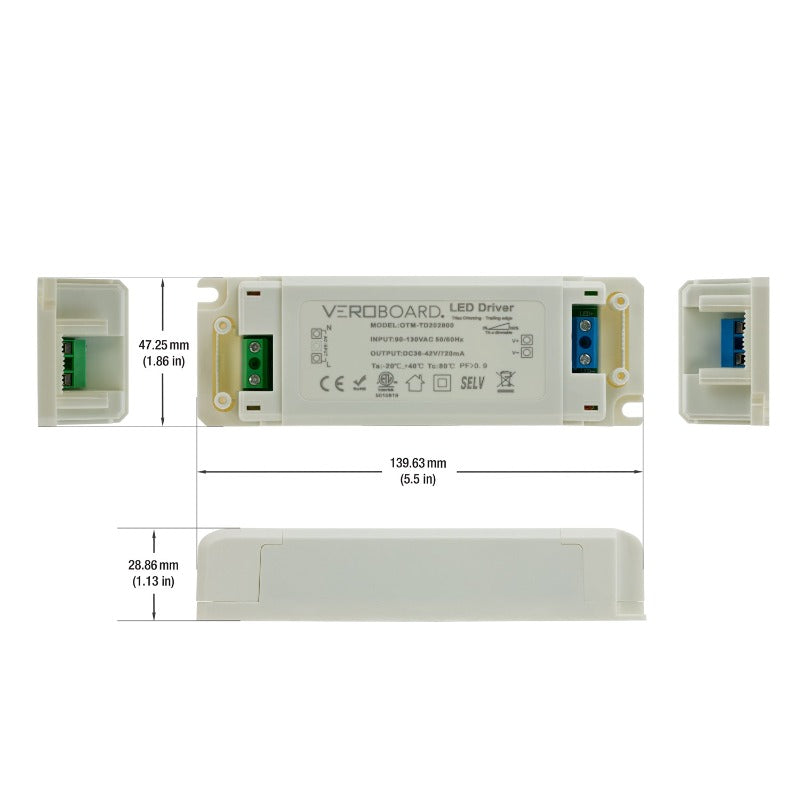

| Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The OTM-TD202800-720-28 is a Constant Current LED Driver designed to provide a constant current of 720mA to an LED light source.
- The driver has a model number of OTM-TD202800-720-28 and an input voltage range of 90-130V AC, with an input current of 0.9A and an input frequency of 50-60Hz.
- The driver has a high power factor of PF>0.95 and an efficiency of >85%, contributing to its energy-saving capabilities.
- The OTM-TD202800-720-28 is a dimmable driver that can be used with Triac dimming systems.
- The driver can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C, ensuring reliable and stable operation.
- The driver has an IP20 rating, making it suitable for use in dry and damp locations.
- The dimensions of the driver are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in).
- The driver has a Class 2 certification, indicating that it has been designed to meet specific safety requirements for use in low voltage applications.
