• Bridgelux Constant Current COB LED Module 700mA 26W 37V BXRA-40E2200-B
  • Bridgelux Constant Current COB LED Module 700mA 26W 37V BXRA-40E2200-B
  • Bridgelux Constant Current COB LED Module 700mA 26W 37V BXRA-40E2200-B
  • Bridgelux Constant Current COB LED Module 700mA 26W 37V BXRA-40E2200-B
1 5

BXRA-40E2200-B Constant Current COB LED Module, 700mA 25.9W 4000K(Natural White)

BXRA-40E2200-B Constant Current COB LED Module, 700mA 25.9W 4000K(Natural White)

SKU:666661417079

$56.00 CAD
$56.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

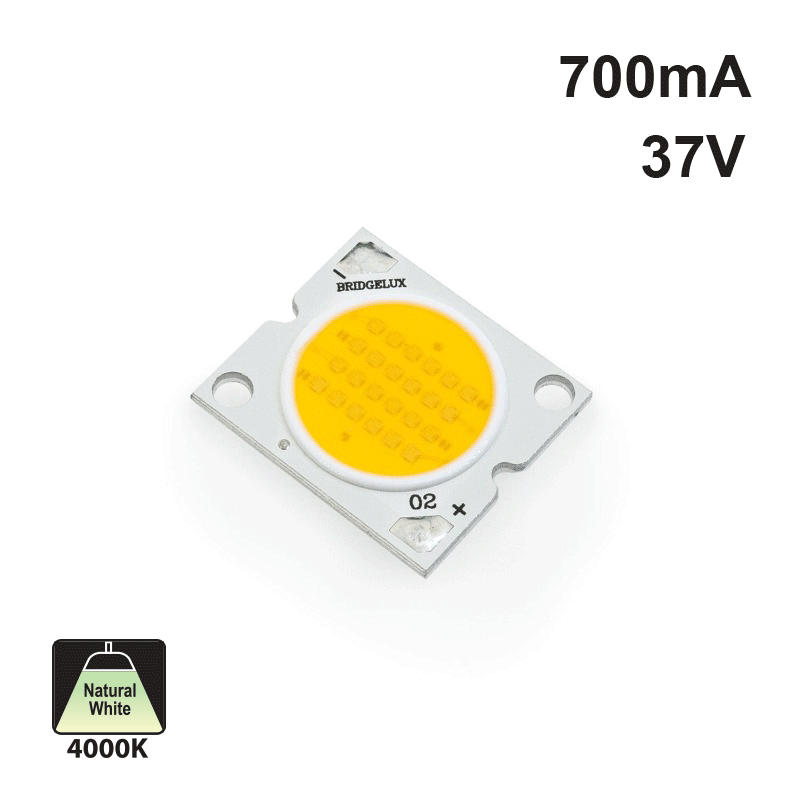

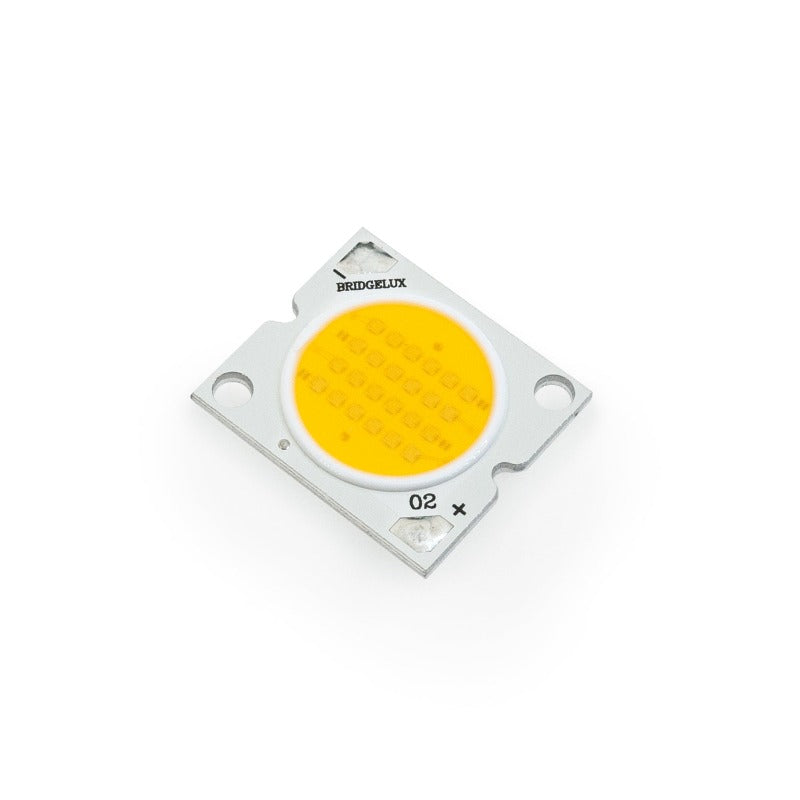

Product Constant Current LED Module
Model BXRA-40E2200-B
Brand Bridgelux
LED Type COB
Wattage 25.9W
Voltage 37V
Current 700mA
Luminous Flux 2750 lm
Color Temperature 4000K (Natural White)
Rendering Index CRI>80
Dimmable Yes
Beam Angle 120
Material Metallic base

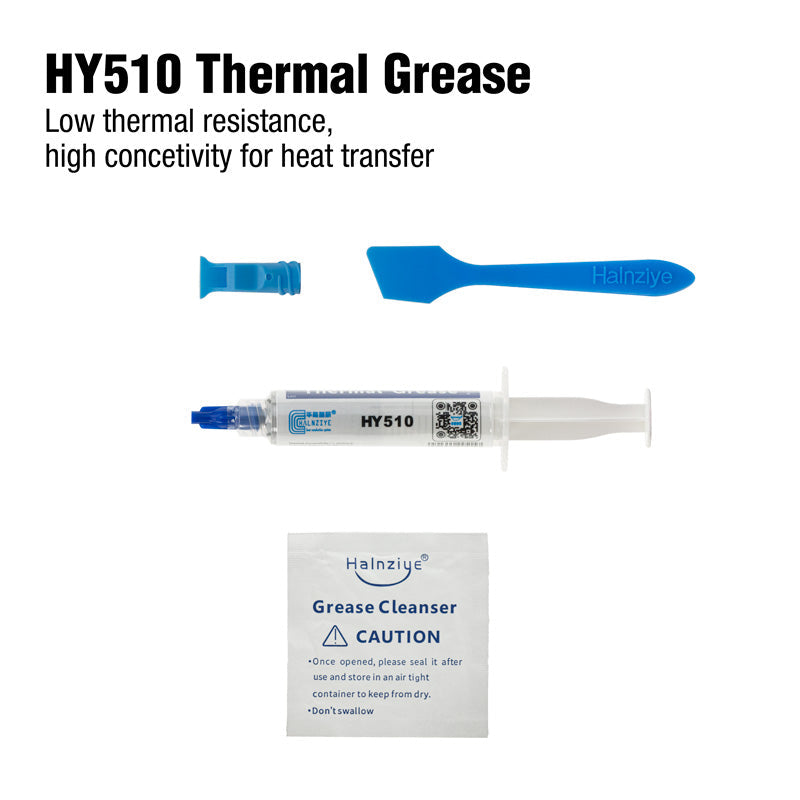

Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

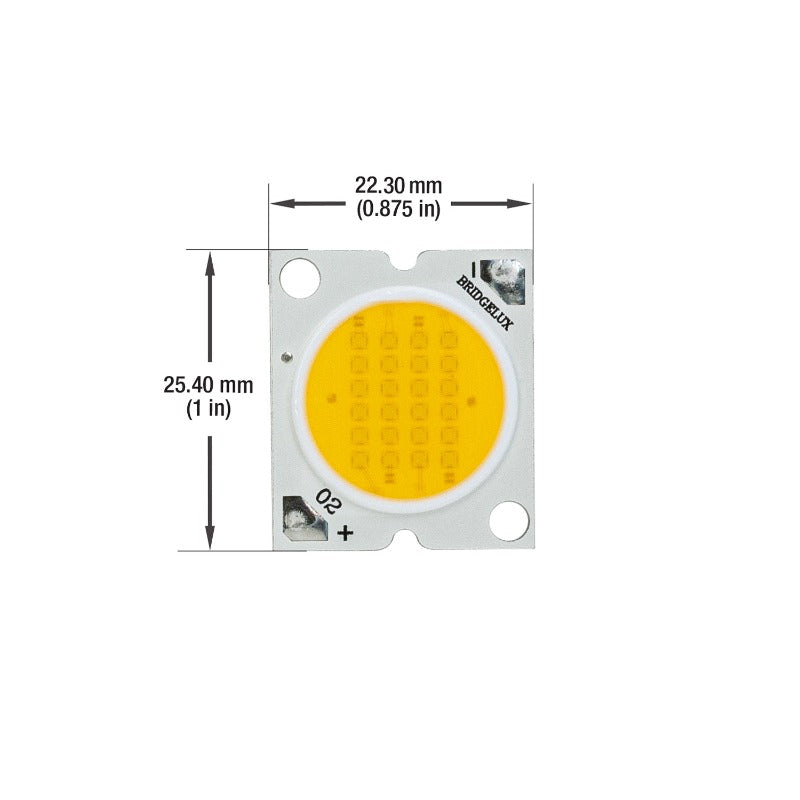

Dimensions 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in)





The BXRA-40E2200-B Constant Current COB LED Module is a high-quality lighting component from the Bridgelux brand. It is a Chip-On-Board (COB) LED type that operates on a wattage of 25.9W with a voltage of 37V and a current of 700mA. This LED module emits a Natural White light with a color temperature of 4000K and a high Color Rendering Index (CRI) of over 80, providing excellent color accuracy.

The module produces a luminous flux of 2750 lm, making it highly energy-efficient with low power consumption. It has a beam angle of 120 degrees, ensuring that the light is spread evenly over a wide area. The dimensions of the module are 22.30 x 25.40 mm (0.875 x 1 in), and it has a metallic base material.

The BXRA-40E2200-B Constant Current COB LED Module, recommended to use Thermal Grease or Thermal Pad for installation. The LED module is also dimmable, making it convenient for various lighting applications.

The Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. This rectangle array is a general-purpose chip-on-board device serving a wide range of applications. The arrays incorporate several features to simplify design integration and assembly.

Features:

  • High-quality lighting component from the Bridgelux brand
  • Chip-On-Board (COB) LED type
  • Wattage: 25.9W, Voltage: 37V, Current: 700mA
  • Natural White light with a color temperature of 4000K and CRI>80
  • Luminous flux of 2750 lm for energy efficiency
  • Beam angle of 120 degrees for even light distribution
  • Dimensions: 22.30 x 25.40 mm (0.875 x 1 in) with a metallic base material
  • Dimmable for various lighting applications
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
  • Available in different color temperatures and wattages for versatility
  • Fully engineered devices with consistent thermal and optical performance
  • Use Thermal Grease or Thermal Pad for installation.
View full details
