Product Description

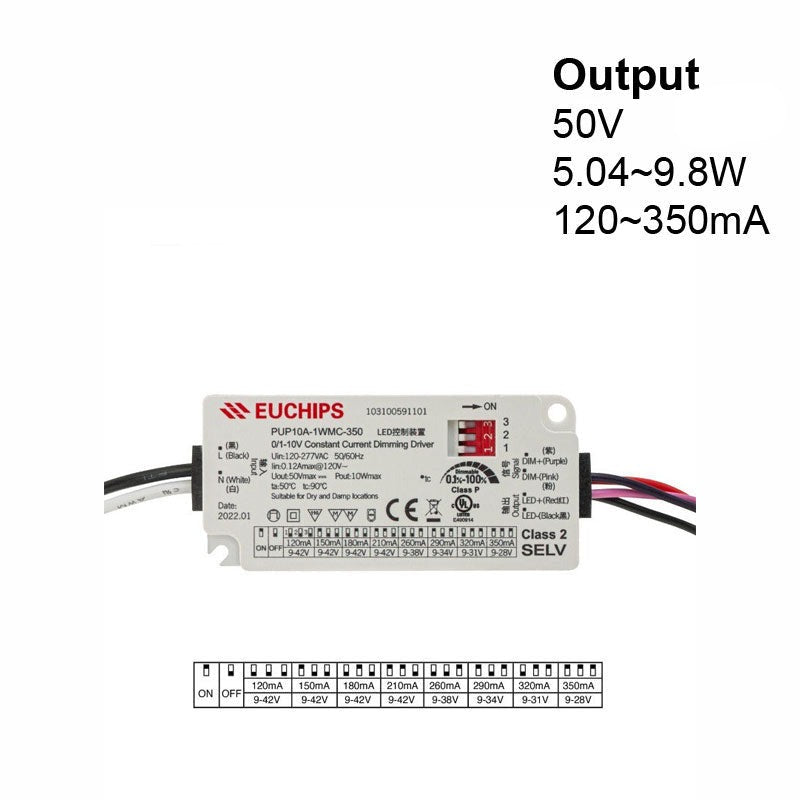

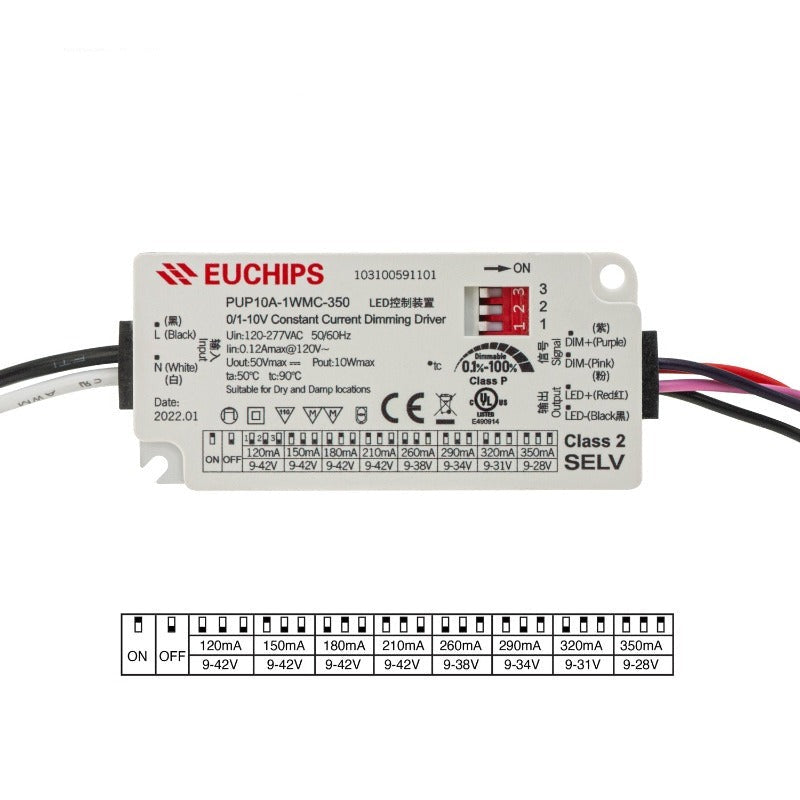

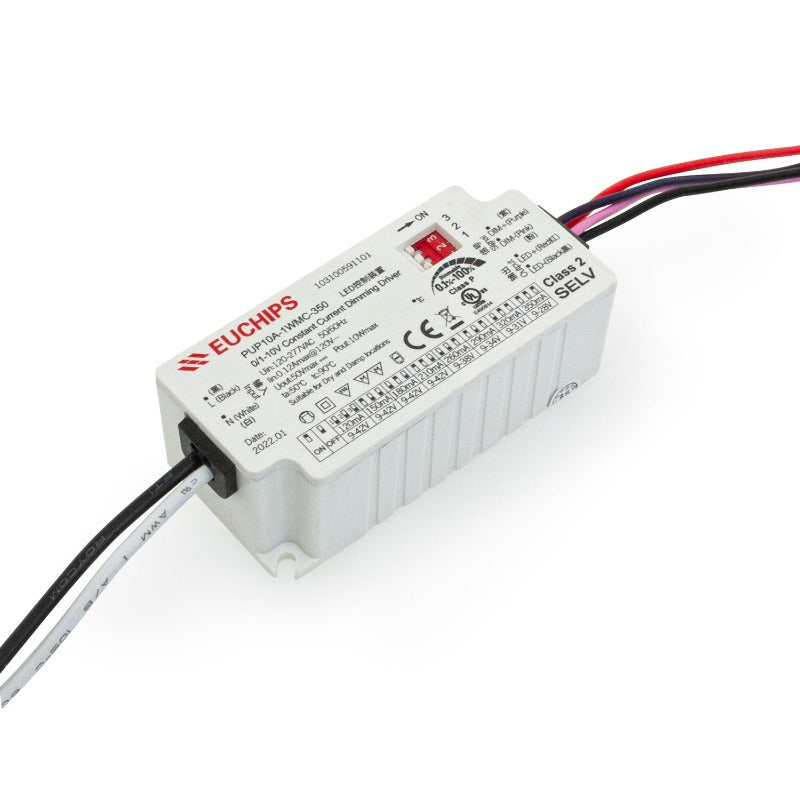

| Product | Constant Current LED Driver with Selectable Current |
| Model | PUP10A-1WMC-350 |
| Input Voltage | 120-277VAC |
| Input Current | 0.6Amax@120VAC |
| Output Current/Voltage/Power | 120mA/9-42V/5.04W 150mA/9-42V/6.3W 180mA/9-42V/7.56W 210mA/9-42V/8.82W 260mA/9-38V/9.88W 290mA/9-34V/9.86W 320mA/9-31V/9.92W 350mA/9-28V/9.8W |
| No-load Output Voltage | 50V Max |
| Input Frequency | 50/60Hz |
| Dimming Type | 0/1-10V(Type A) |
| Dimming Range | 0.1%-100% Dimming to off |
| IP Rating | IP20 (Dry and Damp Locations) |
| Efficiency | >87%@120VAC, Full load |
| Working Temperature | -20℃~50℃ |
| Lifetime | 50,000h @ Tc:85℃ |

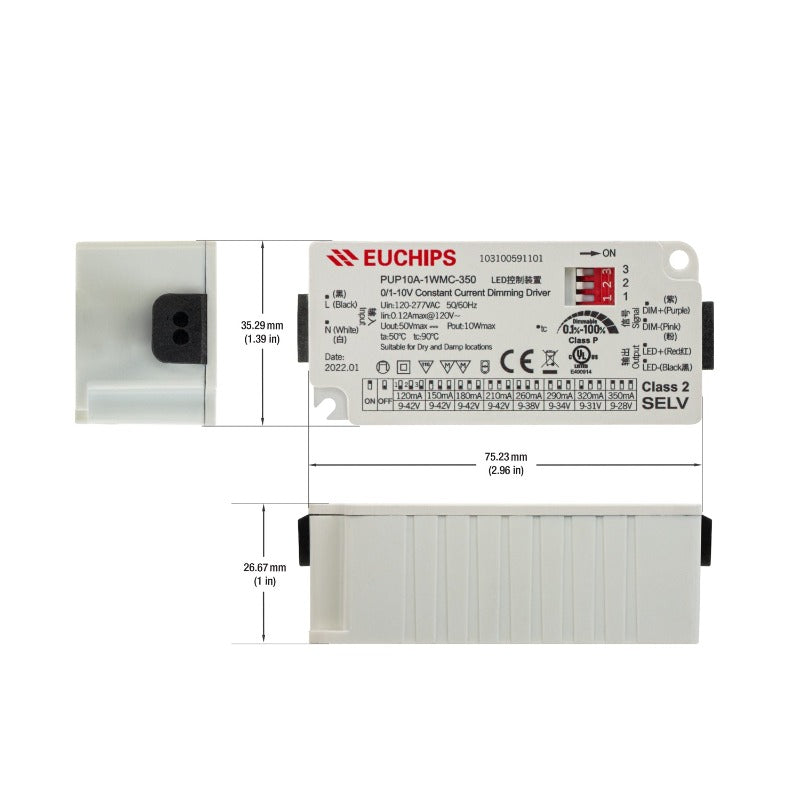

| Dimensions | 75.23 x 35.29 x 26.67mm (2.9 x 1.3 x 1in) |
| Certifications |   |
Features:
- The PUP10A-1WMC-350 is a selectable constant current LED driver designed for powering LED lighting systems.
- It accepts a wide range of input voltages from 120-277VAC and can deliver a constant current output of 120mA to 350mA, with output voltages ranging from 9V to 42V and output power ranging from 5.04W to 9.8W depending on the selected current.
- The driver supports 0/1-10V(Type A) dimming, enabling precise control over the brightness of connected LEDs with a dimming range of 0.1%-100% and dimming them to off.
- The driver is rated IP20, making it suitable for use in dry and damp indoor locations.
- The PUP10A-1WMC-350 offers high efficiency (>87% at 120VAC, full load) and has a working temperature range of -20℃ to 50℃, ensuring stable and reliable operation in various environments.
- It has a long lifetime of up to 50,000 hours at a maximum case temperature of 85℃, ensuring durability and longevity.
- The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.9 x 1.3 x 1in), making it compact and easy to install in a variety of applications.
- The driver has a maximum no-load output voltage of 58V, and its input frequency is 50/60Hz.
