Product Description
Product | Constant Current LED Driver with Selectable Current |
Model | PUP20A-1WMC-700 |
Input Voltage | 100-240VAC |
Input Current | 0.22Amax@100VAC |

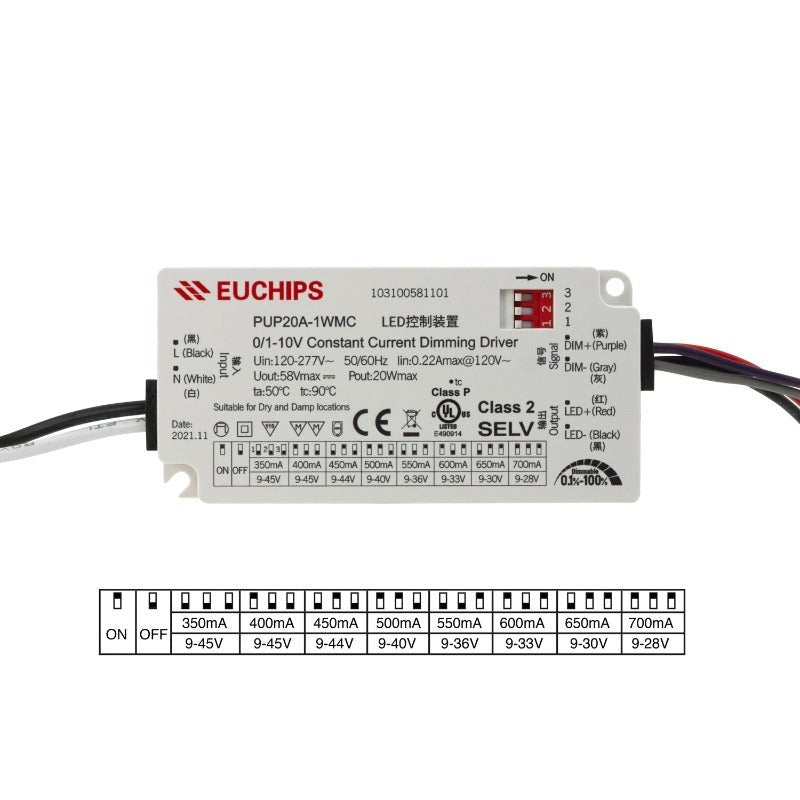

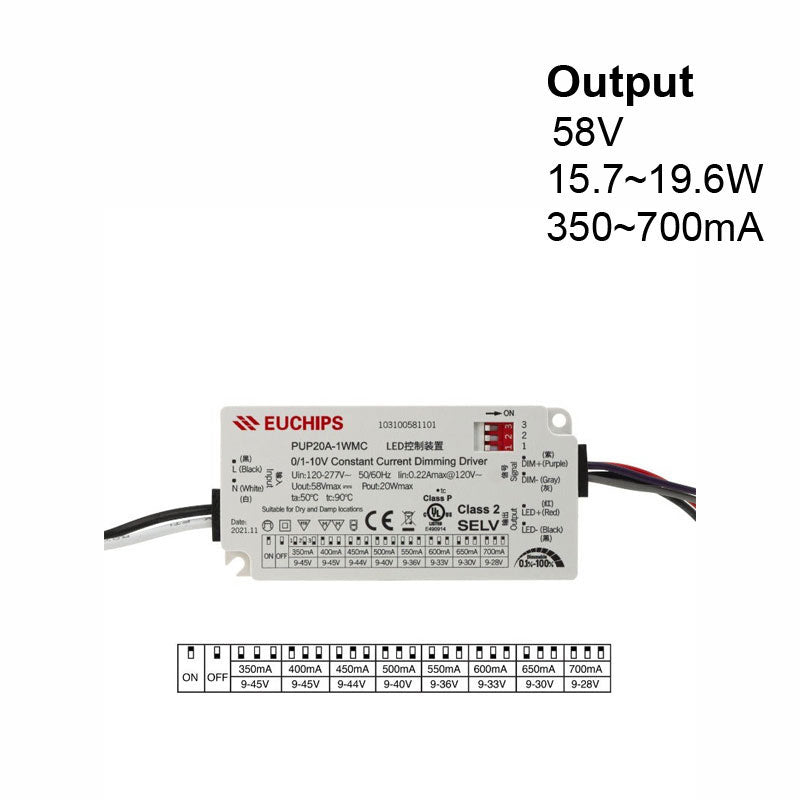

Output Current/Voltage/Power | 350mA/9-45V/15.75W 400mA/9-45V/18W 450mA/9-44V/19.8W 500mA/9-40V/20W 550mA/9-36V/19.8W 600mA/9-33V/19.8W 650mA/9-30V/19.5W 700mA/9-28V/19.6W |
No-load Output Voltage | 58V Max |
Input Frequency | 50/60Hz |
Dimming Type | 0/1-10V(Type A) |
Dimming Range | 0.1%-100% Dimming to off |
IP Rating | IP20 (Dry and Damp Locations) |
Efficiency | 85%@230VAC, Full load |
Working Temperature | -20℃~50℃ |
Lifetime | 50,000h @ Tc:85℃ |

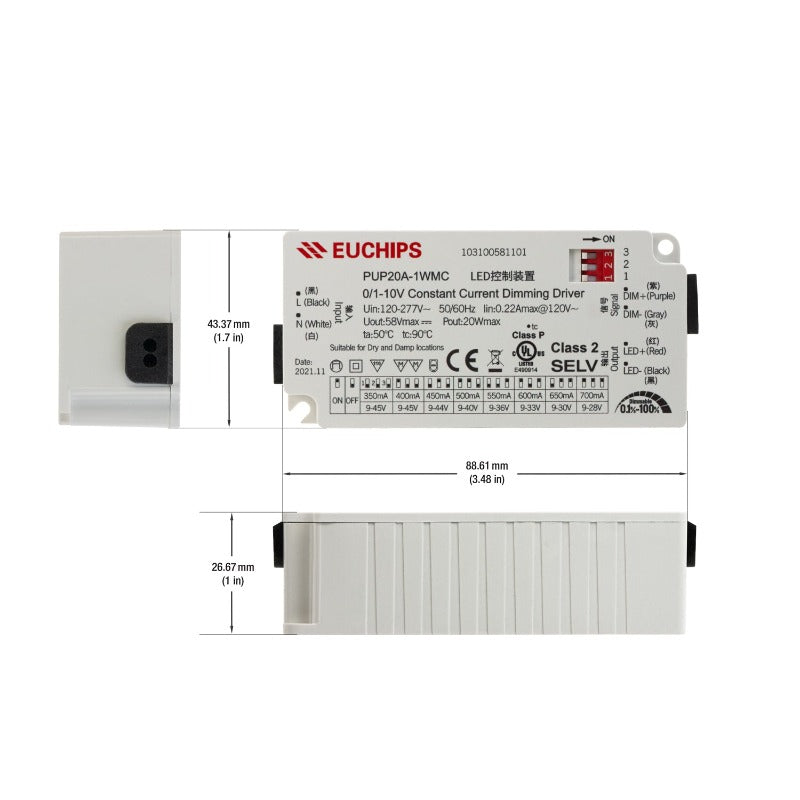

Dimensions | 88 x 43 x 26.5mm (3.4 x 1.6 x 1in) |
Certifications | Â Â Â |

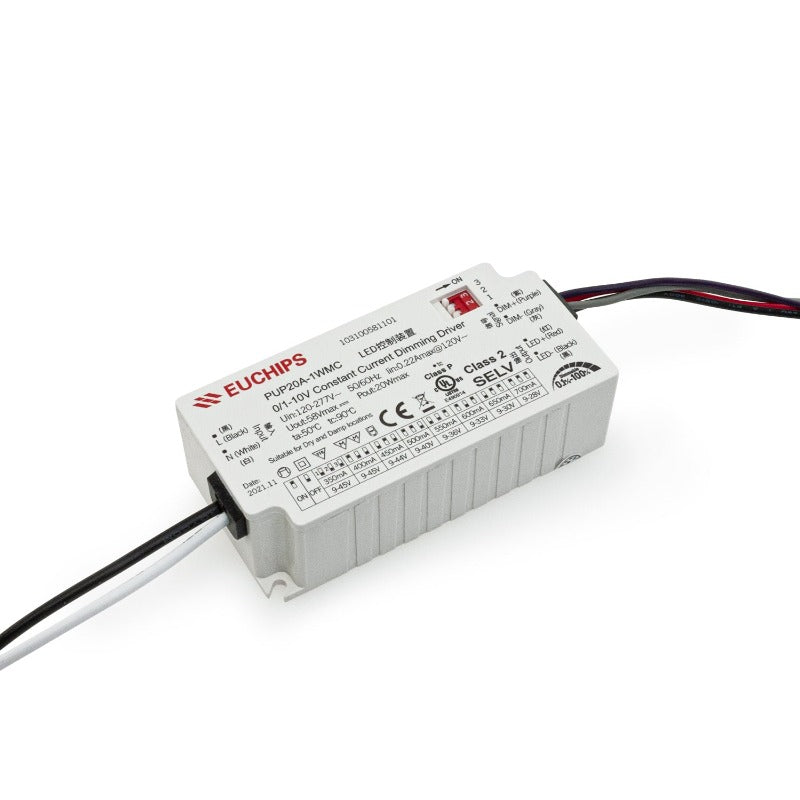

The Selectable Constant Current 20W LED Driver 0-10V Dim PUP20A-1WMC-700 is a device used to power and control the brightness of LED lighting fixtures. It can handle an input voltage range of 100-240VAC, and has a maximum input current of 0.22A at 100VAC. The driver can output a range of constant current values, from 350mA to 700mA, and provides various output voltage and power combinations depending on the chosen current value.
The dimming of the LED fixture is controlled by 0/1-10V dimming (Type A), and it can be dimmed to 0.1% of the maximum brightness. The driver has an IP20 rating, which means it is suitable for use in dry and damp locations. The efficiency of the driver is >85% at full load with 230VAC input. It has a working temperature range of -20℃~50℃ and a lifetime of 50,000 hours at Tc:85℃. The dimensions of the driver are 88 x 43 x 26.5mm (3.4 x 1.6 x 1in).
Features:
- The Selectable Constant Current 20W LED Driver 0-10V Dim PUP20A-1WMC-700 is used to power and control LED lighting fixtures.
- It has an input voltage range of 100-240VAC and a maximum input current of 0.22A at 100VAC.
- The driver can output a range of constant current values from 350mA to 700mA, with various output voltage and power combinations depending on the current value.
- Dimming is controlled by 0/1-10V dimming (Type A), with the ability to dim to 0.1% of maximum brightness.
- The driver has an IP20 rating, making it suitable for use in dry and damp locations.
- Efficiency is >85% at full load with 230VAC input.
- It has a working temperature range of -20℃ to 50℃ and a lifetime of 50,000 hours at Tc:85℃.
- The dimensions of the driver are 88 x 43 x 26.5mm (3.4 x 1.6 x 1in).
