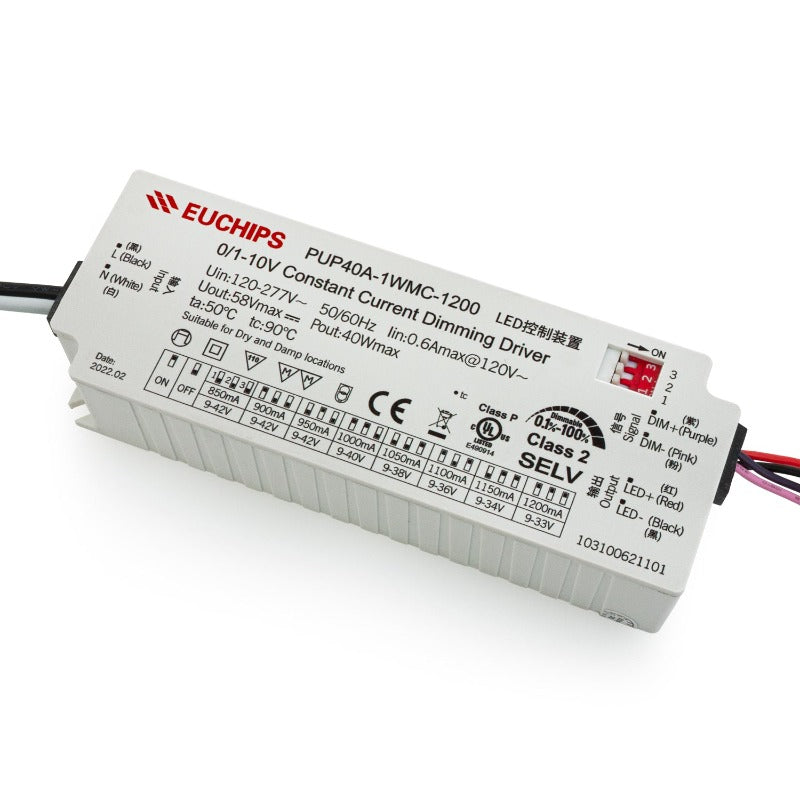

Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | PUP40A-1WMC-1200 |
| Input Voltage | 120-277VAC |
| Input Current | 0.6Amax@100VAC |
| Output Current/Voltage/Power |
850mA/9-42VDC/35.7W |
| No-load Output Voltage | 58V Max |
| Input Frequency | 50/60Hz |
| Dimming Type | 0/1-10V(Type A) |
| Dimming Range | 0.1%-100% Dimming to off |
| IP Rating | IP20 (Dry and Damp Locations) |
| Efficiency | >87%@120VAC, Full load |
| Working Temperature | -20℃~50℃ |
| Lifetime | 50,000h @ Tc:85℃ |
| Dimensions | 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in) |
| Certifications |   |
Features:
- The PUP40A-1WMC-1200 is a selectable constant current LED driver that can handle up to 40W of power.
- It supports input voltages ranging from 120-277VAC and has a maximum input current of 0.6A at 100VAC.

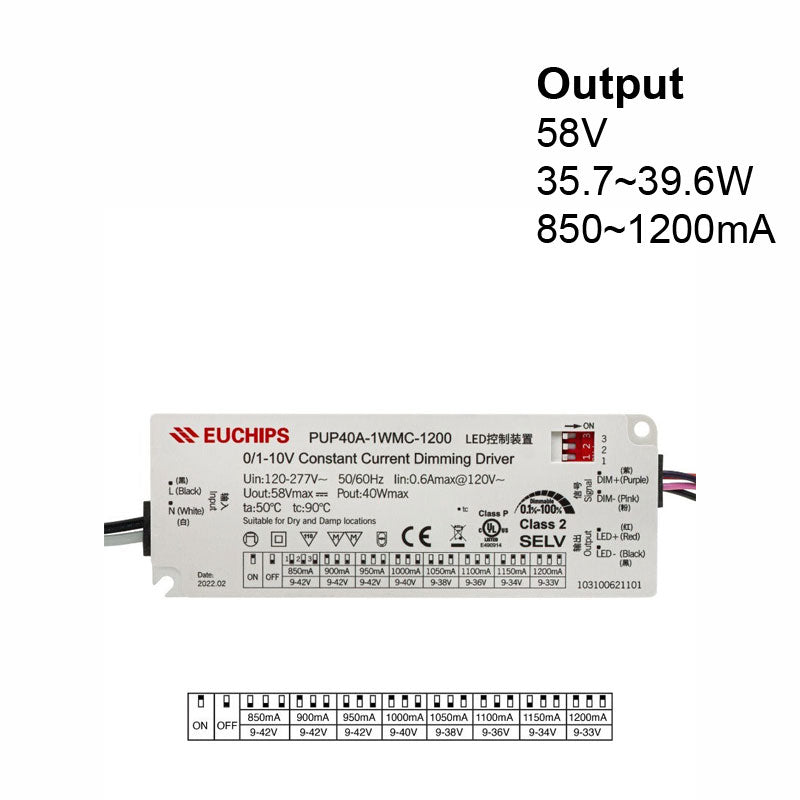

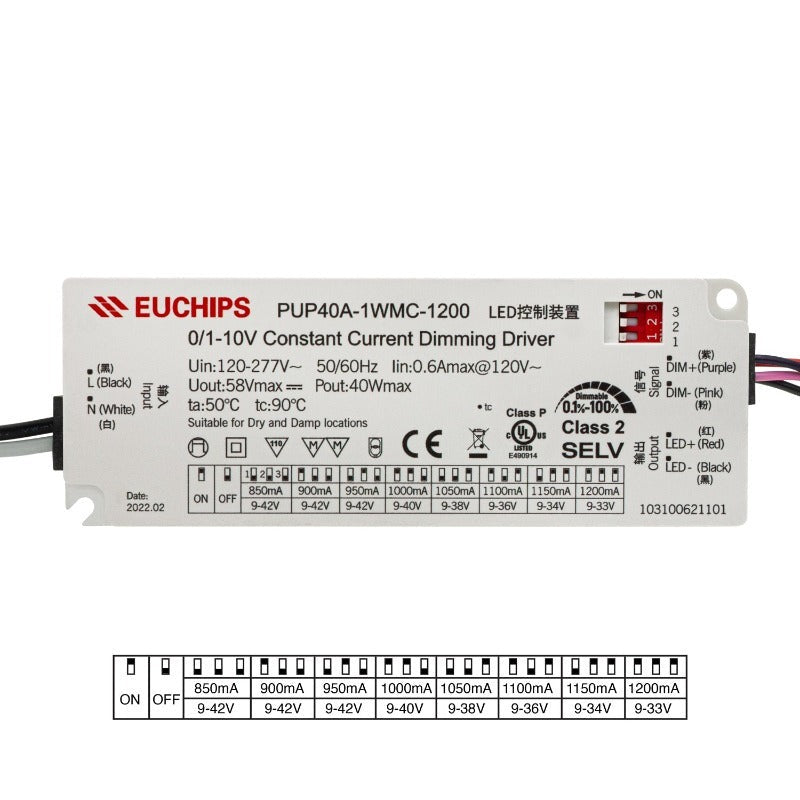

- The driver provides a range of output currents from 850mA to 1200mA with a corresponding output voltage ranging from 9-42VDC.
- The maximum output power is 39.99W for the 950mA output current and 40W for the 1000mA output current.
- The driver supports 0/1-10V(Type A) dimming, allowing for a dimming range of 0.1%-100% and dimming to off.
- The no-load output voltage is 58V max.
- The driver has an IP20 rating, making it suitable for use in dry and damp locations.
- Its efficiency is greater than 87% at full load and 120VAC input voltage.
- The working temperature range is -20℃ to 50℃ and the lifetime is rated at 50,000 hours at Tc:85℃.

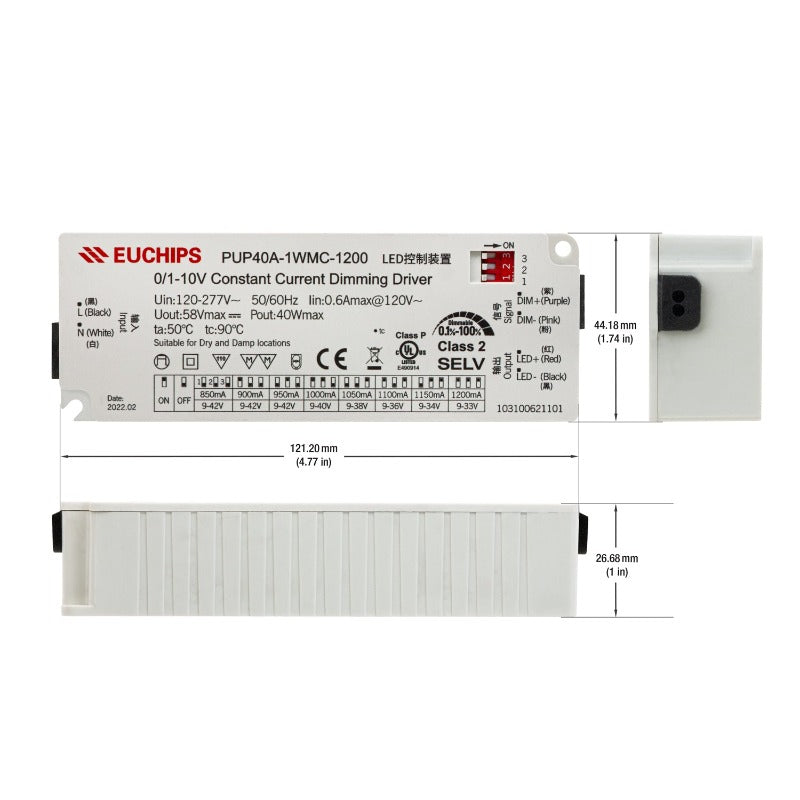

- The dimensions of the driver are 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in).
