Product Description

Product Constant Current LED Driver with Selectable Current
Model PUP40A-1WMC-850
Input Voltage 120-277VAC
Input Current 0.6Amax@120VAC

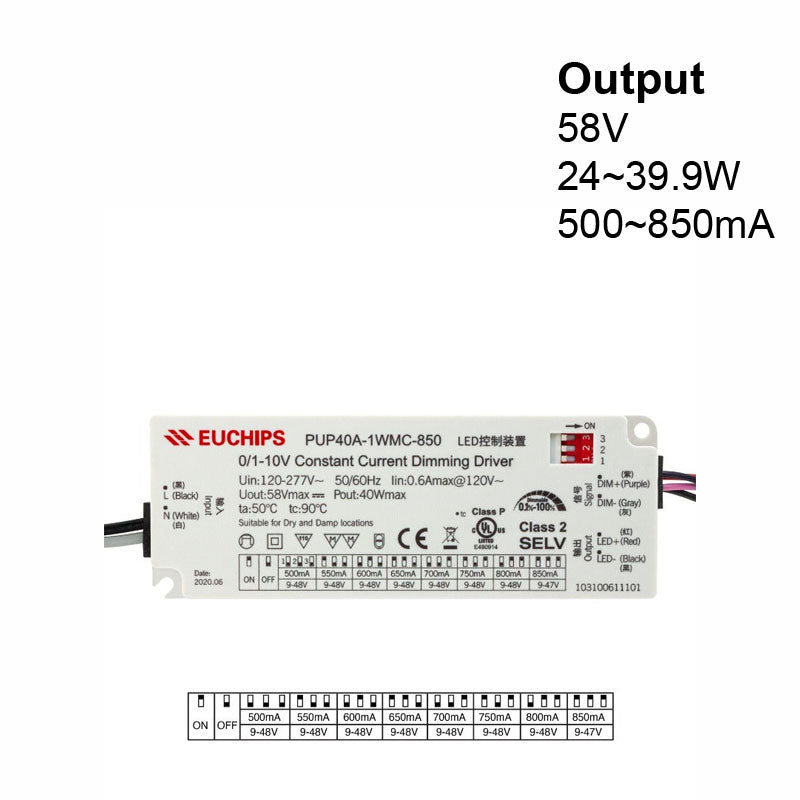

Output Current/Voltage/Power

500mA/9-48V/24W
550mA/9-48V/26.5W
600mA/9-48V/28.8W
650mA/9-48V/31.2W
700mA/9-48V/33.6W
750mA/9-48V/36W
800mA/9-48V/38.4W
850mA/9-47V/39.95W
No-load Output Voltage 58V Max
Input Frequency 50/60Hz
Dimming Type 0/1-10V
IP Rating IP20 (Dry and Damp Locations)
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

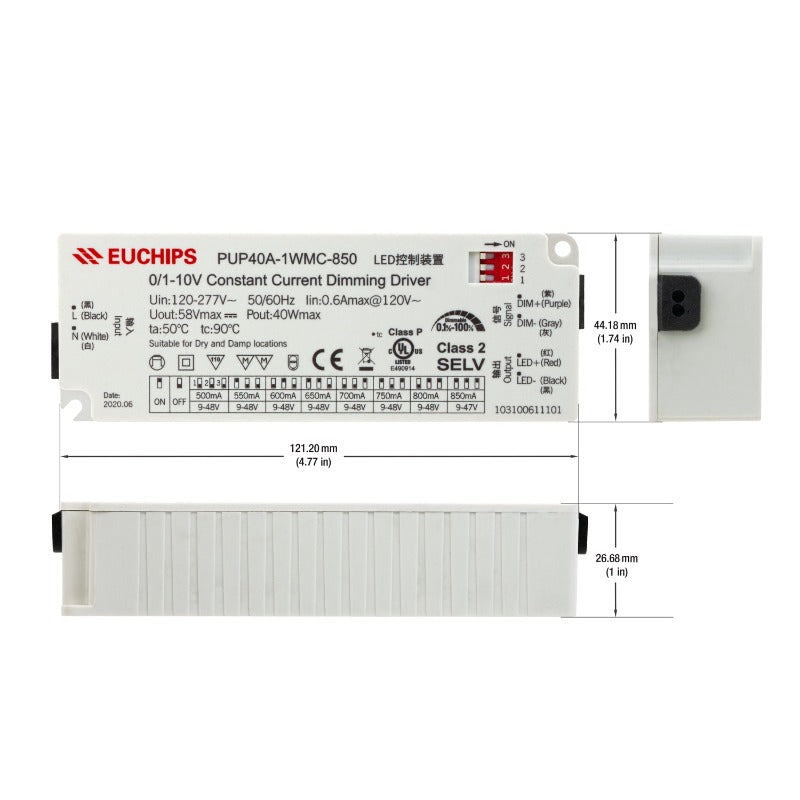

Dimensions 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications


The PUP40A-1WMC-850 is a selectable constant current LED driver designed to provide a reliable and efficient power supply for LED lighting systems. It has an input voltage range of 120-277VAC, allowing it to be used in a variety of applications. The maximum input current is 0.6A at 120VAC.

The output current can be set to different levels, ranging from 500mA to 850mA, providing a maximum output power of 39.95W. The driver supports a range of output voltages, from 9V to 48V, with a maximum no-load output voltage of 58V. The driver also supports 0/1-10V dimming, allowing the brightness of the LEDs to be adjusted as needed.

Features:

  • The PUP40A-1WMC-850 is a selectable constant current LED driver.
  • The driver has an input voltage range of 120-277VAC with a maximum input current of 0.6A at 120VAC.
  • The output current can be set to different levels ranging from 500mA to 850mA, providing a maximum output power of 39.95W.
  • The driver supports a range of output voltages from 9V to 48V, with a maximum no-load output voltage of 58V.
  • It also supports 0/1-10V dimming, allowing brightness adjustment of the LEDs.
  • The driver has an IP20 rating, making it suitable for use in dry and damp locations.
  • The working temperature range of the driver is -20℃ to 50℃, and it has a lifetime of 50,000 hours when used at a Tc of 85℃.
  • The dimensions of the driver are 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in), making it compact and easy to install.
  • Overall, the PUP40T-1WMC-850 is a reliable and versatile LED driver that provides efficient and precise power to LED lighting systems.
