Product Description
| Product | Constant Current LED Driver |
| Model | LP-ULTD-09003 |
| Input Voltage | 120V AC |
| Input Current | 0.025A |
| Frequency | 60Hz |
| Output Regulated Current | 120mA |
| Output Power | 3W |
| Output Voltage | 25V DC |
| Material | Aluminum |
| IP Rating | IP20 |
| Working Temperature | -40°C to 80°C |
| Dimmable | Yes |
| Weight | 0.2 kg |

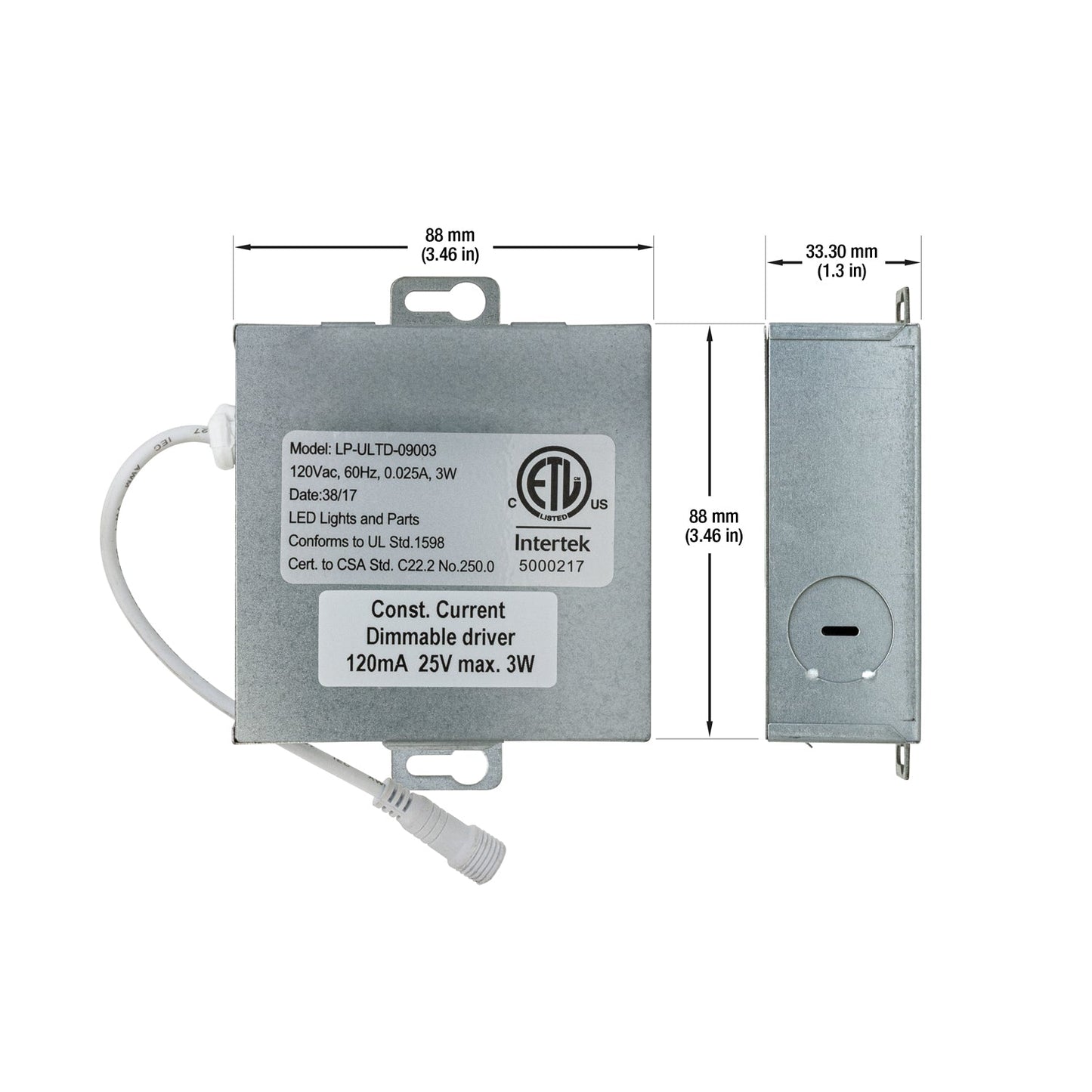

| Dimensions | 88 x 88 x 33.30 mm (3.46 x 3.46 x 1.3 in) |
| Class Certification: | Class 2 Power Supply |
|
Certification |
 |
Features:
- The LP-ULTD-09003 Constant Current LED Junction Box Driver is a power supply device designed for low-power LED lighting systems.
- It provides a constant output current of 120mA and voltage of 25V DC with an input voltage of 120V AC and input current of 0.025A at 60Hz frequency.
- This LED driver is capable of providing up to 3W of power and is dimmable for brightness and intensity control.
- It features a durable aluminum housing with an IP20 rating for indoor use and protection against dust and moisture.
- The LP-ULTD-09003 has a wide operating temperature range of -40°C to 80°C for reliable performance in extreme conditions.
- This LED driver is compact, measuring 88 x 88 x 33.30 mm (3.46 x 3.46 x 1.3 in), and is easy to install.
- It is certified as a Class 2 Power Supply, ensuring that it meets specific safety standards for electrical devices.
