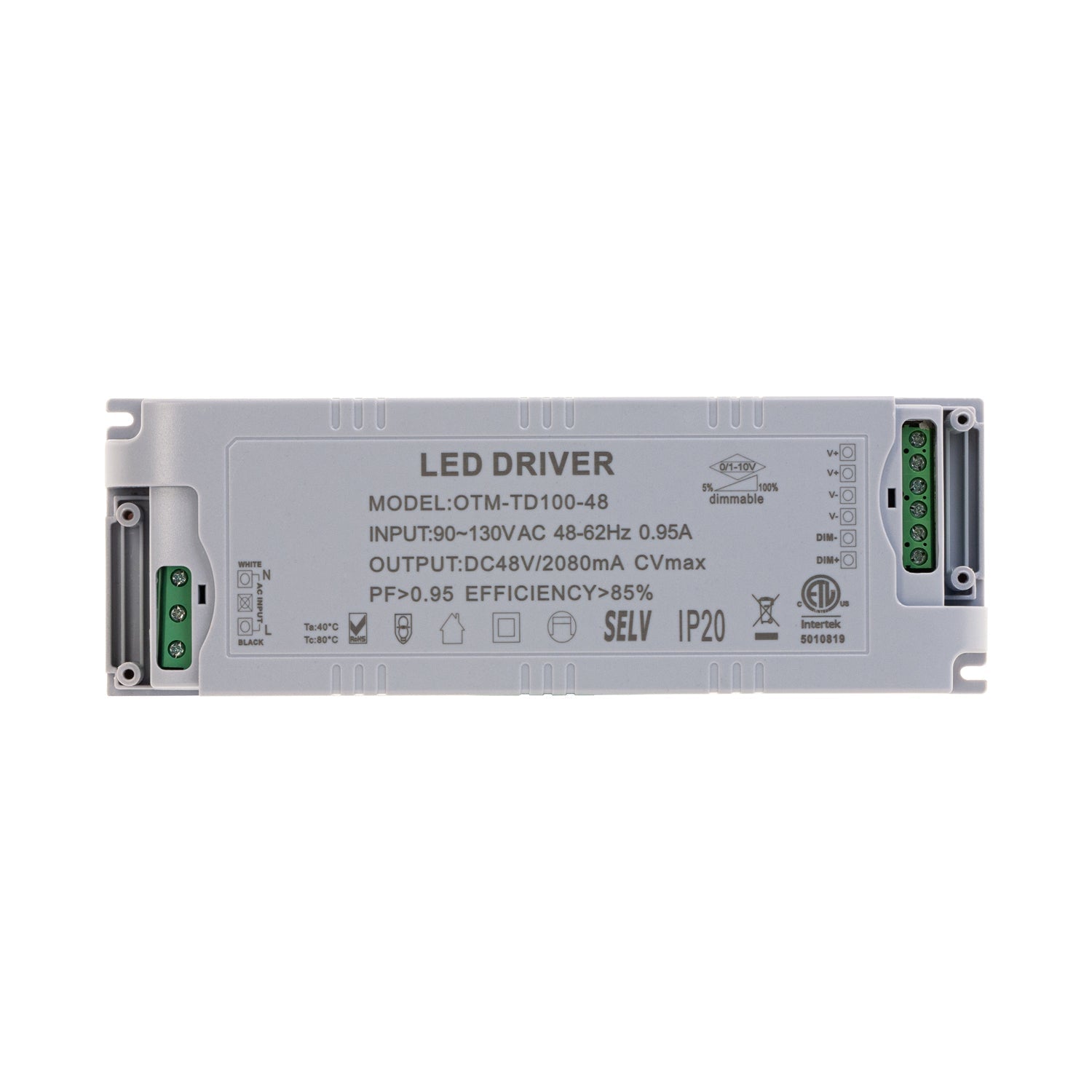

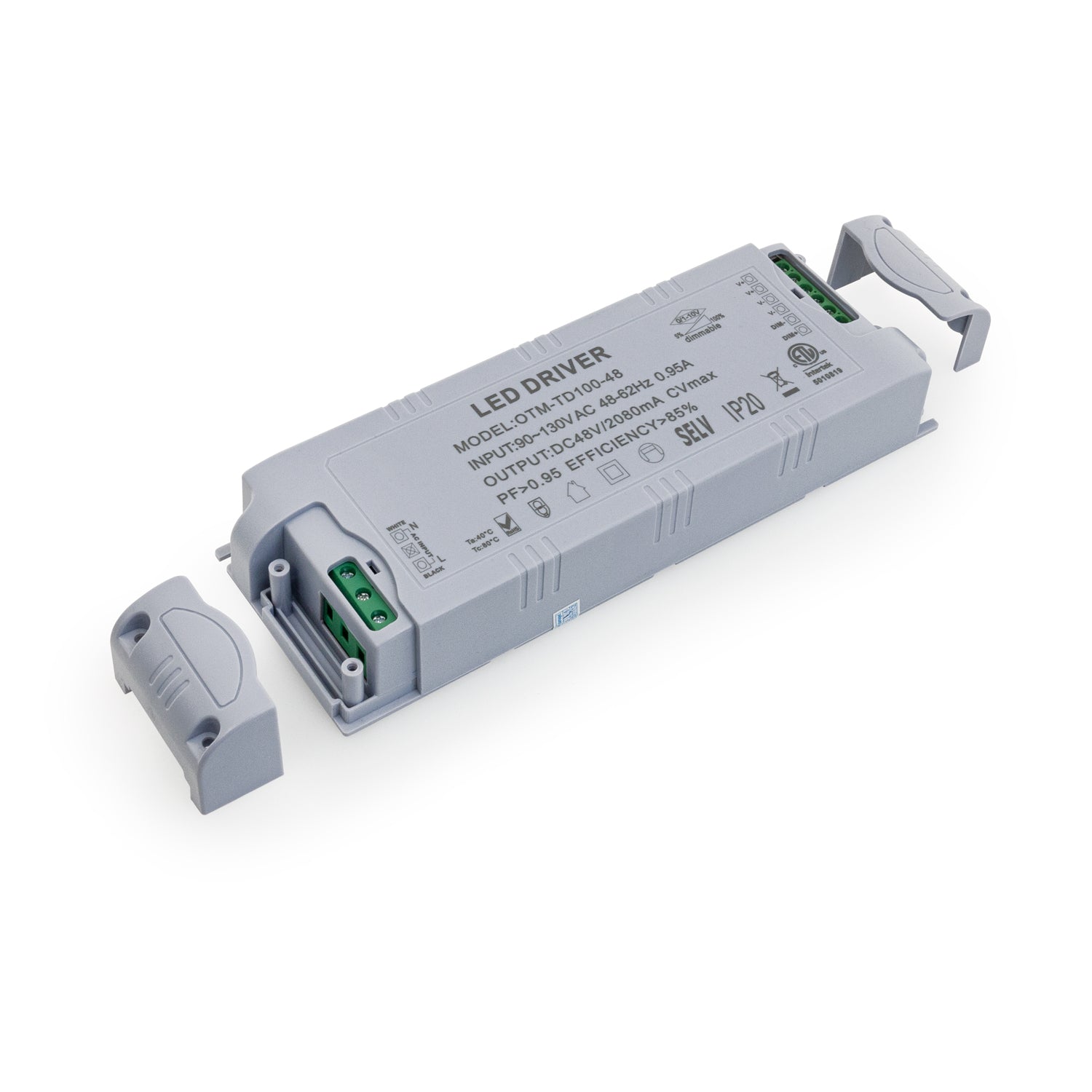

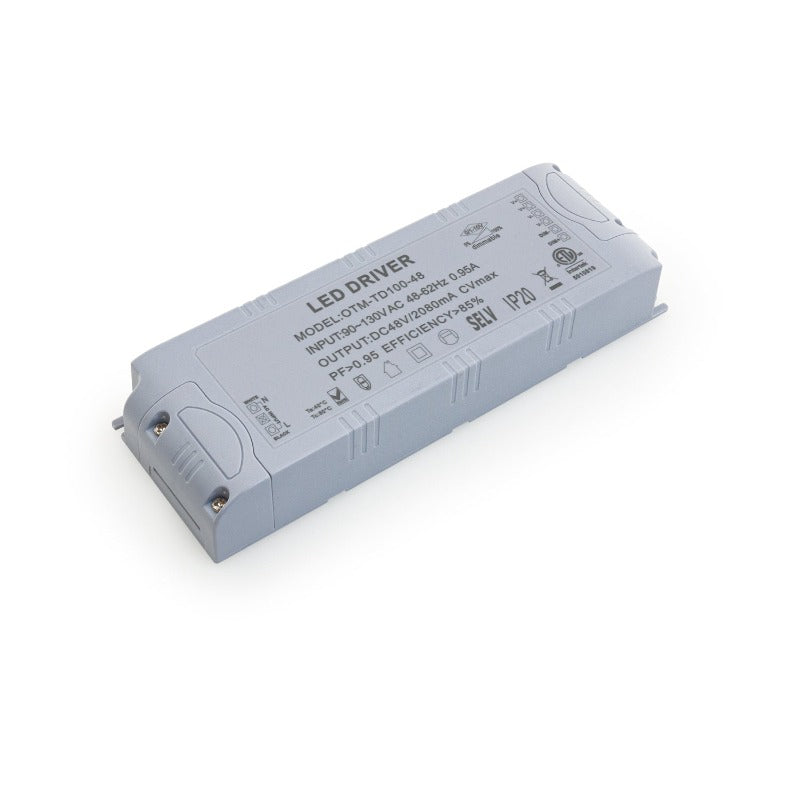

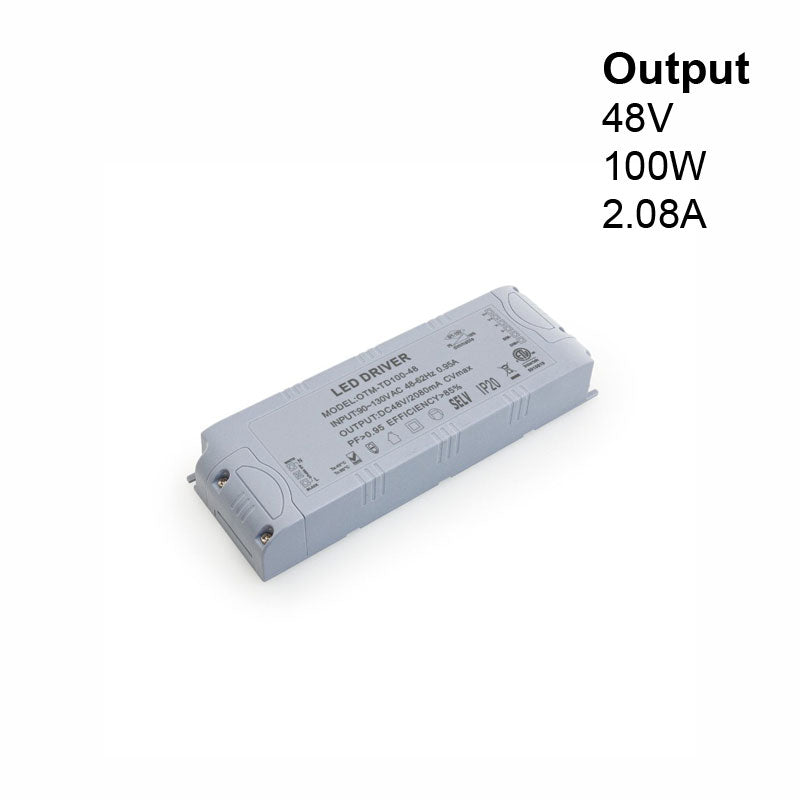

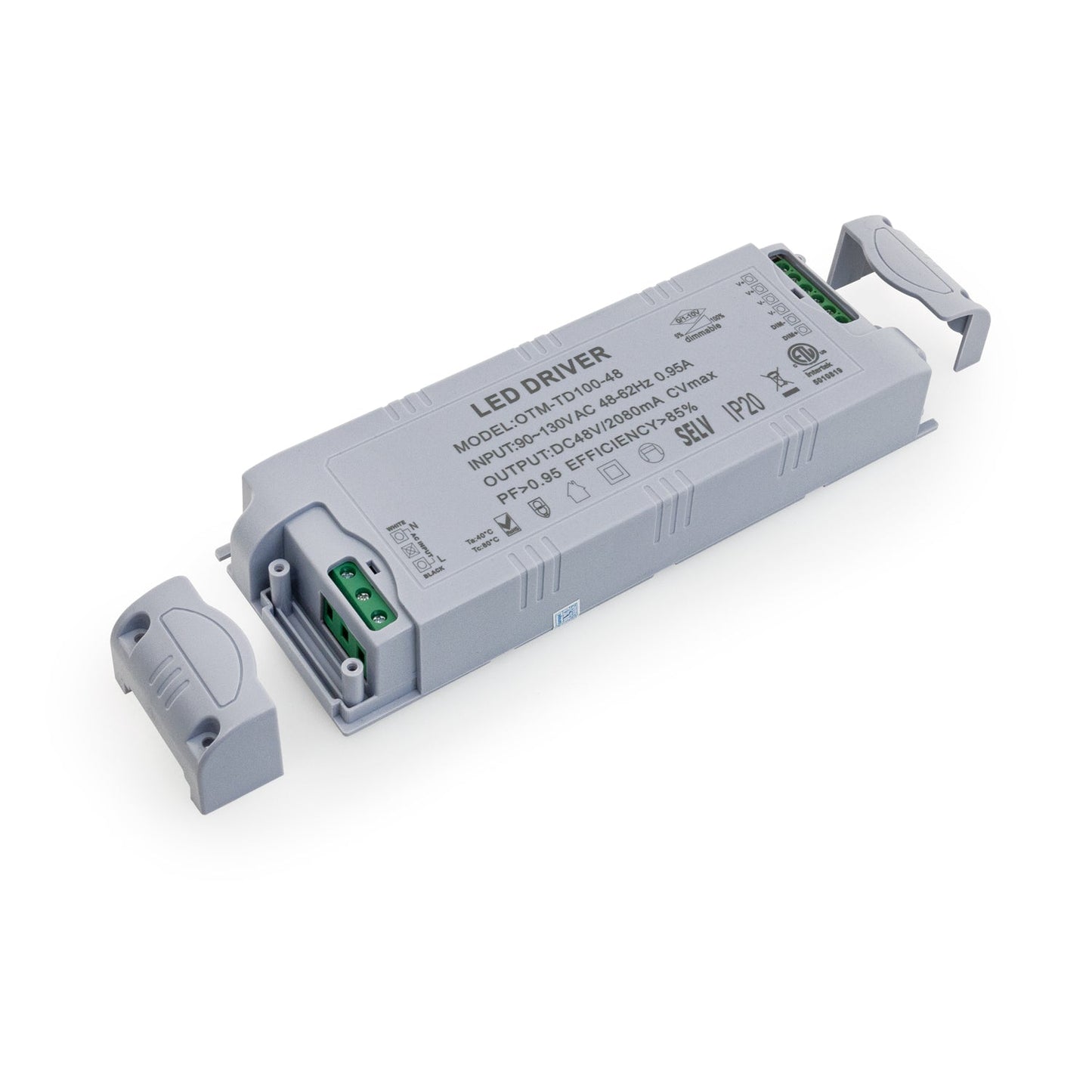

OTM-TD100-48 Constant Voltage LED Driver, 0-10V Dimmable 48V 100W

OTM-TD100-48 Constant Voltage LED Driver, 0-10V Dimmable 48V 100W

Ask Question!

SKU: SKU:666561419981

Regular price $208.70 CAD
Regular price Sale price $208.70 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Model OTM-TD100-48
Input Voltage 90-130V AC
Input Current 0.95A
Frequency 48-62Hz
Efficiency 85%
Power Factor  PF>0.95
Output Voltage 48V DC
Output regulated Current 2080mA
Output max Power: 100W max
Dimmable Yes (0-10V dimming)
Weight 1 kg
IP Rating IP20
Class Certification Class II

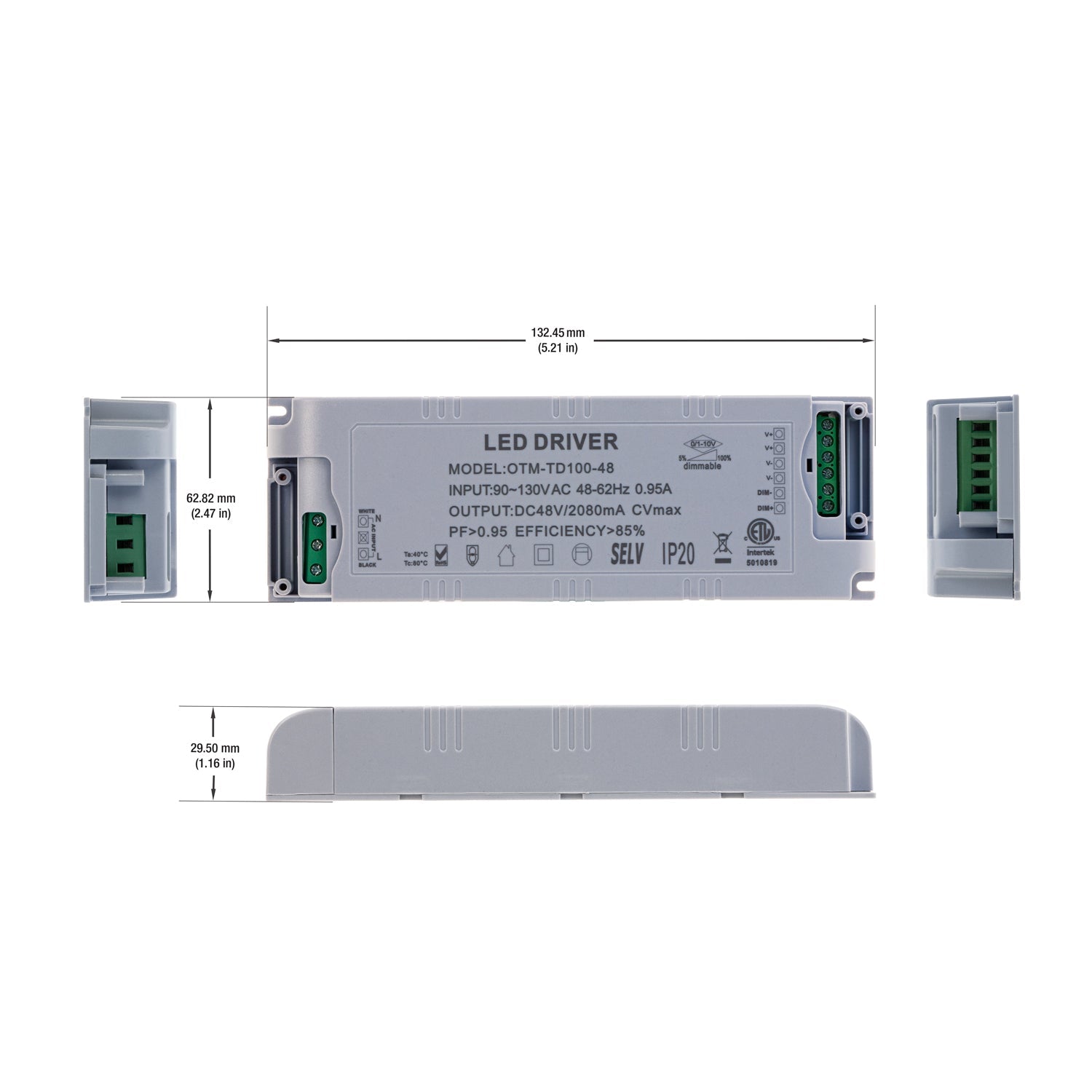

Dimensions 132.45 x 62.82 x 29.5mm (5.2 x 2.4 x 1.1 in)
Certifications
 Short Circuit and Overload Protection
Suitable for dry and damp locations



Features:

  • The model number for this LED driver is OTM-TD100-48.
  • It provides a constant voltage output of 48V DC for LED lighting systems.
  • The input voltage range is 90-130V AC, with an input current of 0.95A and a frequency range of 48-62Hz.
  • The efficiency of the driver is 85%, and the power factor is greater than 0.95, indicating good power factor correction.
  • The driver has a regulated current output of 2080mA, and a maximum output power of 100W.
  • It is dimmable using 0-10V dimming techniques, allowing for easy control of the brightness of the LED lighting system.
  • The driver is rated for indoor use with an IP20 rating and Class II certification, which means it has been designed with double insulation and doesn't require a ground connection.
  • The dimensions of the driver without the box are L190.50mm x W63.63mm (7.5 x 2.5 in), and with the box, the dimensions are 328.60x 75.36 x 56.26mm (12.93 x 2.96 x 2.21 in).
  • The driver is ETL certified, ensuring it meets safety standards set by the Electrical Testing Laboratories.
