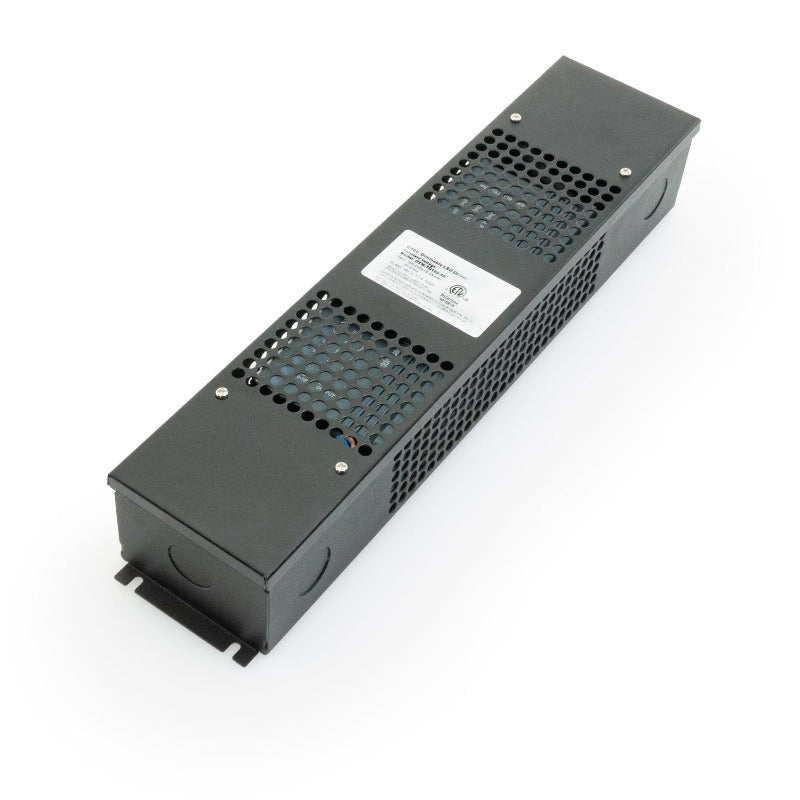

OTM-TD100-48 LED Constant Voltage LED Driver, 0-10V Dimming 48V 100W

OTM-TD100-48 LED Constant Voltage LED Driver, 0-10V Dimming 48V 100W

Ask Question!
Wholesalers, Resellers, Traders, Click here!

SKU: SKU:666561419998

Regular price $273.00 CAD
Regular price Sale price $273.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • Customers are responsible for return shipping fees. Additionally, if an order is returned, the original shipping cost must also be reimbursed.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Model OTM-TD100-48
Input Voltage 100-265V AC
Input Current 0.5A @230V AC
Frequency 50/60Hz
Efficiency 88%
Power Factor  PF>0.95
Output Voltage 48V DC
Output regulated Current 2.1A
Output Power 100W max
Dimmable Yes (0-10V dimming)
IP Rating IP67
Dimensions (Without Box) L174.62mm x W68.30mm
(6.87 x 2.69 in)
Dimensions (Box) 330 x 75 x 56.26mm
(12 x 2.95 x 2.21 in)
Certifications
Short Circuit and Overload Protection
Suitable for dry, damp, and wet locations



Features:

  • The OTM-TD100-48 is a constant voltage LED driver designed for use with LED lighting systems.
  • It operates with an input voltage of 100-265V AC and a frequency of 50/60Hz, with an input current of 0.5A at 230V AC and an efficiency of 88%.
  • The driver has a high power factor of PF>0.95, indicating that it operates efficiently and minimizes waste.
  • The LED driver is capable of delivering an output voltage of 48V DC and a regulated output current of 2.1A, providing a maximum output power of 100W.
  • It features 0-10V dimming capability, allowing for smooth and precise dimming of LED lights.
  • The OTM-TD100-48 has an IP67 rating, indicating that it is suitable for use in outdoor environments where it is exposed to moisture and dust.
  • Its dimensions are L174.62mm x W68.30mm (6.87 x 2.69 in) without the box and 330 x 75 x 56.26mm (12 x 2.95 x 2.21 in) with the box.
  • It is ETL certified, ensuring that it meets safety and performance standards for electrical products
