OTM-W200-48-F Constant Voltage 0-10V Dimmable LED Driver 48V 200W

OTM-W200-48-F Constant Voltage 0-10V Dimmable LED Driver 48V 200W

SKU:666561420000

$329.00 CAD
$329.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25



Product Description

Model No OTM-W200-48-F
Input Voltage 100-277V AC
Input Current 2.78A
Input Frequency 50-60 Hz
Output Voltage 48V DC
Output Current 4.17A
Wattage 200W
Dimmable  Yes (0-10 Dimming)
IP Rating IP67 (Dry, Damp, and Wet Locations)

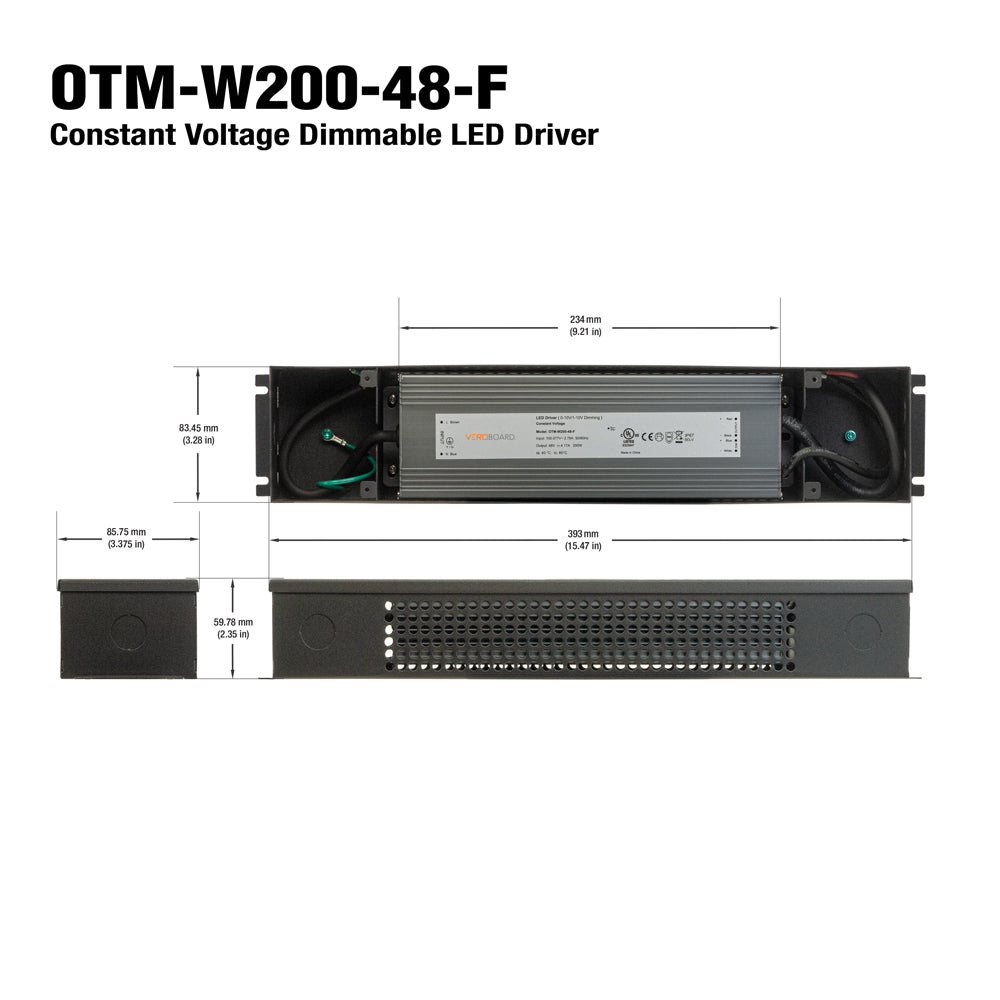

Dimensions 393 x 85.75 x 59.78mm (15.47 x 3.3 x 2.35in)
Ambient Temperature(Ta) 40℃
Case Temperature(Tc) 85℃
Certifications


The OTM-W200-48-F is a Constant Voltage LED Driver that supports 0-10V dimming. It has an input voltage range of 100-277V AC and an input current of 2.78A at a frequency of 50-60 Hz. The output voltage is 48V DC, with a regulated current of 4.17A, providing a maximum wattage of 200W. The driver is dimmable using 0-10V dimming, allowing for precise control over the brightness of connected LEDs. The IP67 rating makes it suitable for dry, damp, and wet locations. The dimensions of the driver are 393 x 85.75 x 59.78mm (15.47 x 3.3 x 2.35in). It can operate in an ambient temperature of up to 40℃, with a case temperature of 85℃. The driver is UL listed, ensuring it meets safety and performance standards.

Features:

  • The OTM-W200-48-F is a Constant Voltage LED Driver.
  • It supports 0-10V dimming.
  • It has an input voltage range of 100-277V AC and an input current of 2.78A at a frequency of 50-60 Hz.
  • The output voltage is 48V DC, with a regulated current of 4.17A, providing a maximum wattage of 200W.
  • The driver is dimmable using 0-10V dimming, allowing for precise control over the brightness of connected LEDs.
  • The driver has an IP67 rating, making it suitable for dry, damp, and wet locations.
  • The dimensions of the driver are 393 x 85.75 x 59.78mm (15.47 x 3.3 x 2.35in).
  • It can operate in an ambient temperature of up to 40℃, with a case temperature of 85℃.
  • The driver is UL listed, ensuring it meets safety and performance standards.



View full details
