OTM-TDJ30-24 Triac Dimmable Constant Voltage LED Driver, 24V 1.25A 30W
OTM-TDJ30-24 Triac Dimmable Constant Voltage LED Driver, 24V 1.25A 30W
SKU: SKU:666561425487
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Product Description
Model | OTM-TDJ30-24 |
Input Voltage | 100-130V AC |
Input Current | 0.24A |
Frequency | 50/60Hz |
Output Voltage | 24V DC |
Output regulated Current | 1.25A |
Output Power | 30W |
Dimmable | Yes (Triac/Phase dimming) |
IP Rating | IP20 (Indoor Rated) |
Ambient Temperature (Ta) | 50°C |
Case Temperature (Tc) | 90°C |
Class Certification | Class II/ SELV |
Dimensions | 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in) |
Certification |
Â
|
Compatible with Forward-Phase & Triac dimmers |
Applicable for Dry and Damp locations |
Short circuit and overload protected |
Class II certified, Double-layer insulation |

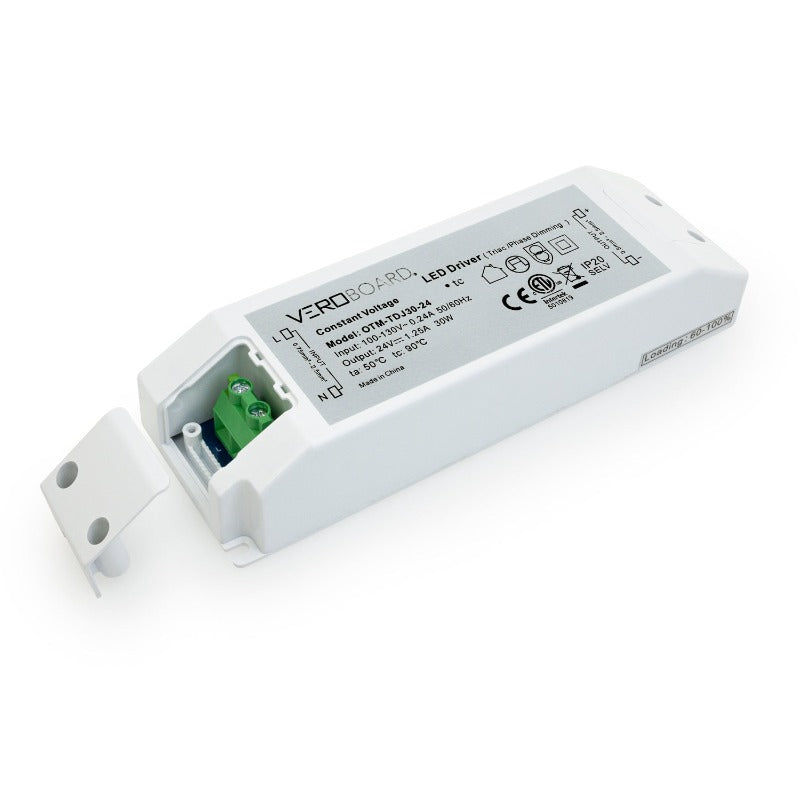

The OTM-TDJ30-24 is a Triac Dimmable Constant Voltage LED Driver that can convert an input voltage range of 100-130V AC with an input current of 0.24A and a frequency of 50/60Hz into an output voltage of 24V DC with an output regulated current of 1.25A and an output power of 30W.
This LED driver is also dimmable using Triac/Phase dimming and has an IP20 rating, which makes it suitable for indoor use only. The Ambient Temperature (Ta) range for this model is 50°C and the Case Temperature (Tc) range is up to 90°C. It has a Class II/ SELV certification and its dimensions are 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in). It is certified by ETL.
Features:
- LED driver type: Triac Dimmable Constant Voltage
- Input voltage range: 100-130V AC
- Input current: 0.24A
- Frequency: 50/60Hz
- Output voltage: 24V DC
- Output regulated current: 1.25A
- Output power: 30W
- Dimming capability: Triac/Phase dimming
- IP rating: IP20 (suitable for indoor use only)
- Ambient Temperature (Ta) range: 50°C
- Case Temperature (Tc) range: up to 90°C
- Certification: Class II/ SELV
- Dimensions: 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
- Certification authority: ETL
