⚠️ Shipping Length Notice
Orders of 1–4 pcs are shipped as 2 × 1m sections (per 2m unit).
Orders of 5 pcs or more are shipped as full 2m continuous profiles (single piece).
Product Description
* Click Here to get a quote for 2.4m(7.8ft), 3m(9.8ft), Custom Lengths and Custom Color.
| Product | LED Channel / LED Extrusion |
| Model | VBD-CH-B1-2 |
| Material | Aluminum |
| Diffuser Material | Polycarbonate (PC) |
| Fixture color Finish | Silver Grey (Available in Custom Color) |
| Weight | 0.7 kg |
| Package content |

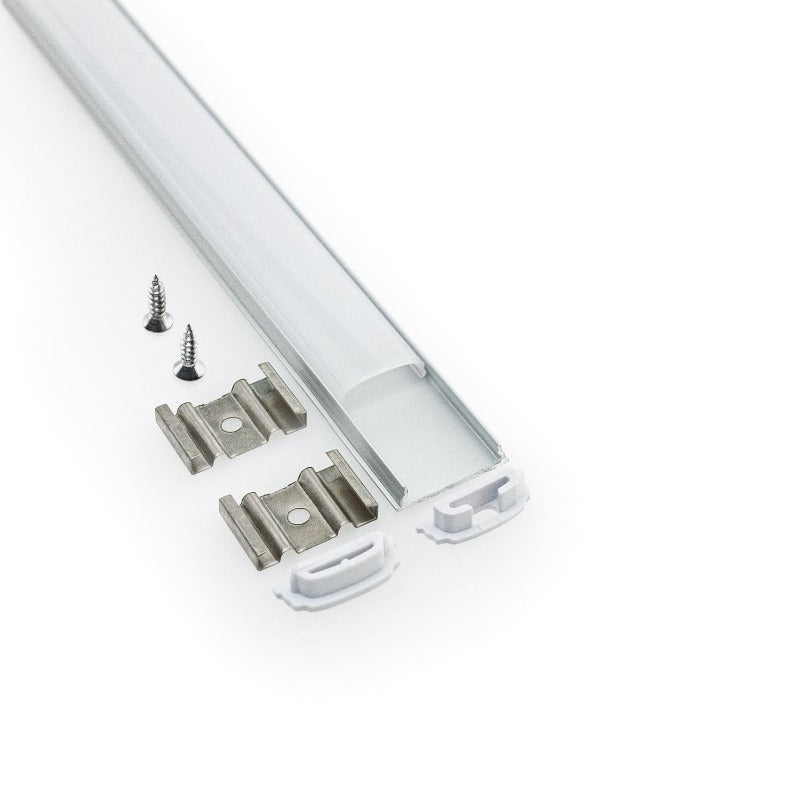

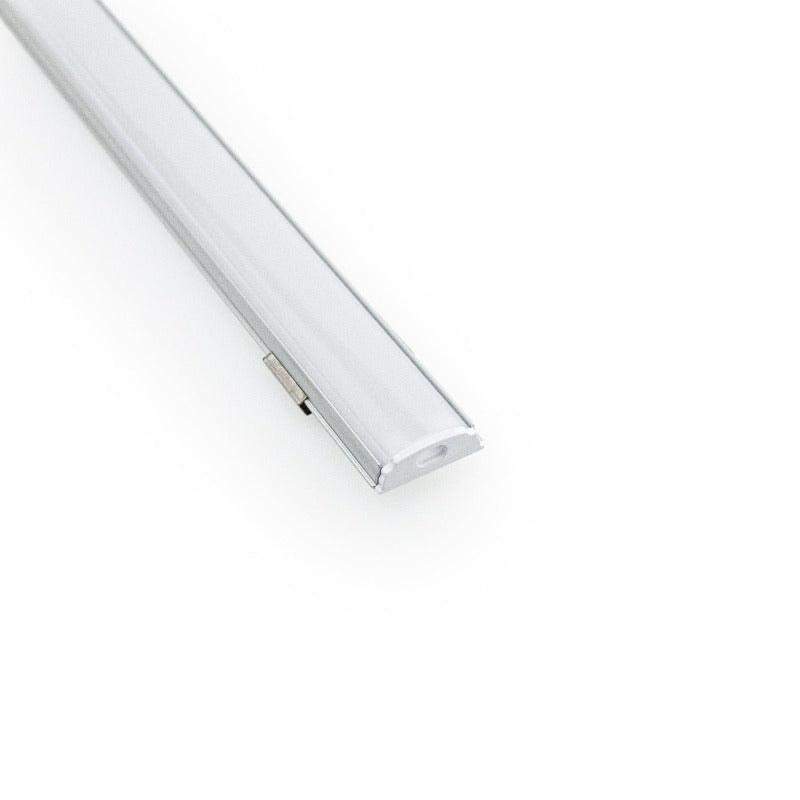

2 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes) |

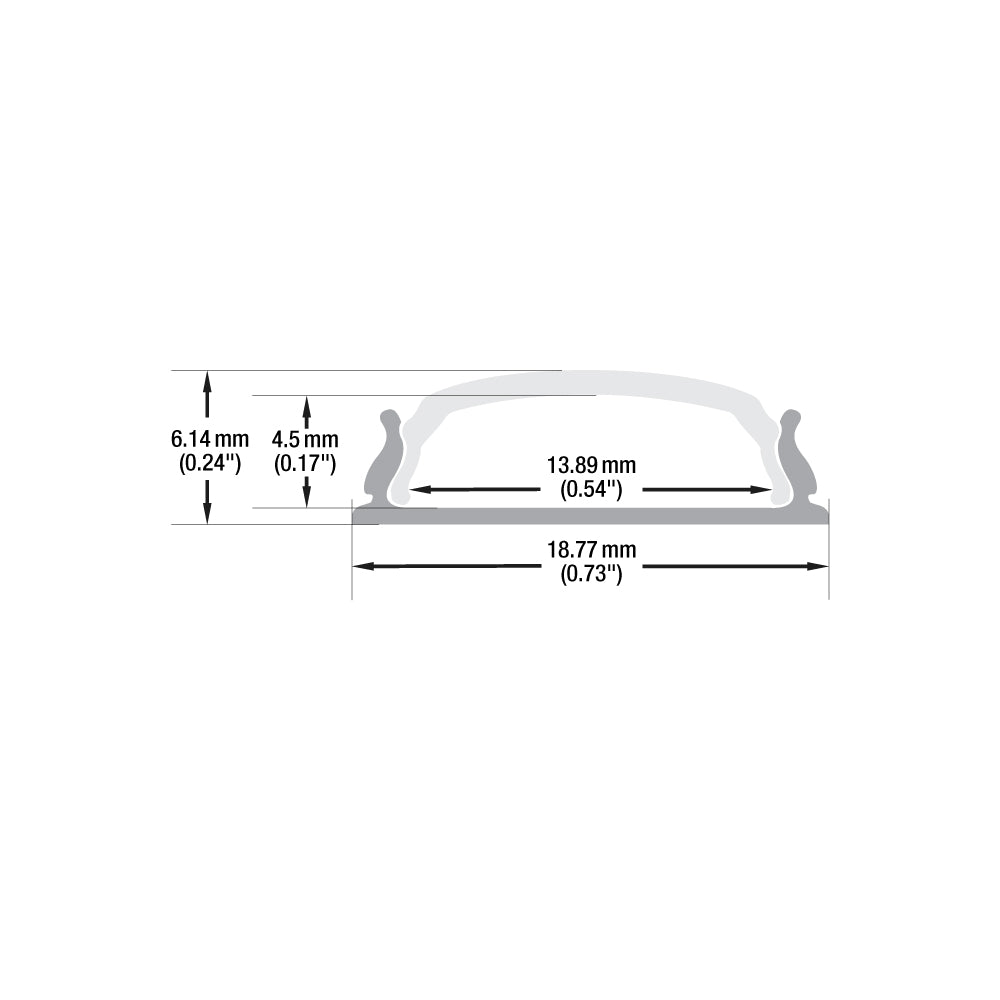

| Dimensions | 2000mm x 18.77mm x 6.14mm (78.8in x 0.78in x 0.24in) |
| Mounting |
|
| Accessories (Sold Separately) |

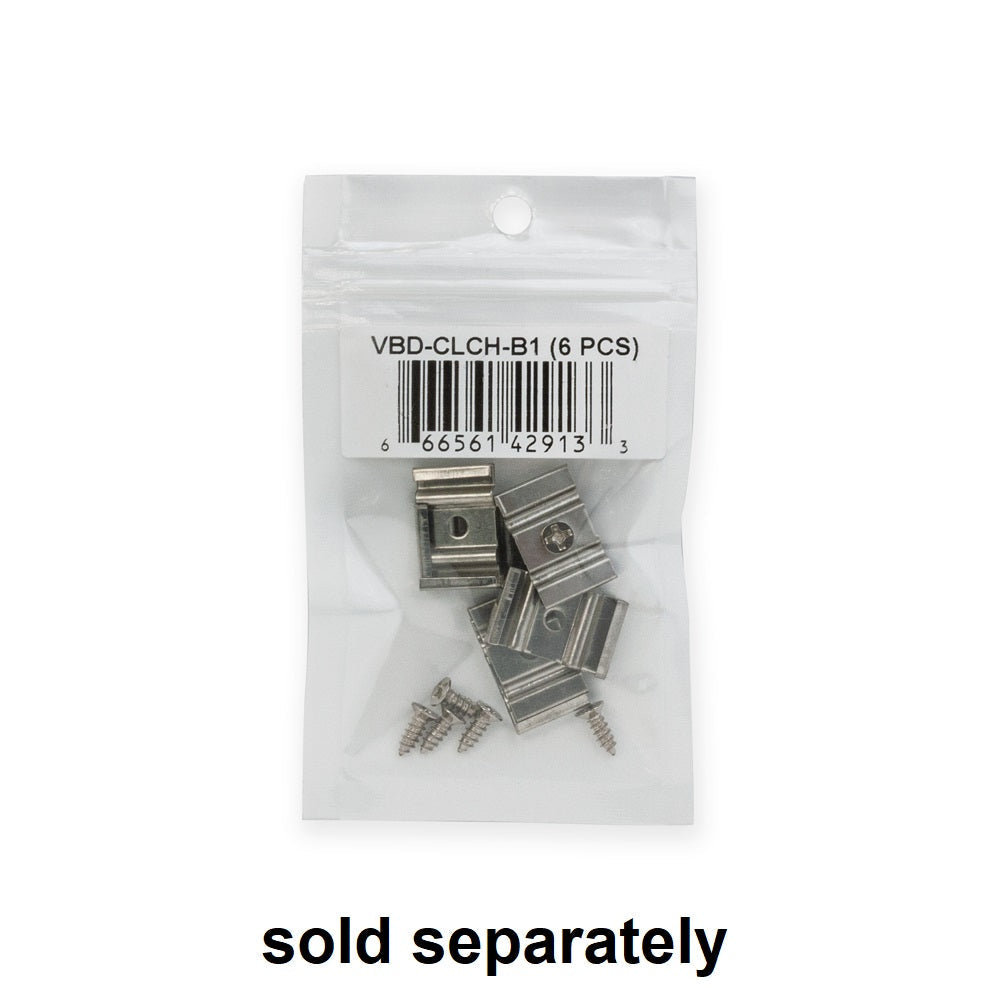

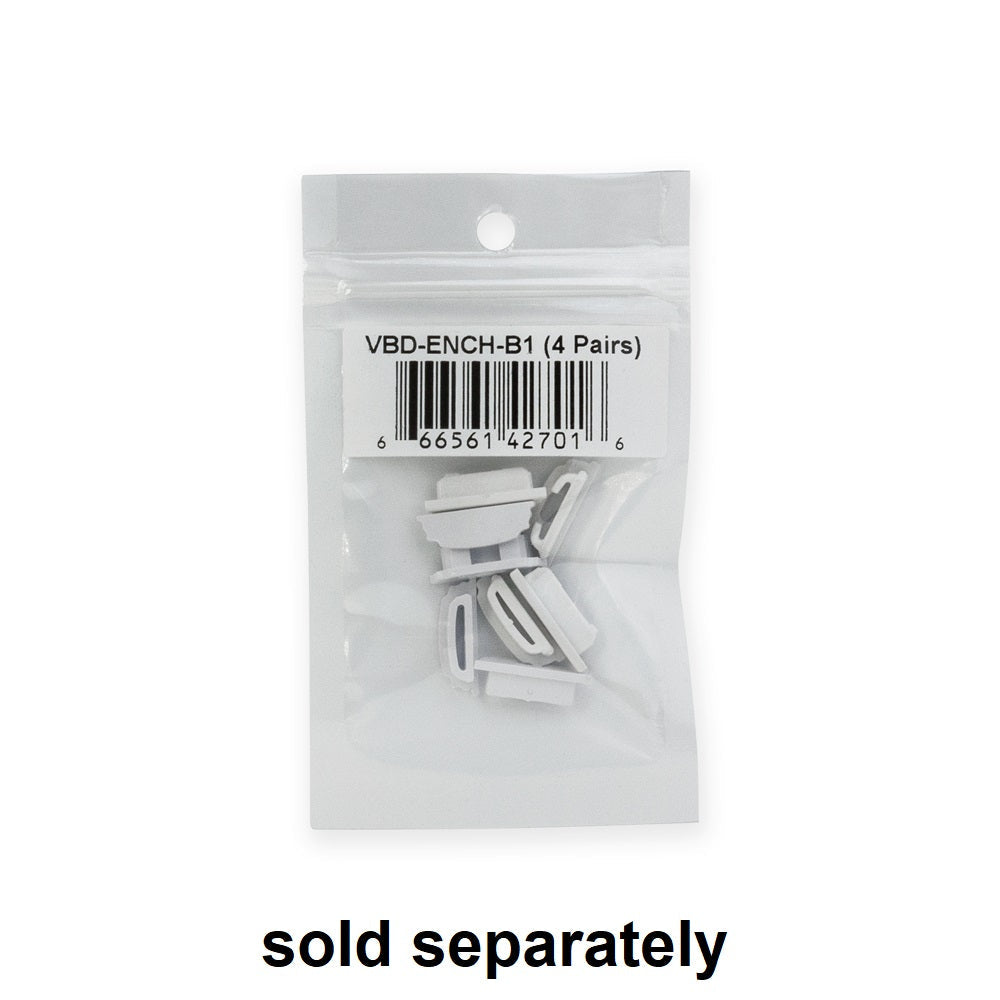

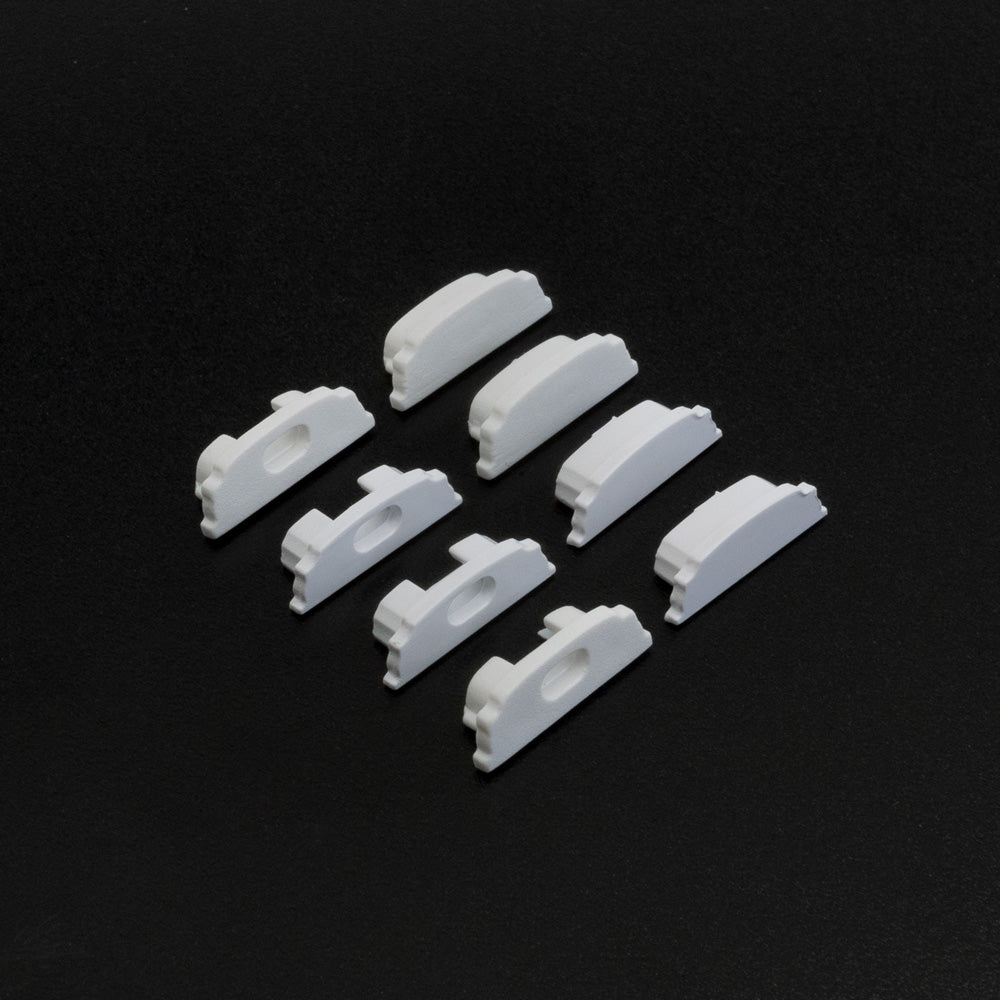

4 pairs Endcaps VBD-ENCH-B1 SKU:666561427016 6 pcs Mounting Clips VBD-CLCH-B1 SKU:666561429133 |
| Other length options available upon request | VBD-CH-B1 (3 meters) SKU: 666561423223 VBD-CH-B1-2.4 (2.4 meters) SKU: 666561431518 |
Features:
- Lightweight, ultra-thin, and flexible aluminum material
- Frosted diffuser (lens) made of polycarbonate (PC) material reduces light glaring and protects from dust and damage
- Acts as a heat sink for the LED strip installed in it
- Applicable for both linear and non-linear installations, including curved shapes
- Can be used with any strip light of width 12mm and less, and several lengths can be positioned together

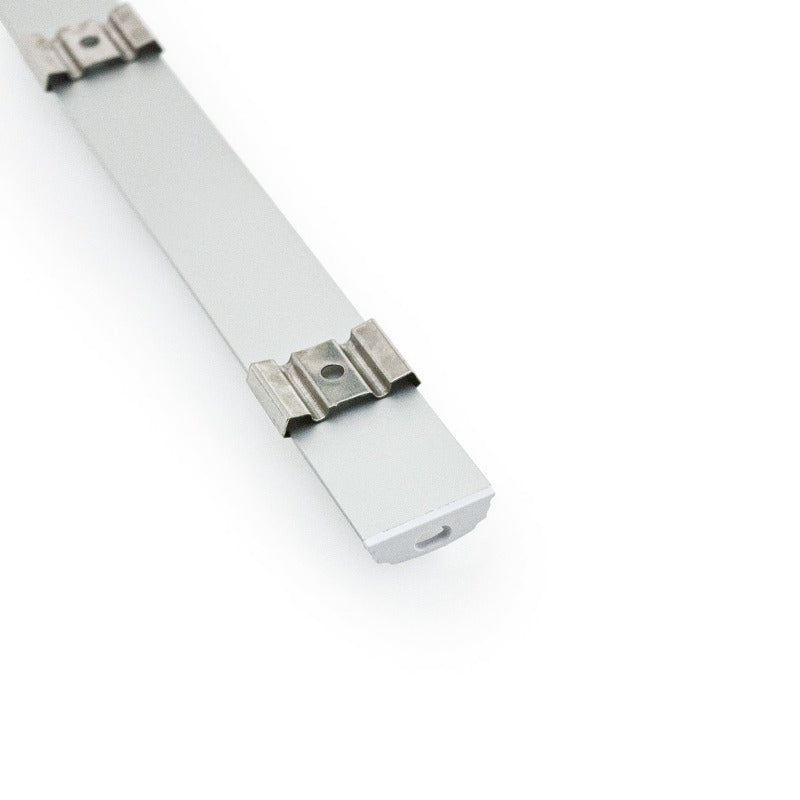

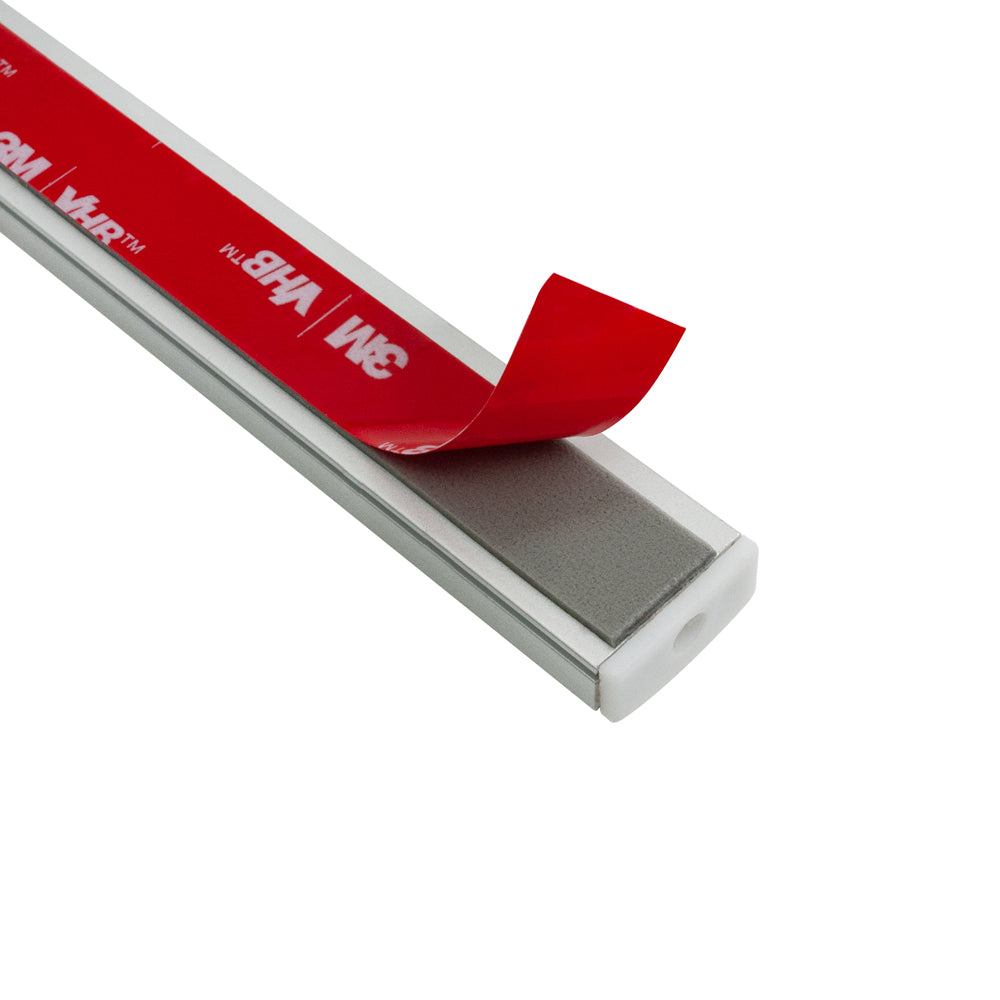

- Comes with end caps and mounting brackets, and can be mounted using 3M double-sided tape, directly screw or groove into the mounting surface, or mounting clips
- Versatile and suitable for various applications, such as cabinets, shelves, closets, ceilings, shower doors, windows, accent lighting, showcases in the stores, golf court trim, counter lighting, arched doorways, or entryways

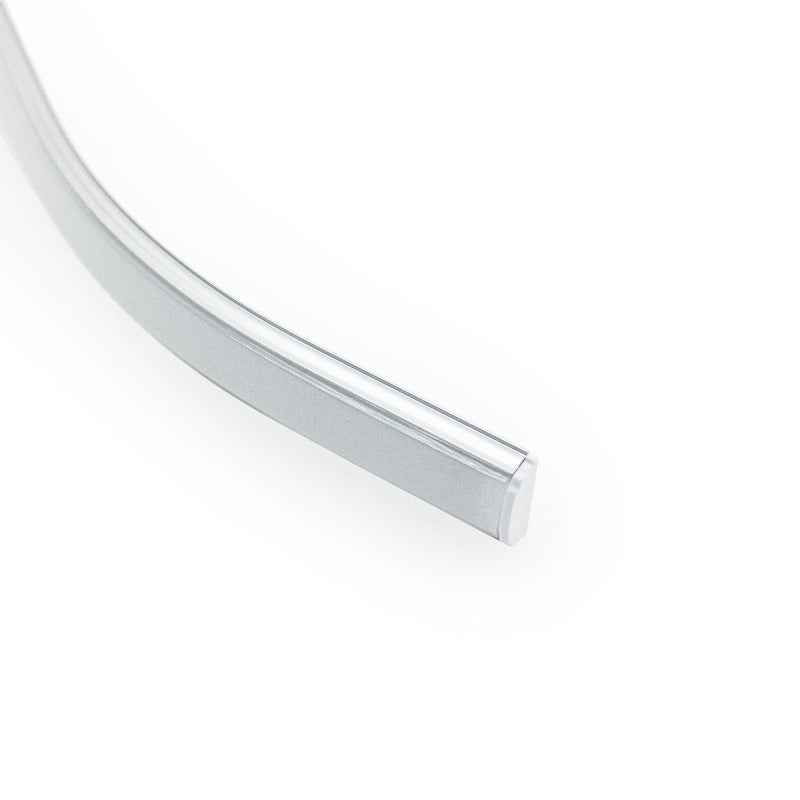

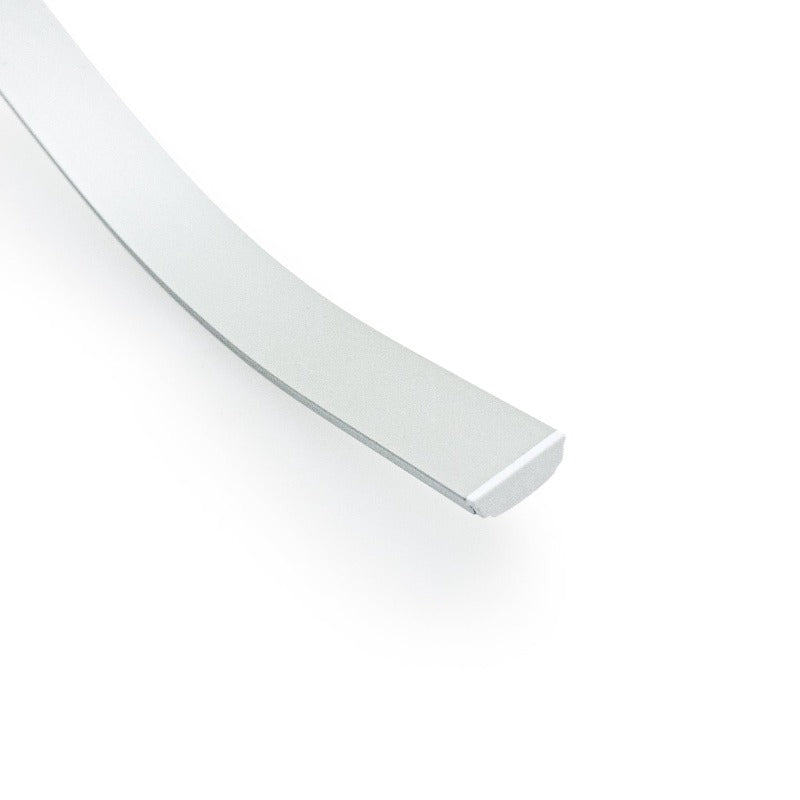

- Bending radius of 9 inches, suitable for both straight runs and curved surfaces
