⚠️ Shipping Length Notice
Orders of 1–4 pcs are shipped as 2 × 1m sections (per 2m unit).
Orders of 5 pcs or more are shipped as full 2m continuous profiles (single piece).
Product Description
* Click Here to get a quote for 2.4m(7.8ft), 3m(9.8ft), Custom Lengths and Custom Color.
|
Product |
LED Channel / LED Extrusion |
| Model | VBD-CH-C3-2 |
| Material | Anodized Aluminum |
| Diffuser Material | Polycarbonate (PC) |
| Fixture color Finish | Silver Grey (Available in Custom Color) |
| Package content |
2 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes) |
| Weight | 1.1 kg |

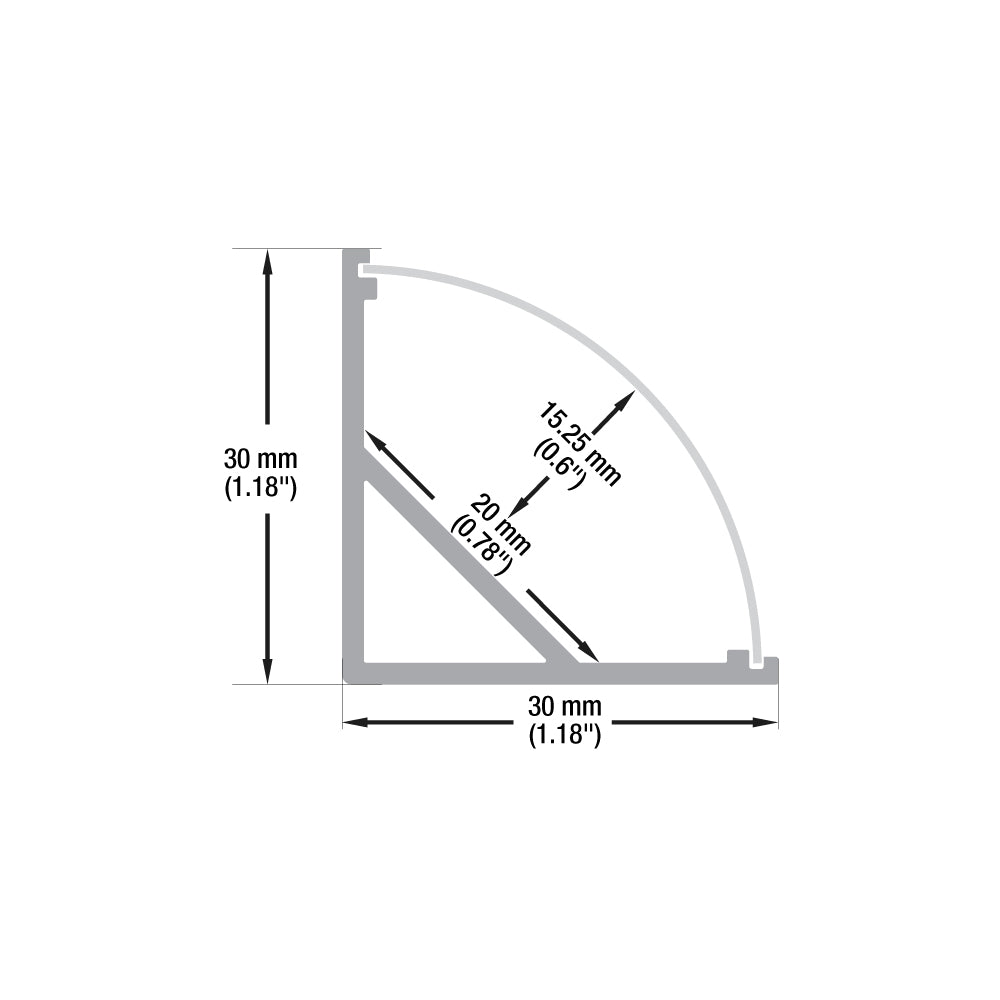

| Dimensions | 2000mm x 30mm x 30mm (78.7in x 1.18in x 1.18in) |
| Mounting |
|
| EXTRA Accessories (Sold Separately) |

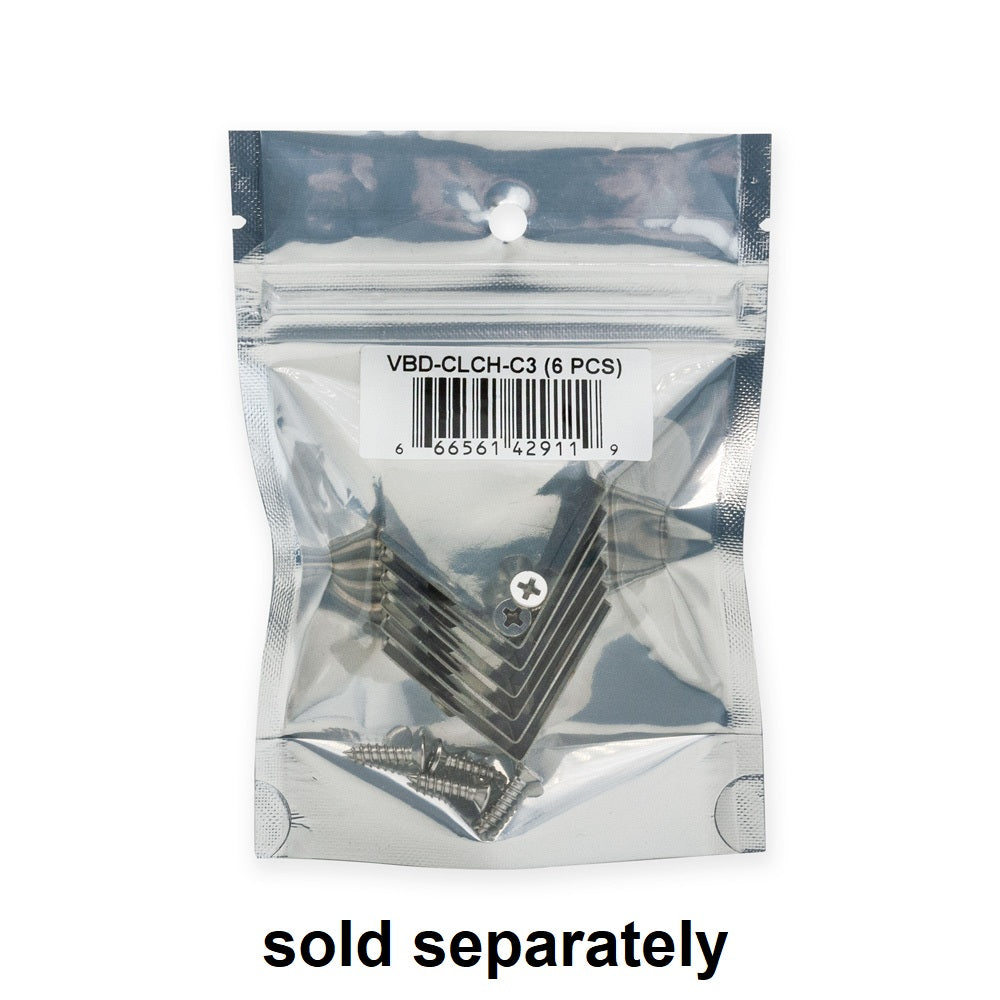

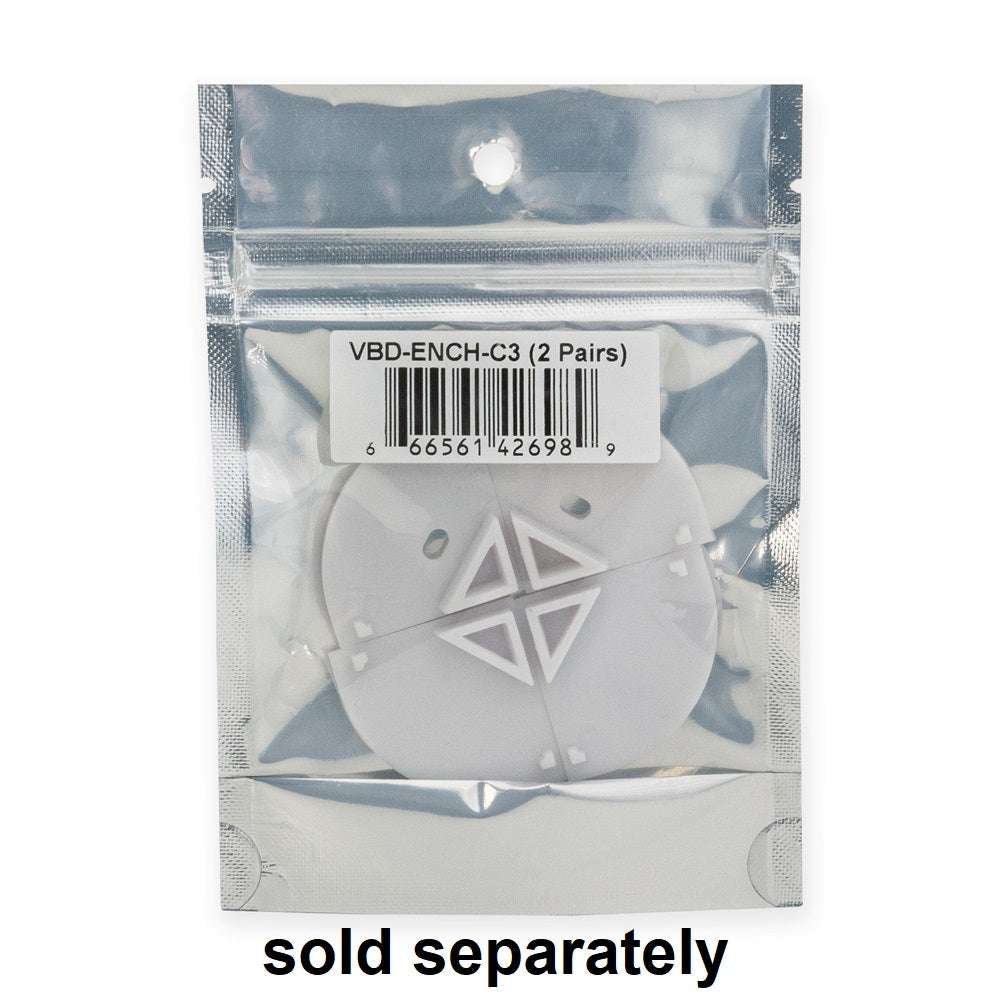

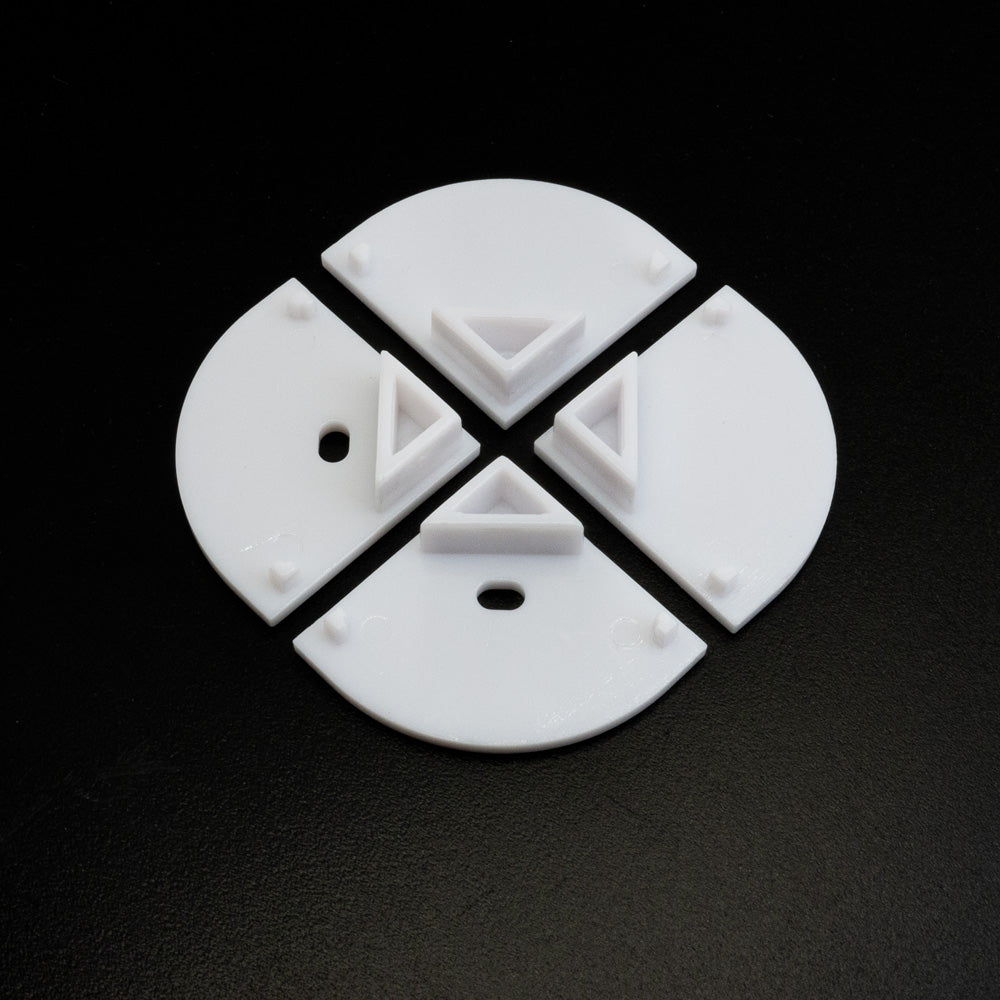

2 pairs Endcaps VBD-ENCH-C3 SKU:666561426989 6 pcs Mounting Clips VBD-CLCH-C3 SKU:666561429119 |
| Other length options available upon request | VBD-CH-C3 (3 meters) SKU: 666561423520 VBD-CH-C3-2.4 (2.4 meters) SKU: 666561431952 |
Features:
- High-quality anodized aluminum material provides durability and can be easily cut to the desired length using a regular hack saw or miter saw

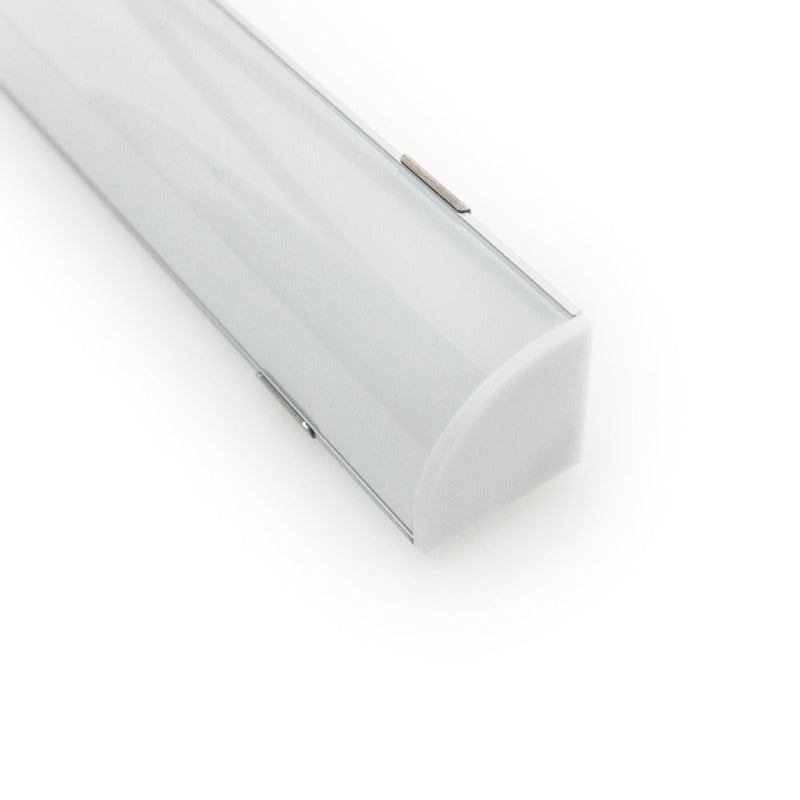

- Curved diffuser design widens the beam angle and provides better light distribution, making it ideal for illuminating any corner with a wide angle of light

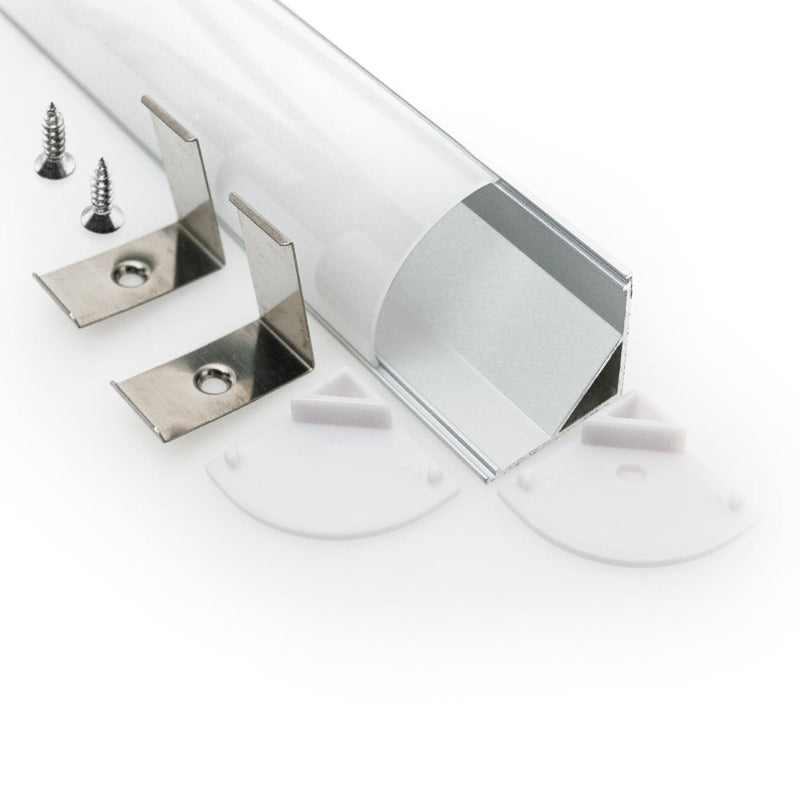

- Comes with a frosted polycarbonate diffuser (Opal), end caps with and without wiring holes, and mounting brackets with screws for easy installation
- Acts as a heat sink for the LED strip installed in it, which increases the lifetime of the LEDs

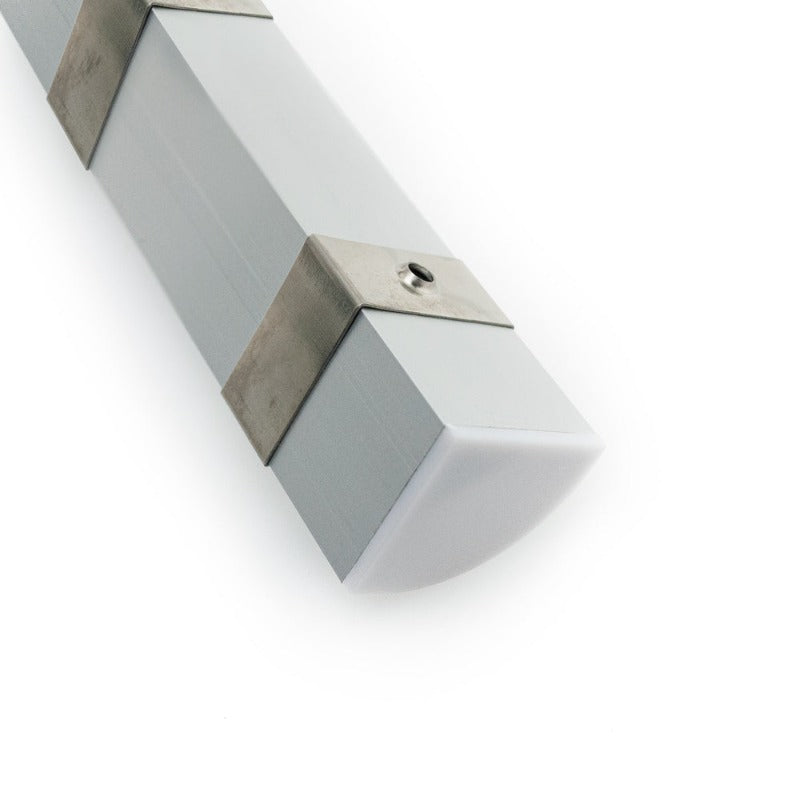

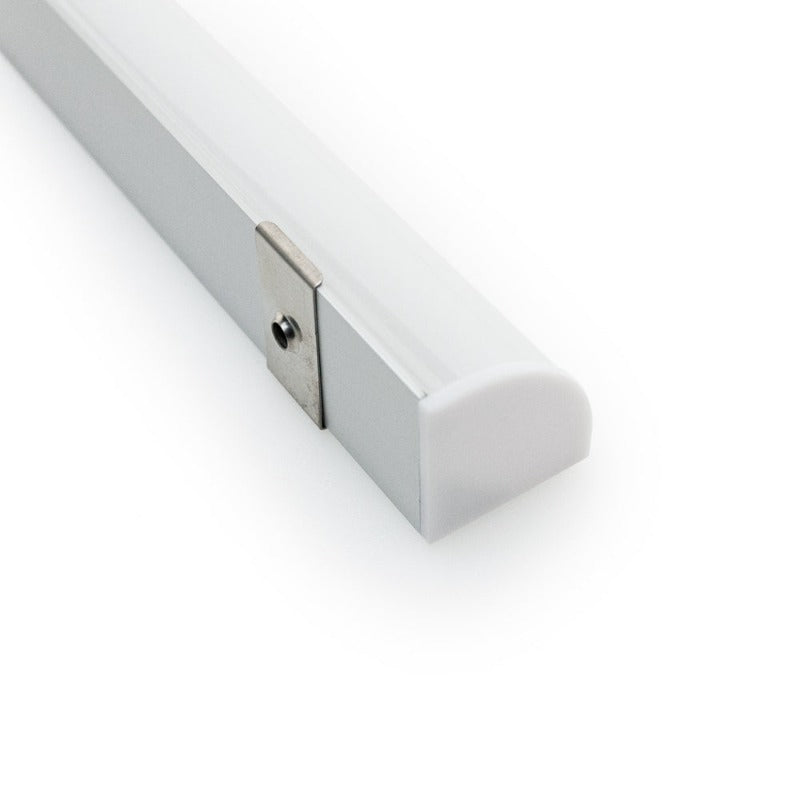

- Can be mounted using double-sided tape, mounting clips, or by directly screwing or grooving it into the mounting surface
- Optional accessories, including end caps and mounting clips, are available for purchase separately
- Wide applications for any corner mount applications, including cabinets, shelves, closets, staircase, decorative, and vanity lighting applications
