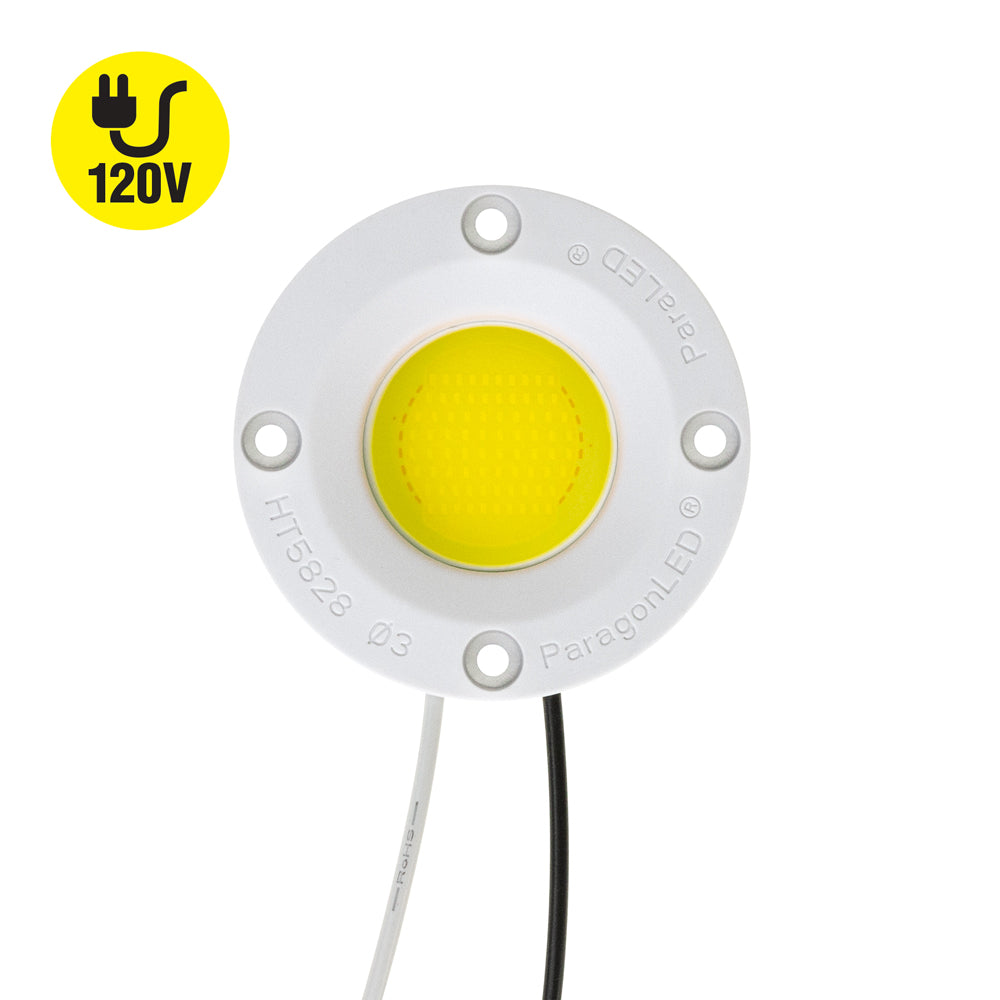

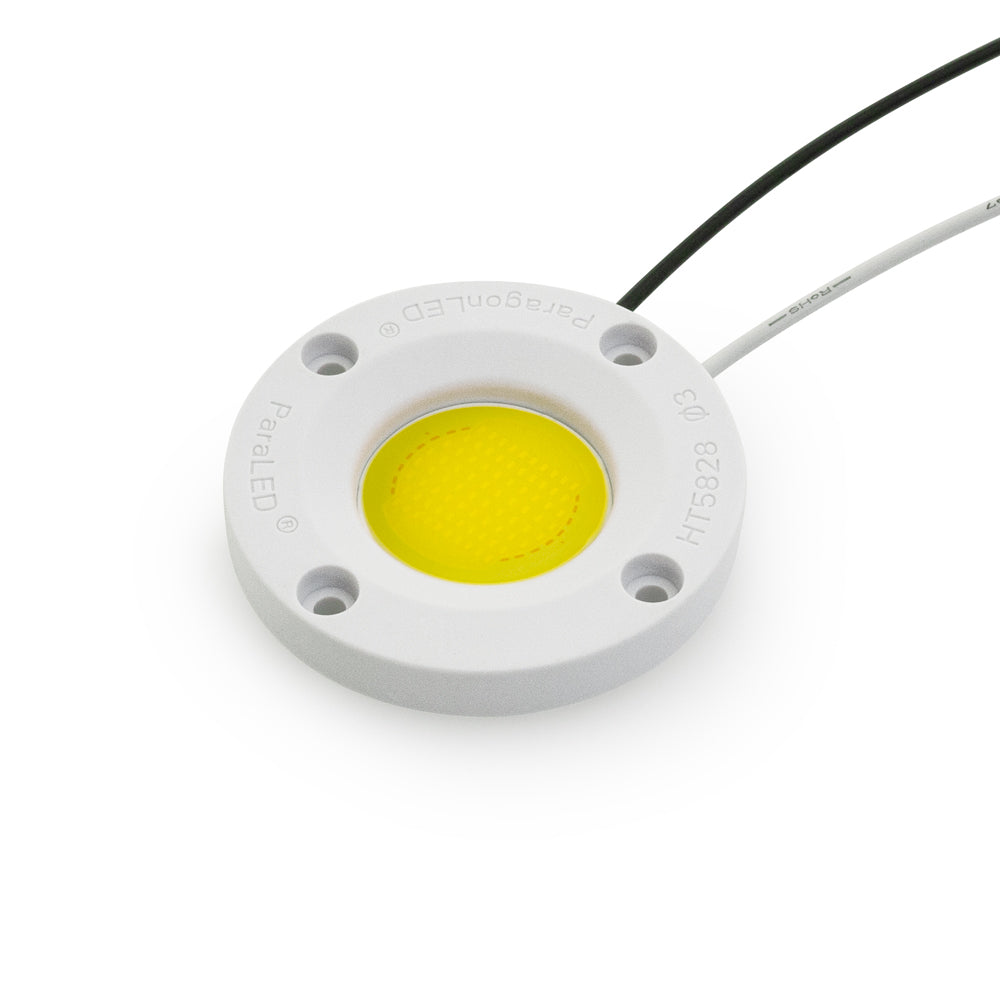

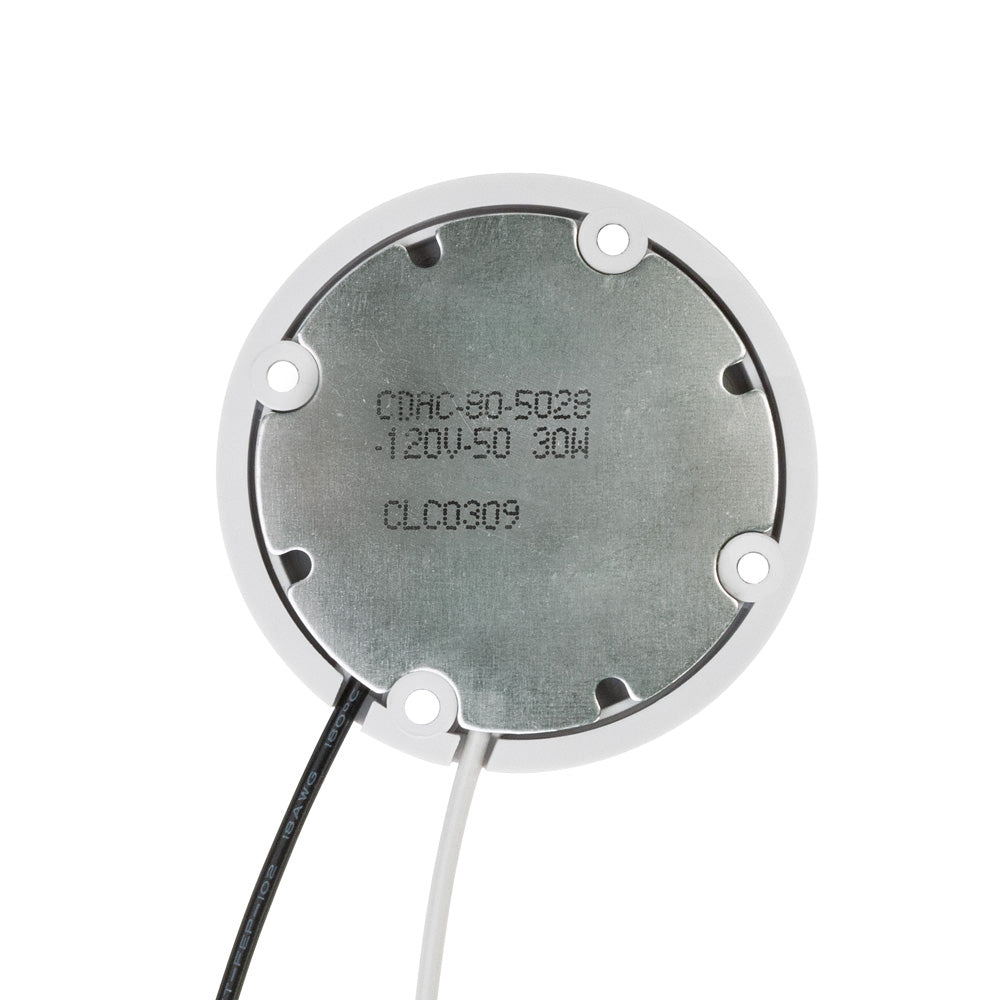

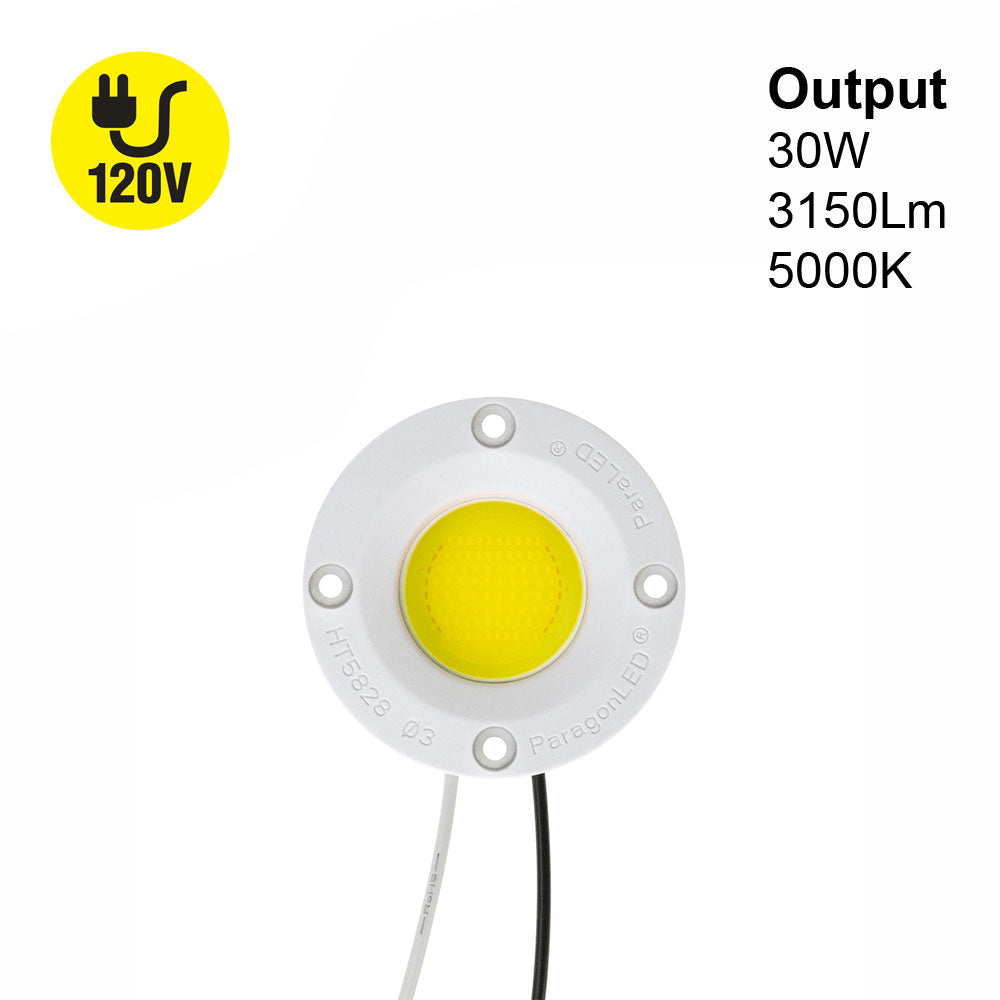

CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 30W 5000K(Daylight)

CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 30W 5000K(Daylight)

SKU:666561430627

$161.00 CAD
$161.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



Product Description

Product Paragon LED Module
Model No CDAC-080-05028-120-5000K
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 80
Wattage 30W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 3150 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

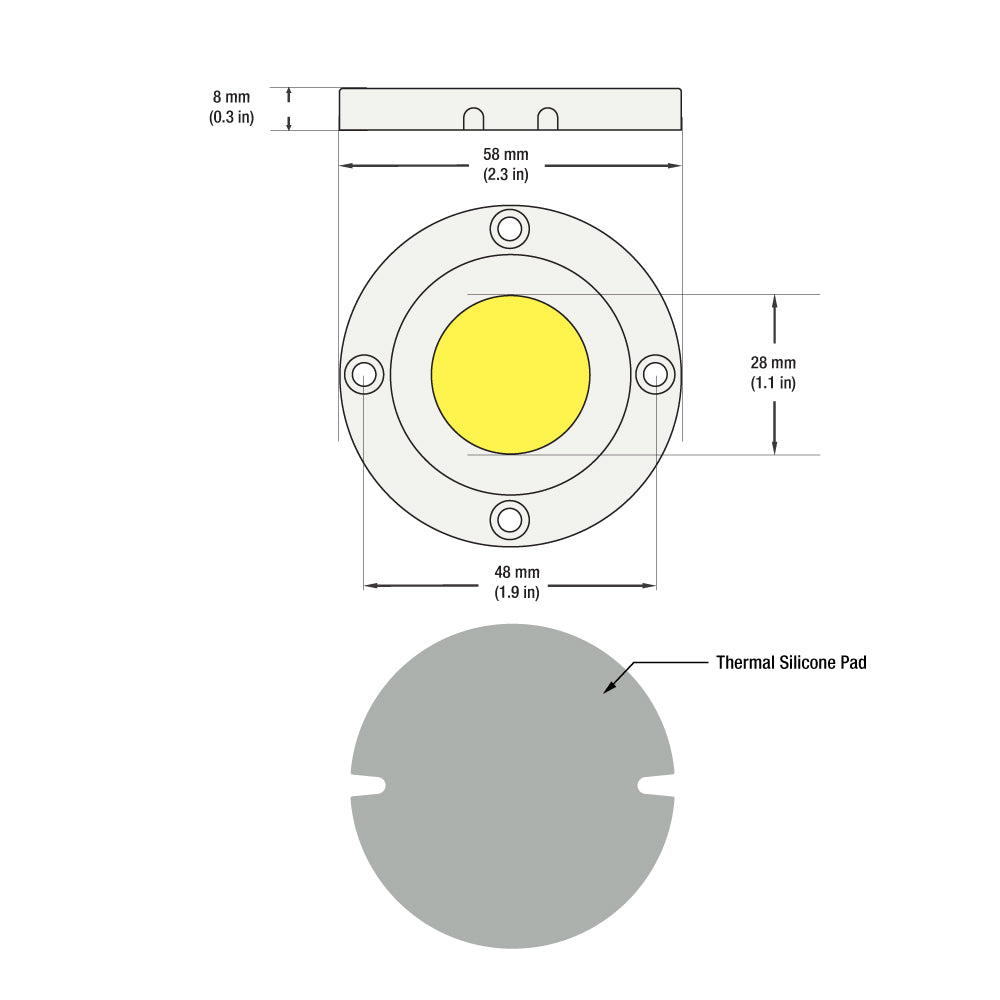

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

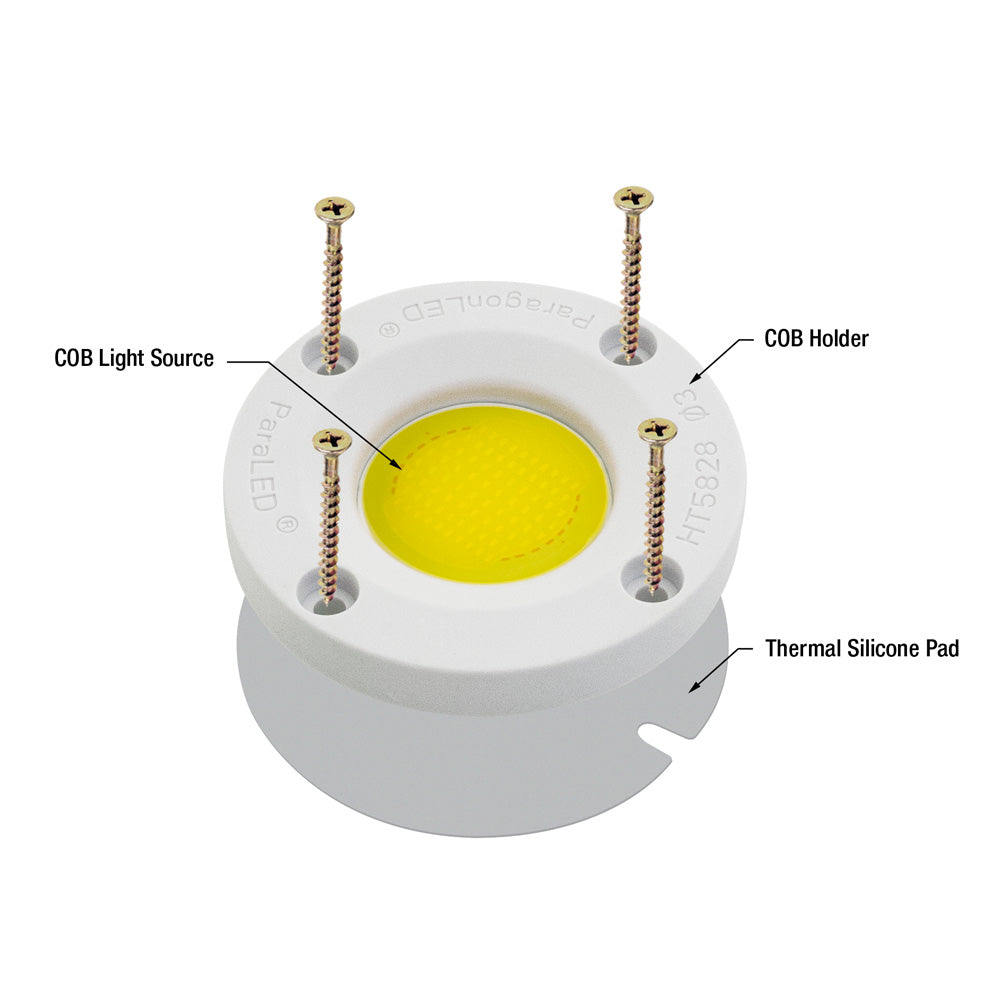

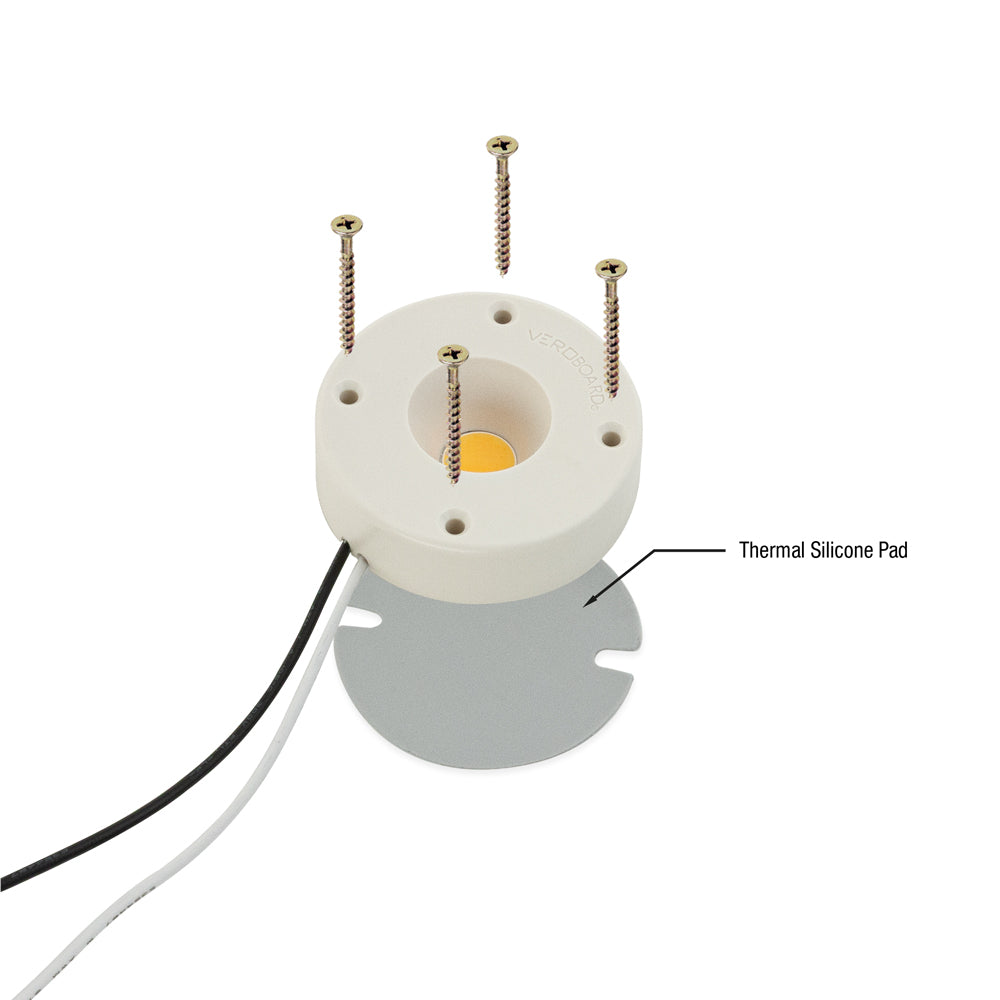

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CDAC-080-05028-120-5000K COB Paragon LED Module is a high-quality LED lighting module that uses Chip-on-Board (COB) LED technology to deliver high brightness and energy efficiency. The module is designed to be used in indoor lighting applications and comes with a COB LED array holder (HT5828), a thermal pad, and a COB module.

With 80 LED chips and a wattage of 30W, this LED module can deliver a luminous intensity of 3150 lumens and has a color temperature of 5000K (Daylight) with a high color rendering index (CRI>80). The module is also dimmable and has a power factor of PF>0.85.

To ensure optimal performance and to prevent overheating, it is recommended to use an aluminum heat sink with the module. The module operates in a wide temperature range (-40 ~ +105℃) and is designed to be mechanically secured and electrically connected using the COB holder.

Features:

  • High-quality LED lighting module using COB LED technology
  • Suitable for indoor lighting applications
  • Comes with COB LED array holder (HT5828), thermal pad, and COB module
  • 80 LED chips, 30W wattage, 3150 lumens, and 5000K color temperature (Daylight) with high CRI (>80)
  • Dimmable with a power factor of PF>0.85
  • Recommended to use with an aluminum heat sink to prevent overheating
  • Operates in a wide temperature range (-40 ~ +105℃)
  • Designed to be mechanically secured and electrically connected using the COB holder
  • Comes with a polycarbonate diffuser that can be easily attached or detached
  • Suitable for damp locations and is rated as IP20 (Indoor rated)
