CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 5000K(Daylight)

CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 5000K(Daylight)

SKU:666561430689

$187.60 CAD
$187.60 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Paragon LED Module
Model No CDAC-136-5028-347-5000K
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 136
Wattage 20W
Voltage 347V AC
Power Factor PF>0.85
Luminous Intensity 2400 Lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

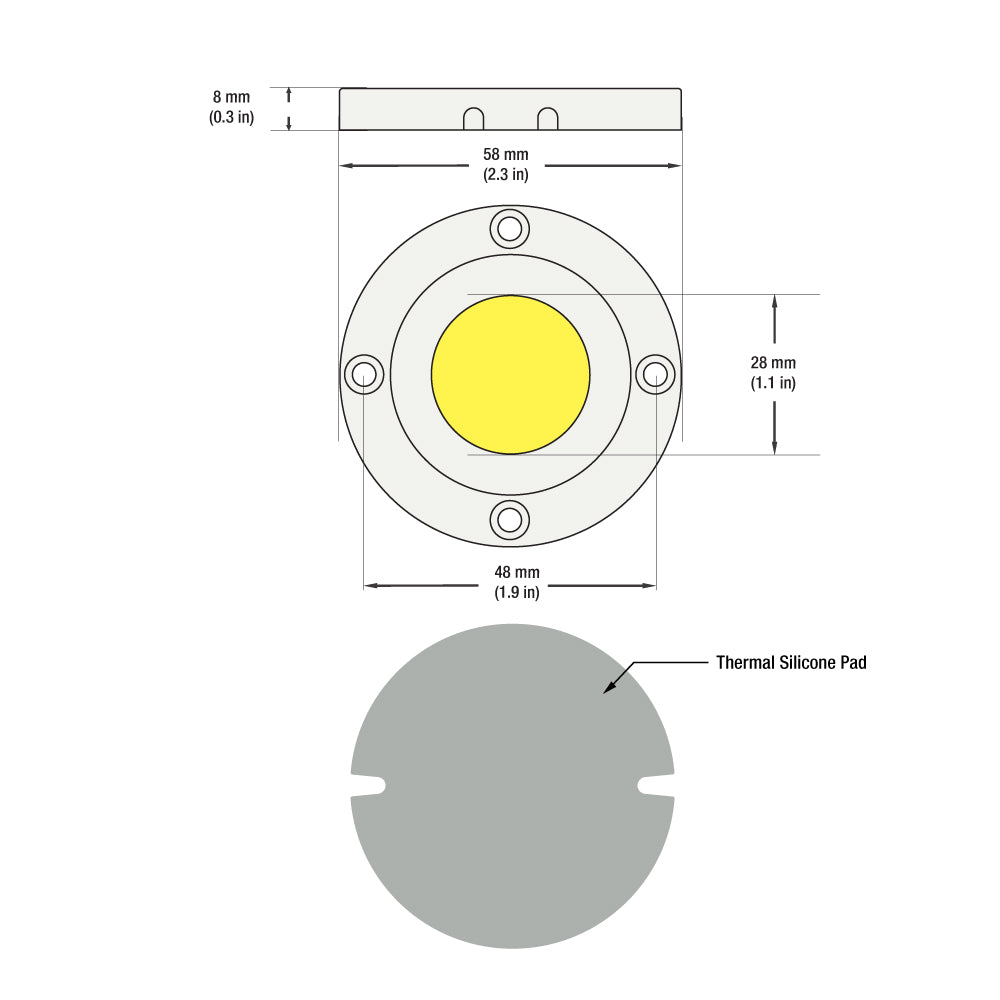

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder is a high-quality LED module designed for indoor lighting applications. It features a COB LED type with 136 LED chips, a wattage of 20W, and a voltage of 347V AC. The module has a power factor of PF>0.85 and a luminous intensity of 2400 Lumens. The color temperature of the module is 5000K, which is considered as daylight. The module is dimmable, has a rendering index of CRI>80, and has an IP rating of IP20, making it suitable for damp locations.

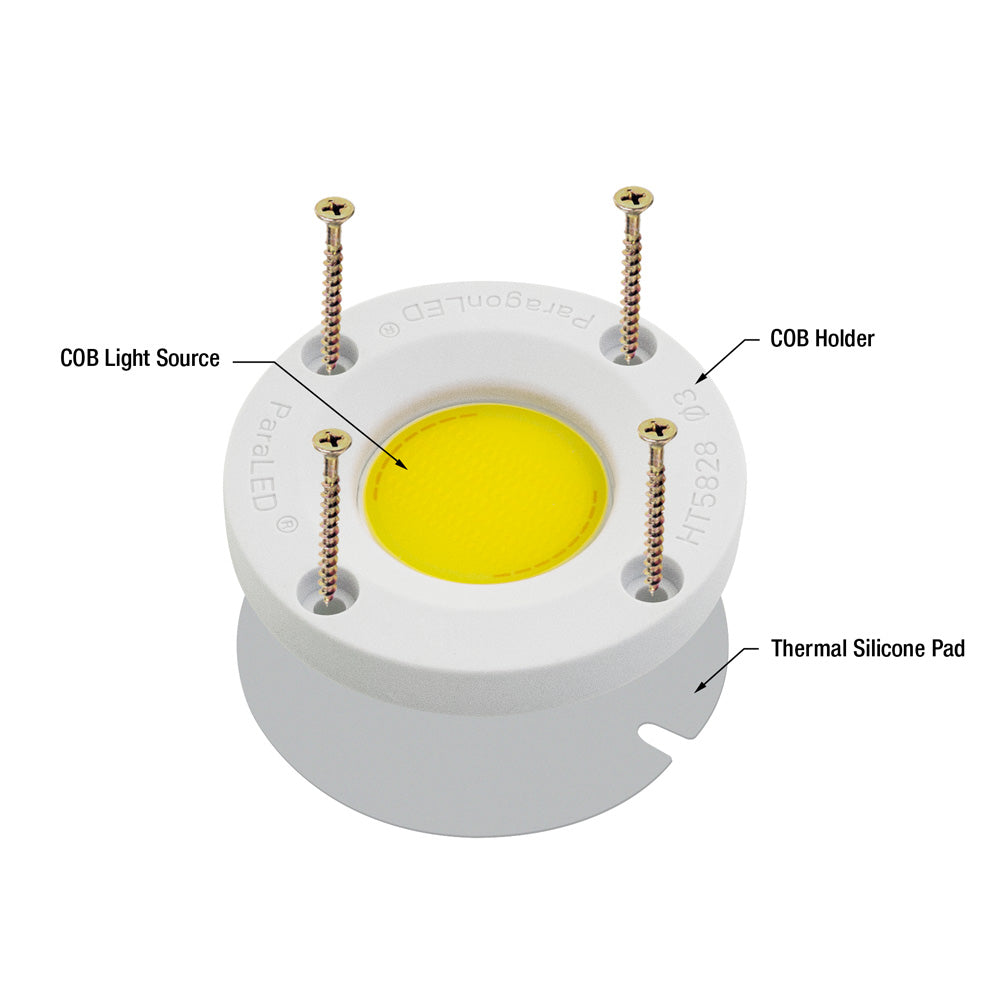

Like all COB LED modules, this module requires an aluminum heat sink to prevent overheating, which may cause serious luminous decay. The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The silicone grease thermal pad provides a heat sink and helps in better heat dissipation, thereby increasing the lifespan of the module.

Features:

  • COB LED type with 136 LED chips
  • Wattage of 20W and voltage of 347V AC
  • Power factor of PF>0.85
  • Luminous intensity of 2400 Lumens
  • Color temperature of 5000K (daylight)
  • Dimmable
  • Rendering index of CRI>80
  • IP rating of IP20 for damp locations
  • Operating temperature range of -40 ~ +105℃
  • COB holder model no. HT5828 with dimensions of ∅58mm x H8mm
  • Package includes COB module, COB LED array holder, and thermal pad
  • Requires an aluminum heat sink for heat dissipation
  • Silicone grease thermal pad included
  • Polycarbonate diffuser included for reduced glare and wider beam
  • Suitable for use in various indoor lighting applications
