Product Description
| Product | LED Module |
| Model No | DIS 02-005W-930-120-S1-Z1A |
| Brand | YUNLT |
| No of LEDs | 20 |
| Wattage | 5W |
| Voltage | 120V AC |
| Luminous Flux | 400 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Weight | 0.02 kg |

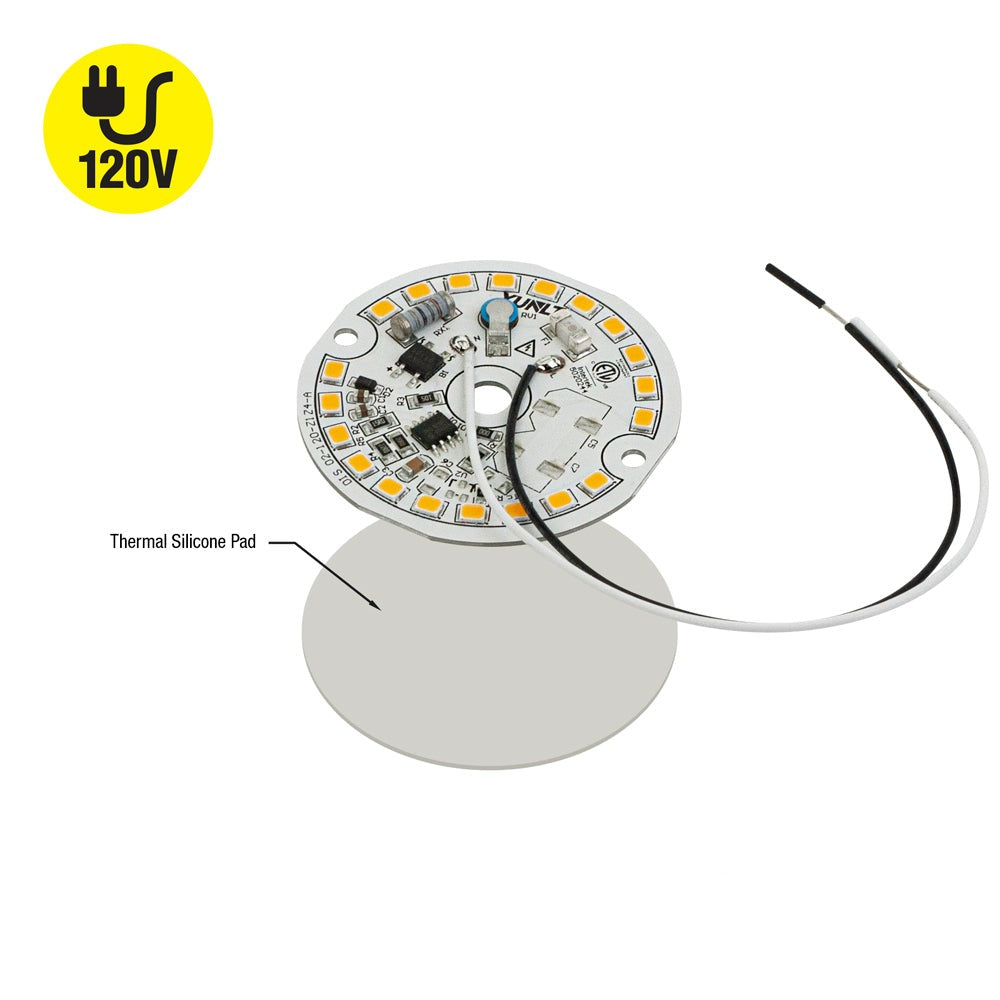

| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
|
Outer Diameter |
∅49.7mm (2 in) |
| Inner Diameter (Hole) | ∅6 mm (0.23 in) |
| Height | 4.5mm (0.17 in) |
| Diameter of the screw hole | ∅3 mm (0.12 in) |
| Distance between holes | 42.6mm (1.67 in) |
| Certification |  |
Features:
- High-quality lighting solution with 20 high-quality LEDs

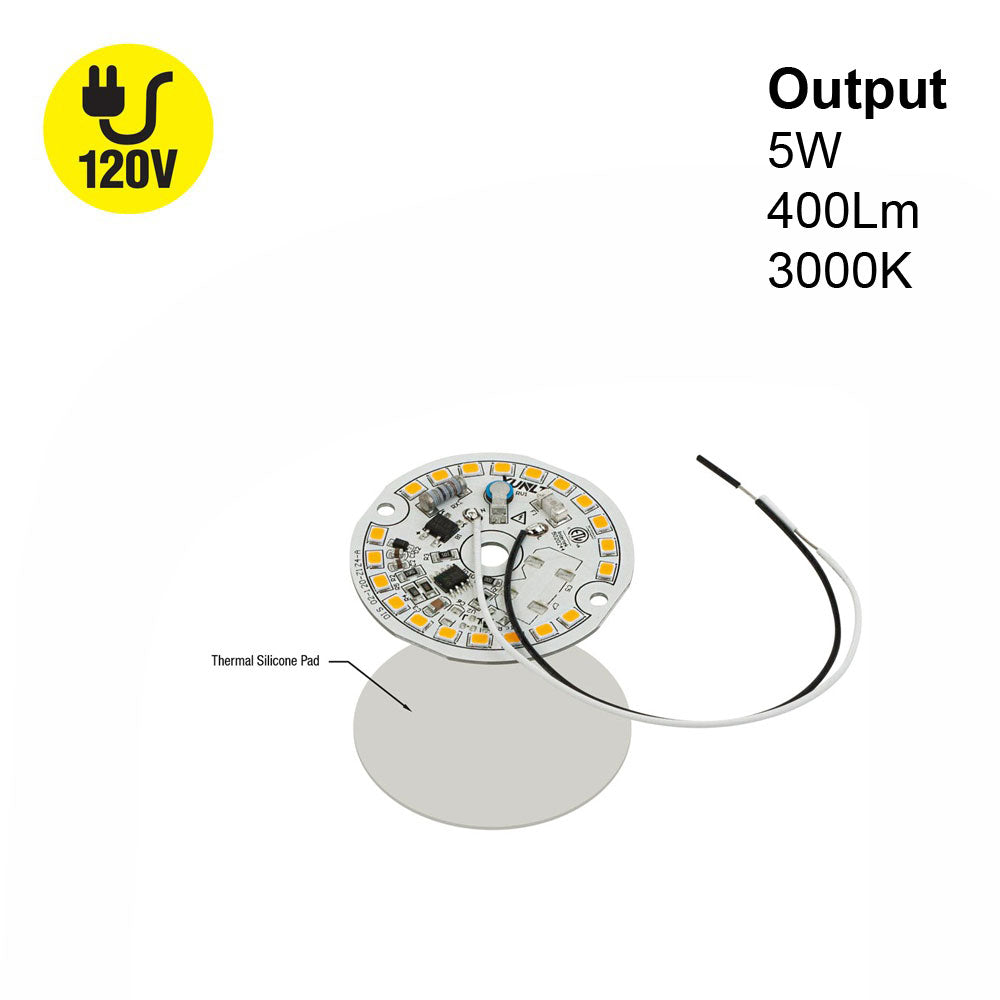

- Produces 400 lumens of warm white light with a color temperature of 3000K
- Low power consumption of 5W for excellent energy efficiency and cost savings
- Dimmable, providing greater flexibility in lighting control
- Operates on a voltage of 120V AC
- Constructed with an aluminum (metallic base) material for durability and longevity
- Compact design with an outer diameter of ∅49.7mm (2 in), making it easy to install
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified for high safety and quality standards
- Features a high rendering index of CRI>90, making colors appear more vibrant and true-to-life.
- A premier quality light engine. It produces up to 400 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
