Product Description
| Product | LED Module |
| Model | DIS 03-008W-930-120-S3-Z1A |
| Brand | YUNLT |
| No of LEDs | 20 |
| Wattage | 8W |
| Voltage | 120V AC |
| Luminous Flux | 650 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Weight | 0.03 kg |
| Base Material | Aluminum (Metallic Base) |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
|

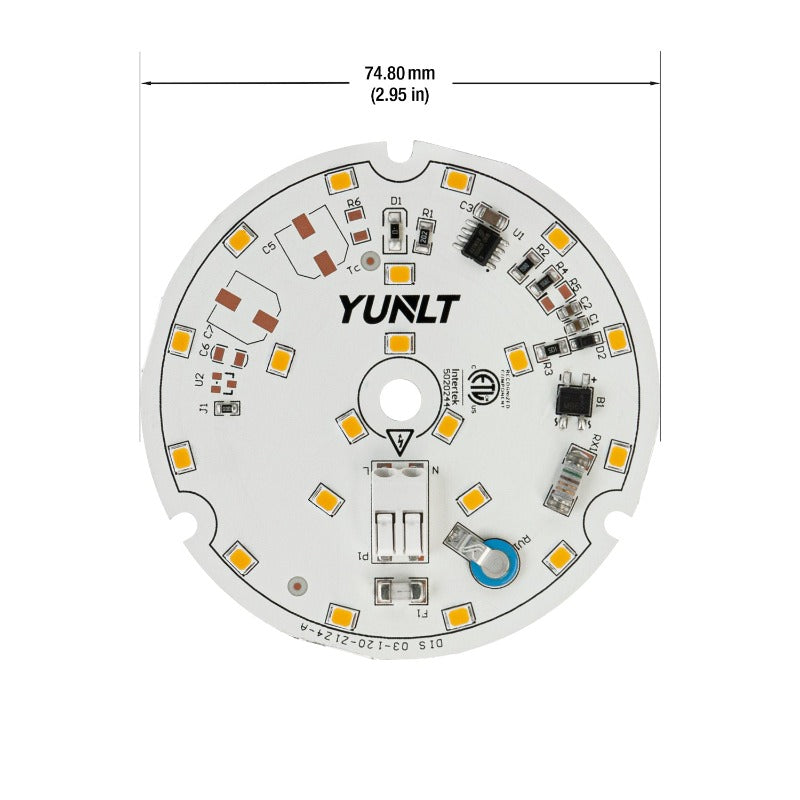

Outer Diameter |
∅74.8mm (3 in) |
| Inner Diameter (Hole) | ∅6 mm (0.23 in) |
| Height | 6mm (0.23in) |
| Certification |  |
Features:
- 20 high-quality LEDs producing 650 lumens of warm white light with a color temperature of 3000K and a high rendering index of CRI>90
- Low power consumption of 8W and high energy efficiency, saving on energy costs while providing excellent illumination
- Dimmable, providing greater flexibility in lighting control, operating on a voltage of 120V AC
- Constructed with aluminum (metallic base) material, featuring an outer diameter of ∅74.8mm (3 in) and an inner diameter of ∅6 mm (0.23 in) for easy installation

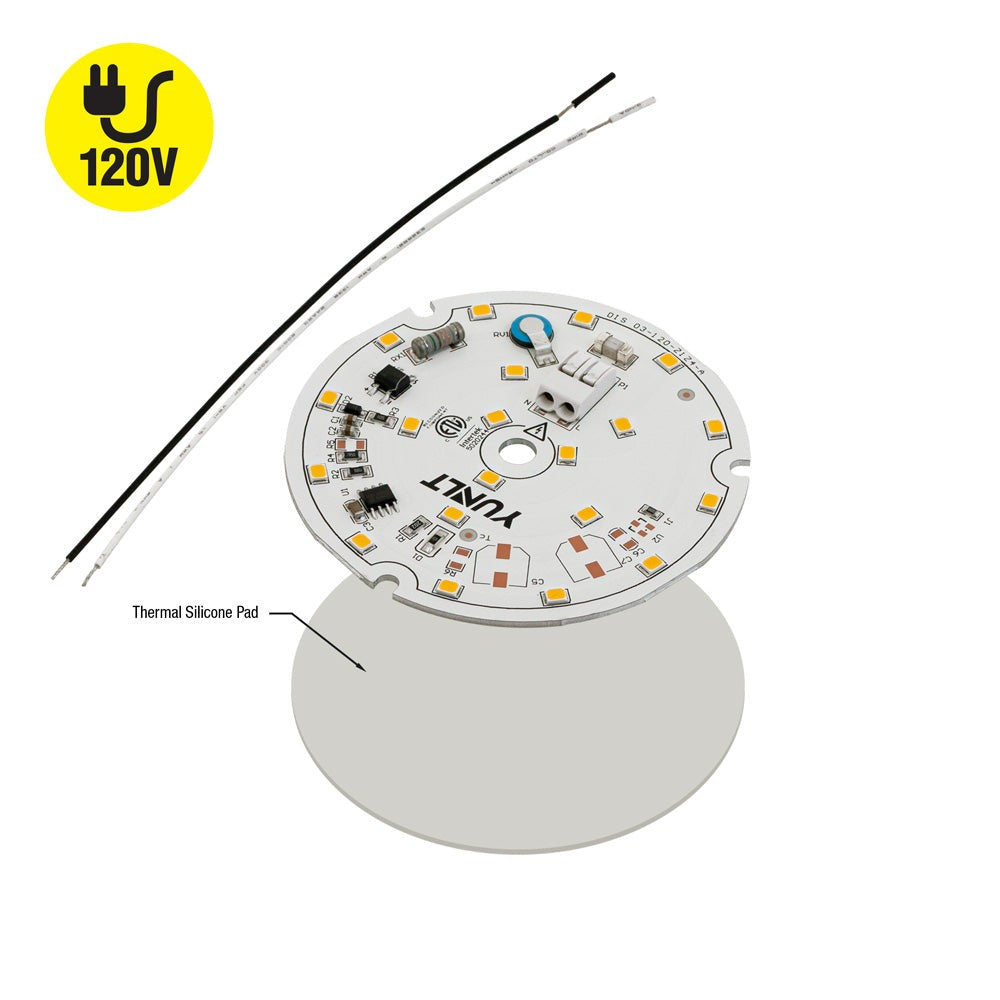

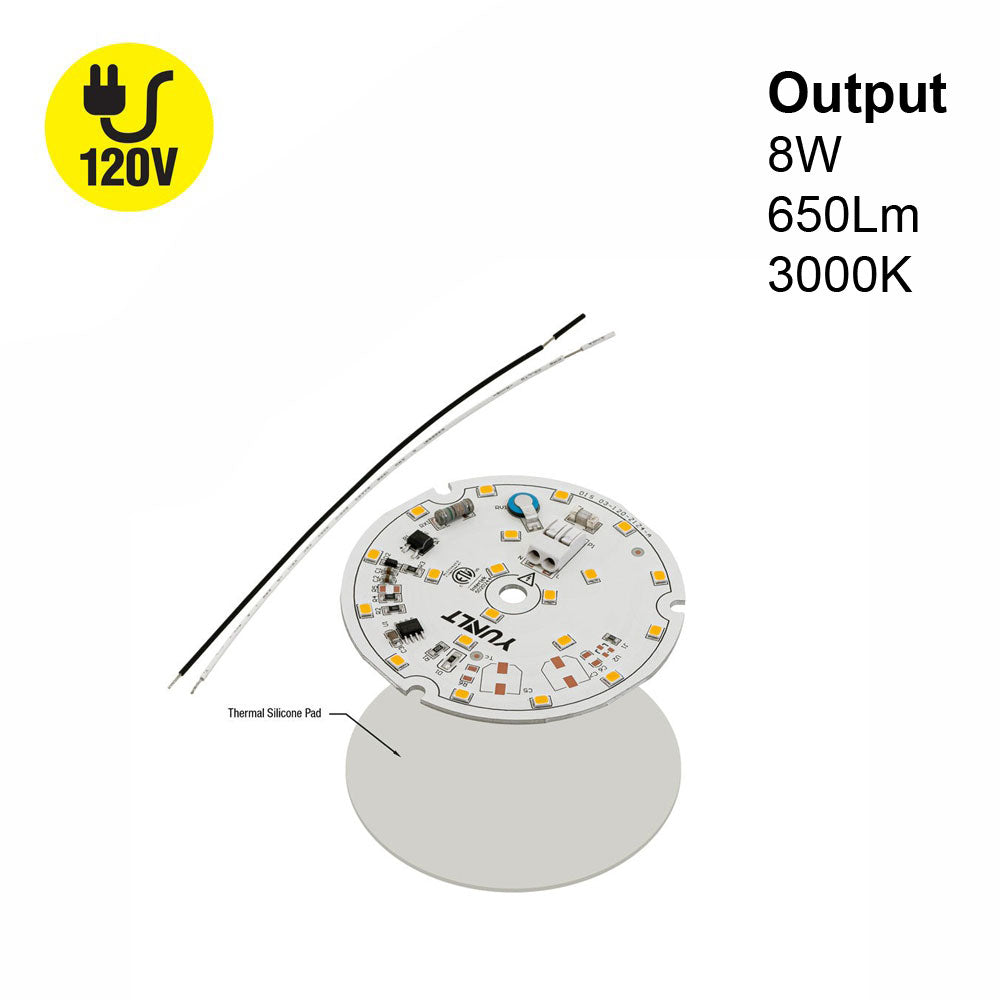

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified, ensuring high safety and quality standards are met
- Ideal for a wide range of lighting applications, offering exceptional quality, energy efficiency, and flexibility
- A premier quality light engine. It produces up to 650 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
