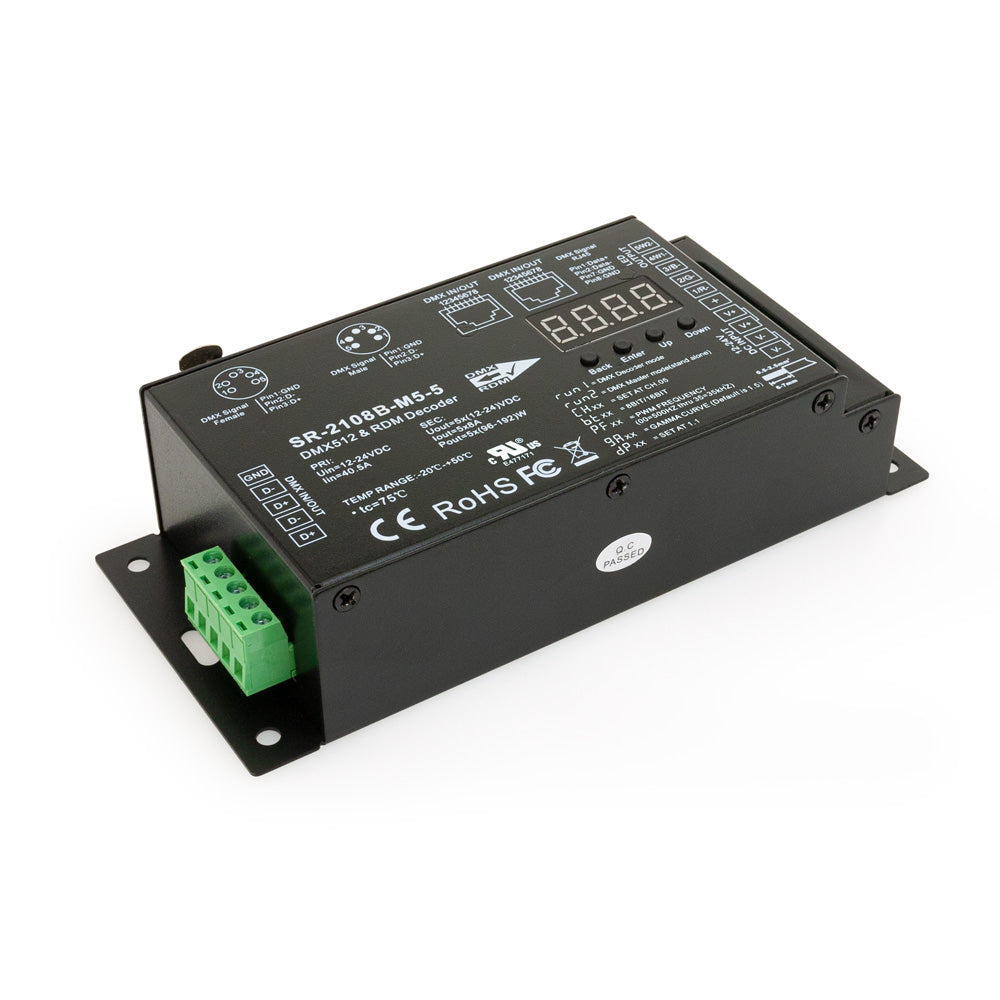

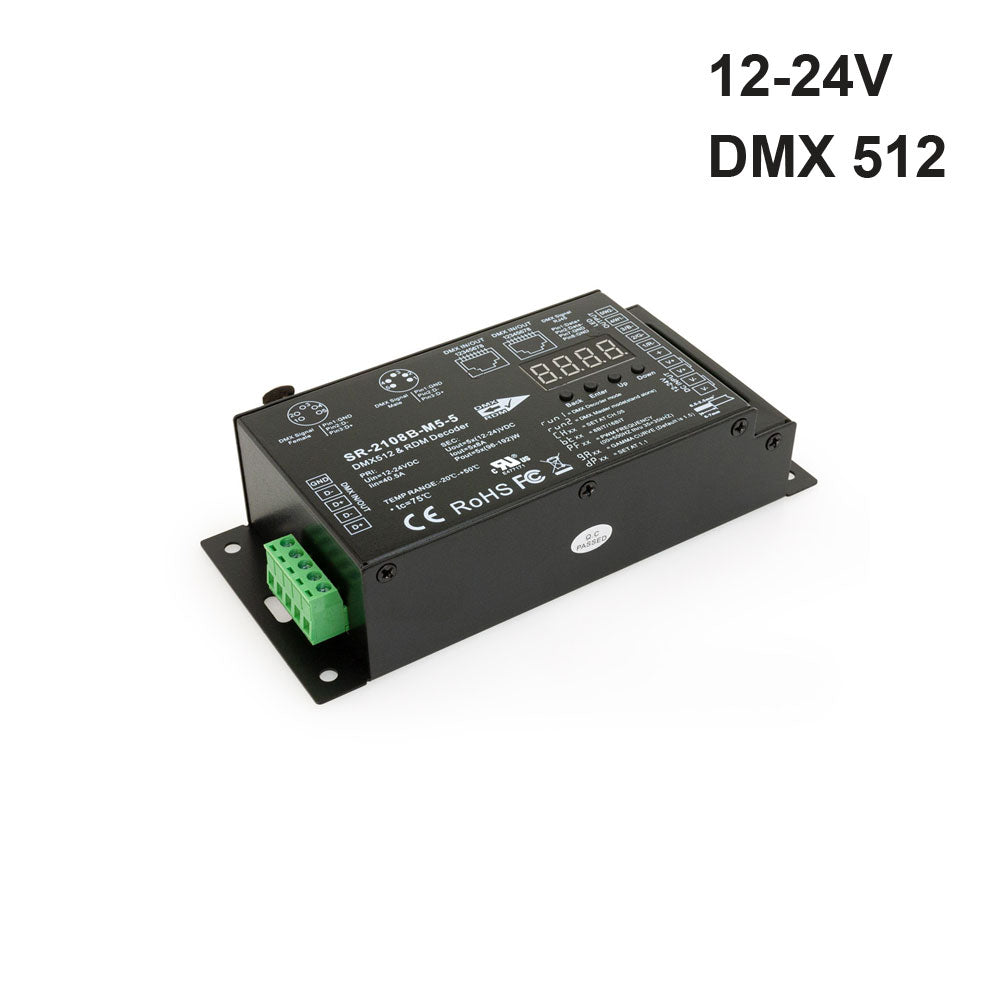

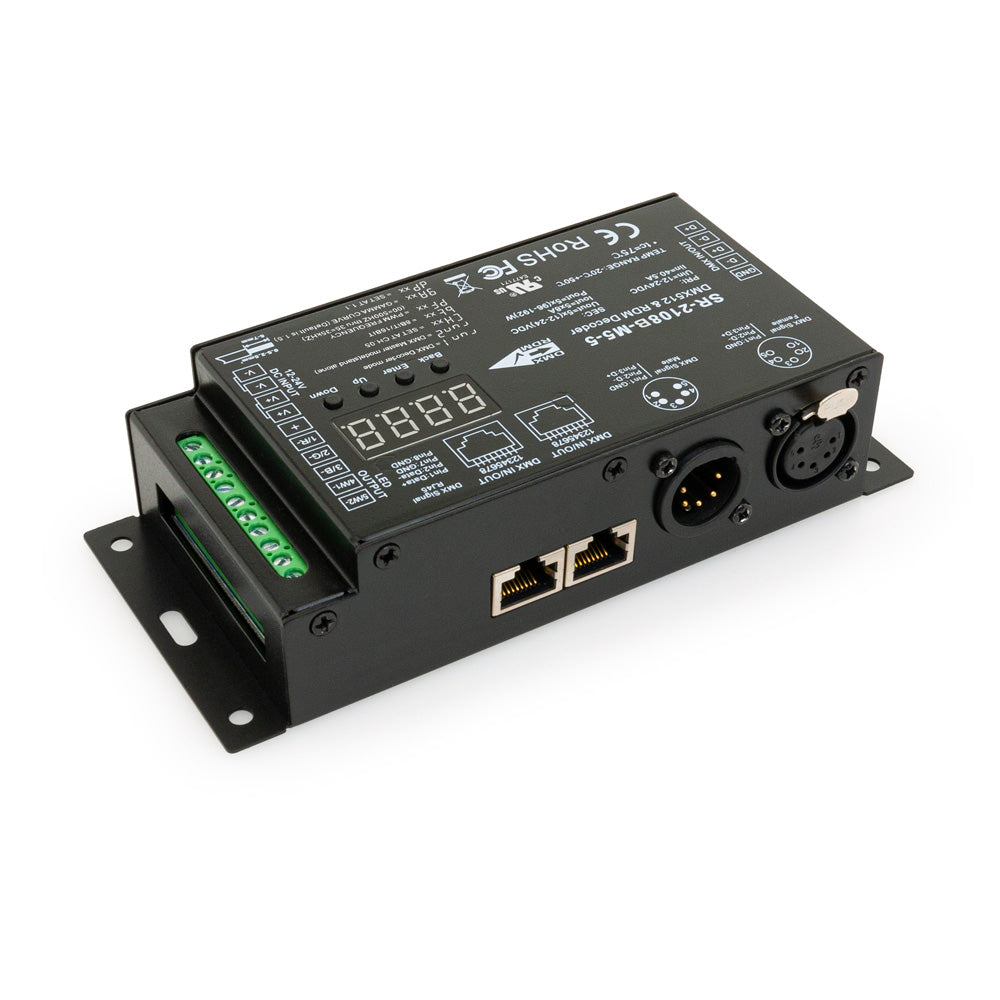

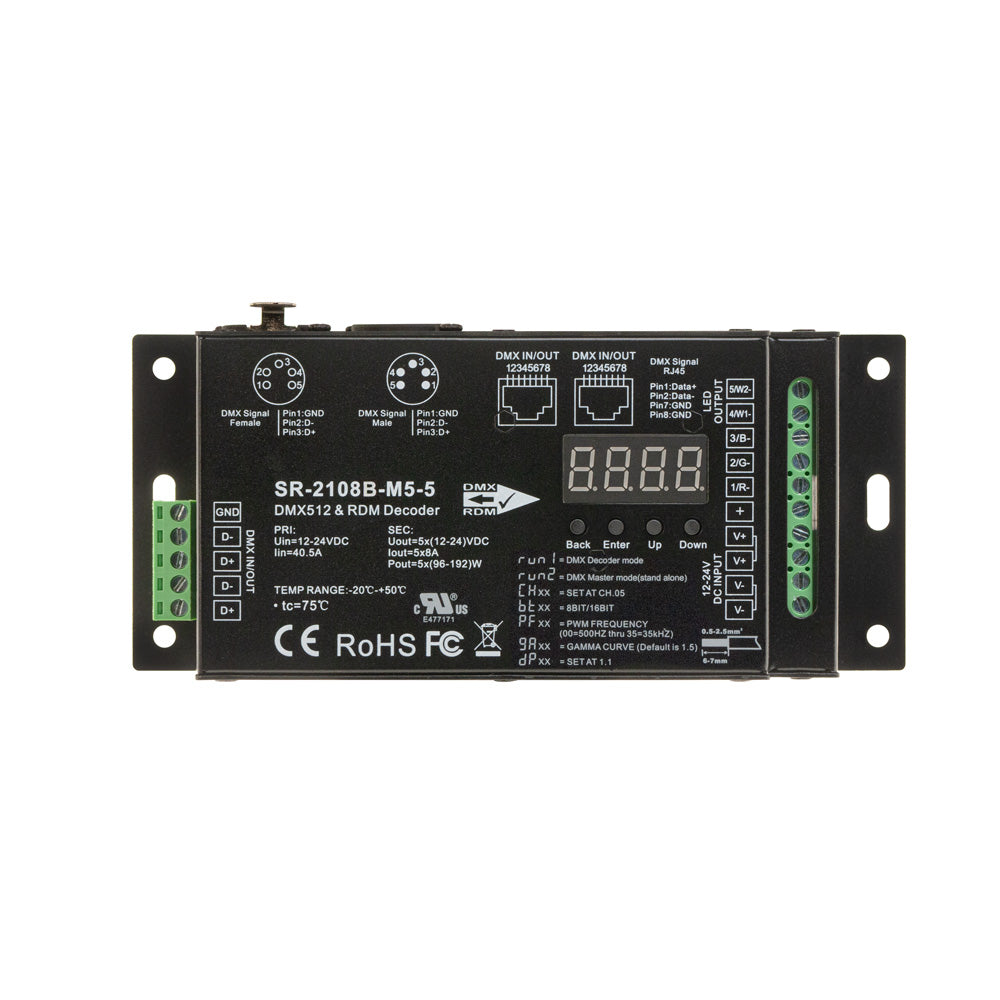

DMX512 and RDM Decoder 5 Channel 12-24V 8A SR-2108A-M5-5

DMX512 and RDM Decoder 5 Channel 12-24V 8A SR-2108A-M5-5

SKU: SKU:666561412623

Regular price $241.65 CAD
Regular price Sale price $241.65 CAD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description


Model

SR-2108A-M5-5
Output Type Constant Voltage
Operating Voltage 12-24V DC
Input Current 40.5A
Output Current 40A max (8A/CH)
PWM Frequency 500Hz to 30K Hz
Power 5 x 192W for 24V and 5 x 96W for 12V
Control Channels 5 channels (5 CH)
Signal Input & Output DMX512
Terminals 3/5 pin XLR, RJ45, screw terminal
Bit Rate 8 bit/ 16 bit
Body Color Black
Material Die-cast Aluminum
Working Temperature -20°C~+50°C
IP Rating IP20
Protection Short circuit protection

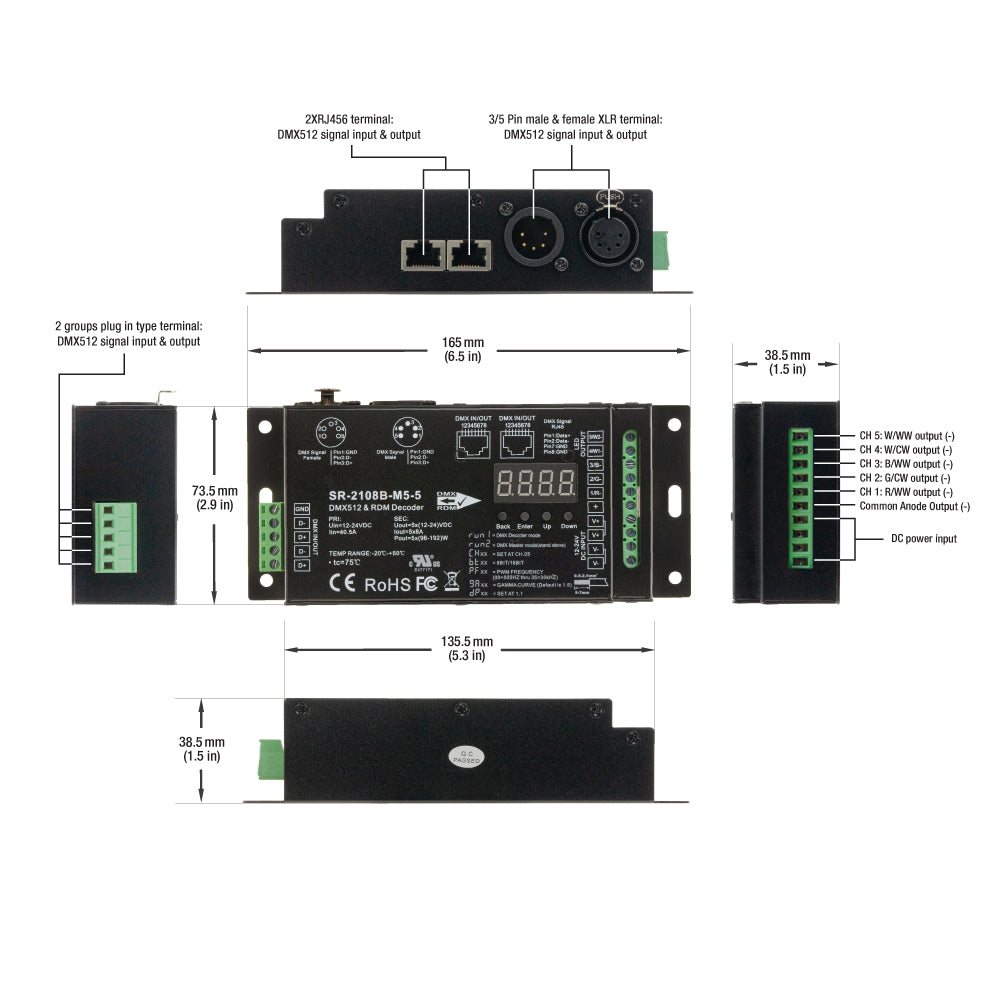

Dimensions 165 x 73 x 38 mm (6.5 x 2.9 x 1.5 in)
Certification



 Features:

  •  DMX512 RDM decoder, RDM function can realize intercommunication between DMX master and decoder.
  • Total 5 PWM output channels, common anode 5*8A. DMX channel quantity from 1CH~5CH settable
  •  PWM output resolution ratio 8bit, 16bit settable
  •  Output PWM frequency from 500HZ ~ 30K HZ settable
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable.
  • Decoding mode settable
  • Master & decoder mode, RDM function
  • Metal housing, digital display to show data directly, easy to set and show DMX address.
        View full details
