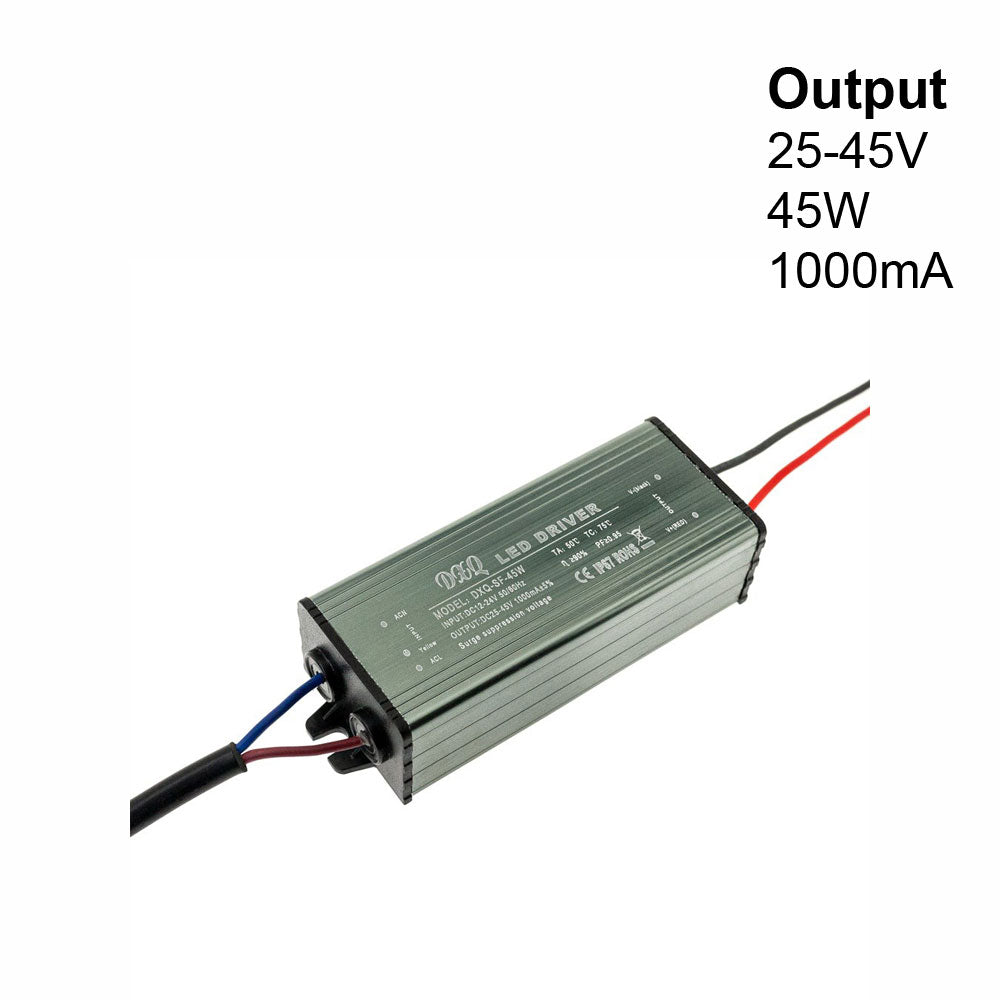

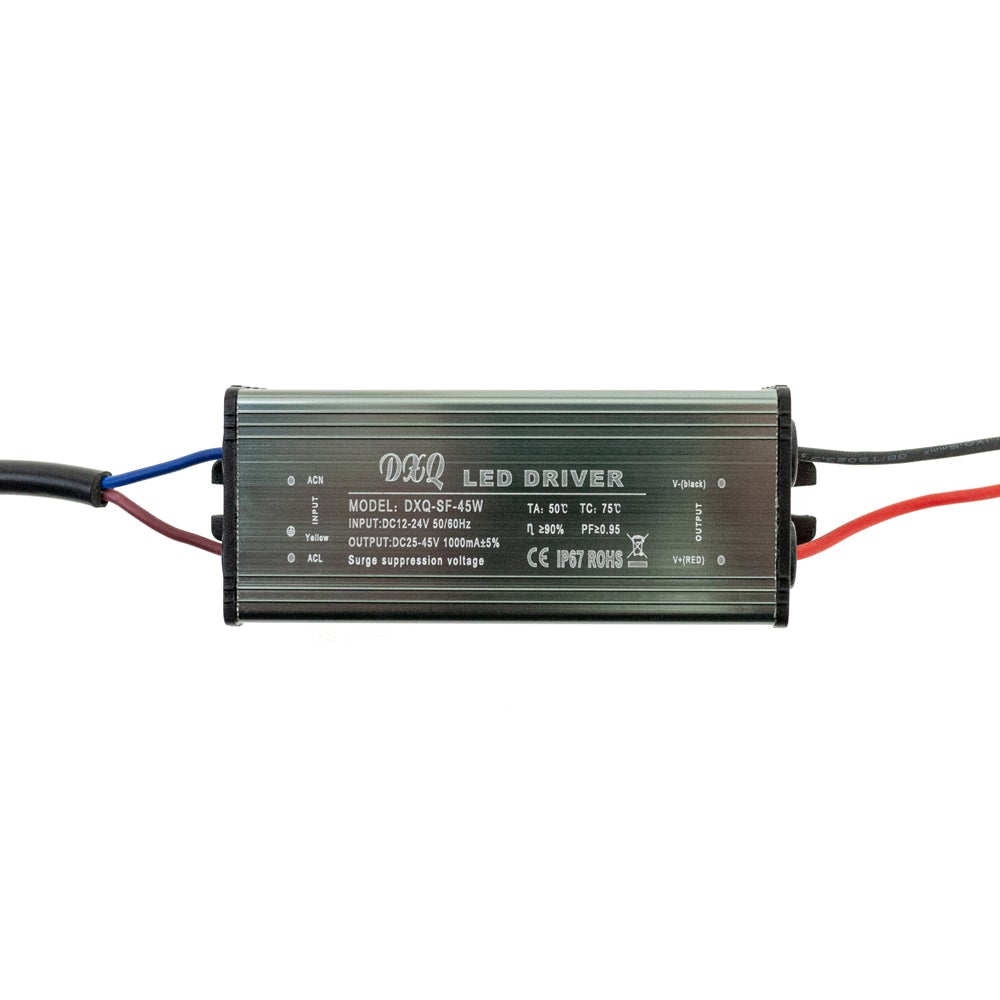

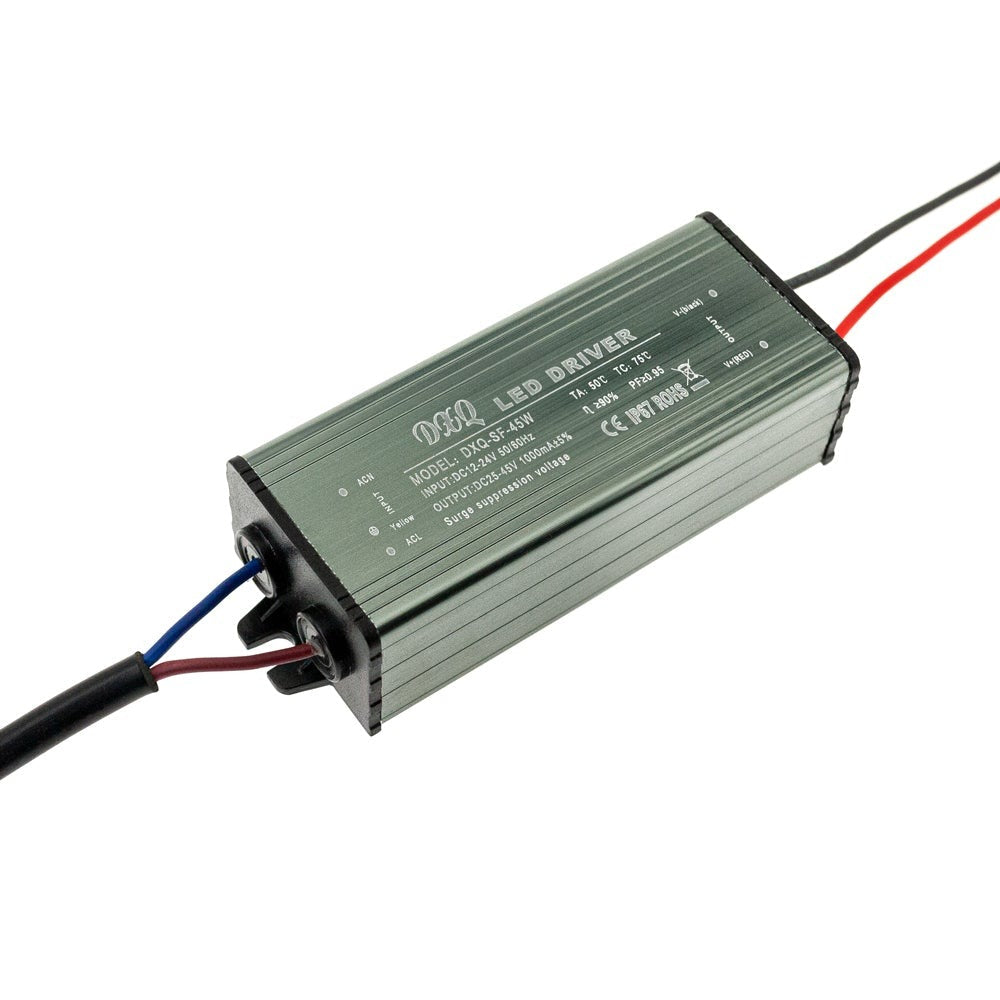

DXQ-SF-45W Non-Dimmable Constant Current LED Driver, 12-24V 45W 1000mA

DXQ-SF-45W Non-Dimmable Constant Current LED Driver, 12-24V 45W 1000mA

SKU: SKU:666561419387

Regular price $35.00 CAD
Regular price Sale price $35.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Model DXQ-SF-45W
Input Voltage 12-24V AC
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >90%
Output Regulated Current 1000mA
Output Power 45W
Output Voltage 25-45V DC
Dimmable No
Ambient Temperature (Ta) 50°C
Case Temperature (Tc) 75°C
IP Rating IP67 (Waterproof)

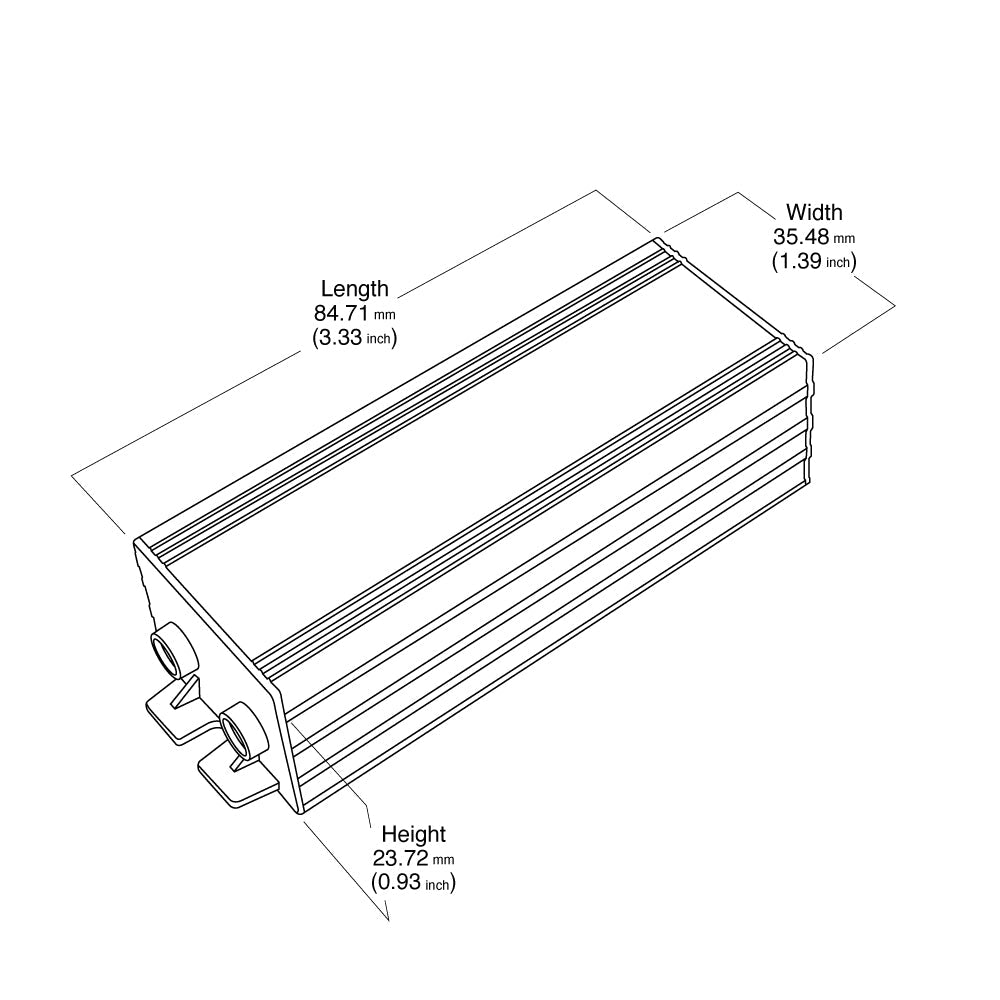

Dimensions 85 x 35 x 24 mm (3.3 x 1.3 x 0.94 in)
Class Certification Class II
Certification




The DXQ-SF-45W LED driver is designed to be used with LED lighting systems that require constant current output. It has an input voltage range of 12-24V AC, input frequency of 50-60Hz, and a power factor of PF>0.95.

This LED driver has an output regulated current of 1000mA and an output power of 45W. It has an output voltage range of 25-45V DC, which makes it suitable for powering LED lighting systems that require constant current output.

This LED driver is non-dimmable, meaning that it cannot be used to adjust the brightness of the connected LED lights. The DXQ-SF-45W LED driver is Class II certified, which provides double insulation protection and ensures safe operation in applications where contact with electrical conductors is possible.

Features:

  • Model: DXQ-SF-45W
  • Input Voltage: 12-24V AC
  • Input Frequency: 50-60Hz
  • Power Factor: PF>0.95
  • Efficiency: >90%
  • Output Regulated Current: 1000mA
  • Output Power: 45W
  • Output Voltage: 25-45V DC
  • Dimmable: No
  • Ambient Temperature (Ta): 50°C
  • Case Temperature (Tc): 75°C
  • IP Rating: IP67 (Waterproof)
  • Dimensions: 85 x 35 x 24 mm (3.3 x 1.3 x 0.94 in)
  • Class Certification: Class II
