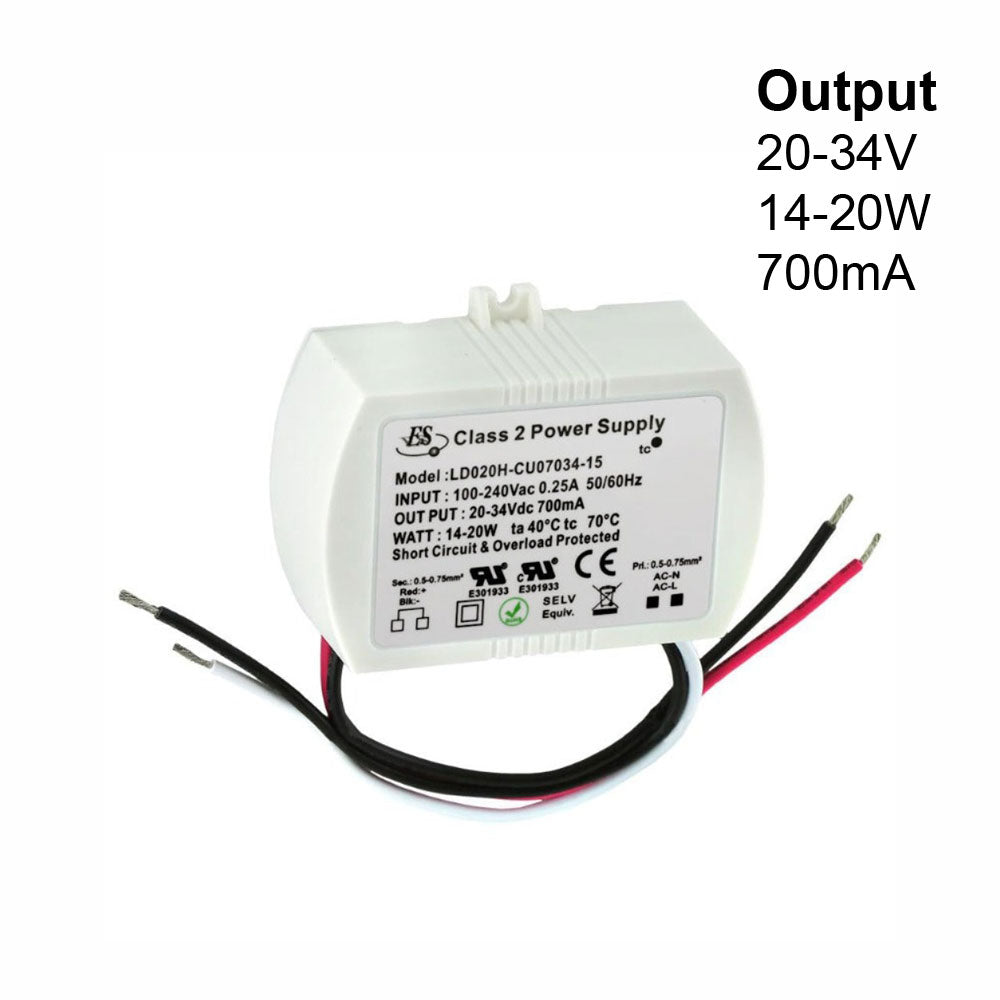

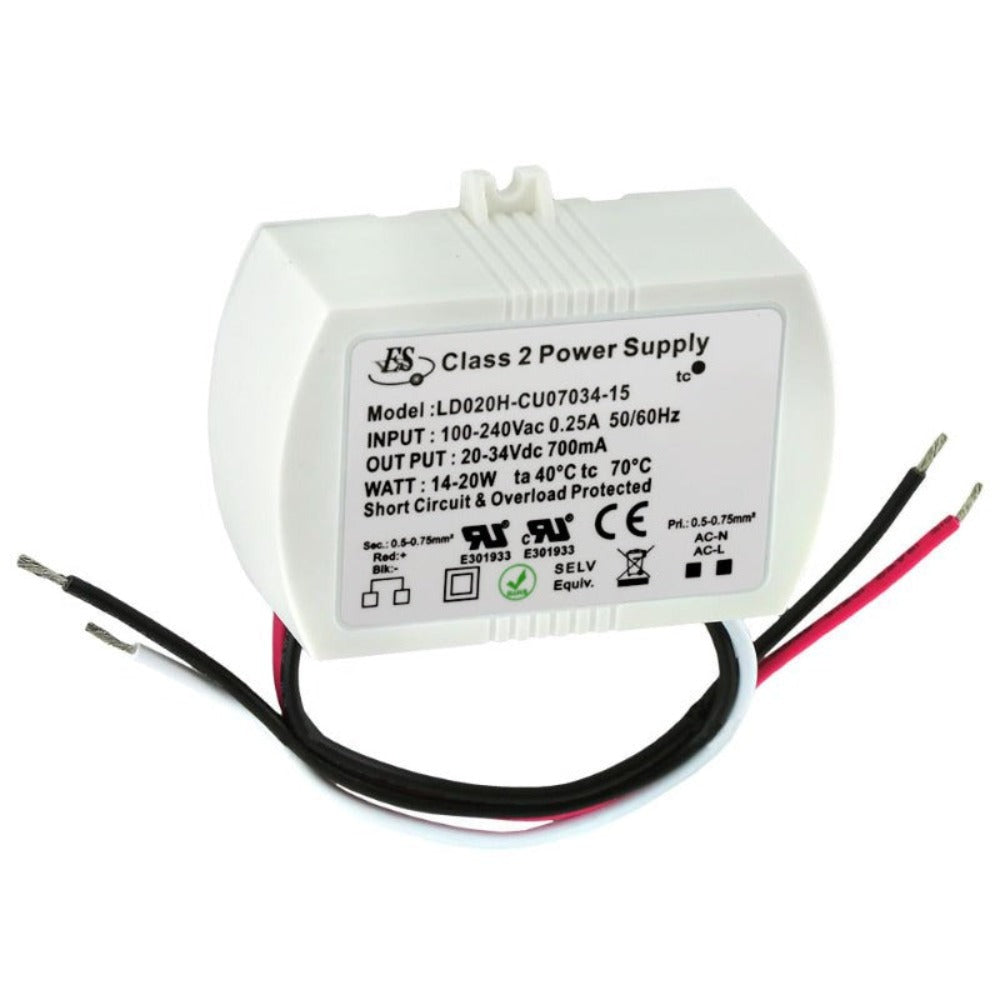

ES LD020H-CU07034-15 Constant Current LED Driver, 700mA 20-34V 14-20W max

Name: ES LD020H-CU07034-15 Constant Current LED Driver, 700mA 20-34V 14-20W max
Brand: ES LED Driver
SKU: 666561419585
Price: 57.93 CAD
Availability: InStock

Ask Question!

SKU: SKU:666561419585

$57.93 CAD

Sale Sold out

Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—

Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Quantity to add

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

10–24 items: 15% off
25–49 items: 18% off
50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Product	Constant Current LED Driver
Model	LD020H-CU07034-15
Input Voltage	100-240V AC
Input Current	0.25A
Frequency	50/60Hz
Output Voltage	20-34V DC
Output Regulated Current	700mA
Output Power	14-20W Max.
Dimmable	Yes
Weight	0.3 kg

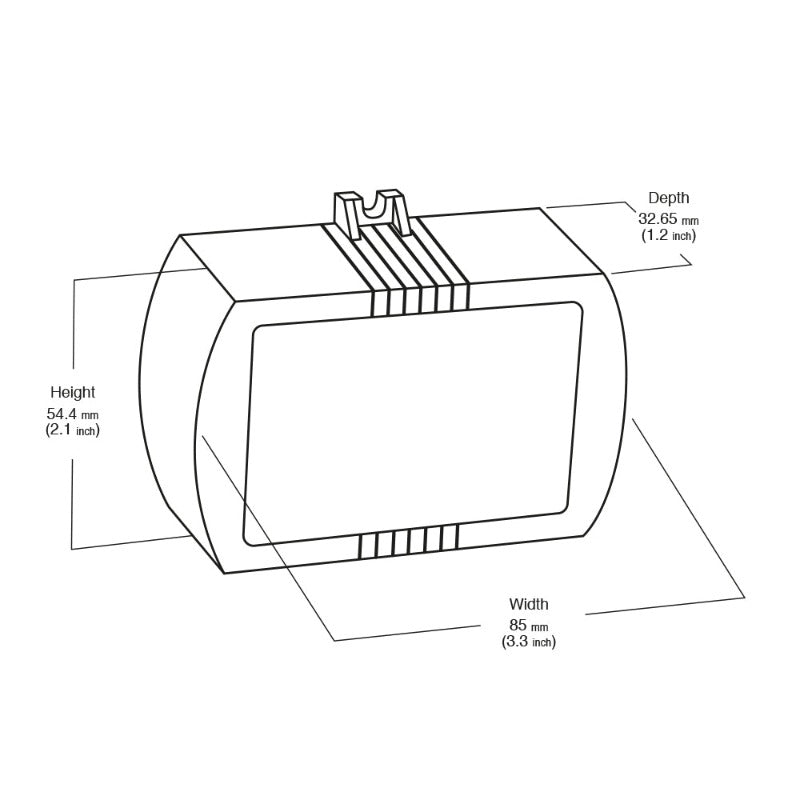

Dimensions	85 x 54 x 32.5mm (3.3 x 2.1 x 1.2in)
Class Certification	Class 2/ Class II
Certification

Features:

The ES LD020H-CU07034-15 is a high-quality constant current LED driver designed for LED lighting applications.
It offers a regulated current of 700mA and an output voltage range of 20-34V DC, making it suitable for a wide range of LED lighting fixtures.
The driver can operate on an input voltage range of 100-240V AC and has a maximum input current of 0.25A at a frequency of 50/60Hz.
It has a high power factor of P.F>0.9, which ensures high efficiency and maximum power delivery to the load.
The driver has a maximum output power of 14-20W and is dimmable, allowing users to adjust the brightness of their LED lighting as needed.
It is Class 2/Class II certified, ensuring safety and reliability for use in LED lighting applications.
