ES LD028H-CU08336-M28E Constant Current LED Driver, 830mA 24-36V 29.8W max

ES LD028H-CU08336-M28E Constant Current LED Driver, 830mA 24-36V 29.8W max

SKU:666561416898

$67.20 CAD
$67.20 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25


Product Description

Product Constant Current LED Driver
Model LD028H-CU08336-M28E
Input Voltage 110-277V AC
Input Current 0.34-0.13A
Frequency 50/60Hz
Output Voltage 24-36V DC
Output Regulated Current 830mA
Output max Power 29.8W max
Dimmable Yes

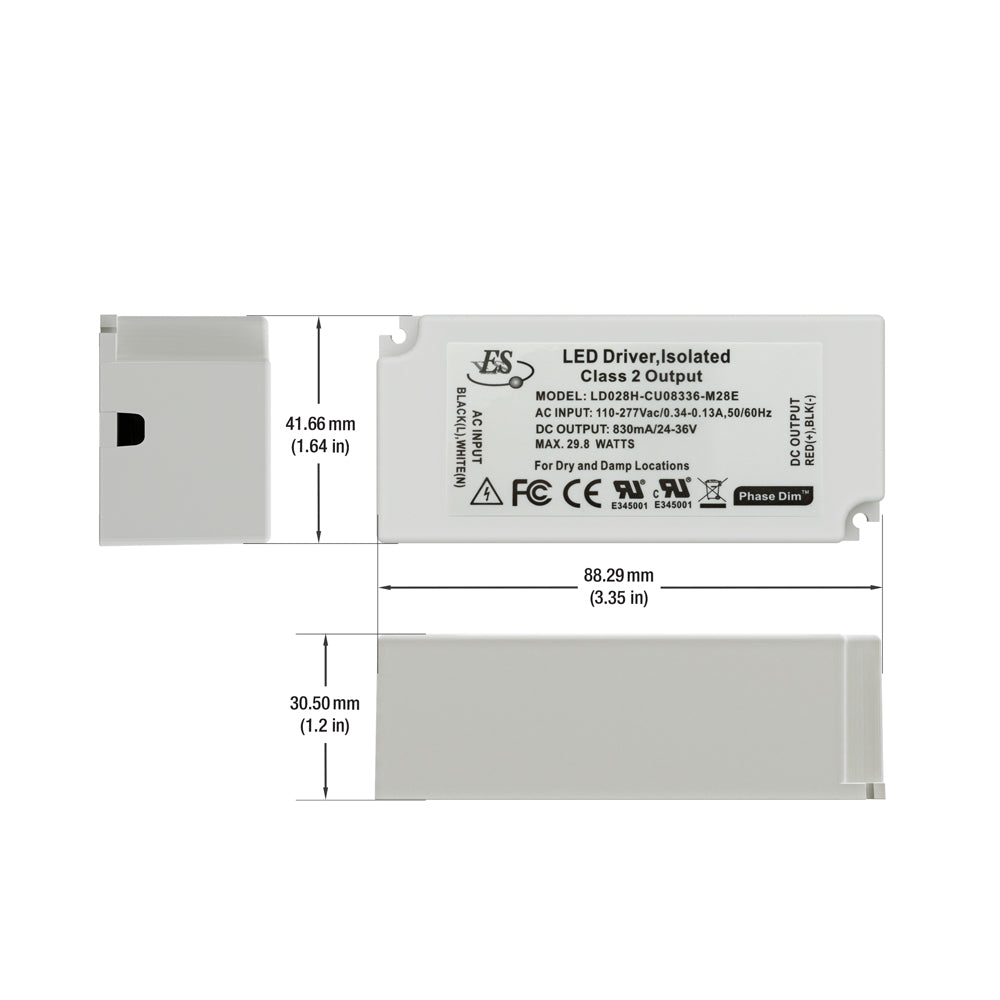

Dimensions 88.3 x 41.6 x 30.5mm (3.48 x 1.63 x 1.2in)
Class Certification Class 2
Certification

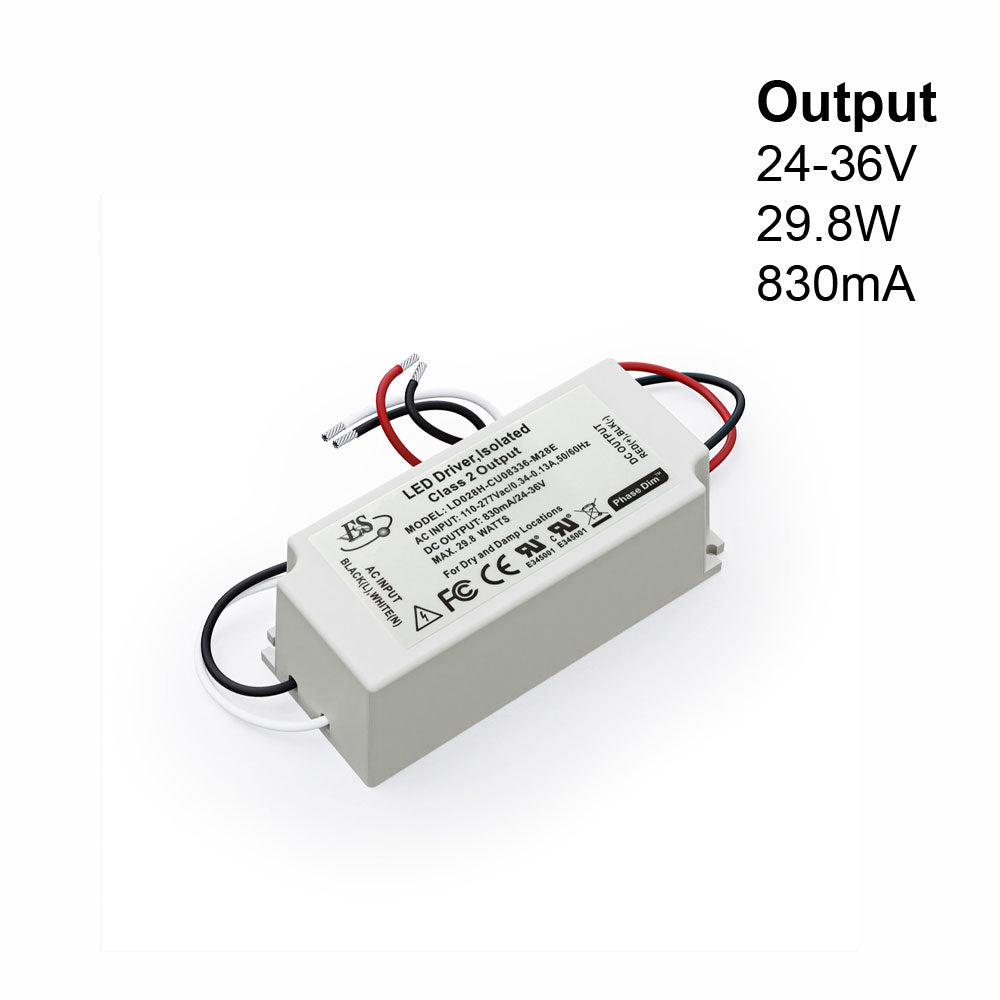

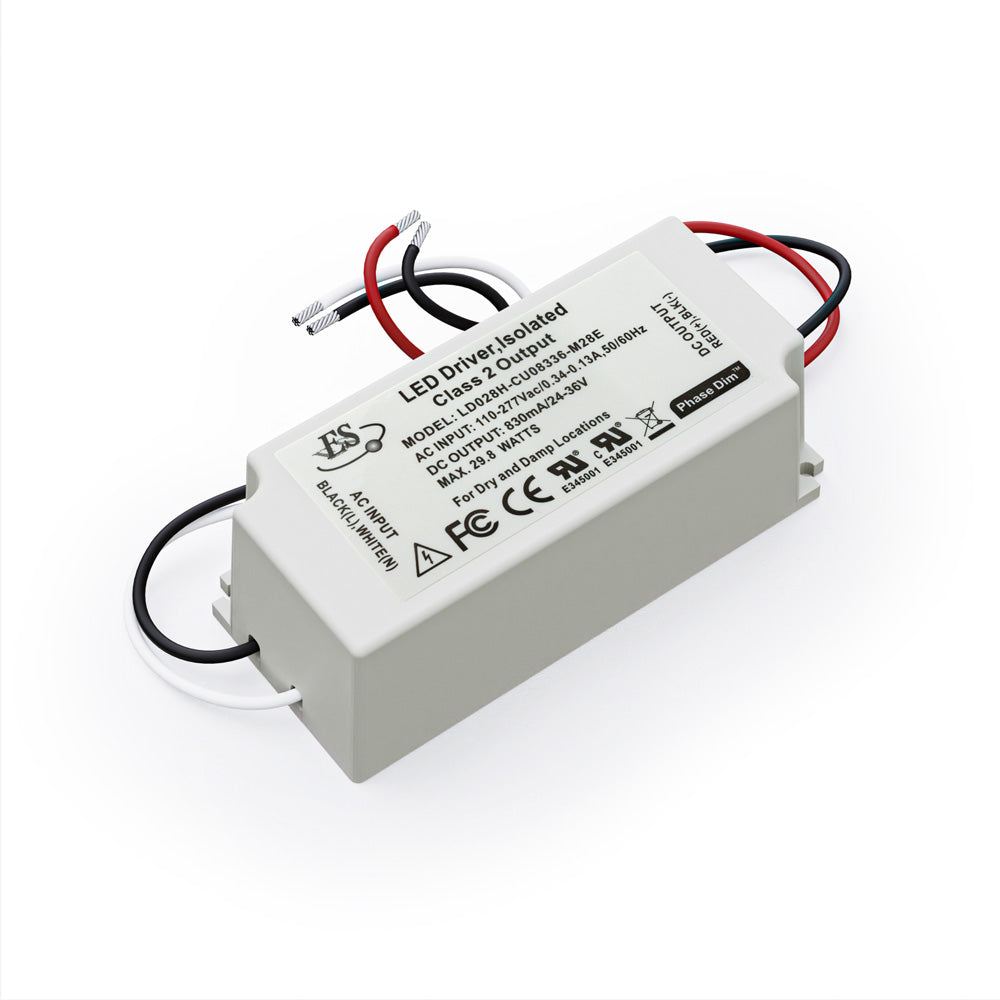

The ES LD028H-CU08336-M28E is a constant current LED driver designed to provide a regulated output current of 830mA and an output voltage range of 24-36V DC to power LED lights. It has an input voltage range of 110-277V AC, with an input current ranging from 0.34A to 0.13A and a frequency of 50/60Hz. The driver is also dimmable, offering flexibility in controlling the brightness of the connected LED lights.

This LED driver has a maximum output power of 29.8W and is Class 2 certified, which means it meets specific safety requirements and can be used in indoor lighting applications. The dimensions of the driver are 88.4 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63 in), making it compact and easy to install.

Features:

  • The ES LD028H-CU08336-M28E is a constant current LED driver designed for LED lights with a regulated output current of 830mA and an output voltage range of 24-36V DC.
  • It has an input voltage range of 110-277V AC, with an input current ranging from 0.34A to 0.13A and a frequency of 50/60Hz.
  • The driver is dimmable, providing flexibility in controlling the brightness of the connected LED lights.
  • This LED driver has a maximum output power of 29.8W and is Class 2 certified for safe indoor lighting applications.
  • It has a compact design with dimensions of 88.4 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63 in), making it easy to install.
