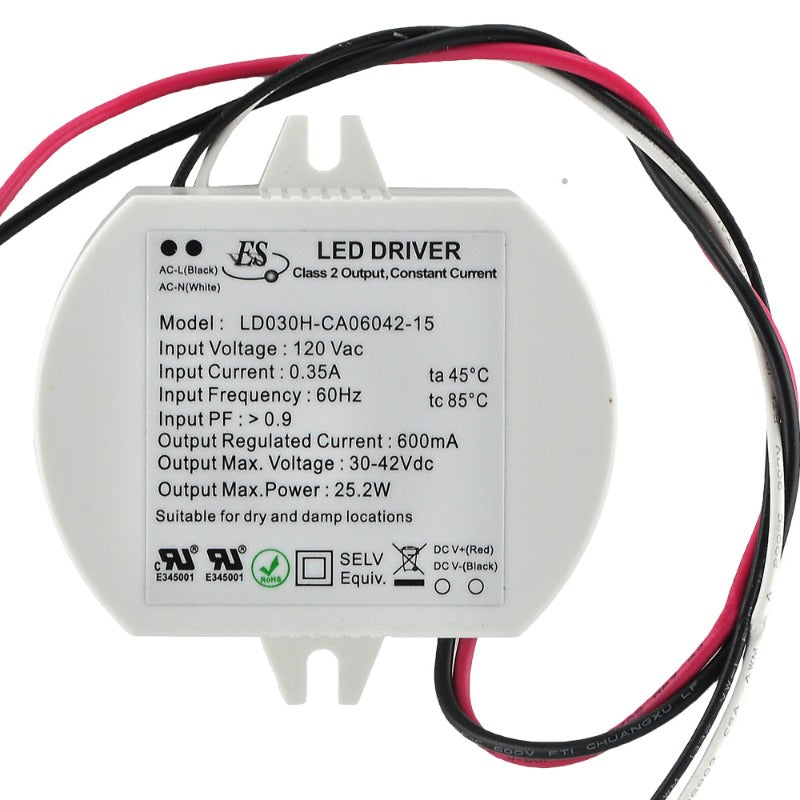

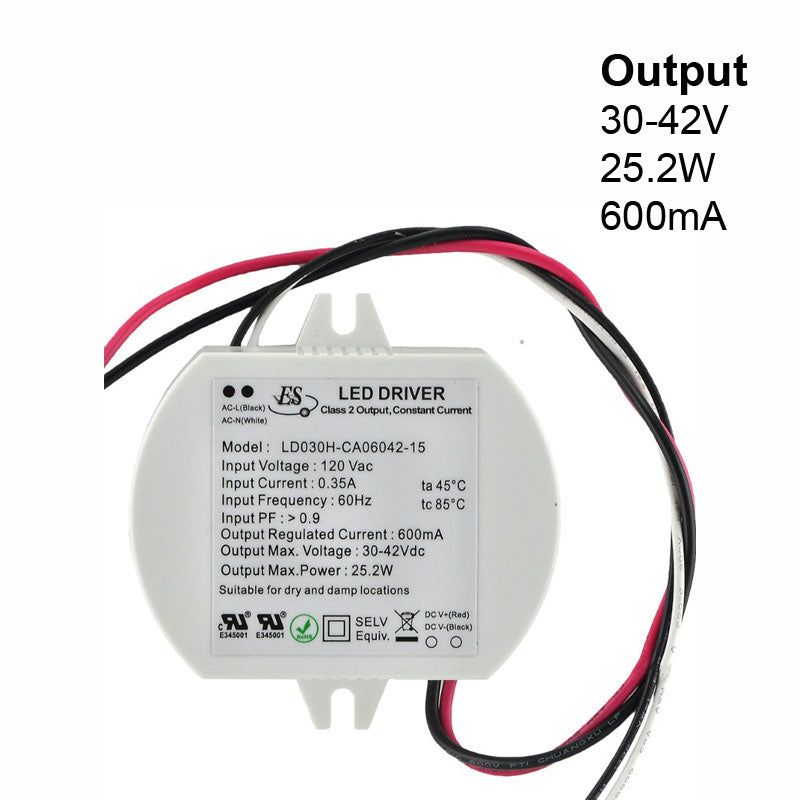

ES LD030H-CA06042-15 = LD030D-CA06045-15 Non-Dimmable Constant Current LED Driver, 25.2W 600mA 30-42V
ES LD030H-CA06042-15 = LD030D-CA06045-15 Non-Dimmable Constant Current LED Driver, 25.2W 600mA 30-42V
SKU: SKU:666561416874
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Product DescriptionÂ
Product | Non-dimmable Constant Current LED Driver |
Model | LD030H-CA06042-15 LD030D-CA06045-15 |
Input Voltage | 120V AC |
Input Current | 0.35A |
Input Frequency | 60Hz |
Power Factor | P.F>0.9 |
Output Voltage | 30-42V DC |
Output Regulated Current | 600mA |
Output Power | 25.2W max |
Dimmable | No |

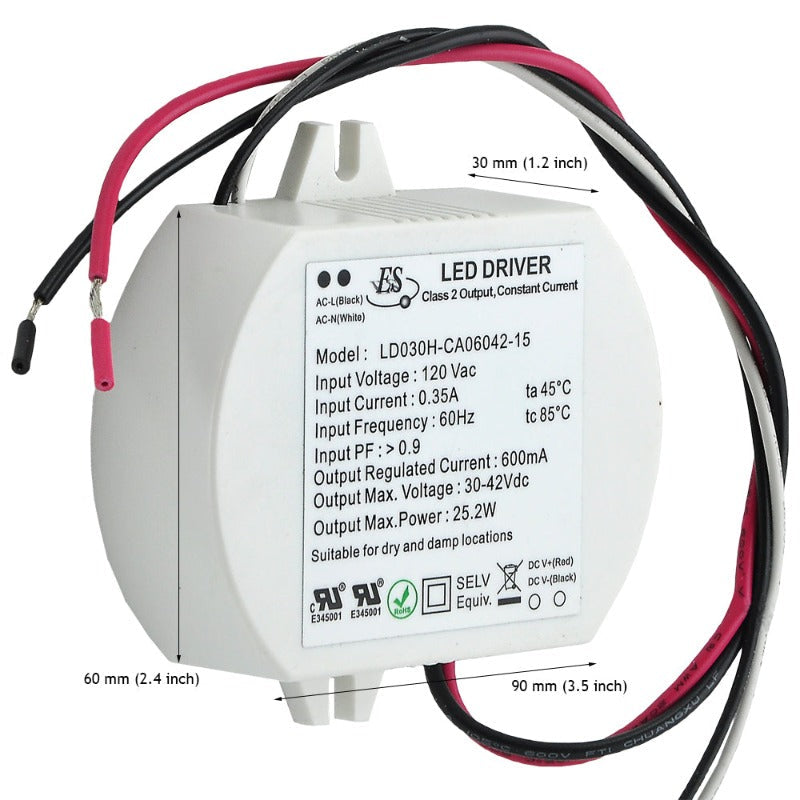

Dimensions | 90 x 60 x 30 mm (3.5 x 2.4 x 1.2 in) |
Class Certification | Class 2/Class II |
Certification |
Â
|
Applicable for dry and damp locations |
Â
The ES LD030H-CA06042-15 and LD030D-CA06045-15 are non-dimmable constant current LED drivers designed for use in dry and damp locations. These LED drivers have an input voltage of 120V AC and input current of 0.35A, and are compatible with an input frequency of 60Hz. The power factor of these drivers is greater than 0.9, indicating that they operate efficiently.
The LD030H-CA06042-15 and LD030D-CA06045-15 LED drivers have an output voltage range of 30-42V DC and a regulated output current of 600mA. They have a maximum output power of 25.2W, making them suitable for powering LED lighting systems that require constant current output. These drivers are not dimmable and have dimensions of 90 x 60 x 30 mm (3.5 x 2.4 x 1.2 in).
The LD030H-CA06042-15 and LD030D-CA06045-15 LED drivers have Class 2/Class II certification, indicating that they provide double insulation protection and can be safely used in applications where contact with electrical conductors is possible.
Features:Â
- Non-dimmable constant current LED driver designed for regulating and powering LED lighting systems
- Available in two models: LD030H-CA06042-15 and LD030D-CA06045-15
- Input voltage of 120V AC and input current of 0.35A with an input frequency of 60Hz
- Power factor of P.F>0.9, indicating efficient power usage
- Output voltage range of 30-42V DC and output regulated current of 600mA
- Maximum output power of 25.2W
- Not dimmable and has a Class 2/Class II certification, indicating it meets safety requirements for low voltage lighting systems as per the National Electrical Code (NEC)
- Compact dimensions of 90 x 60 x 30 mm (3.5 x 2.4 x 1.2 in)
- Suitable for use in both dry and damp locations
- Applicable for powering various types of LED lighting fixtures, both indoor and outdoor.
