Product Description

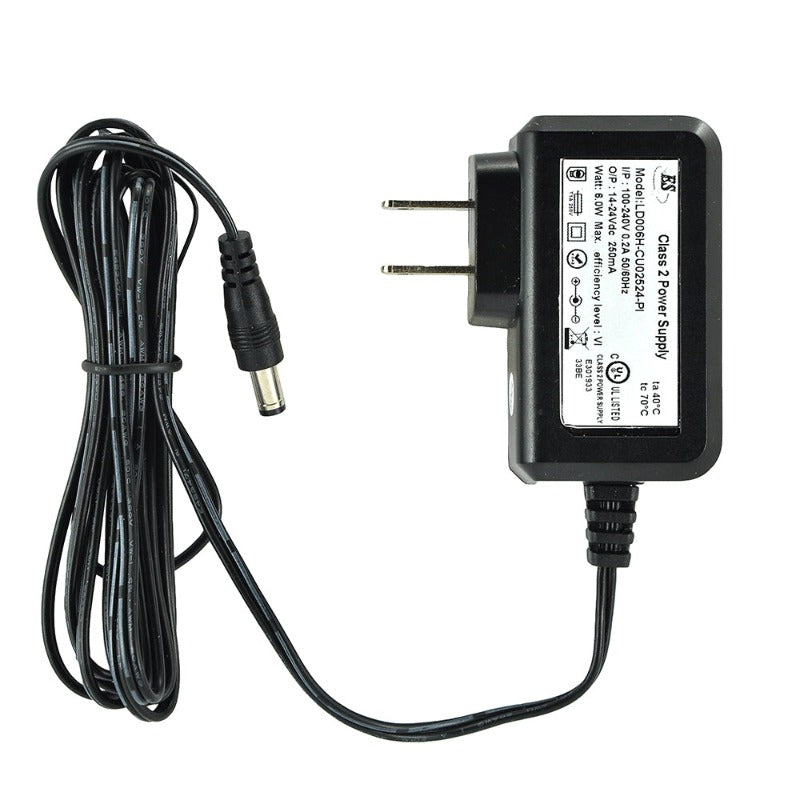

| Product | Non-dimmable Constant Current LED Driver |
| Model | LD006H-CU02524-PI |
| Input Voltage | 100-240V AC |
|
Input Current |
0.2A |
|
Frequency |
50/60Hz |
| Output Regulated Current | 250mA |
| Output Power | 6W |
| Output Voltage | 14-24V DC |
| Dimmable | No |
| Weight | 0.2 kg |
| Dimensions | 68 x 38 x 26 mm (2.68 x 1.5 x 1 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Suitable for DRY and DAMP locations |
| Short Circuit Protection |
Features:
- Non-dimmable constant current plug-in LED driver
- Input voltage range: 100-240V AC, input current of 0.2A, frequency of 50/60Hz
- Output regulated current of 250mA and output power of 6W
- Output voltage range of 14-24V DC for constant current output to LED lighting systems
- Dimensions of 68 x 38 x 26 mm (2.68 x 1.5 x 1 in)
- Class 2/Class II certified for double insulation protection and safe operation in applications with electrical conductors
- Suitable for use in dry and damp locations
- Equipped with short circuit protection to prevent damage to LED lighting system in case of faults
