Product Description
| Product | Non-dimmable Constant Current LED Driver |
| Model | LD-CU3536AF |
| Input Voltage | 100-240V AC |
| Input Current | 0.22A |
| Frequency | 50/60 Hz |

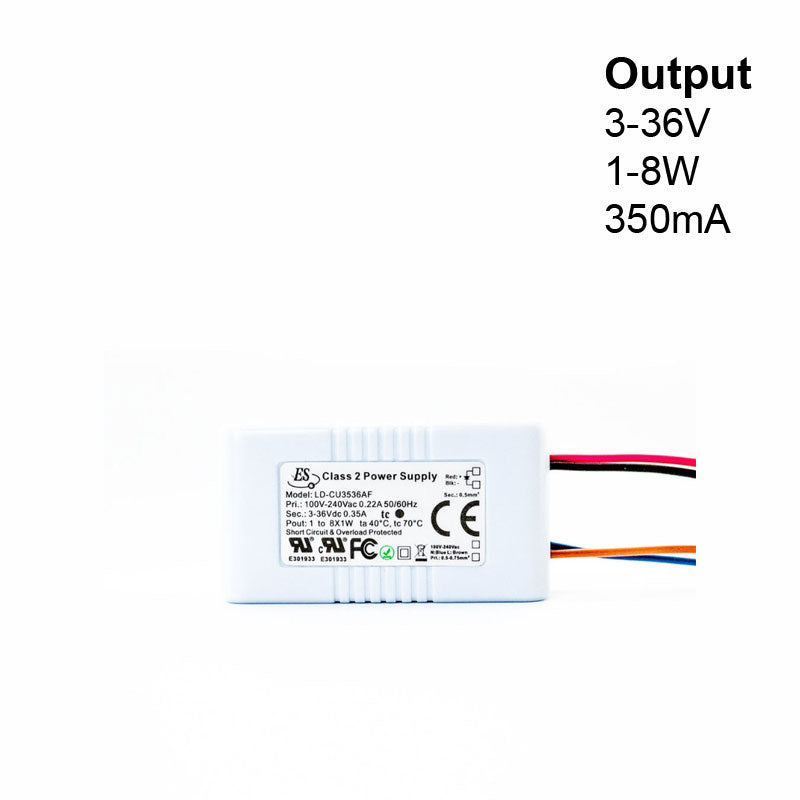

| Output Voltage | 3-36V DC |
| Output Regulated Current | 350mA |
| Output Power | 1-8W max |
| Dimmable | No |
| Weight | 0.1 kg |

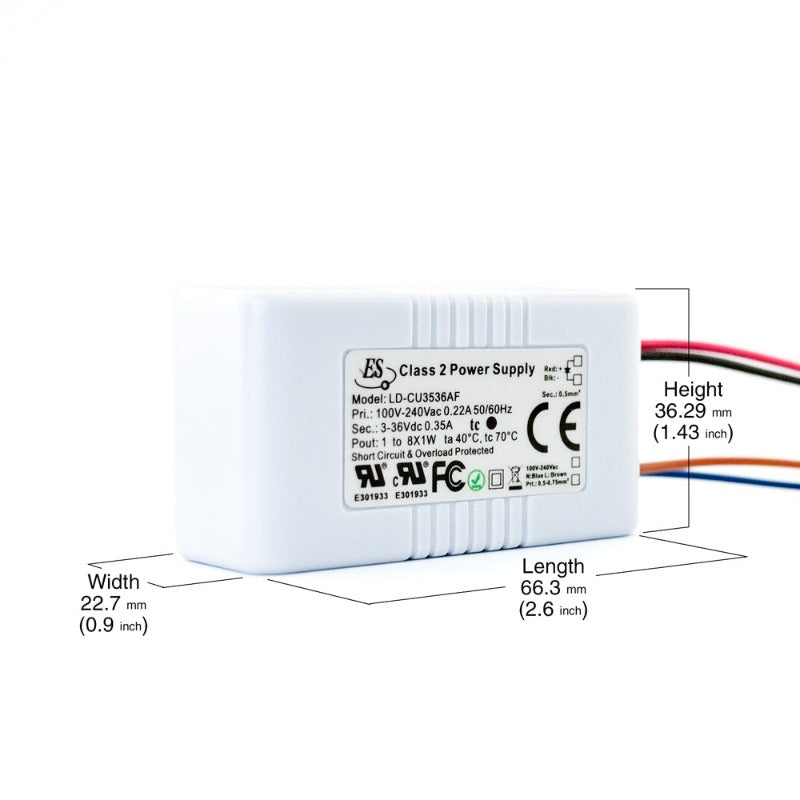

| Dimensions | 66.3 x 22.7 x 36.29 mm (2.6 x 0.9 x 1.43 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Short Circuit and Overload Protected |
| Applicable for dry and damp locations |
Features:
- Non-dimmable constant current LED driver
- Input voltage range of 100-240V AC and input current of 0.22A
- Output voltage range of 3-36V DC and output regulated current of 350mA
- Maximum output power of 1-8W
- Class 2/Class II certification for meeting safety requirements of NEC for low voltage lighting systems
- Compact dimensions of 66.3 x 22.7 x 36.29 mm (2.6 x 0.9 x 1.43 in) for easy installation
- Suitable for use in dry and damp locations
- Short circuit and overload protection for reliable and safe use
- Applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.
