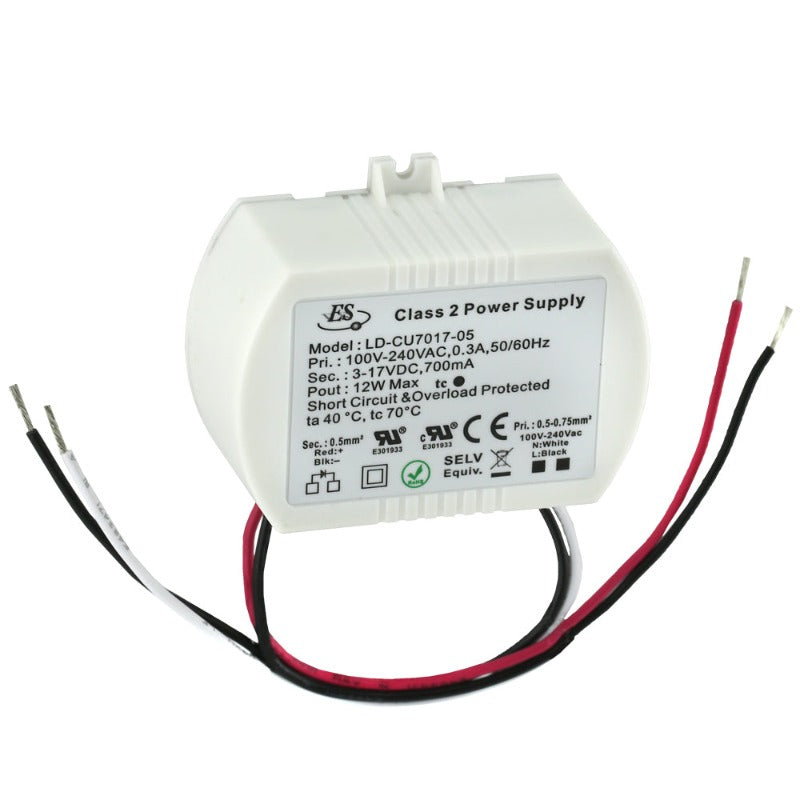

Product Description
| Product | Non-dimmable Constant Current LED Driver |
| Model | LD-CU7017-05 |
| Input Voltage | 100-240V AC |
| Input Current | 0.3A |
| Frequency | 50/60Hz |
| Output Regulated Current | 700mA |
| Output Power Max | 12W |
| Output Voltage Max | 3-17V DC |
| Dimmable | No |
| Weight | 0.15 kg |
| Dimensions | 65 x 45 x 28 mm (2.6 x 1.8 x 1.15 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Suitable for DRY and DAMP locations |
Features:
- Non-dimmable constant current LED driver for regulating and powering LED lighting systems
- Input voltage range of 100-240V AC and input current of 0.3A with a frequency of 50/60Hz
- Output regulated current of 700mA and maximum output power of 12W
- Output voltage range of 3-17V DC, suitable for use with a range of LED lighting fixtures
- Class 2/Class II certification, meeting safety requirements of the National Electrical Code (NEC) for low voltage lighting systems
- Compact dimensions of 65 x 45 x 28 mm (2.6 x 1.8 x 1.15 in)
- Suitable for use in both dry and damp locations
- Short circuit and overload protection for reliable and safe operation
- Applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.
