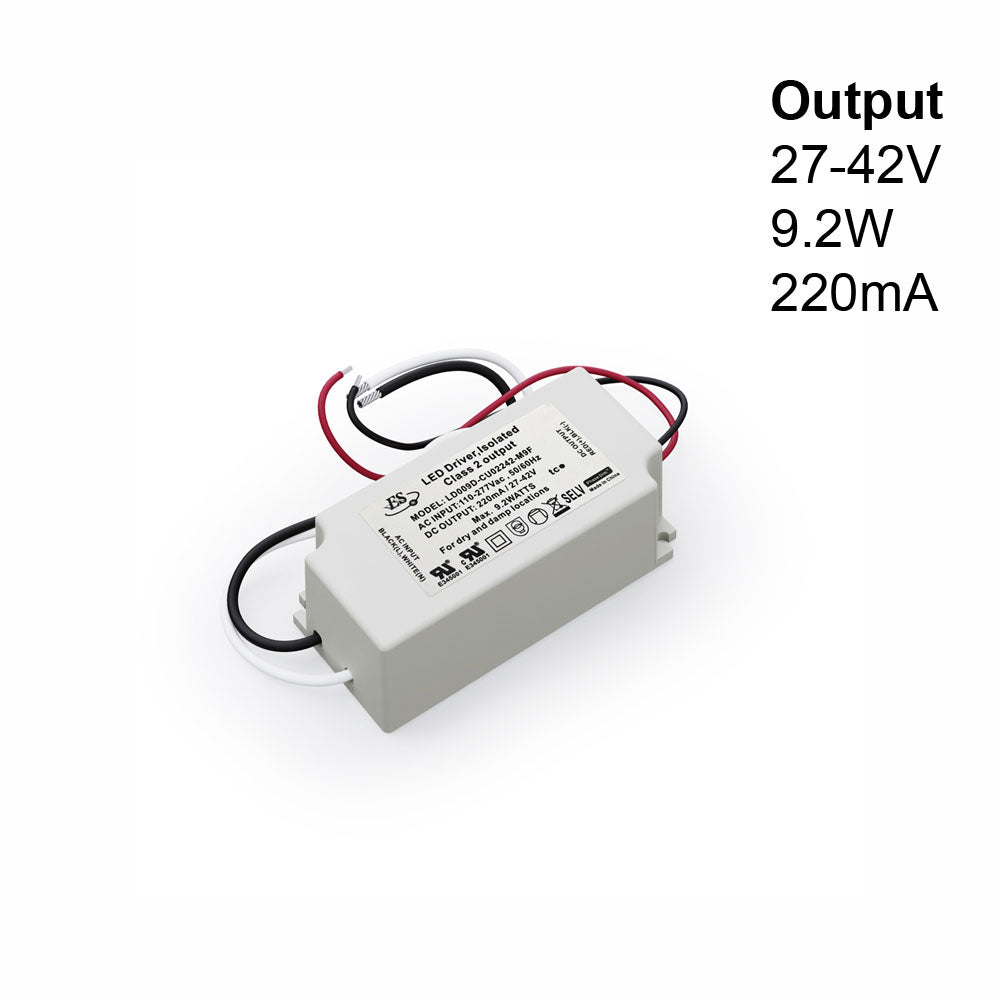

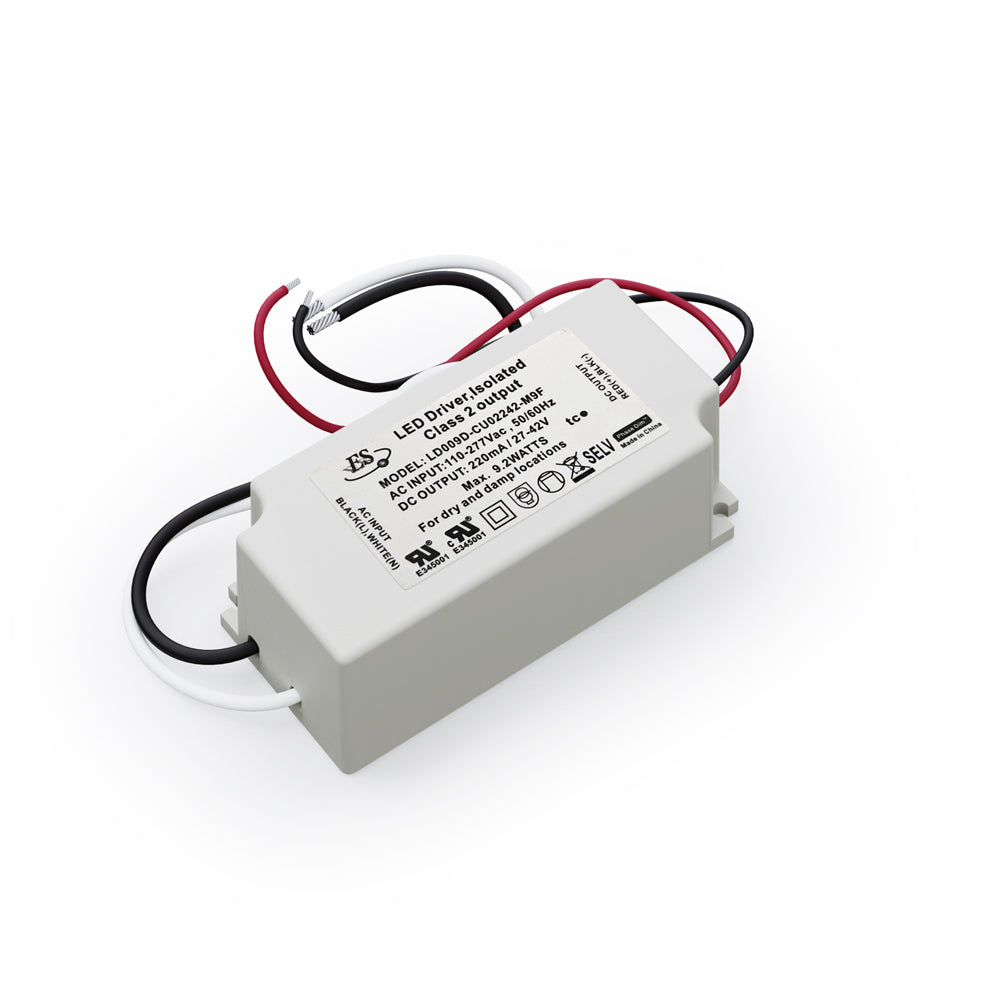

ES LD009D-CU02242-M9F Constant Current LED Driver, 220mA 27-42V 9.2W max

Name: ES LD009D-CU02242-M9F Constant Current LED Driver, 220mA 27-42V 9.2W max
Brand: ES LED Driver
SKU: 666561420444
Price: 42.60 CAD
Availability: InStock

Ask Question!

SKU: SKU:666561420444

$42.60 CAD

Sale Sold out

Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—

Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Quantity to add

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

10–24 items: 15% off
25–49 items: 18% off
50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Model	LD009D-CU02242-M9F
Input Voltage	110-277V AC
Input Frequency	60Hz
Output Voltage	27-42V DC
Output Regulated Current	220 mA
Output Power	9.2W max
Dimmable	Yes
Weight	0.3 kg

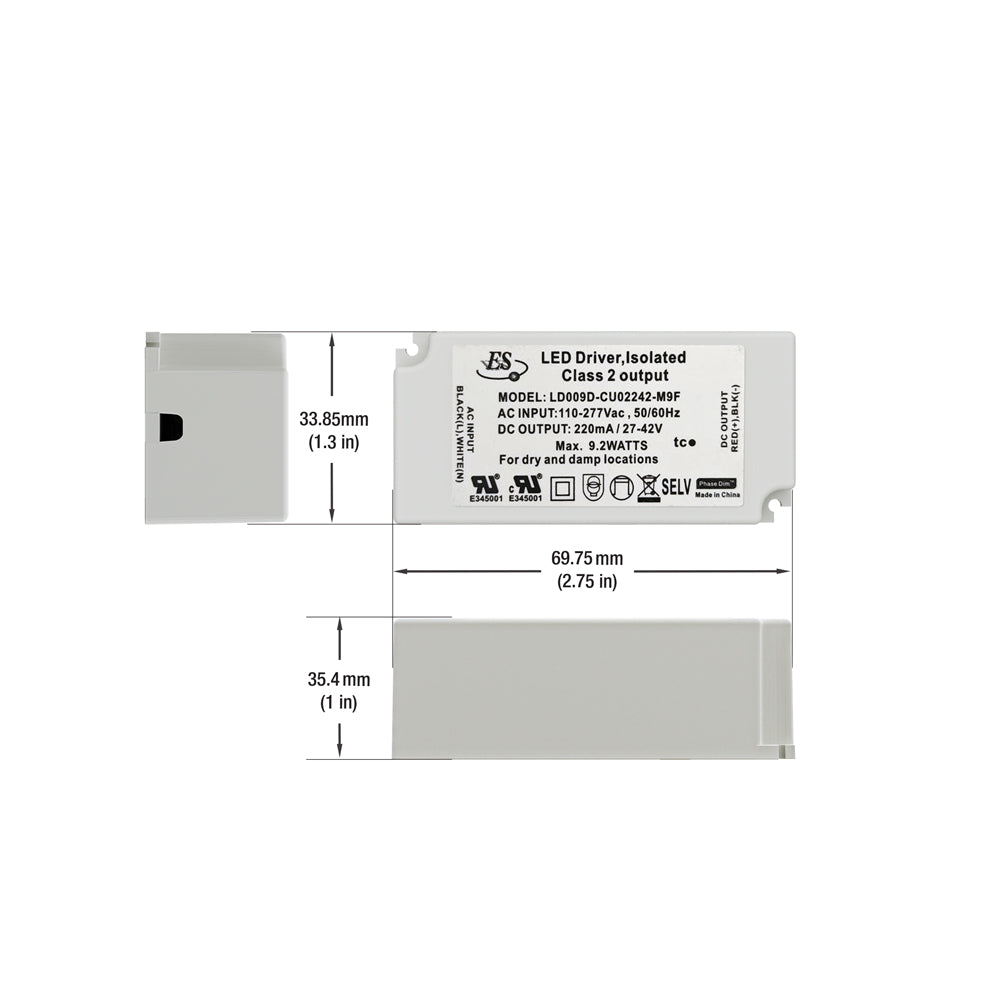

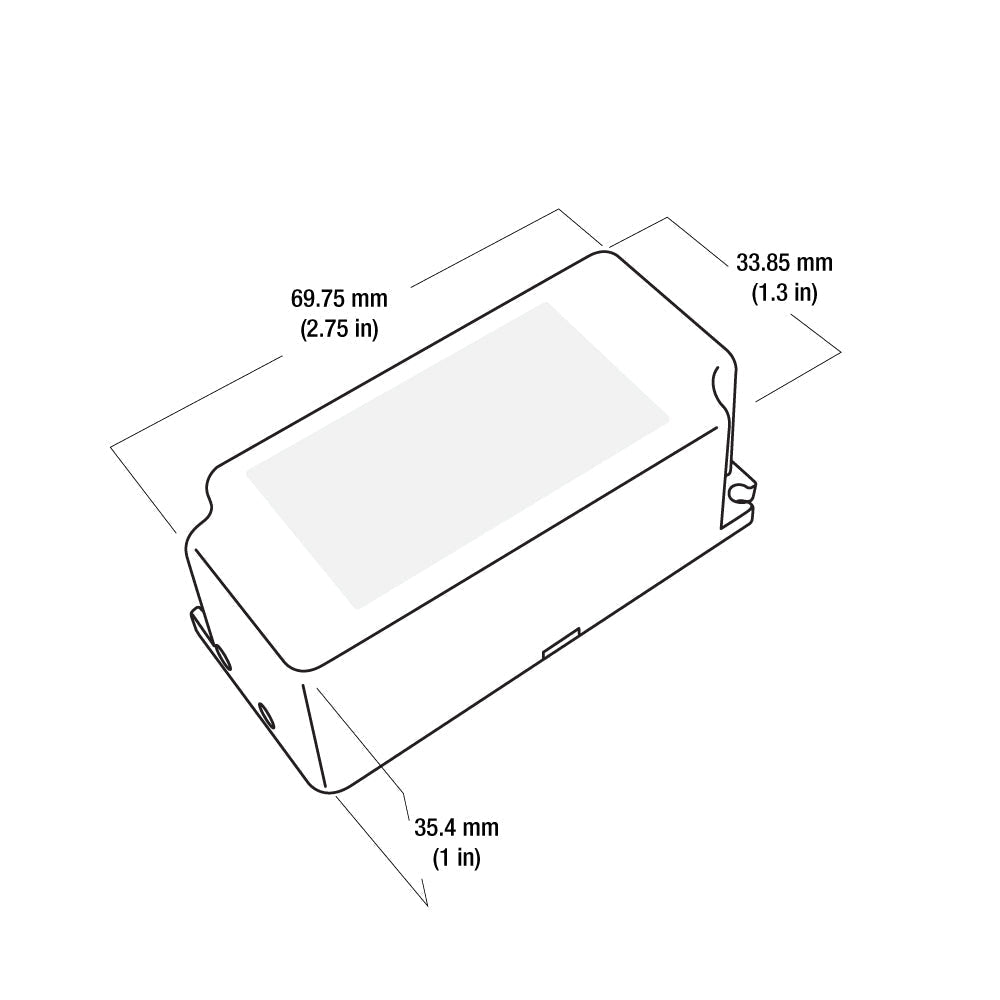

Dimensions	69.75 x 33.85 x 35.4mm (2.75 x 1.3 x 1in)
Class Certification	Class 2
Certifications

Applicable for dry and damp locations

Suitable for operation with main supply dimmer

Features:

ES LD009D-CU02242-M9F is a constant current LED driver for powering LED lighting fixtures
It has a regulated output current of 220mA with a maximum output power of 9.2W, suitable for use with LED lighting fixtures with power requirements up to 9 watts
The output voltage can vary between 27-42V DC, making it compatible with a wide range of LED lighting fixtures that require different voltages
The driver is dimmable, allowing easy adjustment of the brightness of the LED lighting fixtures as needed
It has Class 2 certification, indicating its suitability for use in locations where a grounded electrical system is not available
