ES LD020H-CU03556-15 Non-Dimmable Constant Current LED Driver, 350mA 36-56V 20W

ES LD020H-CU03556-15 Non-Dimmable Constant Current LED Driver, 350mA 36-56V 20W

SKU:666561425654

$74.20 CAD
$74.20 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Non-dimmable Constant Current LED Driver
Model LD020H-CU03556-15
Input Voltage 100-240V AC
Input Current 0.25A
Frequency 50/60Hz
Output Voltage 36-56V DC
Output Regulated Current 350mA
Output Power 10-20W
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 70°C
Dimmable No
Dimension 85 x 54 x 32mm
(3.35x2.12x1.27 in)
Class Certification Class 2/ Class II
Certifications

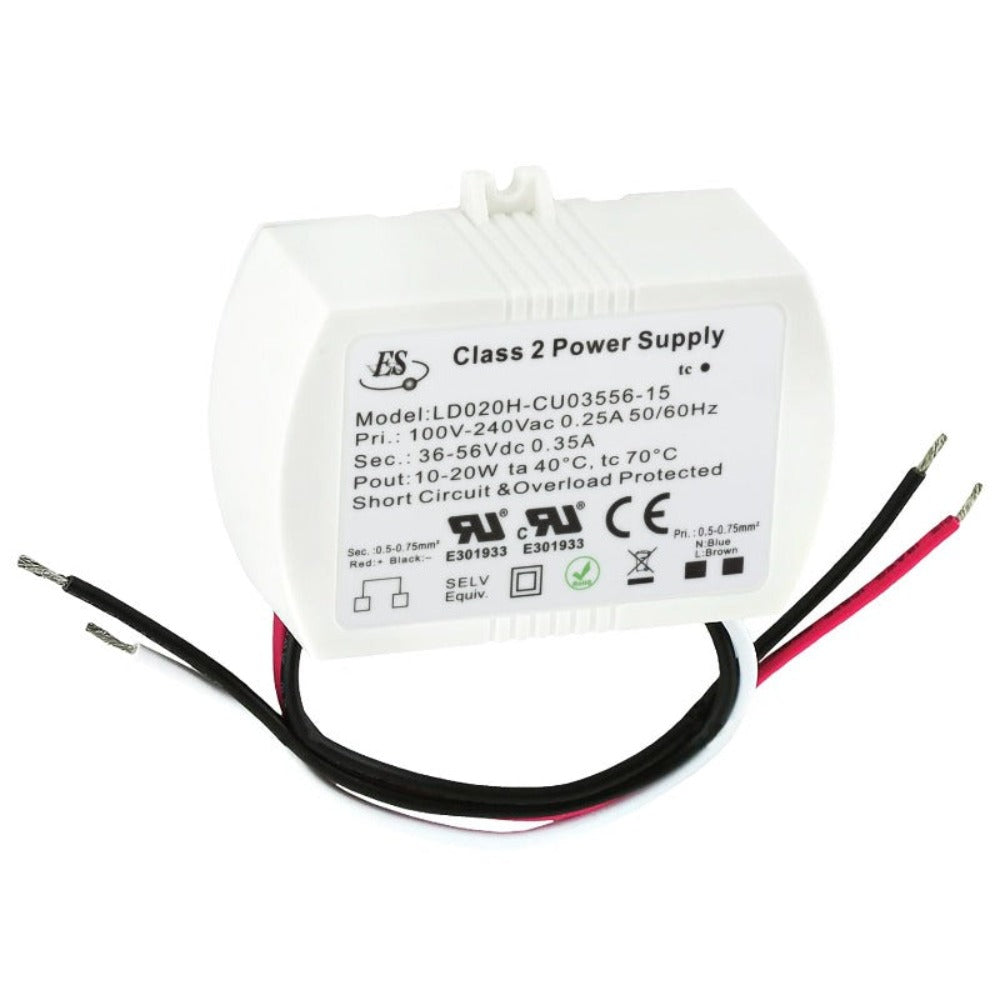

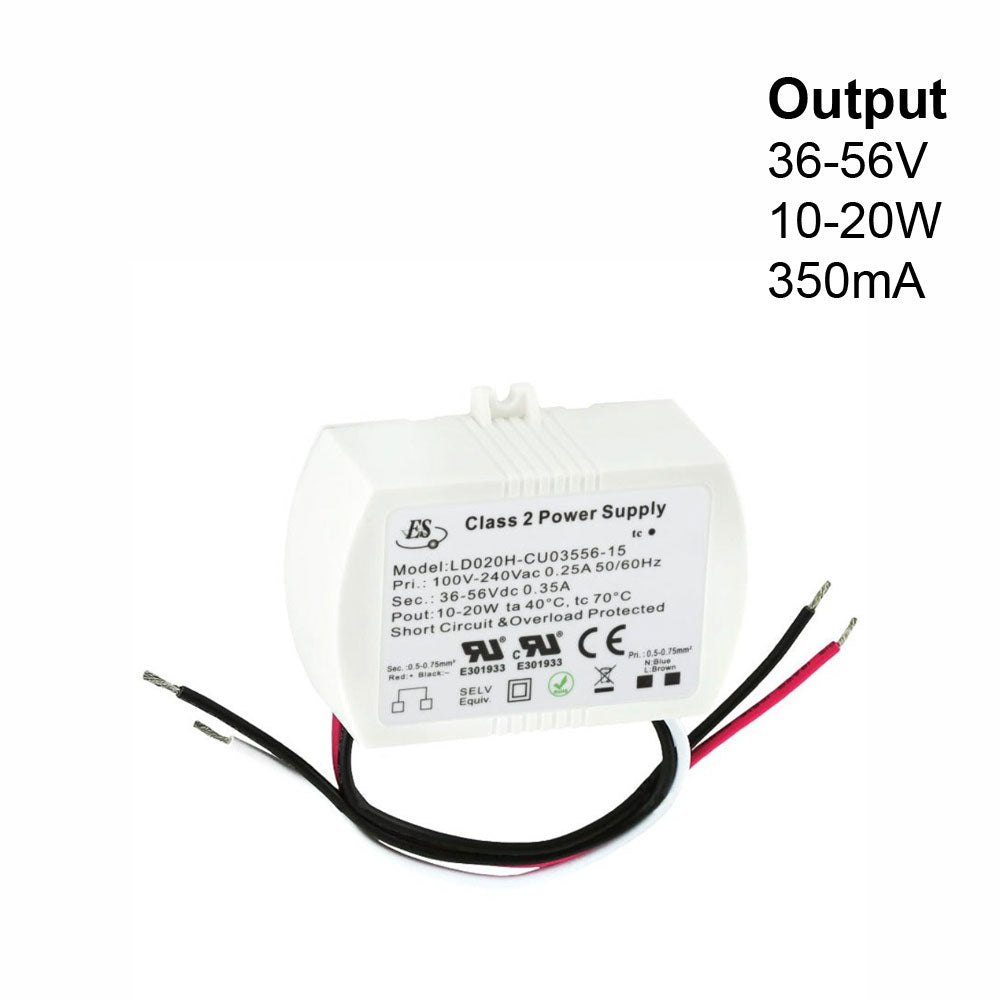

The ES LD020H-CU03556-15 is a non-dimmable constant current LED driver designed for use in dry and damp locations. This LED driver has an input voltage range of 100-240V AC, input current of 0.25A, and can operate at a frequency of 50/60Hz.

The LD020H-CU03556-15 LED driver has an output voltage range of 36-56V DC and a regulated output current of 350mA, making it suitable for powering LED lighting systems that require constant current output. The output power of this driver ranges from 10W to 20W, depending on the load requirements.

This LED driver is also equipped with short circuit and overload protection, which protects the LED lighting system from damage in case of faults. The LD020H-CU03556-15 LED driver is non-dimmable, meaning that it cannot be used to adjust the brightness of the connected LED lights.

Feature:

  • Non-dimmable constant current LED driver for use in dry and damp locations
  • Input voltage range of 100-240V AC, input current of 0.25A, and can operate at a frequency of 50/60Hz
  • Output voltage range of 36-56V DC and a regulated output current of 350mA, suitable for powering LED lighting systems that require constant current output
  • Output power ranges from 10W to 20W, depending on the load requirements
  • Ambient temperature (Ta) of 40°C and a case temperature (Tc) of 70°C

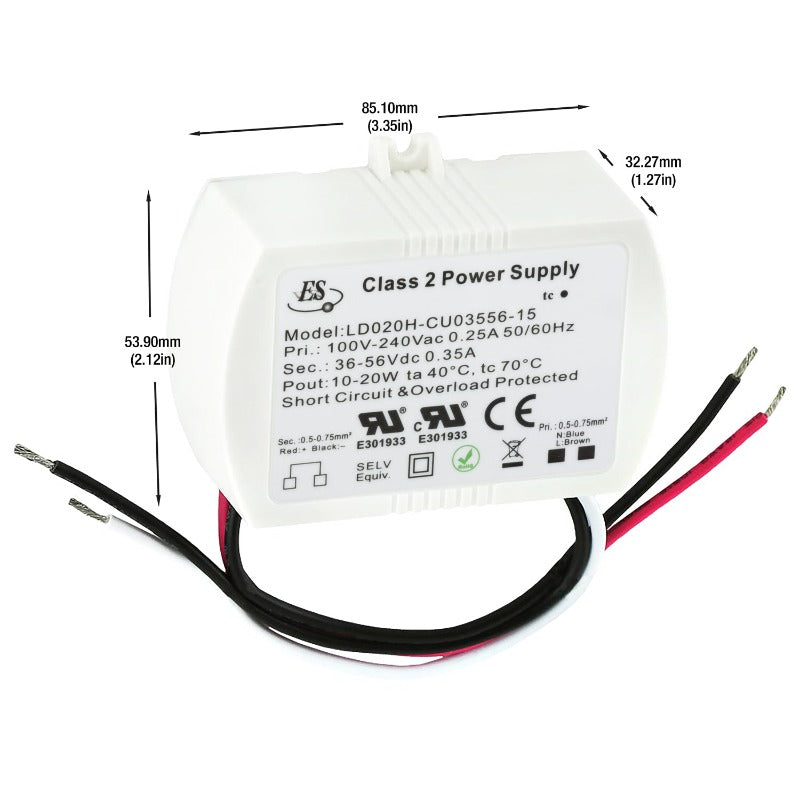

  • Dimensions of 85 x 54 x 32mm (3.35x2.12x1.27 in)
  • Class 2/Class II certified, providing double insulation protection and ensuring safe operation in applications where contact with electrical conductors is possible
  • Equipped with short circuit and overload protection, protecting the LED lighting system from damage in case of faults
  • Non-dimmable, cannot be used to adjust the brightness of the connected LED lights
