Product DescriptionÂ
Model | LD020H-VU16712-15 |
Input Voltage | 100-240V AC |
Input Current | 0.25A |
Frequency | 50/60Hz |
Output Voltage | 12V DC |
Output Regulated Current | 1.67A |
Output Power | 20W max |
Dimmable | No |
IP Rating | IP20 |

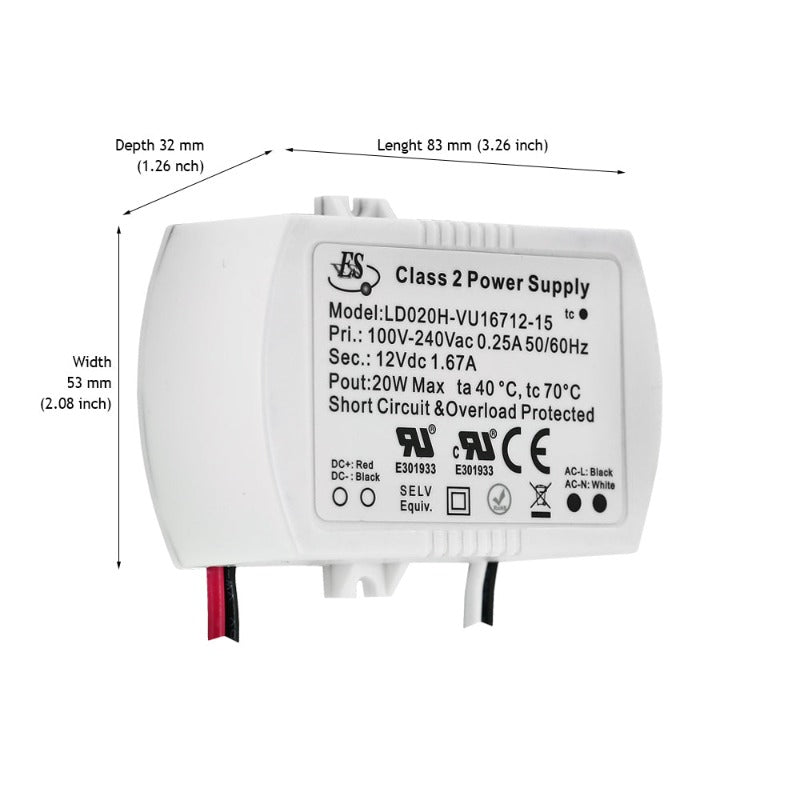

Dimensions | 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in) |
Class Certification | Class 2/ Class II |
Ambient temperature (Ta) | 40°C |
Case Temperature (Tc) | 70°C |
Certification |
|
Short Circuit and Overload Protected |
Applicable for dry and damp locations |
Â

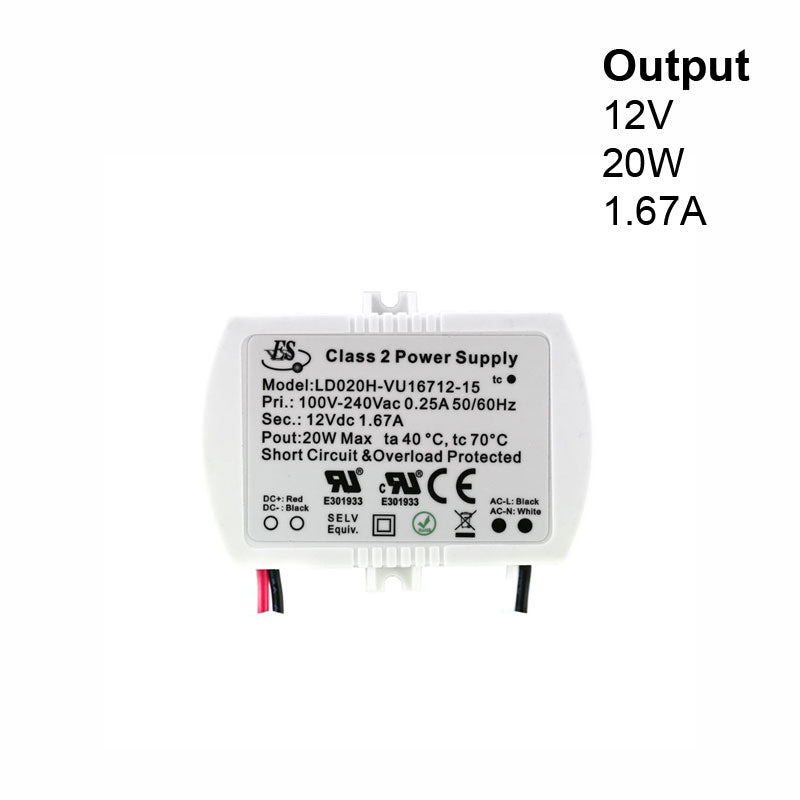

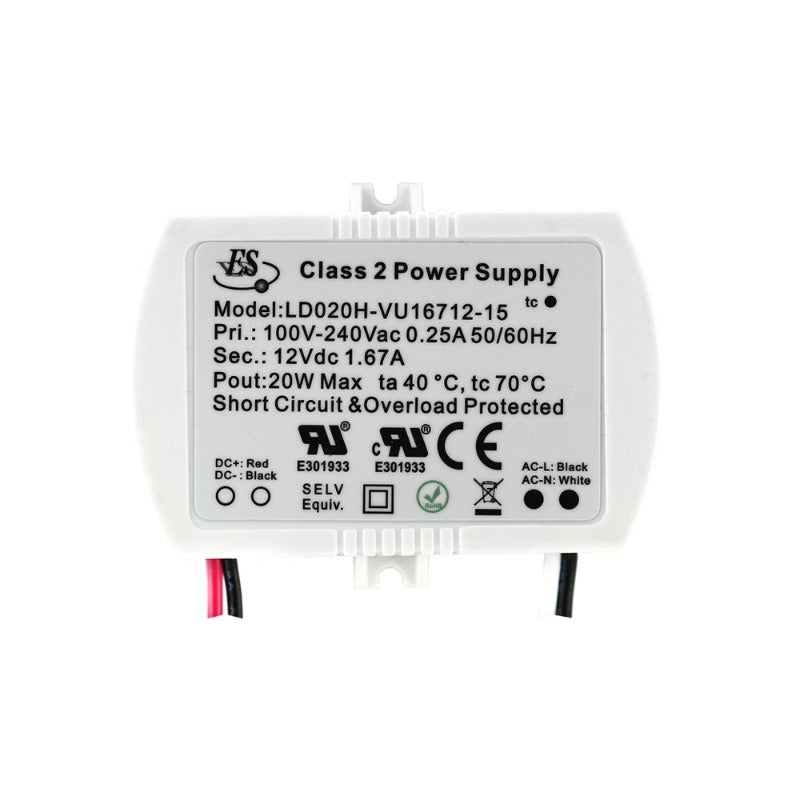

The ES LD020H-VU16712-15 Constant Voltage LED Driver is a high-quality and reliable power supply designed to provide a steady and efficient source of power to LED lighting systems. This LED driver has a model number of LD020H-VU16712-15, an input voltage range of 100-240V AC, and an input current of 0.25A with a frequency of 50/60Hz.
With a maximum output power of 20W, the device delivers a regulated output current of 1.67A and an output voltage of 12V DC. It is designed to be used in indoor environments with an IP20 rating, making it suitable for various LED lighting applications.
This LED driver is not dimmable and has dimensions of 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in), which make it easy to install in tight spaces. It is Class 2/Class II certified, indicating that it is designed for use with low voltage LED lighting fixtures.
The ES LD020H-VU16712-15 Constant Voltage LED Driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 70°C, ensuring that it operates efficiently even in high-temperature environments.
Overall, the ES LD020H-VU16712-15 Constant Voltage LED Driver is a reliable and high-quality device suitable for various LED lighting applications. It provides efficient performance and durability, making it an ideal choice for indoor LED lighting projects that require a constant voltage source.
Features:
- Provides a steady and efficient source of power to LED lighting systems
- Model number of LD020H-VU16712-15
- Input voltage range of 100-240V AC and input current of 0.25A with a frequency of 50/60Hz
- Maximum output power of 20W with regulated output current of 1.67A and output voltage of 12V DC
- Designed for indoor environments with an IP20 rating
- Not dimmable and has dimensions of 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in), making it easy to install in tight spaces
- Class 2/Class II certified for use with low voltage LED lighting fixtures
- Ambient temperature (Ta) of 40°C and case temperature (Tc) of 70°C for efficient operation in high-temperature environments
- Reliable and high-quality device suitable for various indoor LED lighting applications that require a constant voltage source.
