Selectable Constant Current 10W LED Driver 0-10V Dim PUP10A-1WMC-700 , 120VAC-277VAC 350 to 700mA

Selectable Constant Current 10W LED Driver 0-10V Dim PUP10A-1WMC-700 , 120VAC-277VAC 350 to 700mA

SKU:666561428372

$91.84 CAD
$91.84 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

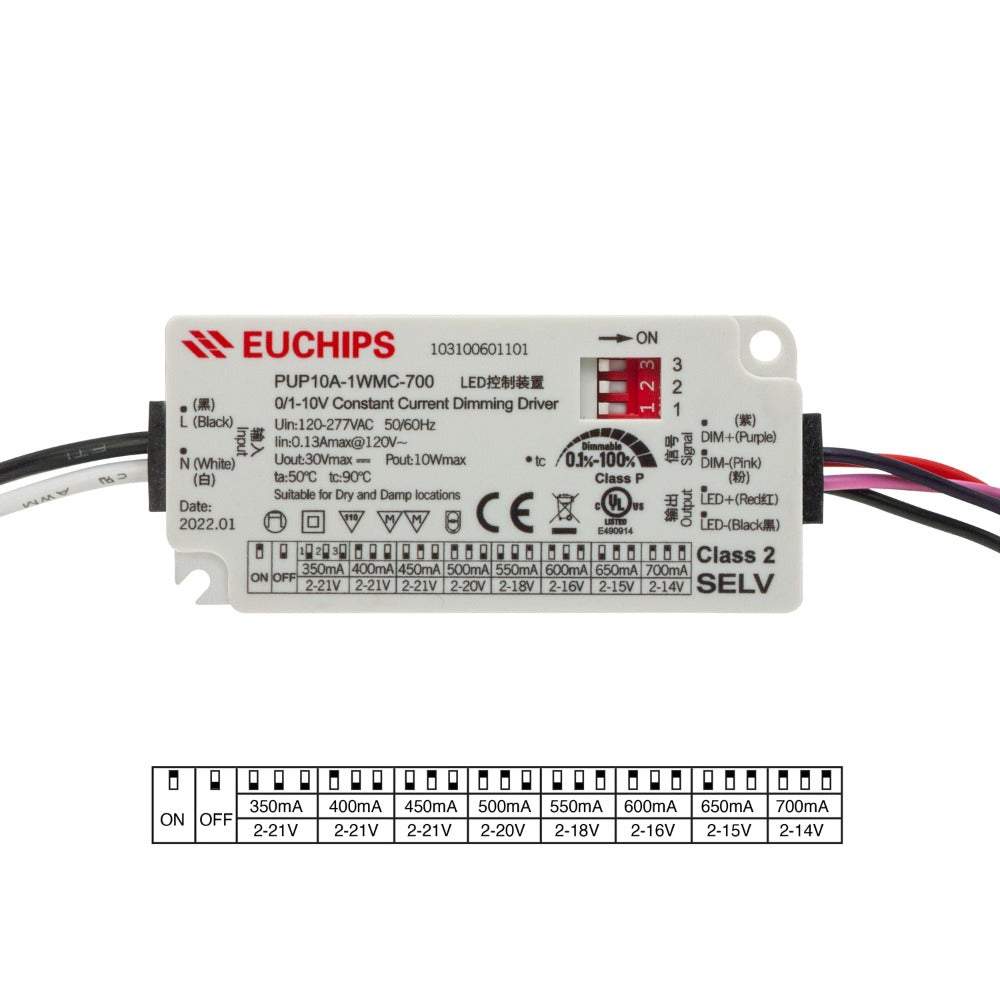

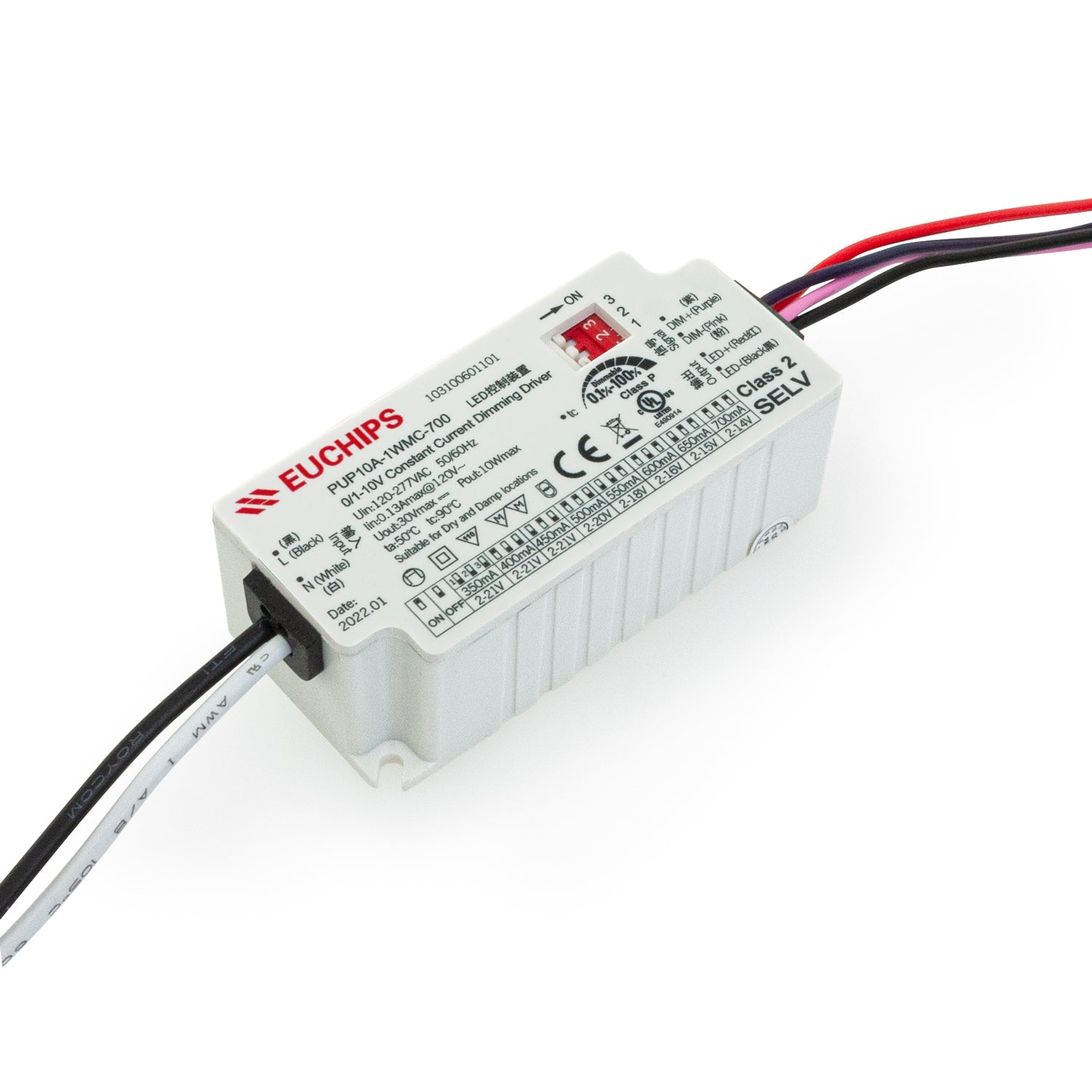

Product Constant Current LED Driver with Selectable Current
Model PUP10A-1WMC-700
Input Voltage 120-277VAC
Input Current 0.6Amax@120VAC

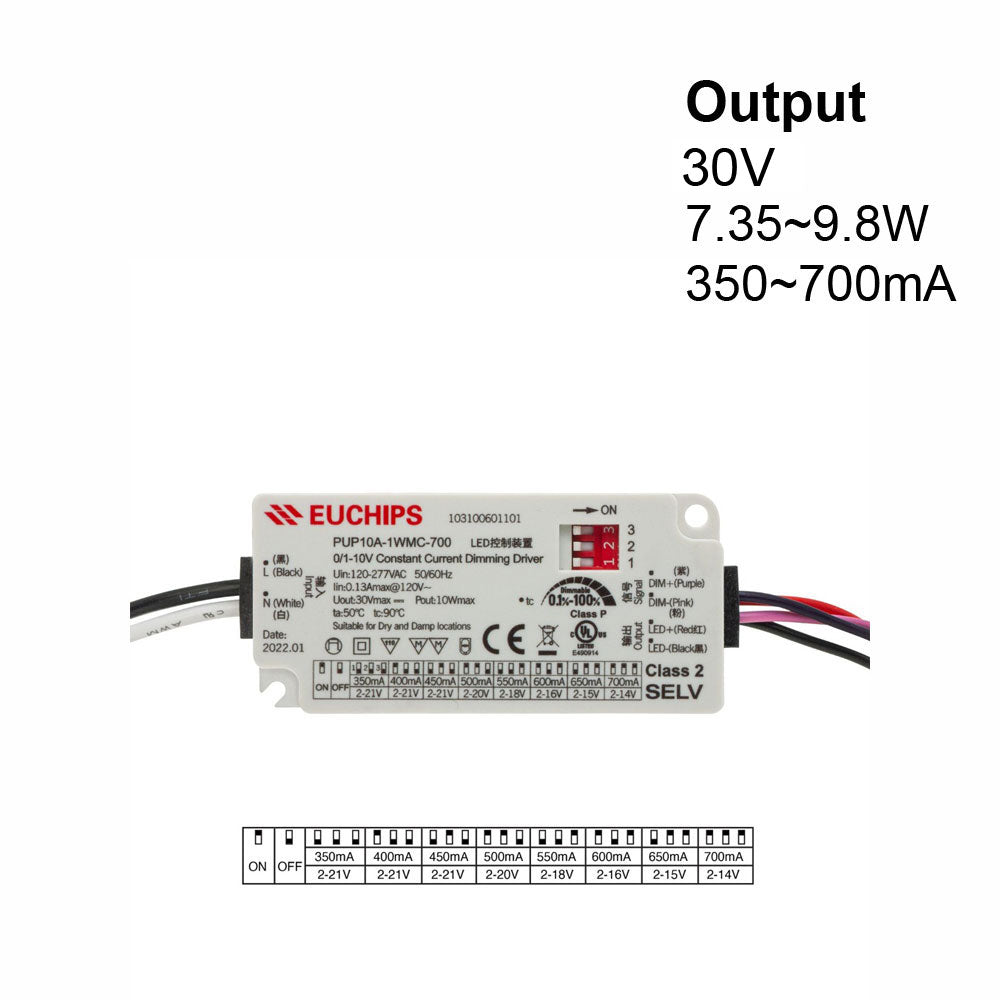

Output Current/Voltage/Power 350mA/2-21V/7.35W
400mA/2-21V/8.4W
450mA/2-21V/9.45W
500mA/2-20V/10W
550mA/2-18V/9.9W
600mA/2-16V/9.6W
650mA/2-15V/9.75W
700mA/2-14V/9.8W
No-load Output Voltage 30V Max
Input Frequency  50/60Hz
Dimming Type  0/1-10V(Type A)
Dimming Range 0.1%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency >87%@120VAC, Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

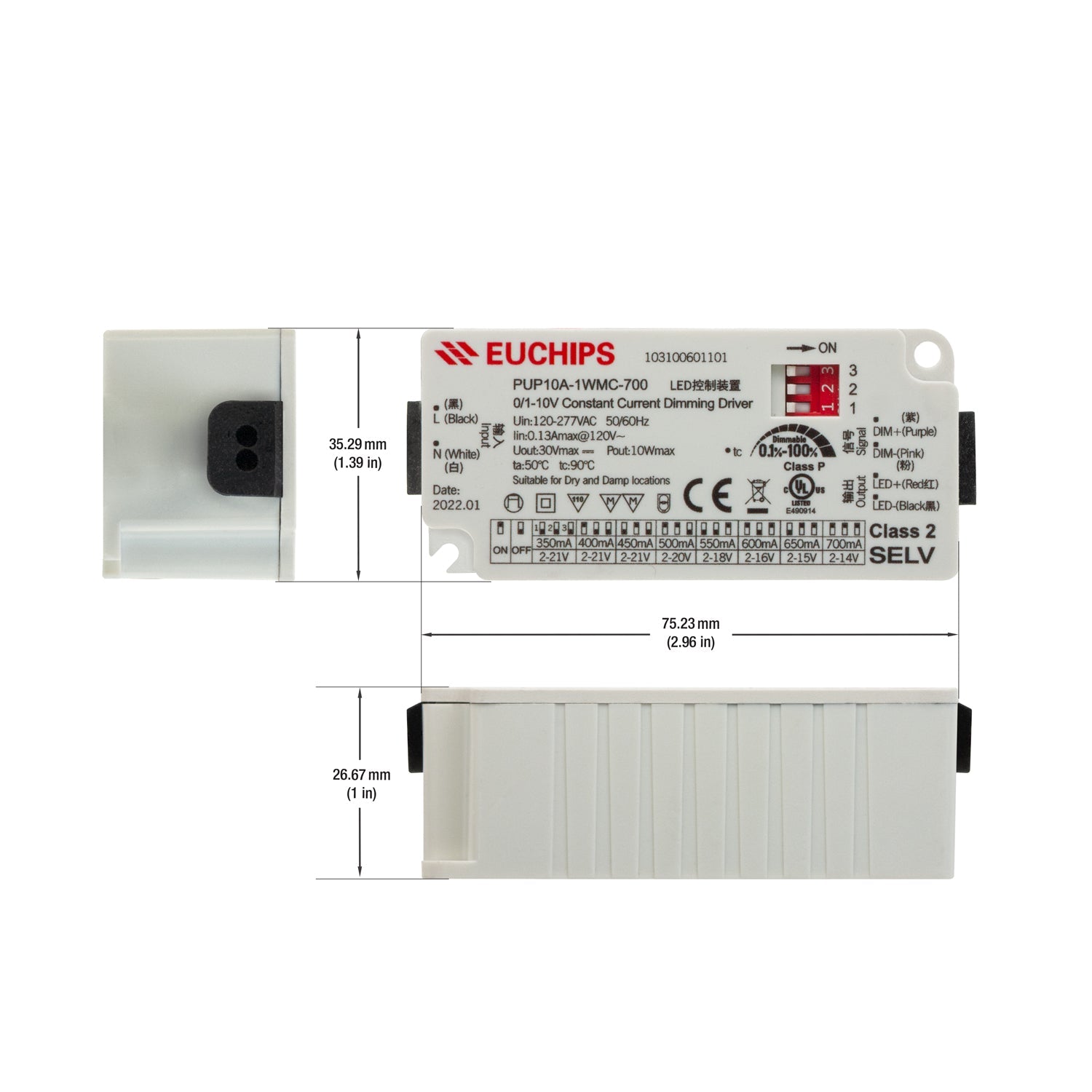

Dimensions 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
Certifications


The PUP10A-1WMC-700 is a selectable constant current LED driver that operates on an input voltage range of 120-277VAC, with a maximum input current of 0.6A at 120VAC. It is designed to provide a constant current output ranging from 350 to 700mA, with a corresponding output voltage range of 2-21VDC and a maximum power output of 10W.

This LED driver is designed with 0/1-10V Type A dimming technology, which allows for smooth dimming from 0.1% to 100% and dimming to off. The driver is rated for use in both dry and damp locations with an IP20 rating. The efficiency of the driver is greater than 87% at full load.

The PUP10A-1WMC-700 LED driver has a maximum no-load output voltage of 58V and operates on a frequency of 50/60Hz. It has a working temperature range of -20℃ to 50℃, and a lifetime of up to 50,000 hours when operated at a maximum case temperature of 85℃. The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).

Features:

  • The PUP10A-1WMC-700 is a selectable constant current LED driver designed to operate with an input voltage range of 120-277VAC.
  • It can deliver a constant current output ranging from 350 to 700mA, with a corresponding output voltage range of 2-21VDC and a maximum power output of 10W.
  • This LED driver uses 0/1-10V Type A dimming technology, which allows for smooth dimming from 0.1% to 100% and dimming to off.
  • The driver has an IP20 rating, making it suitable for use in both dry and damp locations.
  • The efficiency of the driver is greater than 87% at full load and has a maximum no-load output voltage of 58V.
  • The driver operates on a frequency of 50/60Hz and has a working temperature range of -20℃ to 50℃.
  • It has a lifetime of up to 50,000 hours when operated at a maximum case temperature of 85℃.
  • The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).
